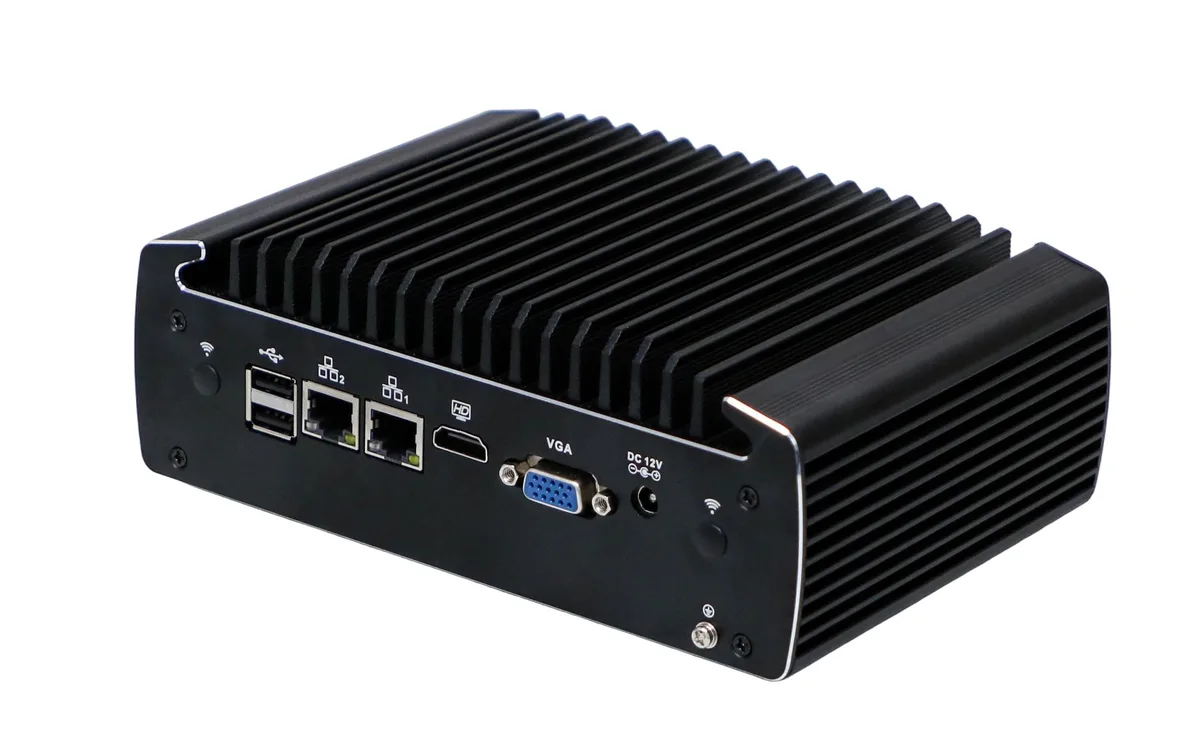

Black fanless aluminum mini PC, compact rectangular box with front ports and rear I/O

partaker

partaker B6 barebone mini PC i5-6300U 16GB 512GB

SKU CH-Z8PX-40J31

Fanless industrial mini PC with Intel Core i5-6300U, 16 GB DDR4, 512 GB storage, dual LAN, dual display, and wide-temperature operation

  • ColorBlack
  • CPU TypeIntel Core i5 6th Gen

B6 CPU I5 6300U DDR4 16GB RAM / 512GB SSD

  • Silent fanless aluminium chassis runs without noise
  • Dual-core i5-6300U reaches 3.0 GHz turbo
  • 16 GB DDR4 memory and 512 GB storage included
  • Dual Gigabit LAN plus six USB ports for connectivity
  • Dual VGA and HDMI outputs drive two displays

Industrial Fanless Mini PC

The Partaker B6 is a compact, fanless mini PC built around an Intel Core i5-6300U processor with 2 cores and 4 threads. It arrives with 16 GB of DDR4 memory and a 512 GB SSD installed. The aluminium alloy chassis runs silently and is rated for industrial temperature ranges when an industrial SSD is used. It targets integrators and OEMs deploying edge, kiosk or automation workloads that demand zero moving parts and wide operating temperatures.

I/O and Expansion Limits

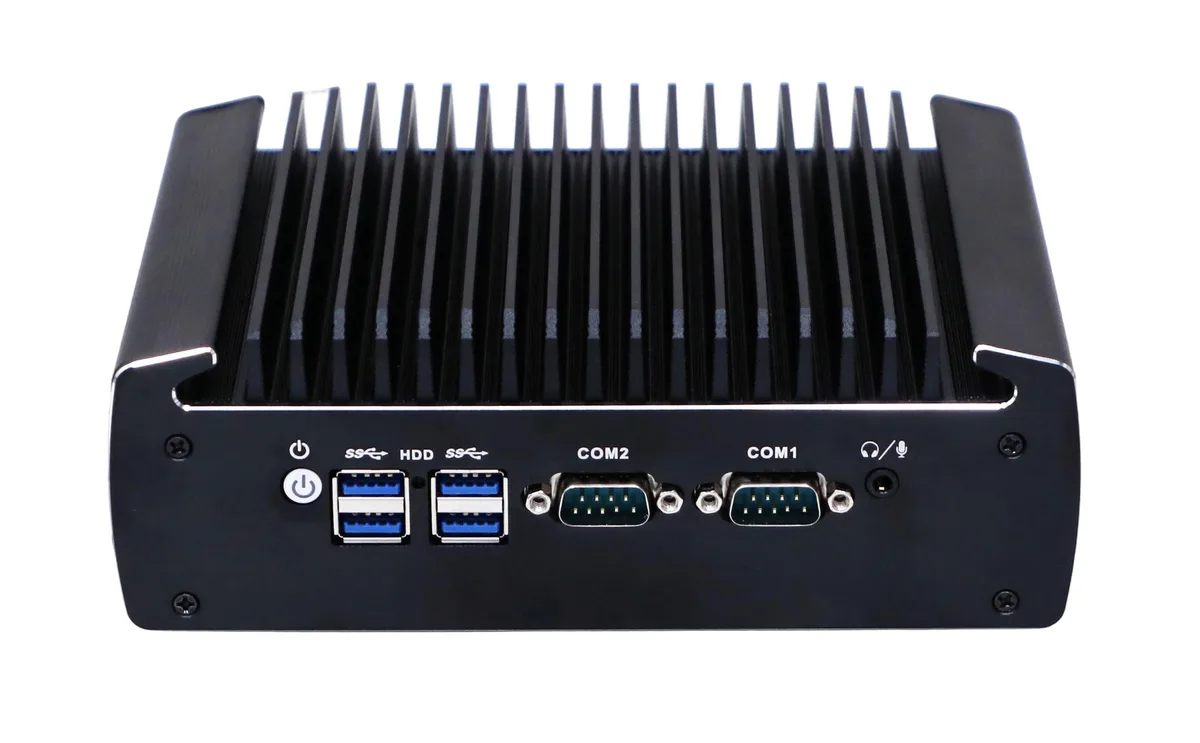

Dual Gigabit LAN ports use RTL8111H controllers for wired networking. Video output is provided by one VGA and one HDMI port, with HDMI supporting up to 3280x2000 at 60 Hz. Six USB ports are split between four USB 3.0 and two USB 2.0. Two COM ports handle RS232/485 serial duties. Internal expansion includes one M.2 2280 slot compatible with SATA and NVMe at PCIe 3.0 x1, plus a Mini PCIe slot with a SIM card holder for cellular modules. GPIO and extra USB 2.0 headers are optional and not included by default.

Memory and Storage Decider

The system has a single DDR4 SO-DIMM slot limited to 16 GB maximum, so the pre-installed 16 GB module already saturates the memory ceiling. Storage flexibility comes from the M.2 2280 slot and a 2.5-inch drive bay, allowing a second SATA drive or an NVMe SSD alongside the supplied 512 GB unit. Buyers who need more than 16 GB of RAM must choose a different platform.

주요 특징

  • Silent fanless aluminium chassis runs without noise
  • Dual-core i5-6300U reaches 3.0 GHz turbo
  • 16 GB DDR4 memory and 512 GB storage included
  • Dual Gigabit LAN plus six USB ports for connectivity
  • Dual VGA and HDMI outputs drive two displays

사양

ColorBlack
CPU TypeIntel Core i5 6th Gen

이 모델의 다른 버전

같은 라인업에서 4개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

Should I pick the 16 GB DDR4 and 512 GB SSD configuration or add a 2.5-inch drive later?

The unit ships with 16 GB DDR4 in the single slot and a 512 GB M.2 2280 drive; the 2.5-inch bay is empty for extra storage.

What does the i5-6300U turbo of 3.0 GHz deliver in daily workloads?

Dual-core four-thread Skylake CPU runs at 2.4 GHz base and bursts to 3.0 GHz for responsive office, web and light industrial tasks.

Does the M.2 2280 slot run at PCIe 3.0 x1 or SATA speeds?

The slot supports both NVMe PCIe 3.0 x1 and SATA M.2 2280 drives, so peak throughput depends on the drive you install.
