Gray fanless aluminum mini PC, compact rectangular shape, matte anodized finish

partaker

partaker I21 i5-8500T 16GB 512GB barebone mini PC

SKU CH-S6TQ-DFRJZ

Fanless aluminium mini PC with an Intel Core i5-8500T, 16 GB DDR4 and a 512 GB M.2 drive, offering dual LAN, six COM ports and triple-display output for industrial use

  • ColorGray
  • CPU TypeIntel Core i5 8th Gen

CPU Type Intel Core i5

Group 16GB RAM / 512GB SSD

  • Fanless aluminium chassis keeps operation silent and reliable
  • Intel Core i5-8500T six-core CPU reaches 3.5 GHz for responsive workloads
  • Dual 1000M LAN ports provide redundant wired connectivity
  • 16 GB DDR4 memory with room to expand to 32 GB supports smooth multitasking
  • 512 GB M.2 storage plus optional 2.5-inch bay offers flexible capacity

Industrial fanless mini PC

The Partaker I21 is a fanless barebone mini PC built around an onboard Intel Core i5 8500T with six cores and six threads running at a base 2.1 GHz and up to 3.5 GHz. It ships with 16 GB of DDR4 memory and a 512 GB SSD installed. The aluminium chassis uses surface anodic oxidation for durability and silent operation in industrial or embedded deployments.

Aluminium chassis with versatile mounting

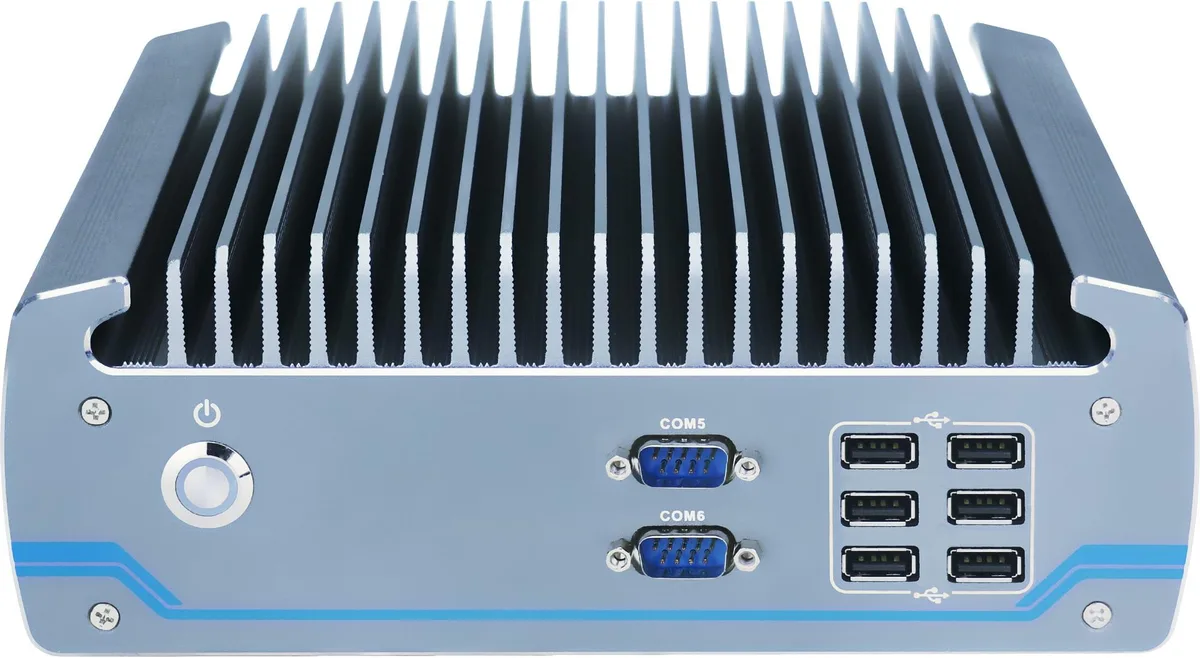

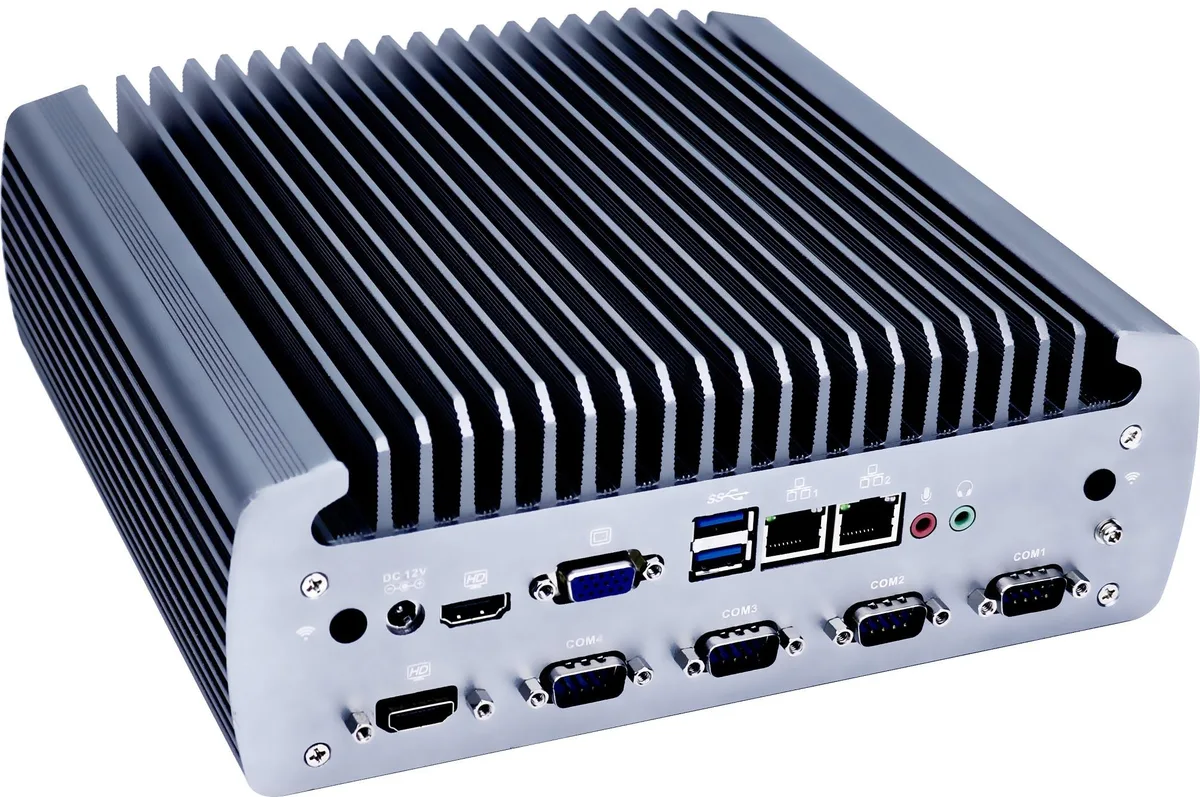

The all-aluminium body supports desktop, embedded or wall-mount installation. Front I/O provides six USB 2.0 ports, two COM ports and a metal power switch. Rear I/O adds two USB 3.0 ports, dual Intel gigabit LAN, one VGA, two HDMI, audio line-out, mic, line-in, four additional COM ports with optional RS232/RS422/RS485 on COM 2, a DC jack, GPIO with four inputs and four outputs, plus a Mini PCIe slot for wireless expansion.

Silent thermal design with wide voltage input

Fanless convection cooling keeps the system silent across a commercial operating range of 0 to 50 °C and an industrial range of -20 to 60 °C with an SSD. The board accepts DC 12 to 19 V input with an optional 9 to 36 V range. Features include auto power-on, timed boot, Wake on LAN, PXE boot and a 0 to 255 level watchdog for unattended reliability.

주요 특징

  • Fanless aluminium chassis keeps operation silent and reliable
  • Intel Core i5-8500T six-core CPU reaches 3.5 GHz for responsive workloads
  • Dual 1000M LAN ports provide redundant wired connectivity
  • 16 GB DDR4 memory with room to expand to 32 GB supports smooth multitasking
  • 512 GB M.2 storage plus optional 2.5-inch bay offers flexible capacity

사양

ColorGray
CPU TypeIntel Core i5 8th Gen

이 모델의 다른 버전

같은 라인업에서 5개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What practical throughput do the two RTL8111E 1000M LAN ports deliver?

Each port negotiates at 1000 Mbit/s, so large file transfers typically reach the low 100 MB/s range per port under normal network conditions.

What physical mounting options and clearances does the 4.0 kg aluminum chassis require?

The unit supports desktop, wall-mount and embedded installation; allow space around the finned case for passive airflow and secure the optional bracket to a solid surface.

How is the DC 12-19 V power connected, and what wiring mistake causes a no-boot condition?

Plug the barrel jack into the rear DC-in; reversing polarity or using a supply outside the 12-19 V range will prevent the system from starting.
