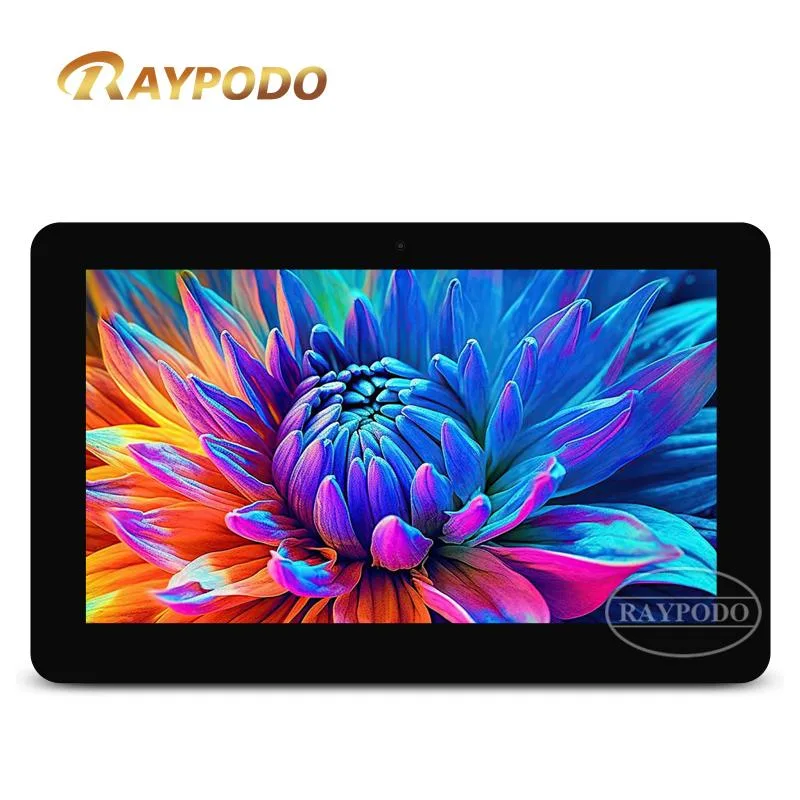

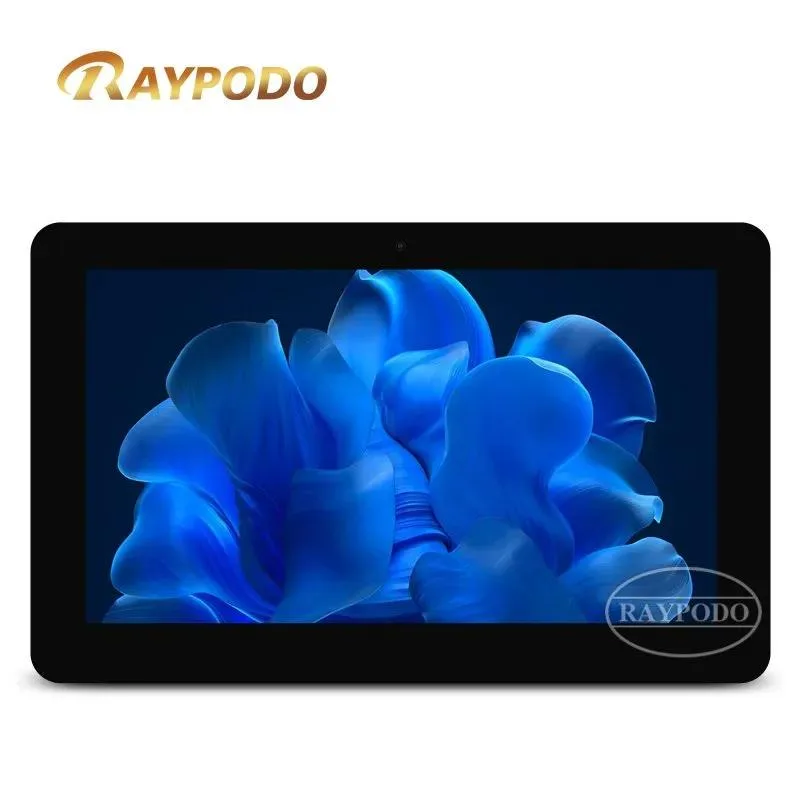

Black 14-inch all-in-one PC with 10-point capacitive touchscreen and wall-mount POE

RAYPODO

RAYPODO 14" RK3568 2GB 32GB Android 11 POE All-in-One PC

SKU CH-93B5-876J2

14-inch 1920×1080 IPS touchscreen Android 11 all-in-one PC with RK3568 quad-core, 2 GB LPDDR4X, 32 GB eMMC, POE via RJ45 and HDMI output

  • Screen Size14"
  • Screen Resolution1920*1080
  • TouchscreenYes
  • Screen Type10-Point capacitive touch, LCD IPS panel
  • Display Feature14" 1920*1080 IPS, 10-Point capacitive touch, Normally black
  • CPU NameRK3568

Chipset RK3568

Memory 2GB+32GB

  • Quad-core RK3568 up to 2.0 GHz delivers responsive Android 11 performance
  • 14" 1920×1080 IPS panel with 10-point capacitive touch for precise interaction
  • PoE via RJ45 supplies power and data over one cable for clean wall mounting
  • 2 GB LPDDR4X/LPDDR4 plus 32 GB eMMC storage handles commercial signage workloads
  • HDMI output plus Gigabit Ethernet and Wi-Fi enable flexible display connectivity

Commercial All-in-One Display

The RAYPODO 14-inch all-in-one PC combines a quad-core RK3568 processor, 2 GB LPDDR4X memory and 32 GB eMMC storage with a 1920 x 1080 IPS touchscreen. It runs Android 11 and draws power and data through a single RJ45 PoE connection, so no separate power supply or battery is required. The unit is built for continuous indoor operation in digital-signage and kiosk roles.

Fixed Indoor Installations Only

This device suits integrators deploying wall-mounted displays that run 24/7 on wired Ethernet infrastructure. It is not for users who need a portable tablet with battery backup, Wi-Fi-only connectivity, or consumer-grade Android apps. Buyers requiring more than 32 GB of local storage or a desktop operating system should look at alternative form factors.

Single-Cable PoE Power

The defining specification is the RJ45 Power-over-Ethernet input, which delivers both electricity and network data over one cable. Confirm that your site provides PoE-enabled switching or an injector before ordering, because the unit has no DC jack and cannot operate without a powered Ethernet link.

주요 특징

  • Quad-core RK3568 up to 2.0 GHz delivers responsive Android 11 performance
  • 14" 1920×1080 IPS panel with 10-point capacitive touch for precise interaction
  • PoE via RJ45 supplies power and data over one cable for clean wall mounting
  • 2 GB LPDDR4X/LPDDR4 plus 32 GB eMMC storage handles commercial signage workloads
  • HDMI output plus Gigabit Ethernet and Wi-Fi enable flexible display connectivity

사양

Screen Size14"
Screen Resolution1920*1080
TouchscreenYes
Screen Type10-Point capacitive touch, LCD IPS panel
Display Feature14" 1920*1080 IPS, 10-Point capacitive touch, Normally black, 250cd/m2, 16:9
CPU NameRK3568
CPU TypeQuad-core Cortex-A55 up to 2.0GHz
Installed Qty1
Turbo Frequency2.0GHz
CPU Main FeaturesRK3568 Quad-core Cortex-A55 up to 2.0GHz
Memory Capacity2GB
Form FactorAll-in-One
Memory Spec2GB LPDDR4X/LPDDR4
SSD32GB EMMC
HDD32GB EMMC
HDD InterfaceEMMC
Storage Spec2GB+32GB
GPU/VGA TypeMali-G52-2EE
Graphics CardMali-G52-2EE
Graphics InterfaceMali-G52-2EE
WLAN802.11b/g/n
ModemWiFi 802.11b/g/n, Bluetooth 5.0
LAN Speed100M/1000M
BluetoothBluetooth 5.0
BrandRaypodo
TypeWall-mounted All in one PC, POE Tablet
UsageElectronic displays, Wall-mounted commercial use
AI FeaturesSupport 1T NPU
ColorBlack
ProcessorRK3568
Processor Main FeaturesQuad-core Cortex-A55 up to 2.0GHz, Support 1T NPU
Memory2GB LPDDR4X/LPDDR4
Storage32GB EMMC
GraphicsMali-G52-2EE
Audio2*1.5W/2*8Ω 2W speaker, 3.5mm earphone port (Optional), supports MP3/WMA/AAC etc.
Ethernet100M/1000M Ethernet, RJ45 with POE
Wireless Card802.11b/g/n WiFi, Bluetooth 5.0
Monitor14" LCD IPS panel
Speaker2*8Ω 2W
Software IncludedAndroid 11
Special FeaturesPOE, Touchscreen, Android 11, HD-MI, All in one PC, Wall-mounted
Cosmetic ConditionBlack
ChipsetRK3568
Audio Channels2 channels
Audio FeaturesSupports MP3/WMA/AAC etc. audio format
Front USB2
Front Audio Ports3.5mm earphone port (Optional)
Card ReaderTF card (Max Support 128GB)
Video PortsHD-MI output
Rear USB2 x USB ports
RJ45RJ45 with POE
PC Card SlotTF card (Max Support 128GB)
WebcamFront Camera 2.0 M/P
Speaker Configuration2*8Ω 2W
Speaker FeaturesSupports MP3/WMA/AAC etc. audio formats
Consumer AlertNot include a battery, Not Consumer Tablet

이 모델의 다른 버전

같은 라인업에서 3개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What network equipment must I already have to power the 14" RK3568 unit over its RJ45 port?

A PoE-capable switch or injector that supplies power over Ethernet is required; the device draws both power and data through the single RJ45 connection.

Will the HDMI output on this Android 11 all-in-one drive a legacy 1080p display I keep in service?

Yes — the HDMI port outputs 1920*1080 resolution, matching the panel's native 16:9 format, so an older 1080p monitor or TV will display the image without scaling issues.

How can I verify the 10-point capacitive touchscreen is registering every touch point after installation?

Open any multi-touch test app from the Play Store; it will show all ten simultaneous contact points on the 14" IPS panel, confirming the controller and driver are functioning.
