Eight bullet cameras and a black NVR box with pre-installed hard drive

Reolink

Reolink RLK16-820D8-A 16CH 4K PoE Surveillance Security System 8×8MP 4TB HDD

SKU CH-9A4P-QBC8K

A 16-channel PoE security kit with eight 8MP cameras and a pre-installed 4TB HDD for continuous 4K recording

  • TypeNVR Kit
  • Camera TypeIP Camera
  • Camera inputs16 Channel
  • Video InputPoE IP Camera x 16
  • Audio InputCameras with Built-in Mic
  • Resolution Recording8 Megapixels

Camera inputs 16 Channel

Storage Capacity 12TB HDD

  • 4K Ultra HD clarity at 8 megapixels resolution
  • Smart person/vehicle/pet detection reduces false alerts
  • IP66 weatherproof cameras withstand harsh outdoor conditions
  • Single PoE cable up to 330ft simplifies installation
  • Pre-installed 4TB HDD enables 24/7 continuous recording

16-Channel 4K PoE Security Kit

This Reolink system bundles an 820-series 16-channel NVR with eight 8-megapixel PoE IP cameras and a pre-installed 4TB hard drive. It records continuously at up to 4K resolution using H.265 compression. The kit is aimed at homeowners or small-business owners who want a single-package, wired surveillance solution with person, vehicle and pet detection.

PoE Cabling and Expandable Storage

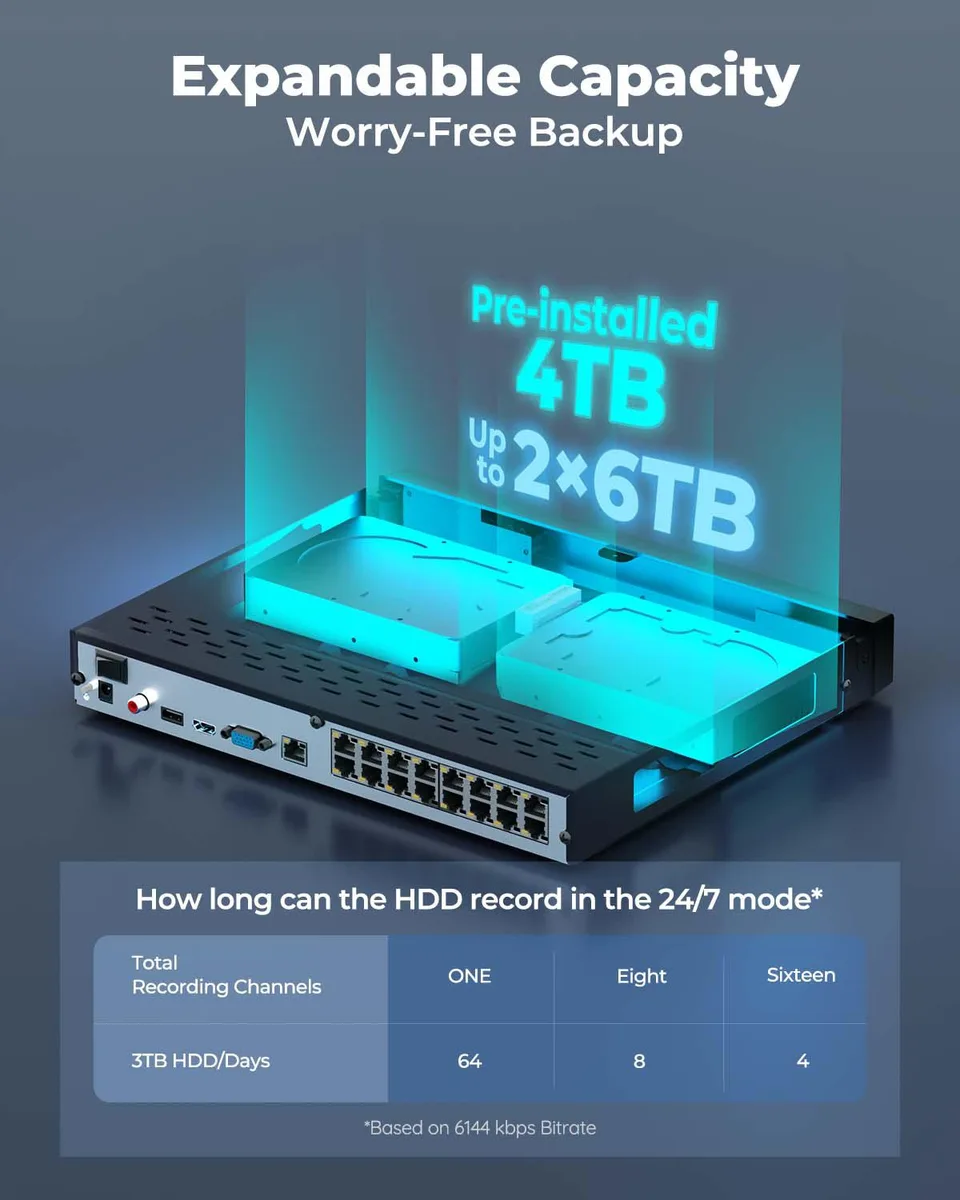

Each camera receives power, video and audio through one Ethernet cable, and the box includes 60ft cables for every unit. The NVR contains two SATA ports; one holds the supplied 4TB drive and the second accepts an additional drive up to 6TB, raising total capacity to 12TB. Cameras also have built-in microphones that can be enabled per channel.

Outdoor-Ready Wired Monitoring

Eight weatherproof IP66 cameras cover entrances, yards or interior spaces without wireless signal concerns. The NVR outputs video over HDMI or VGA for local viewing and supports remote access via app or browser. Buyers who need more than eight cameras out of the box, wireless camera flexibility, or battery-powered installation should consider other options.

주요 특징

  • 4K Ultra HD clarity at 8 megapixels resolution
  • Smart person/vehicle/pet detection reduces false alerts
  • IP66 weatherproof cameras withstand harsh outdoor conditions
  • Single PoE cable up to 330ft simplifies installation
  • Pre-installed 4TB HDD enables 24/7 continuous recording

사양

BrandReolink
SeriesReolink PoE Security Camera System with Person/Vehicle Detection
ModelRLK16-820D8-A
TypeNVR Kit
Camera TypeIP Camera
Camera inputs16 Channel
Video InputPoE IP Camera x 16
Audio InputCameras with Built-in Mic
Resolution Recording8 Megapixels
Recording CompressionH.265
Video Output1 x VGA, 1 x HDMI
Audio Output1 x RCA
Max Resolution4K
Built-In HDD4TB HDD
Storage Capacity12TB HDD
WirelessNo
Network ConnectionRJ45
Network ProtocolHTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Network RemoteYes
FeaturesSmart Detect; 7/24 Recording; IP66
Operating SystemPC: Windows, Mac OS; SmartPhone: iOS, Android
PoE (Power-over-Ethernet)Yes
Remote ControlYes
Bundled Camera Number8
Camera Horizontal Resolution4K UltraHD
Kit Feature OtherCameras in this Kit can also work without NVR

이 모델의 다른 버전

같은 라인업에서 3개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

How many additional SATA drives can the NVR accept and what is the maximum capacity per drive?

The NVR has two SATA ports with one 4TB drive pre-installed, so you can add one more drive up to 6TB for a total of 12TB.

Will the 4TB drive fill first or will the 16-channel 4K bitrate hit the network limit during continuous recording?

With H.265 compression and a 4TB drive, storage capacity is the first limit; the PoE ports handle 16 channels without a network bottleneck.

Do the IP66 cameras or the NVR produce noticeable heat or fan noise when recording 24/7?

The IP66 cameras run silently outdoors, while the NVR uses a low-noise fan that stays quiet during all-day 4K recording.
