STARTECH
STARTECH S322M225R dual M.2 SATA expansion card
Fits two M.2 SATA SSDs into a 2.5 inch bay with RAID 0, 1, spanning or JBOD and TRIM support
- Dual M.2 SATA SSDs fit in one 2.5″ bay
- RAID 0, 1, spanning or JBOD modes supported
- Full-length 2230, 2242, 2260, 2280 B-key drives accepted
- TRIM and SMART keep SSD performance stable
- Up to 6 Gbps transfer via SATA III controller

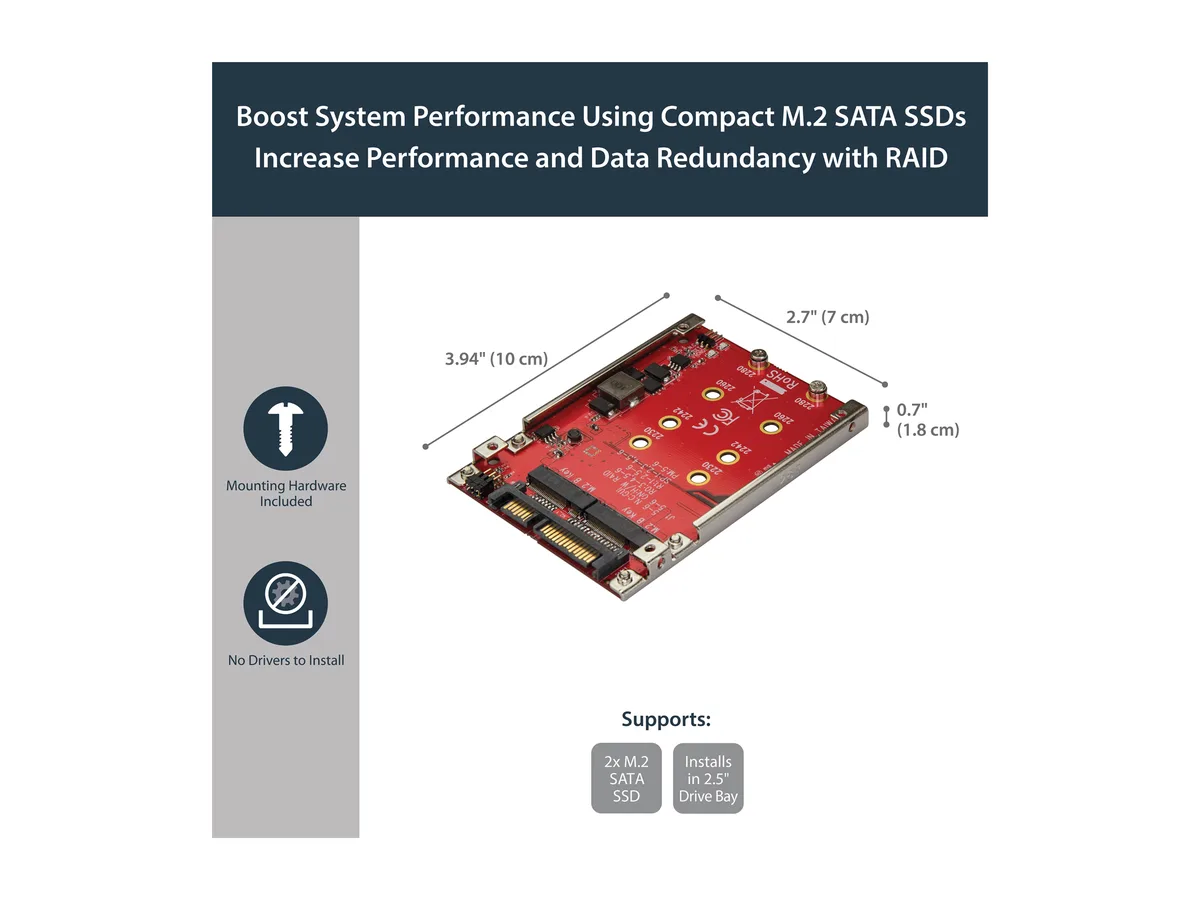

Dual M.2 SATA RAID adapter for 2.5" bays
This StarTech S322M225R adapter lets you install two M.2 SATA SSDs into a single 2.5" SATA drive bay. It presents the pair as one SATA III device so you can add high-capacity solid-state storage without needing a spare M.2 slot on the motherboard.
Check your drive bay and SSD keys before ordering

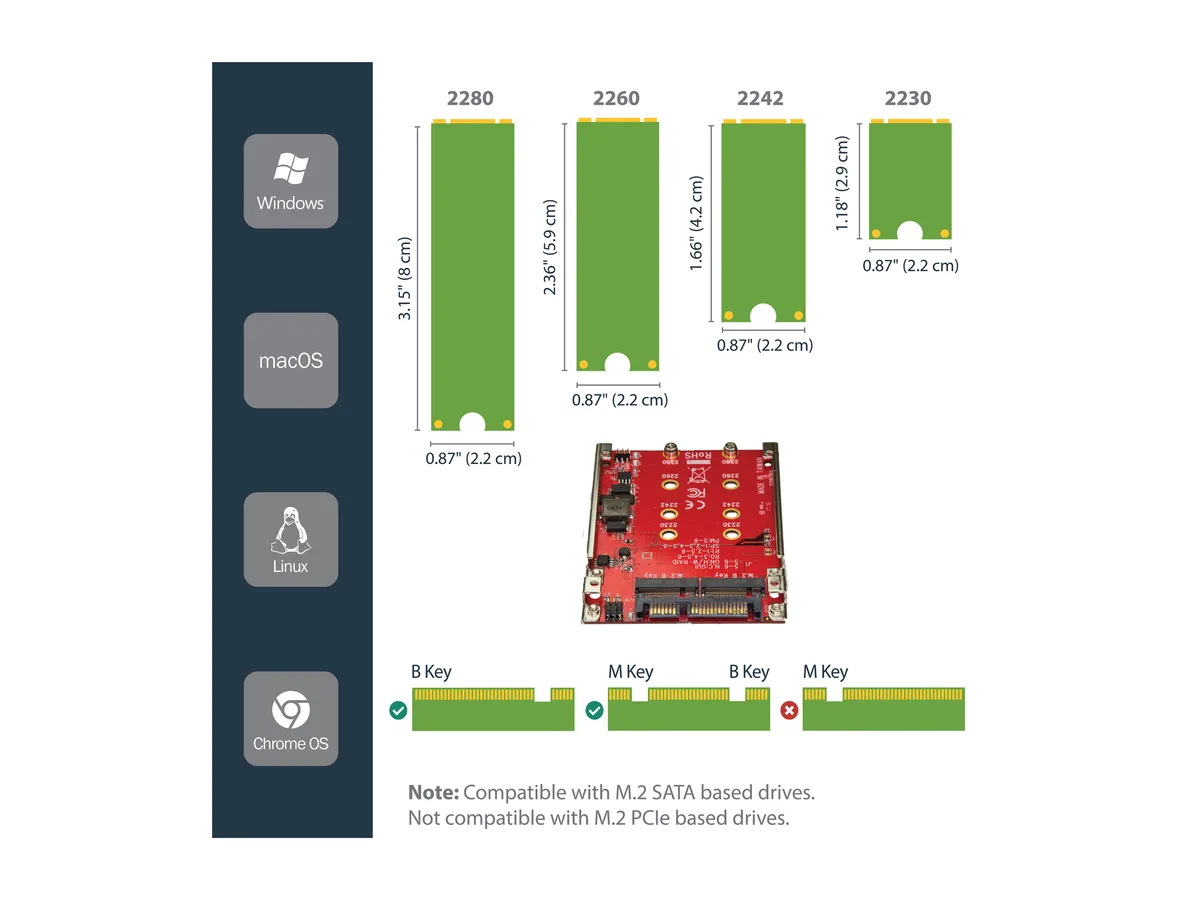

You need an available 2.5" SATA bay and a SATA III port on the motherboard or controller. The card only accepts B-key M.2 SATA modules in 2230, 2242, 2260 or 2280 lengths; M.2 NVMe or AHCI PCIe drives will not work.
Ideal for adding redundant or striped SATA storage
Builders who want RAID 0, RAID 1, spanning or JBOD from two SATA M.2 drives in a laptop or small-form-factor desktop will benefit. Anyone needing NVMe speeds, PCIe connectivity or a single-drive upgrade should look elsewhere.
주요 특징
- Dual M.2 SATA SSDs fit in one 2.5″ bay
- RAID 0, 1, spanning or JBOD modes supported
- Full-length 2230, 2242, 2260, 2280 B-key drives accepted
- TRIM and SMART keep SSD performance stable
- Up to 6 Gbps transfer via SATA III controller
사양
| Brand | STARTECH |
|---|---|
| Model | S322M225R |
| 배송 무게 | 0.10 kg |
| 포장 크기 | 170 × 157 × 33 mm |
이 상품에 대한 질문

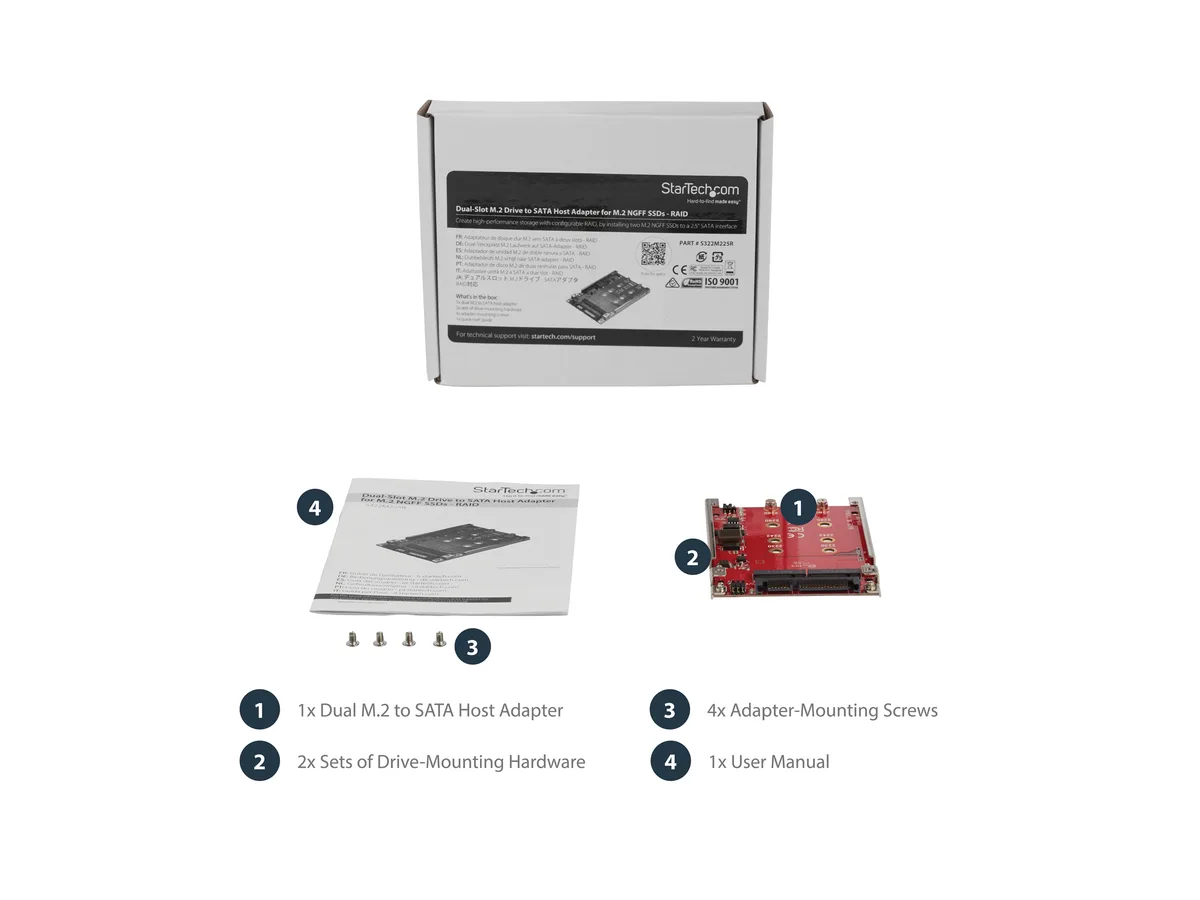

What comes in the box and do I need to buy any cables or brackets separately?
The adapter installs directly into a 2.5" drive bay and provides two M.2 slots for SATA SSDs; no extra cables or brackets are required for the mechanical install.
Should I choose RAID 0, RAID 1, spanning or JBOD for my two M.2 SATA SSDs?
RAID 0 stripes data for maximum capacity and speed, RAID 1 mirrors for redundancy, spanning combines drives linearly, and JBOD presents each SSD separately when the host controller supports port multiplication.
Will I see the full 6Gbps SATA III throughput once the card is installed in my system?
Each M.2 SATA SSD can run at up to 6Gbps through the host SATA III controller, so real-world transfer rates match the drive's own SATA III limits.
