Syba
Syba SI-ADA15071 8-Port RS-232 DB9 Serial M.2 B+M Key Controller Card
Adds eight RS-232 DB9 serial ports via an M.2 B+M key slot using the XR17V358 chipset for up to 31.25 Mbps data rates
- TypeController Card
- External Ports8 x Serial Ports
- Operating Systems SupportedWindows 10 or Higher Ubuntu 19.04 or Higher
- FeaturesElevate your serial communication capabilities with 8 Port D
- Package Contents8 Port Serial DB9 M.2 B+M Key Module Driver CD x1 Manual x1
- 8 independent UARTs via XR17V358 chipset
- 256-byte TX/RX FIFOs for data integrity
- Data rates up to 31.25 Mbps supported
- PCIe 2.0 Gen 1 single-lane interface
- 16 multi-purpose I/Os for peripherals
Eight-port RS-232 M.2 controller

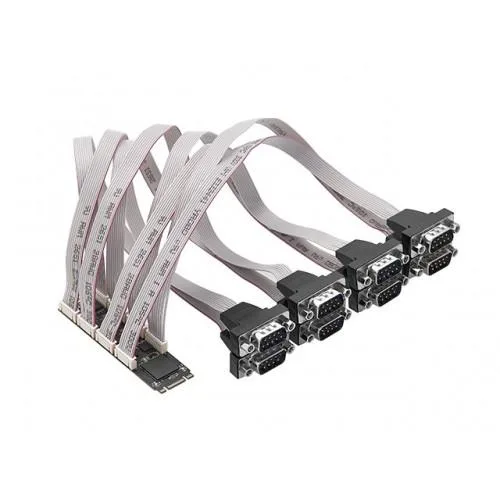

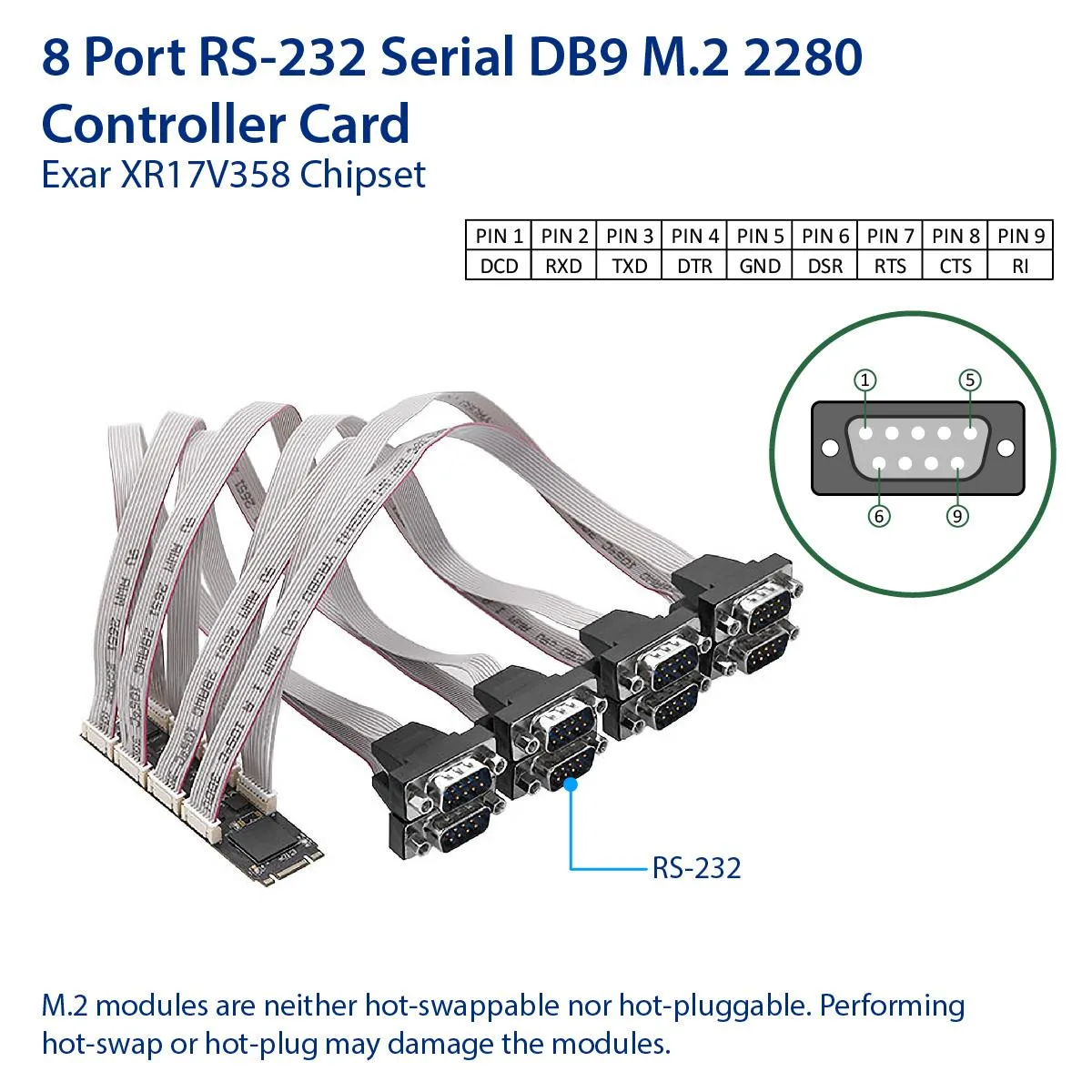

The Syba SI-ADA15071 is a new add-on card that provides eight DB9 serial ports through an M.2 B+M key interface. It uses the XR17V358 chipset to deliver eight independent 16550-compatible UARTs with 256-byte FIFOs and data rates up to 31.25 Mbps. The card connects via a single-lane PCIe 2.0 Gen 1 link at 2.5 GT/s and includes a driver CD and manual.
Industrial and legacy connectivity
This card suits engineers and system integrators who need to connect multiple RS-232 devices such as PLCs, modems or scientific instruments to a modern platform with an available M.2 slot. It supports Windows 10 or higher and Ubuntu 19.04 or higher. Builders without a free M.2 B+M key slot or who require USB or PCIe bracket mounting should look at other form factors.
M.2 B+M key interface requirement

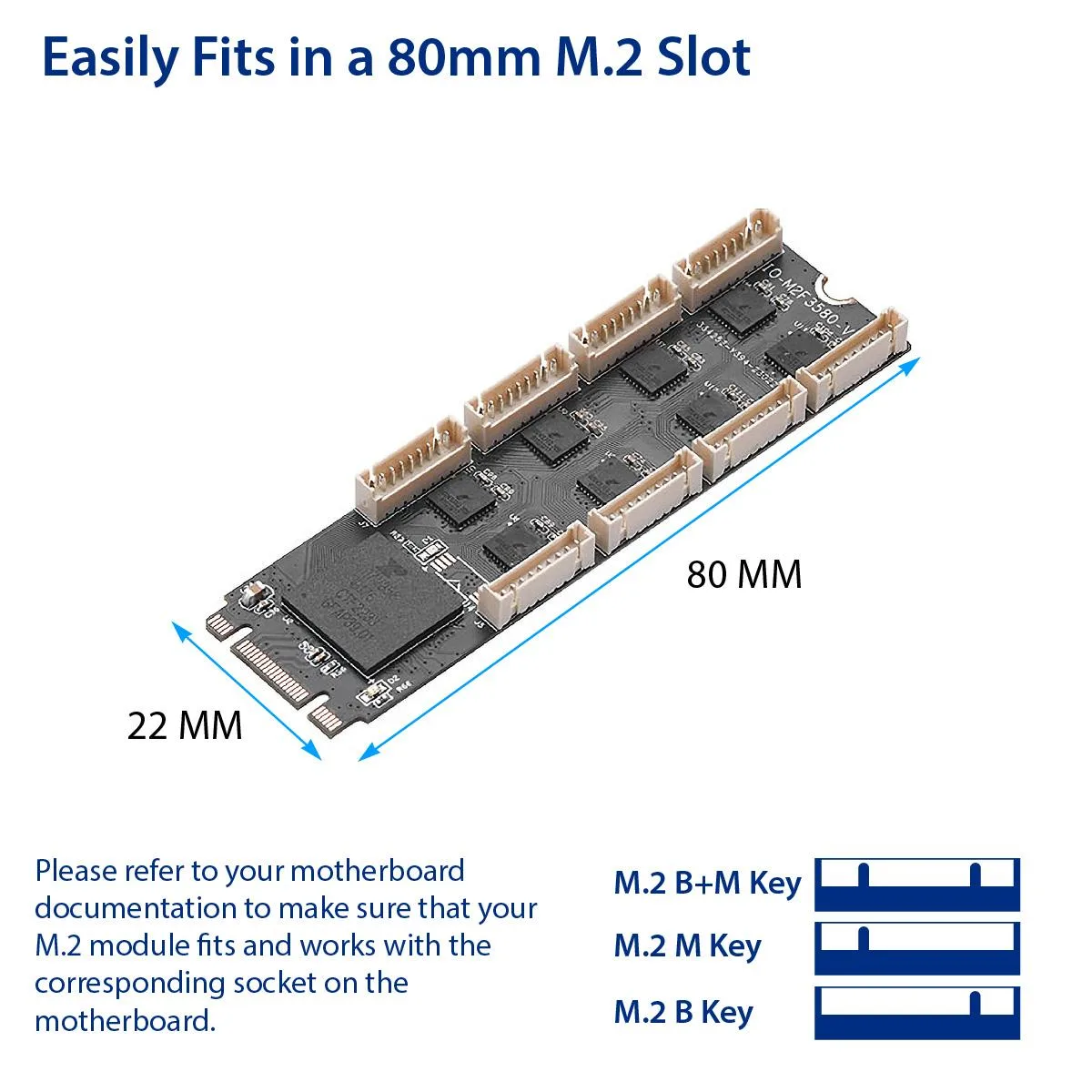

The single specification that decides compatibility is the presence of an M.2 B+M key slot wired for PCIe signalling. The controller operates as a PCIe 2.0 x1 device and will not function in slots dedicated to other signalling types or keyed differently. Verify the motherboard manual before purchase.
주요 특징
- 8 independent UARTs via XR17V358 chipset
- 256-byte TX/RX FIFOs for data integrity
- Data rates up to 31.25 Mbps supported
- PCIe 2.0 Gen 1 single-lane interface
- 16 multi-purpose I/Os for peripherals
사양
| Brand | SYBA |
|---|---|
| Model | SI-ADA15071 |
| Type | Controller Card |
| External Ports | 8 x Serial Ports |
| Operating Systems Supported | Windows 10 or Higher Ubuntu 19.04 or Higher |
| Features | Elevate your serial communication capabilities with 8 Port DB9 Serial M.2 B+M Key Controller Card with the XR17V358 Chipset. Whether you're in industrial automation, telecommunications, or any other field requiring reliable and high-speed serial communication, the XR17V358 chipset is your go-to solution. Experience the pinnacle of performance and efficiency with the XR17V358 (V358) chipset - a remarkable single-chip solution designed to elevate your serial communication capabilities to new heights. The XR17V358 combines cutting-edge technology with versatility, making it the ideal ch |
| Package Contents | 8 Port Serial DB9 M.2 B+M Key Module Driver CD x1 Manual x1 |
| 배송 무게 | 0.09 kg |
| 포장 크기 | 140 × 102 × 25 mm |
이 상품에 대한 질문
How can I verify the XR17V358 chipset is functioning after installing the SI-ADA15071 card?
Check Device Manager for eight new COM ports under Ports (COM & LPT); each should show the XR17V358 UART with 256-byte FIFOs and report a PCIe 2.0 Gen 1 link at 2.5 GT/s.
What comes with the SI-ADA15071 and what must I source separately?
The box contains the 8-port serial DB9 M.2 B+M key module, a driver CD, and a manual; you must supply an M.2 B+M key slot and DB9 cables for your devices.
Which operating system version should I choose for the SI-ADA15071?
Use Windows 10 or higher, or Ubuntu 19.04 or higher; both are officially supported for the XR17V358 chipset and its 8 UART channels.
