Syba
Syba SY-PEX20124 USB 3.0 PCI Express 2-port SATA expansion card
Adds two USB 3.0 ports and an internal SATA power connector to a desktop via a single-lane PCI Express 2.0 slot, each port delivering up to 900 mA with resettable fuse protection
- TypePCI Express to USB Card
- External USB Ports2x USB Ports
- Internal Ports1 x SATA
- StandardUSB 3.0
- Operating Systems SupportedWindows 7 Vista Windows XP Windows 2008 Windows 2000
- SpecificationsController: NEC uPD720202 Fully Compliant with PCI Express B
- Adds two USB 3.0 ports via PCI Express 2.0 x1 slot
- 5 Gbps throughput with NEC uPD720202 controller
- Each port delivers 5 V / 900 mA with resettable fuse protection
- Internal SATA power connector supplements card power
- Hot-swap support for connecting devices without shutdown
Two-port USB 3.0 add-in card for PCIe desktops

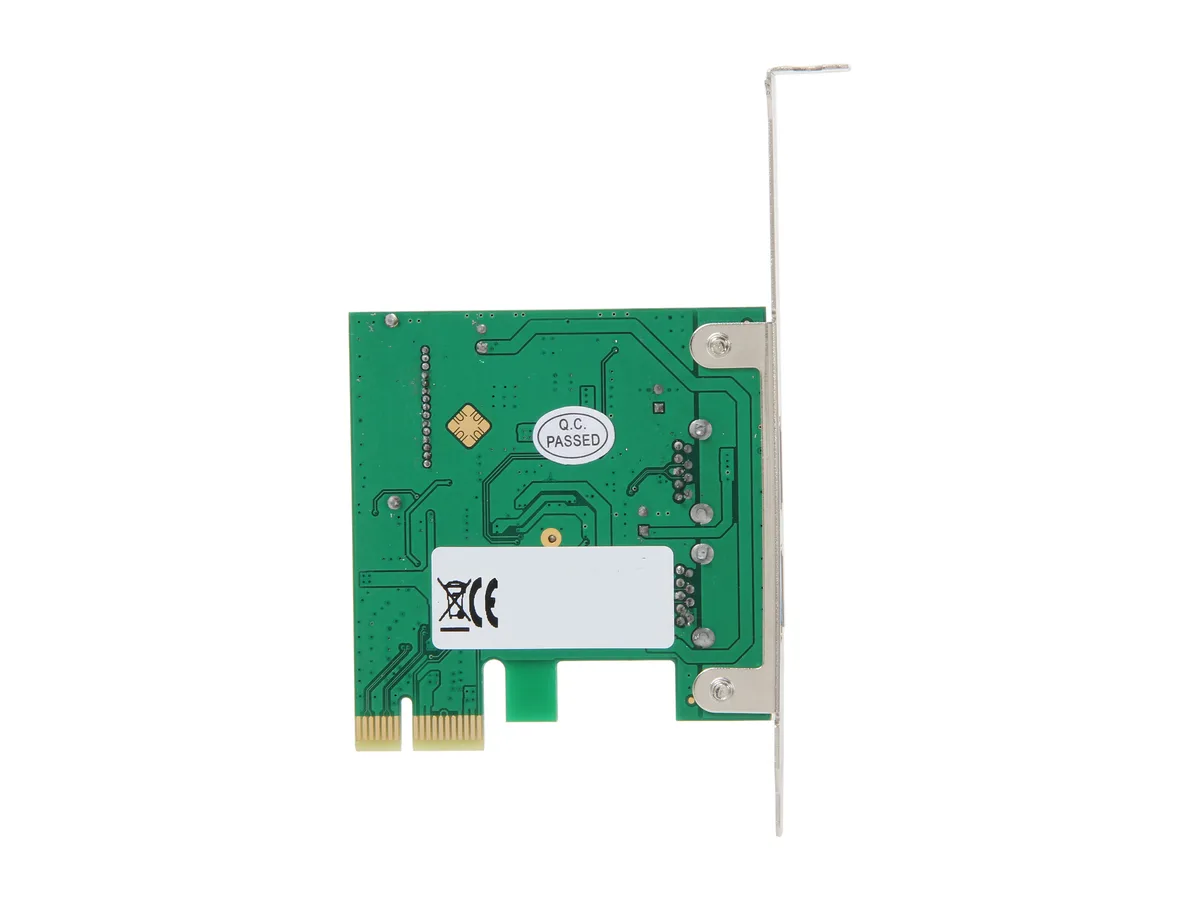

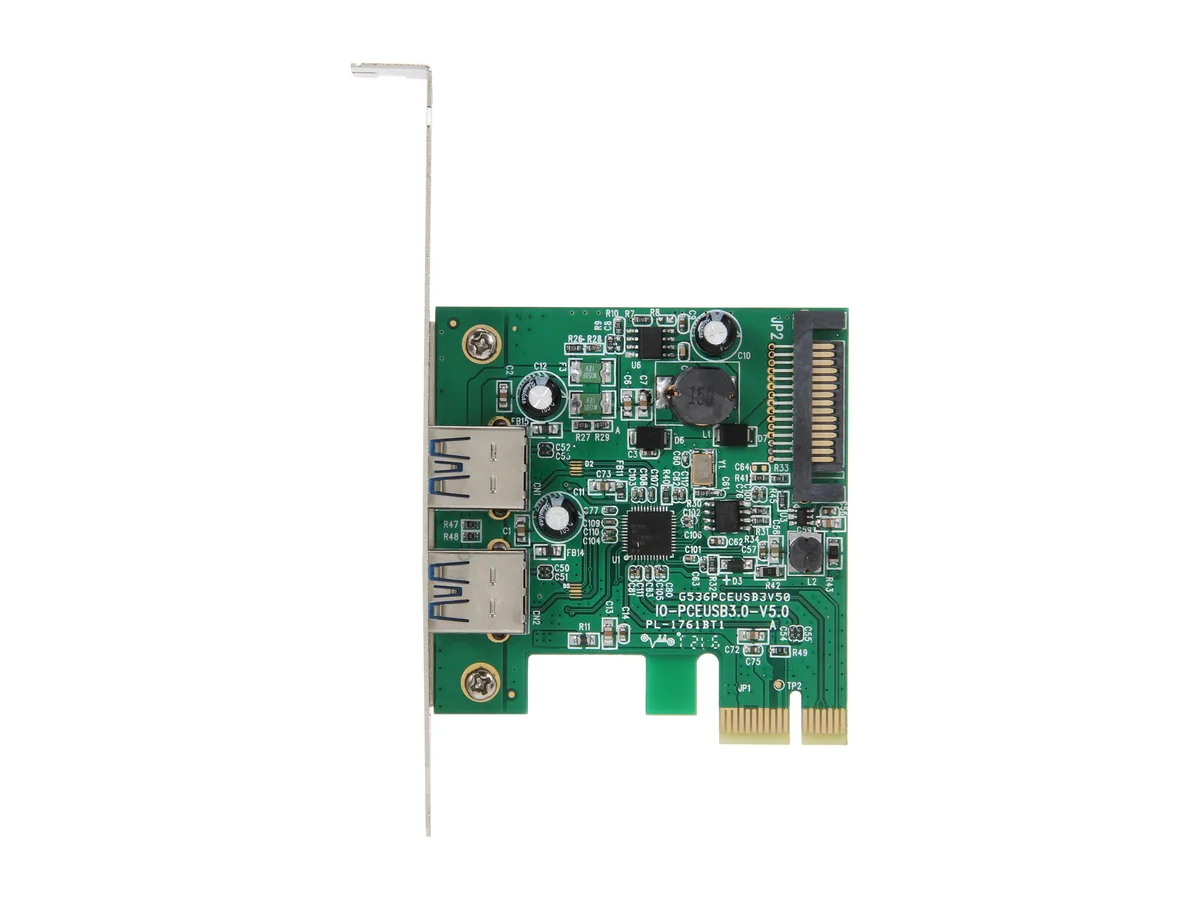

The Syba SY-PEX20124 adds two external SuperSpeed USB 3.0 ports to a desktop computer through a single-lane PCI Express 2.0 slot. It uses a NEC uPD720202 controller and supports Windows XP, 2000, 2008 and 7. The card is intended for users who need faster peripheral connections on older or expansion-limited systems.
Thermals noise and power draw in normal use
Each USB port delivers up to 900 mA at 5 V and includes a resettable fuse for over-current protection. An internal SATA power connector draws supplementary power from the system power supply to sustain the higher current demand of USB 3.0 devices. No active cooling is fitted, so the card relies on case airflow.
Build quality connectors and daily implications

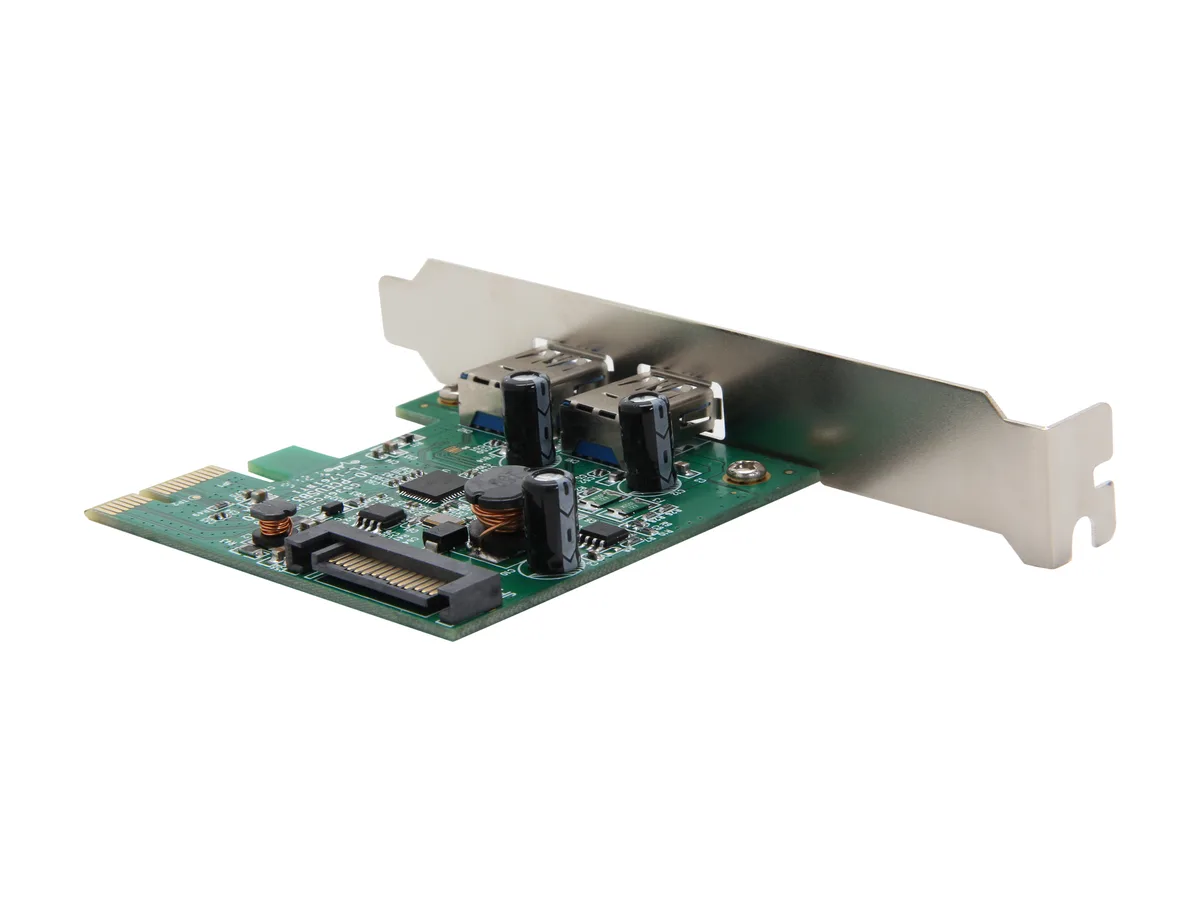

The bracket provides two Type-A ports accessible at the rear of the chassis, while the onboard SATA power socket requires a spare drive power lead inside the case. Hot-swap capability allows drives or peripherals to be connected and disconnected without shutting down the host. Buyers who need internal drive bays or more than two ports should consider a different solution.
주요 특징
- Adds two USB 3.0 ports via PCI Express 2.0 x1 slot
- 5 Gbps throughput with NEC uPD720202 controller
- Each port delivers 5 V / 900 mA with resettable fuse protection
- Internal SATA power connector supplements card power
- Hot-swap support for connecting devices without shutdown
사양
| Brand | SYBA |
|---|---|
| Model | SY-PEX20124 |
| Type | PCI Express to USB Card |
| External USB Ports | 2x USB Ports |
| Internal Ports | 1 x SATA |
| Standard | USB 3.0 |
| Operating Systems Supported | Windows 7 Vista Windows XP Windows 2008 Windows 2000 |
| Specifications | Controller: NEC uPD720202 Fully Compliant with PCI Express Base Specification Revision 2.0 Single-lane (x1) PCI Express (Ver2.0 Spec) Throughput Rates up to 5Gbps Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 Compliant with Intel's eXtensible Host Controller Interface (xHCI) Specification Revision 1.0 Supports Simultaneous Operation of Multiple USB 3.0/2.0/1.1 Devices Supports USB Data Transfer Rate of 1.5/12/480/5000Mbps Each USB Port Supplies Maximum +5V/900mA Power Output to USB Device with Positive Temperature Coefficient Resetable FUSE Over Current Protectio |
| Weight | 1 |

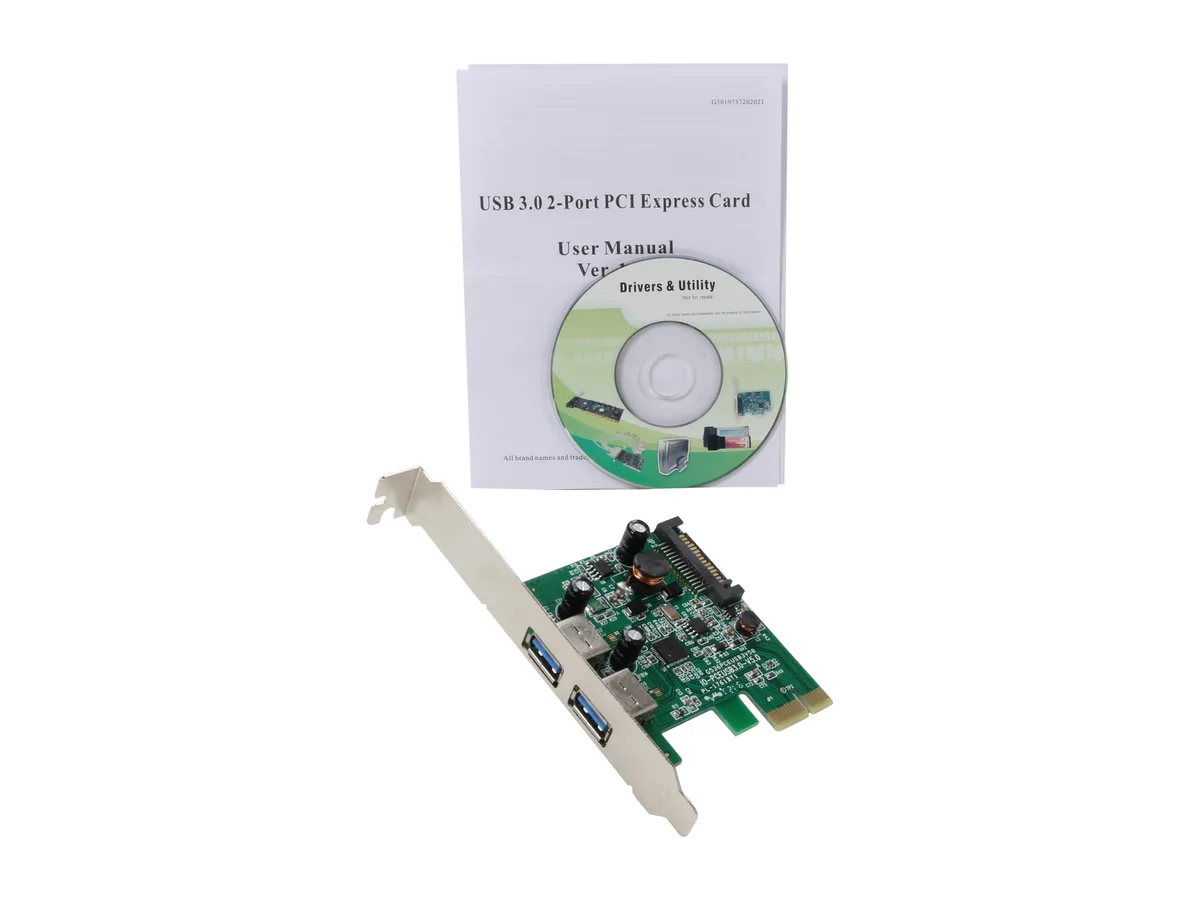

| Package Contents | USB 3.0 2-port PCI-e Controller Card Driver CD User Manual |
| 배송 무게 | 0.10 kg |
| 포장 크기 | 171 × 144 × 64 mm |
이 상품에 대한 질문
How is the SY-PEX20124 installed, and which step is often missed?
Insert the card into an available PCI Express x1 slot, then connect the internal SATA power connector from your power supply to the card; the SATA power link is the step most builders forget.
What maintenance or replacement will the SY-PEX20124 need later?
The on-board resettable fuses protect each USB port from over-current events and reset automatically, so no user-serviceable parts or scheduled replacements are required.
What limit appears first during sustained transfers on the SY-PEX20124?
The single-lane PCI Express 2.0 link caps sustained throughput at 5 Gbps, so long sequential reads or writes will hit that ceiling before the USB 3.0 ports do.
