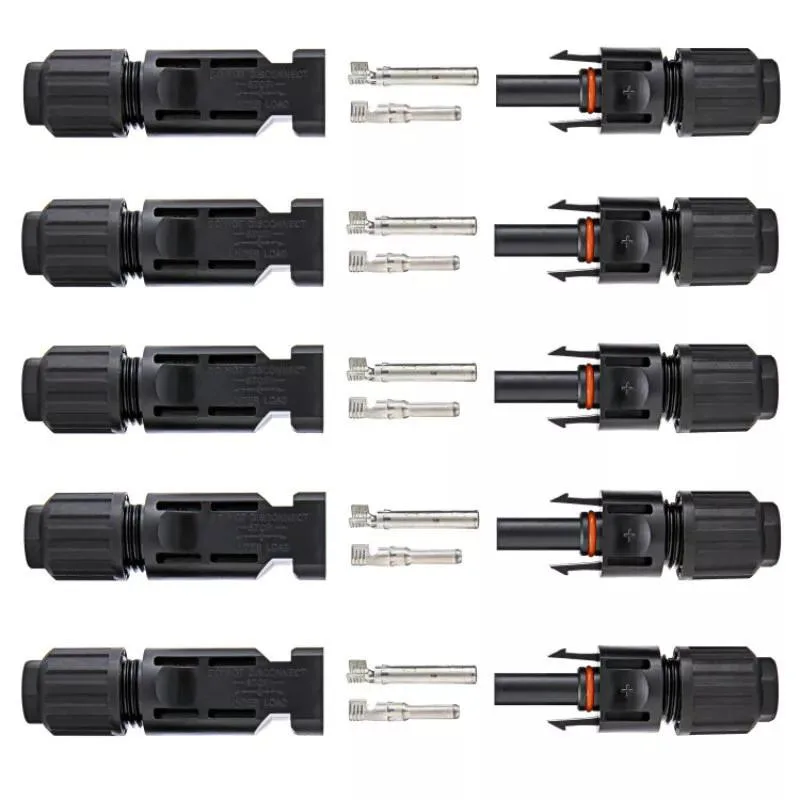

Black male and female solar cable connectors, 200 pairs, PPO ABS housings with PC PA insulation, IP67 rated when mated

The Perfect Part

The Perfect Part Solar Cable Connectors 200 Pairs Black IP67

SKU CH-2SWK-KSGXK

200 pairs of IP67-rated solar cable connectors accept 2.5–6 mm² cable and carry up to 30 A from –40 °C to +90 °C

  • TypeDC Power Supplies
  • Engine BrandThe Perfect Part
  • Starter TypeRecoil
  • MaterialPPO + ABS
  • Temperature Range-40 C ~ +90 C
  • Primary Openings1

Pack 200 Pairs

  • 200 pairs in one pack cover large installations
  • IP67 rating when mated resists water and dust ingress
  • Copper contacts with silver plating keep resistance low at 0.2 mm
  • Operates from -40 °C to +90 °C for extreme climates
  • UL94-V0 or UL94-5VA flame class limits fire spread

Solar Connectors for Photovoltaic Systems

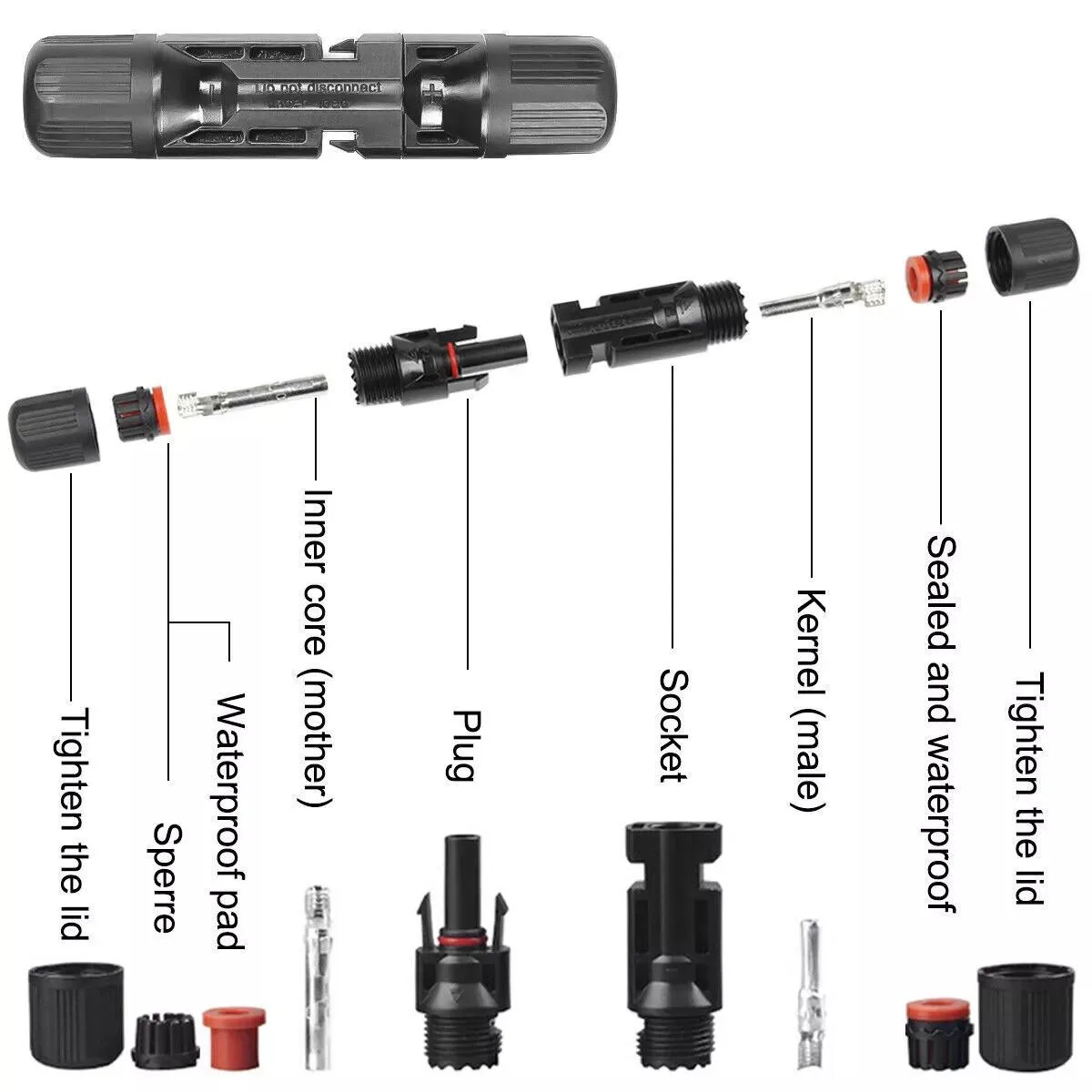

This pack contains 200 pairs of male and female solar cable connectors designed for photovoltaic installations. They are rated for 22 A with 2.5 mm² cable and 30 A with 4 mm² or 6 mm² cable. The connectors use copper contacts with silver plating and PPO plus ABS housings with PC/PA insulation. They meet flame class UL94-V0 or UL94-5VA.

Cable Compatibility and Installation Checks

Verify that your solar cables are 2.5 mm², 4 mm² or 6 mm² (AWG 14, 12 or 10) to match the rated current values. The pin diameter is 4.0 mm and contact resistance is 0.2 mΩ. Insertion and withdrawal forces are each 50 N, so ensure your crimping tool can achieve a secure fit. Protection is IP2X when unmated and IP67 when mated, so plan for sealed connections in outdoor use.

Suitable for Large-Scale Solar Builds.

The 200-pair quantity suits installers or DIY builders wiring multiple arrays or large off-grid systems. Buyers needing only a few pairs for a single panel repair or small portable kit should look at smaller packs. The operating range of -40 °C to +90 °C covers extreme climates, but the connectors are not intended for AC mains or non-solar DC applications.

주요 특징

  • 200 pairs in one pack cover large installations
  • IP67 rating when mated resists water and dust ingress
  • Copper contacts with silver plating keep resistance low at 0.2 mm
  • Operates from -40 °C to +90 °C for extreme climates
  • UL94-V0 or UL94-5VA flame class limits fire spread

사양

TypeDC Power Supplies
Engine BrandThe Perfect Part
Starter TypeRecoil
MaterialPPO + ABS
Temperature Range-40 C ~ +90 C
Primary Openings1
Secondary Openings1
Wire TypeAI
Features200-pack; Color: Black; Material: PPO + ABS; Insulation Material: PC/PA, black

이 모델의 다른 버전

같은 라인업에서 4개 더

같은 제품군에서 메모리·쿨러·클럭이 다릅니다 — 결정 전에 비교해 보세요.

이 상품에 대한 질문

What comes in the 200-pair pack and is any tooling supplied?

The pack contains 200 male and 200 female connectors; no crimp tool or cable is included.

Should I choose the 22 A or 30 A rating for my cable size?

Use the 22 A rating with 2.5 mm² cable and the 30 A rating with 4 mm² or 6 mm² cable.

What does the IP67 rating mean once the pair is mated on the roof?

When mated the connection is dust-tight and protected against immersion up to 1 metre for 30 minutes.
