Silver horizontal 1U rack PDU with eight NEMA 5-15/20R outlets and a 12.0 foot cord

Tripp Lite

Tripp Lite PDUMH20NET2LX 1.9kW Switched PDU 1U 8x5-15/20R NEMA L5-20P 12.0ft

SKU CH-44VX-ATD45 MPN PDUMH20NET2LX

1U switched PDU with eight NEMA 5-15/20R outlets, built-in LX Platform interface and 12.0 ft NEMA L5-20P input cord

  • TypeSwitched
  • Rack Size1U
  • StyleHorizontal
  • CertificationsTested to UL 60950-1 (USA), CSA/CSA-C22.2 NO. 60950-1 (Canad
  • ROHSYes
  • Package IncludesPDUMH20NET2LX 1.9kW Single-Phase Switched PDU Built-in LX Pl
  • Remote on/off control per outlet via 8 switched NEMA 5-15/20R receptacles
  • Java-free LX Platform gives 24/7 browser access without plugins
  • Real-time digital ammeter shows 20 A load at a glance
  • 0 ft cord with NEMA L5-20P and 5-20P adapter fits varied racks
  • TAA-compliant, UL/CSA/NOM tested for regulated environments

What This PDU Delivers

The Tripp Lite PDUMH20NET2LX is a 1.9 kW single-phase switched power distribution unit built for 1U horizontal rack mounting. It provides eight individually controllable NEMA 5-15/20R outlets fed by a NEMA L5-20P input with a 12.0 ft cord and an included 5-20P adapter. The built-in LX Platform interface enables Java-free remote access for outlet switching and real-time load monitoring via a digital ammeter.

Who This Suits and Who It Does Not

This unit fits network closets and server racks that run on 100 V, 120 V or 127 V supplies up to 20 A and need per-outlet remote control with TAA-compliant hardware. It is not suitable for installations that require 20 A branch circuits on every outlet, three-phase input, or outlet types other than NEMA 5-15/20R.

The Spec That Decides Fit

The maximum input current is 20 A at 120 V, giving a 1.9 kW capacity across the eight switched outlets. Verify that your rack power feed and the connected equipment draw stay within this limit before deployment.

주요 특징

  • Remote on/off control per outlet via 8 switched NEMA 5-15/20R receptacles
  • Java-free LX Platform gives 24/7 browser access without plugins
  • Real-time digital ammeter shows 20 A load at a glance
  • 0 ft cord with NEMA L5-20P and 5-20P adapter fits varied racks
  • TAA-compliant, UL/CSA/NOM tested for regulated environments

사양

BrandTripp Lite
ModelPDUMH20NET2LX
TypeSwitched
Rack Size1U
StyleHorizontal
CertificationsTested to UL 60950-1 (USA), CSA/CSA-C22.2 NO. 60950-1 (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
ROHSYes

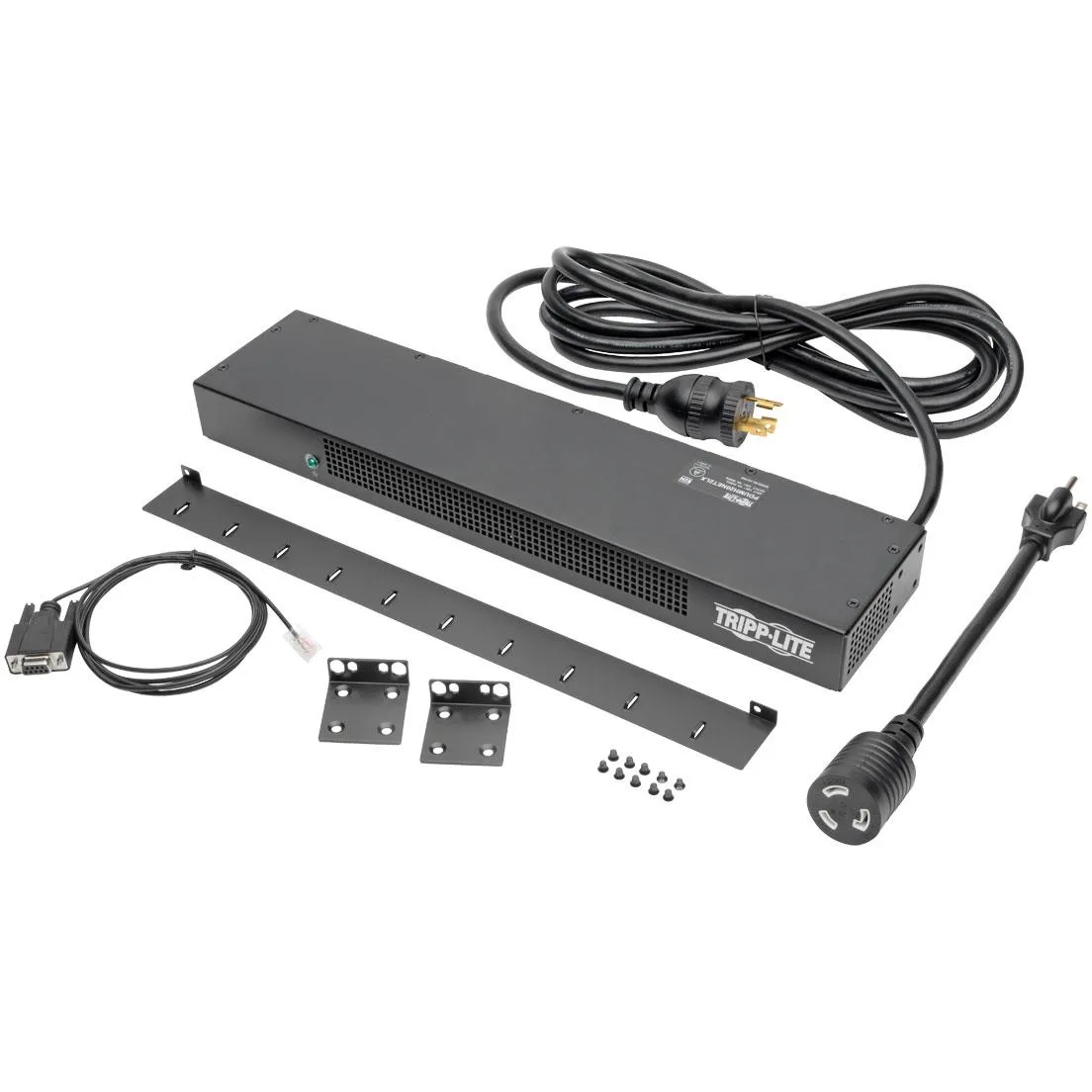

Package IncludesPDUMH20NET2LX 1.9kW Single-Phase Switched PDU
Built-in LX Platform interface
Configuration cable
8 x Cable ties
Cord retention bracket
Mounting hardware
Owner's manual
Input Voltage100V, 120V, 127V
Maximum Input Current20A

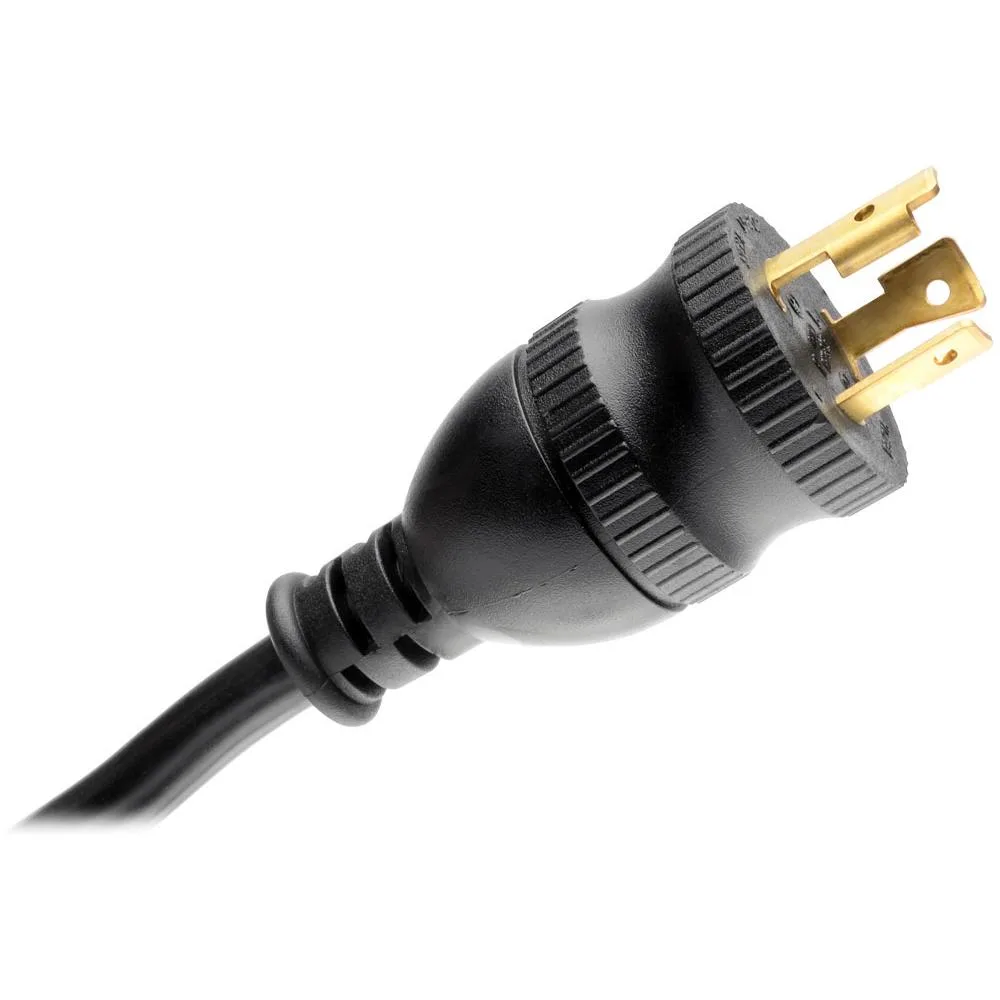

Input Connector(s)NEMA 5-20P, NEMA L5-20P
Cord Length12.0 Feet
Output Voltage100V, 120V, 127V
Output Frequency50/60Hz
Output Connector(s)8 x 5-15/20R
Operating Relative Humidity5 - 95%
Operating Elevation0 - 3000 m
Storage Temperature-15 - 50 Degree Celcius
Storage Relative Humidity5 - 95%
FeaturesDistributes, Monitors and Manages Network-Grade AC Power
8 Switched NEMA 5-15/20R Outlets Distribute AC Power
Built-In LX Platform Interface
Broad Communications Compatibility
Essential Safety Features
Flexible Mounting Options
TAA-Compliant
Dimensions1.75" x 17.50" x 4.25"
Weight5.99 lbs.
배송 무게4.08 kg
포장 크기586 × 384 × 114 mm

이 상품에 대한 질문

What rack width and mounting hardware do I need to install this 1U PDU?

The unit measures 1.75 inches high by 17.50 inches wide and ships with mounting hardware for standard rack installation.

Can I power legacy 5-15P devices from the 5-15/20R outlets without adapters?

Yes, each of the 8 switched outlets accepts both NEMA 5-15P and 5-20P plugs directly.

How do I verify the LX Platform interface is communicating after setup?

The built-in digital ammeter shows real-time load in amps, and the Java-free web interface reports per-outlet status and total power draw.
