Black plastic rectangular fan controller with LED display and US socket

URANT KZQ-01 15A 120V fan control

SKU CH-BXV6-K9C8Z MPN KZQ-01

Adjusts AC motor speed from 0-100% with LED voltage display and 15A overload protection

  • Product nameAC motor speed controller 100V-120V URANT
  • motor size100 mm x 100 mm x 60 mm
  • type of bulbLED
  • featuresLED
  • weight0.372 kilograms
  • descriptionAC motor speed controller 100V-120V, AC 100-120V fan control

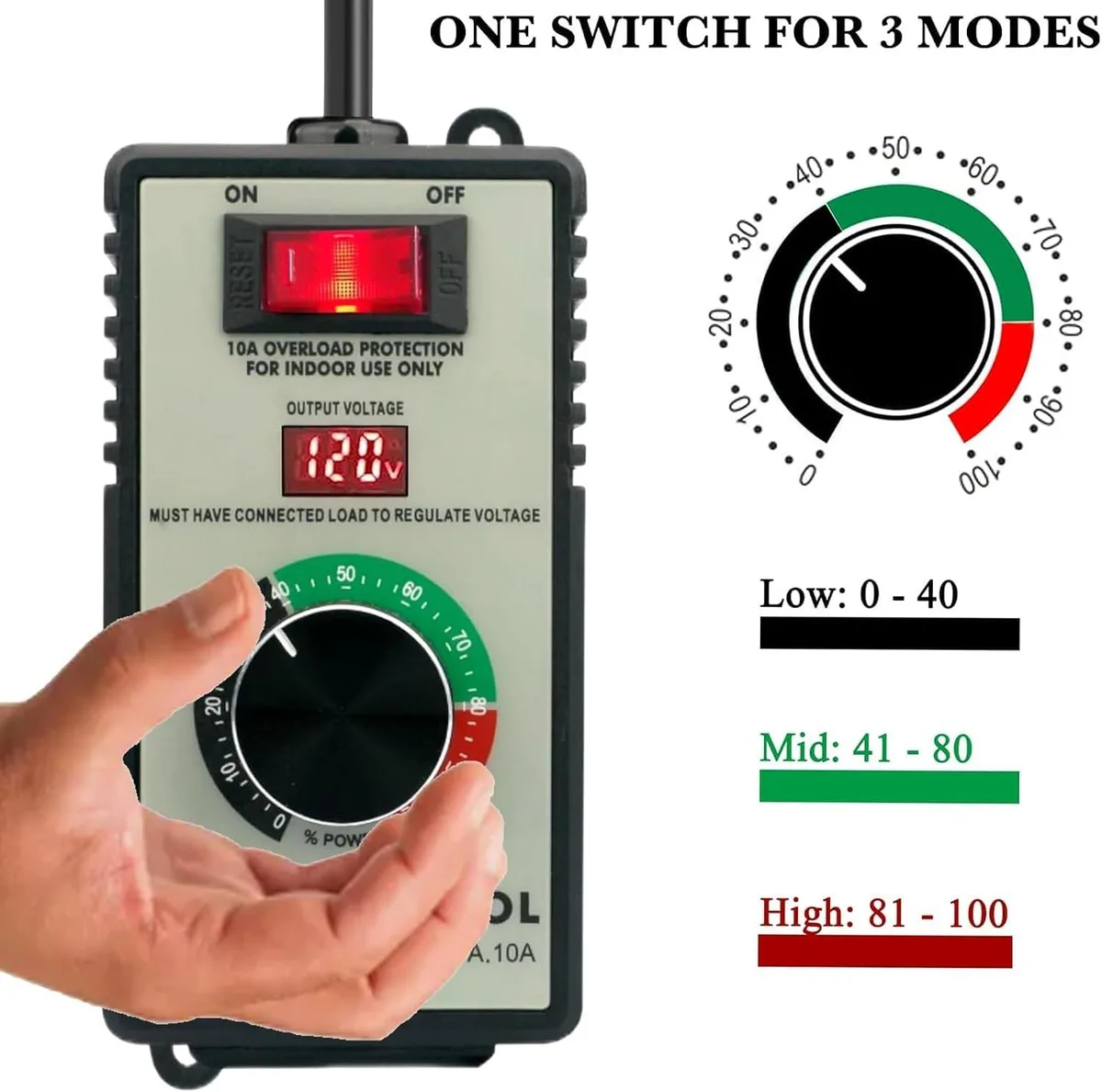

  • Precise LED display shows real-time output voltage
  • 15 A peak current with overload and short-circuit protection
  • Stepless 0-100 % speed control for AC motors
  • Flame-retardant ABS housing resists heat and deformation
  • Belt-clip portable design fits US Type A and B plugs

Product Identity

The URANT KZQ-01 is a portable AC motor speed controller rated for 110-120V input with a 15A peak current capacity and a rated current of 10A. It features a high-precision LED display for real-time voltage monitoring and a clamping design for belt attachment.

Suitability

This controller suits users needing 0-100% stepless speed regulation for compatible AC motors such as ceiling fans, exhaust fans, or computer cooling fans within the 10A rated limit. It is not for buyers who require operation above the 15A peak threshold, input voltage outside the 110-120V range, or hardwired installation without a standard Type A or Type B plug connection.

Deciding Specification

The single specification that decides fit is the 15A peak current limit with a 10A rated current; the connected motor's starting current must stay below 15A and its running current within 10A for the overload protection to function correctly.

주요 특징

  • Precise LED display shows real-time output voltage
  • 15 A peak current with overload and short-circuit protection
  • Stepless 0-100 % speed control for AC motors
  • Flame-retardant ABS housing resists heat and deformation
  • Belt-clip portable design fits US Type A and B plugs

사양

BrandURANT
ModelKZQ-01
Product nameAC motor speed controller 100V-120V URANT
motor size100 mm x 100 mm x 60 mm
type of bulbLED
featuresLED
weight0.372 kilograms
descriptionAC motor speed controller 100V-120V, AC 100-120V fan controller, LED, Plastic, black, URANT, KZQ-01
finishPlastic
materialPlastic
dimensions20'

이 상품에 대한 질문

What size opening does the 100 mm by 90 mm by 60 mm controller need for mounting?

The controller measures 100 mm by 90 mm by 60 mm and uses a clamping design that can be tied to a belt or secured to a flat surface; no cut-out dimensions are specified.

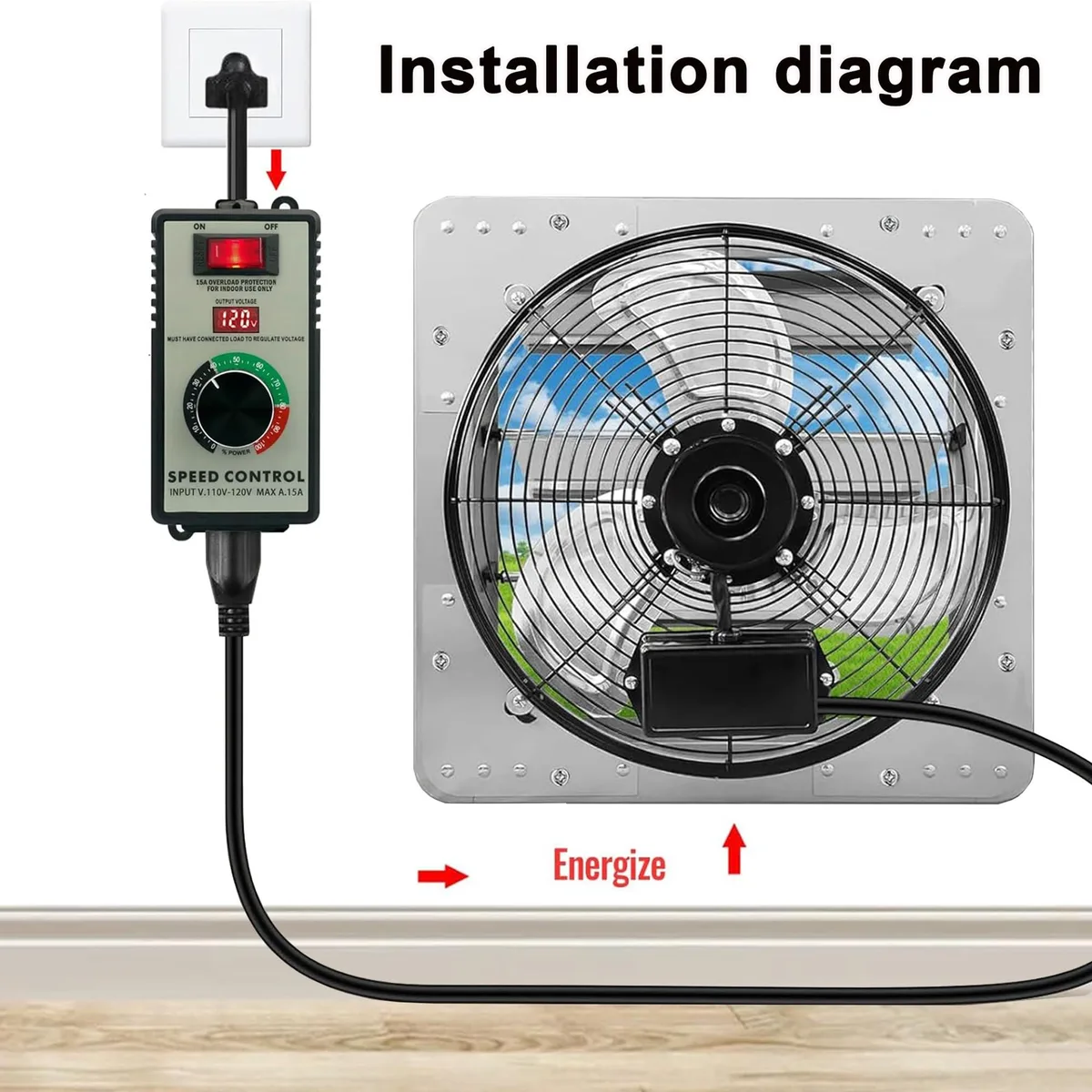

How do I wire the controller to a 110-120 V supply and the fan, and what step is often missed?

Plug the controller into a standard Type A or Type B outlet, then plug the fan into the controller’s socket; the step often missed is confirming the fan’s starting current stays below 15 A before turning the switch on.

What maintenance or replacement will the controller need over time?

The unit has an internal overload switch that trips at 15 A and resets automatically; if the switch fails or the LED display stops showing voltage, the controller itself must be replaced.
