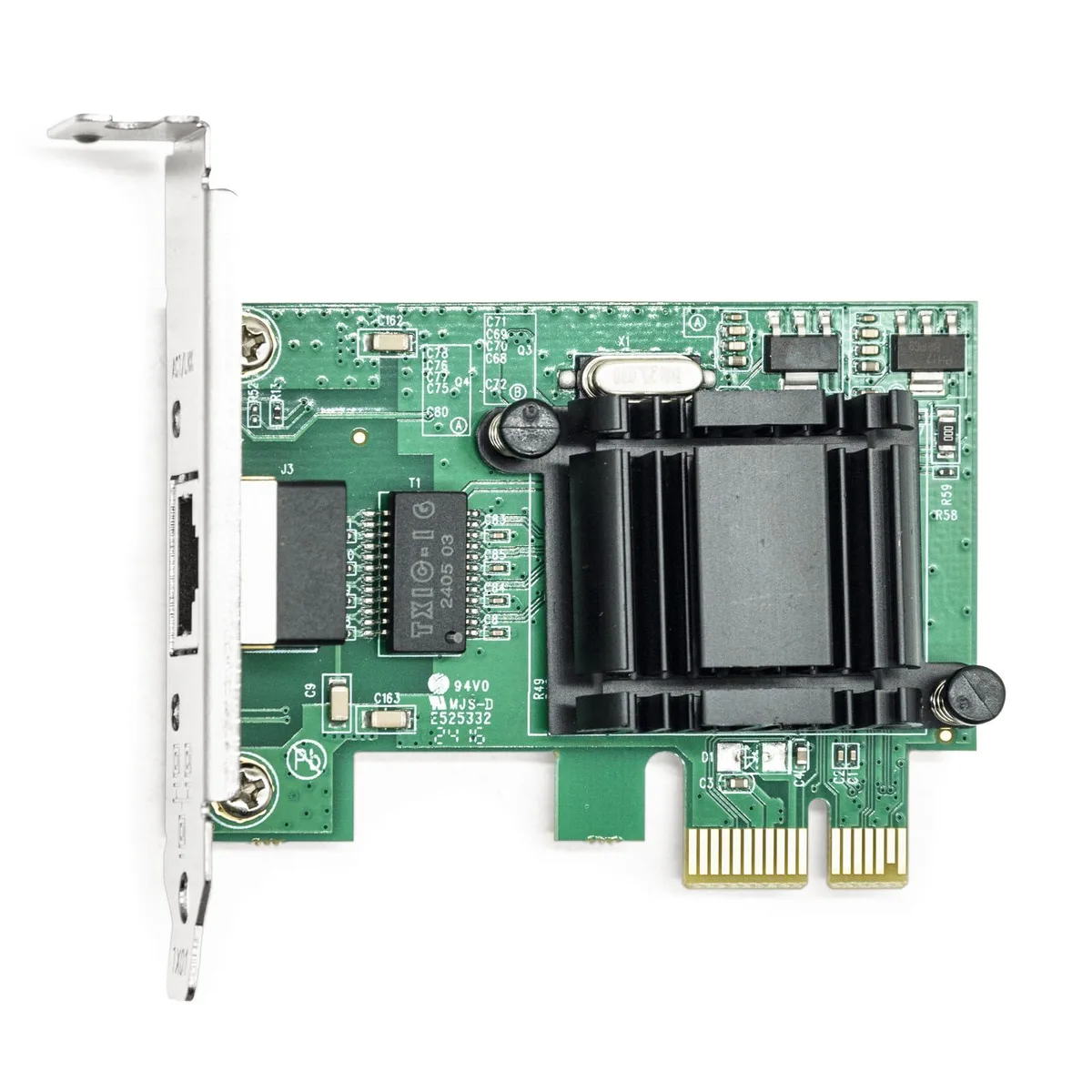

Green circuit board with single RJ45 port, metal bracket, two LED lights

Vszerda

Vszerda 82574-1T Gigabit PCIe network card

SKU CH-1HSH-HYFH2

Gigabit Ethernet PCIe x1 adapter with Intel 82574L controller, single RJ45 port, low-profile and full-height brackets included

  • Speed1000 megabytes_per_second
  • FeaturesDesktop
  • Dimensions8.8 in x 1.2 in x 5.7 in
  • Gigabit speeds up to 1000 Mbps via Intel 82574L controller
  • Broad OS support including Windows Server 2019 and Linux Ubuntu 20
  • Fits standard and slim cases with both full-height and low-profile brackets
  • PCI Express 1.1 x1 lane works in x1 x4 x8 x16 slots
  • IEEE 802.3ab and 802.1Q standards for VLAN and flow control

Single-port Gigabit NIC for desktops and servers

This PCIe x1 network adapter uses an Intel 82574L controller to add a 10/100/1000 Mbps RJ45 port. It suits Windows, Windows Server, Linux, FreeBSD and VMware ESXi hosts that need a reliable wired link. Both full-height and low-profile brackets are included for standard or slim chassis.

Verify an open PCIe x1

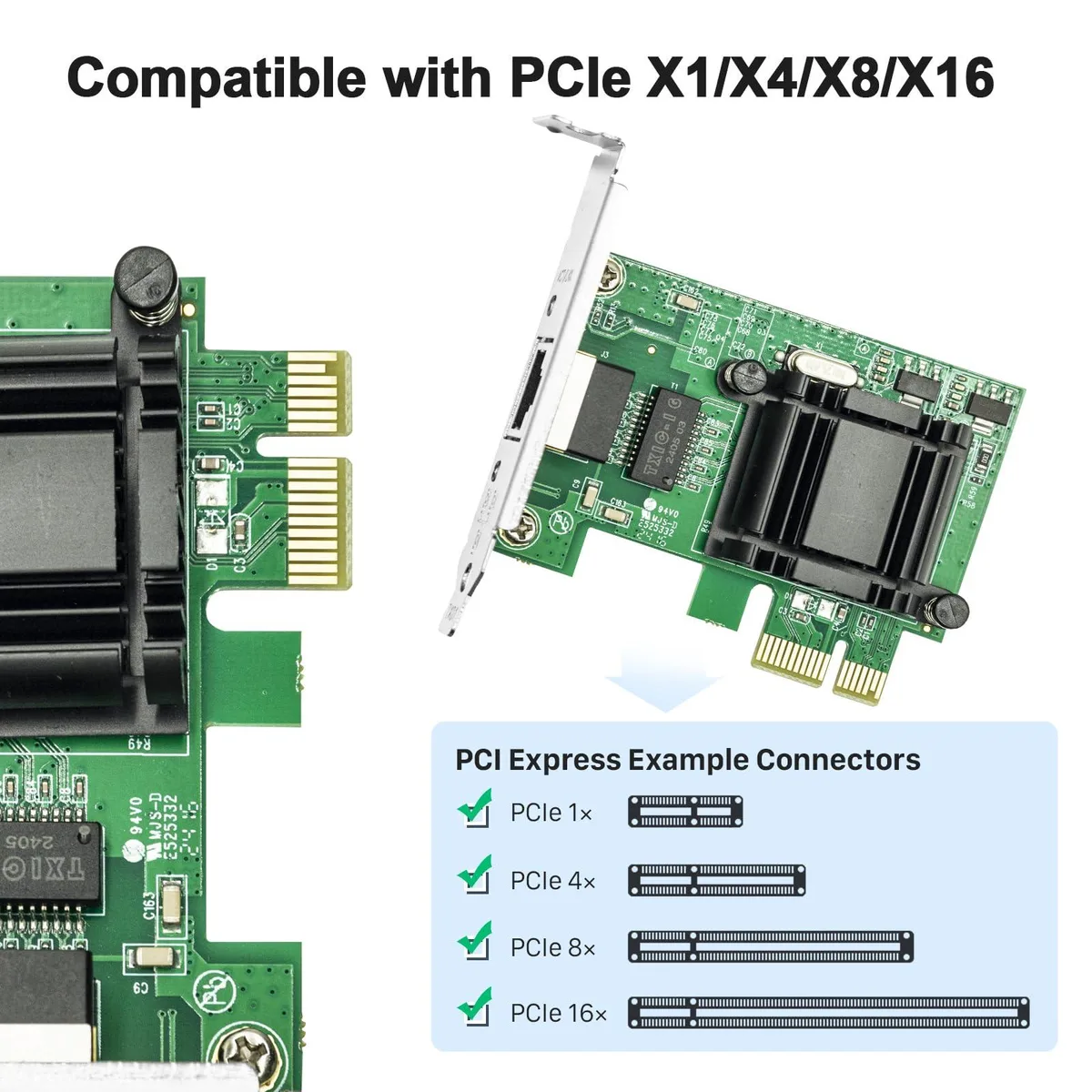

The card fits x1, x4, x8 or x16 slots running at PCI Express 1.1 2.5 GT/s. Confirm your operating system appears in the supported list before ordering. A Cat5e or better UTP cable up to 100 metres is required for gigabit operation.

Passive cooling keeps noise at zero

No fan is present; the 42 g board dissipates heat through its PCB and bracket. Operating temperature range is 0 to 55 °C. Two LEDs show link and activity status without adding audible or thermal load.

주요 특징

  • Gigabit speeds up to 1000 Mbps via Intel 82574L controller
  • Broad OS support including Windows Server 2019 and Linux Ubuntu 20
  • Fits standard and slim cases with both full-height and low-profile brackets
  • PCI Express 1.1 x1 lane works in x1 x4 x8 x16 slots
  • IEEE 802.3ab and 802.1Q standards for VLAN and flow control

사양

BrandH!Fiber.com
Model82574-1T
Part Number82574-1T-HF(EU)
Speed1000 megabytes_per_second
FeaturesDesktop
Dimensions8.8 in x 1.2 in x 5.7 in

이 상품에 대한 질문

Does the Vszerda 82574-1T come with both brackets so I can fit it in a standard or low-profile case?

Yes, the package includes the network adapter plus both a full-height and a low-profile metal bracket for standard or slim chassis.

Which speed version should I choose if my switch only runs at 100 Mbps?

The single RJ45 port auto-negotiates 10, 100 or 1000 Mbps, so the card works at 100 Mbps without any extra selection.

Will the advertised 1000 Mbps actually appear on my PCI Express 1.1 x1 slot?

The x1 lane at 2.5 GT/s provides enough bandwidth for full 1000 Mbps throughput in both directions.
