Green circuit board with gold PCIe edge connector and single RJ45 port

Vszerda

Vszerda BCM5751-1T Gigabit PCIe x1 Network Card

SKU CH-8WT6-N718B

Adds a single-port 10/100/1000 Mbps Ethernet link via PCIe x1 with full-height and low-profile brackets included

  • Speed1000 megabits_per_second
  • FeaturesDesktop
  • Gigabit speeds up to 1000 Mbps with Broadcom BCM5751 controller
  • PCI Express 1.1 x1 lane fits x1, x4, x8, x16 slots

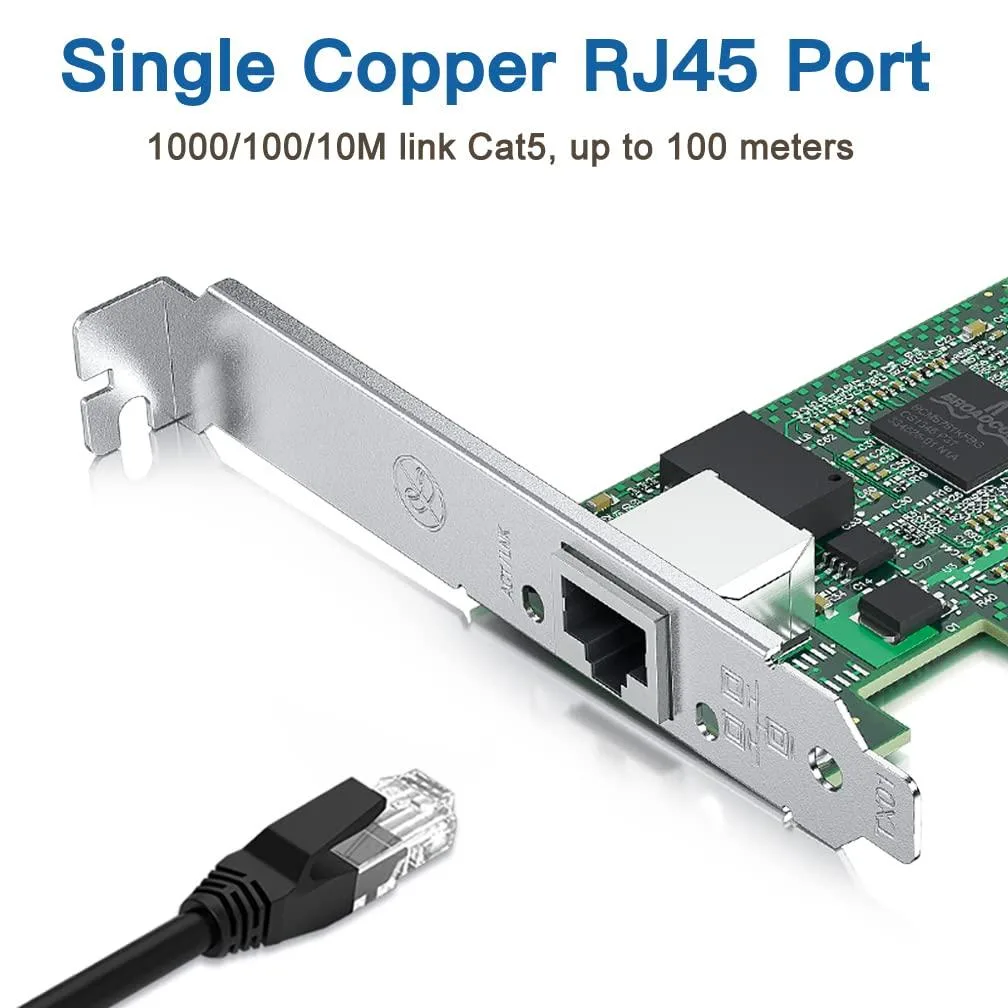

  • Single RJ45 port supports 10/100/1000 Mbps over Cat5e up to 100 metres

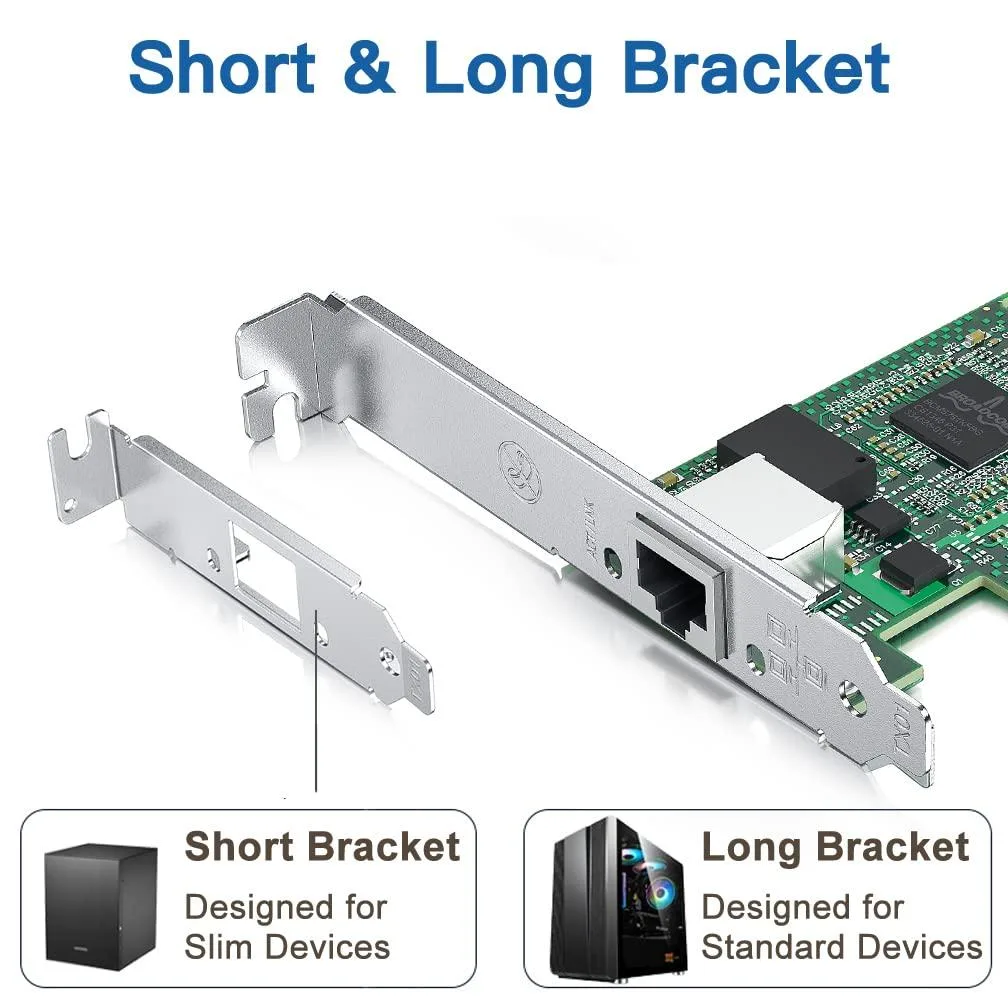

  • Includes full-height and low-profile brackets for standard and slim systems
  • Broad OS support: Windows XP through Server 2019, Linux, FreeBSD, VMware ESXi 5/6

Gigabit PCIe x1 Network Card

This single-port Gigabit Ethernet adapter uses a Dell Broadcom BCM5751 controller on a PCI Express 1.1 x1 interface. It fits standard and low-profile brackets, making it suitable for desktop PCs or slim servers. The card supports 10, 100 and 1000 megabits per second over Cat5e cable up to 100 metres.

Replaces failed onboard LAN or adds a second port

Upgrade from a damaged motherboard port or add a dedicated wired link for a virtual machine host. The jump is worth it when you need Quality-of-Service traffic prioritisation or broad OS support including Windows Server 2003 through 2019, Linux distributions and VMware ESXi 5 and 6.

Check slot and bracket clearance

Verify your system has a free PCIe x1, x4, x8 or x16 slot and choose the full-height or low-profile bracket accordingly. Ensure the operating temperature range of 0 to 50 degrees Celsius suits the chassis airflow. Driver installation requires scanning a QR code on the card.

주요 특징

  • Gigabit speeds up to 1000 Mbps with Broadcom BCM5751 controller
  • PCI Express 1.1 x1 lane fits x1, x4, x8, x16 slots
  • Single RJ45 port supports 10/100/1000 Mbps over Cat5e up to 100 metres
  • Includes full-height and low-profile brackets for standard and slim systems
  • Broad OS support: Windows XP through Server 2019, Linux, FreeBSD, VMware ESXi 5/6

사양

BrandH!Fiber.com
ModelBCM5751-1T
Part NumberBCM5751-1T-HF(EU)
Speed1000 megabits_per_second
FeaturesDesktop

이 상품에 대한 질문

Does the card include both a full-height and a low-profile bracket for standard or slim cases?

Yes, the package contains a full-height bracket and a low-profile bracket so it fits standard and slim computer or server chassis.

How do I get the correct driver for Windows Server 2019 or Ubuntu 20?

Scan the QR code printed on the card to download the driver immediately; the adapter supports Windows Server 2019, Ubuntu 20 and many other listed operating systems.

Will the RJ45 port still work at 1000 Mbps after years of use?

The single RJ45 port supports 10/100/1000 Mbps over Cat5e cable up to 100 metres and operates from 0 °C to 50 °C for long-term reliability.
