Black 3D-printed Dreamcast fan mount kit with latch and cable adapter

Yoetaun

Yoetaun Dreamcast Noctua Fan 3D Print Mod Kit A B

SKU CH-P9E2-FBF6S

A 3D-printed bracket and adapter cable that mounts a Noctua NF-A4x10 5V fan inside a SEGA Dreamcast, silencing GDROM-emulator systems

  • ColorBlack
  • Mounts a quiet Noctua NF-A4x10 5V fan in place of the stock Dreamcast cooler
  • Custom cable with built-in 10K resistor plugs into the original fan header for proper signal conversion
  • Designed for GDROM emulator setups such as USB-GDROM and GDEMU to make the console nearly silent
  • 3D-printed black plastic bracket sized 18 x 15.5 x 3.5 cm fits the Dreamcast chassis
  • Supplied as two separate kits (Kit A and Kit B) for flexible installation options

Dreamcast Noctua Fan Mod Kit

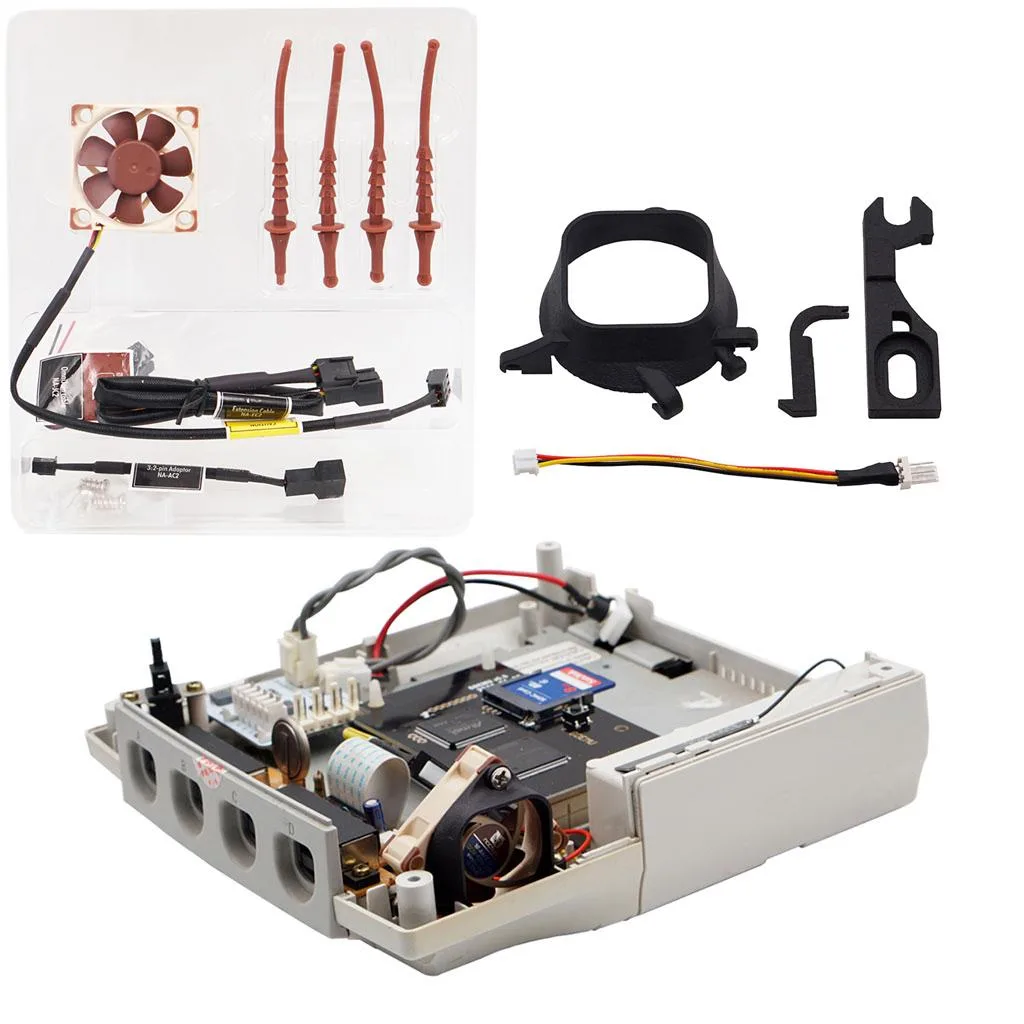

This 3D-printed kit replaces the original SEGA Dreamcast cooling fan with a Noctua NF-A4x10 5V unit. It includes a custom latch and a conversion cable with a built-in 10K resistor for proper signal conversion. The mod targets owners seeking quieter operation on original hardware.

Thermals, Noise and Power Draw

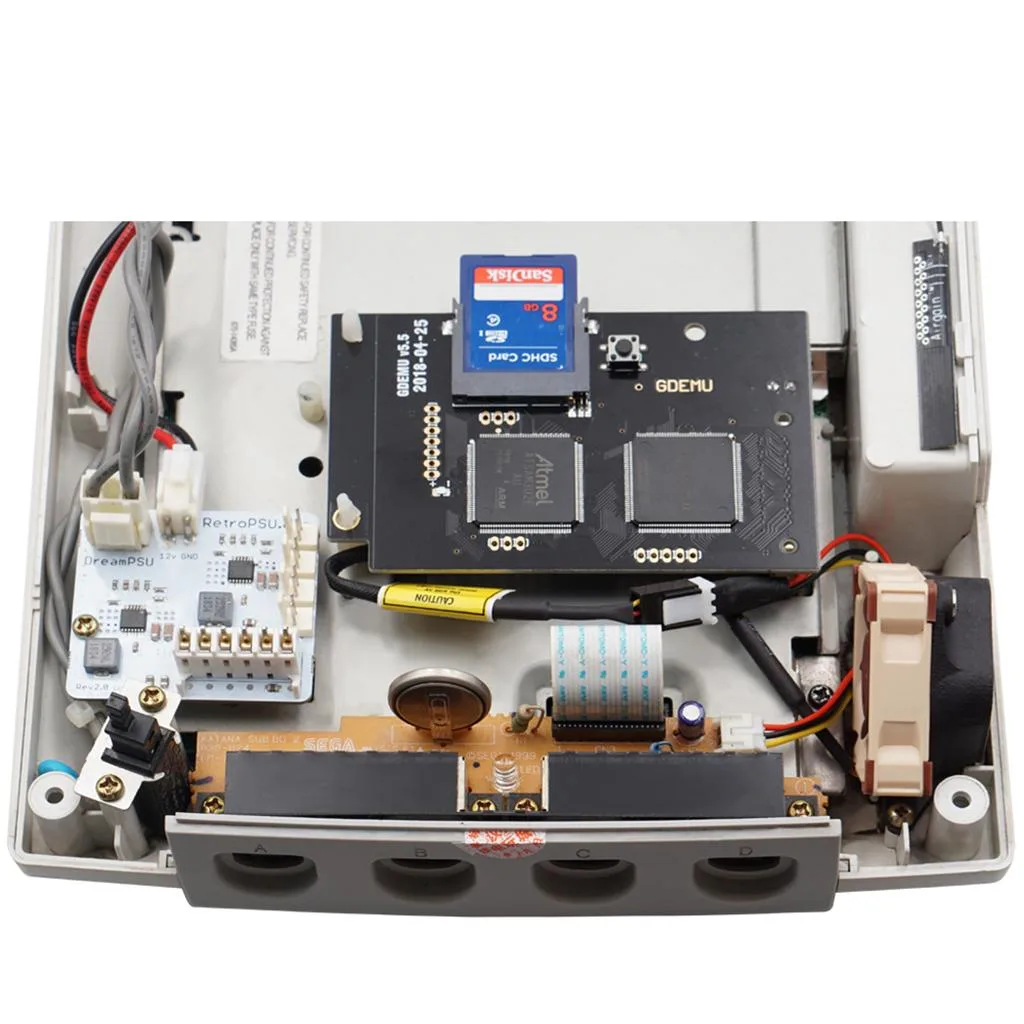

The modification shines in consoles fitted with GDROM emulators such as USB-GDROM or GDEMU, where it makes the system nearly silent. With the original disc drive installed the drive noise dominates, so the acoustic benefit is limited. The 5V fan draws power directly from the original connector.

Build Quality and Connectors

The black plastic mount measures 18 by 15.5 by 3.5 centimetres (7.09 by 6.1 by 1.38 inches) and secures the Noctua fan in the stock location. The included adapter cable plugs into the original fan header without soldering. Two kit variants, labelled A and B, are supplied to suit different mounting needs.

주요 특징

  • Mounts a quiet Noctua NF-A4x10 5V fan in place of the stock Dreamcast cooler
  • Custom cable with built-in 10K resistor plugs into the original fan header for proper signal conversion
  • Designed for GDROM emulator setups such as USB-GDROM and GDEMU to make the console nearly silent
  • 3D-printed black plastic bracket sized 18 x 15.5 x 3.5 cm fits the Dreamcast chassis
  • Supplied as two separate kits (Kit A and Kit B) for flexible installation options

사양

ColorBlack

이 상품에 대한 질문

How do I install the 3D-printed mount and the custom cable with the built-in 10K resistor?

Remove the original fan, fit the Noctua NF-A4x10 5V into the printed bracket, then plug the adapter cable into the Dreamcast's stock fan header; the resistor ensures correct speed signalling.

What maintenance will the Noctua NF-A4x10 5V fan need after installation?

Periodically blow dust from the fan blades and heatsink fins; the sealed bearings require no lubrication, so cleaning every few months keeps airflow steady.

What thermal limit appears first when the Dreamcast runs a GDROM emulator continuously?

The original disc drive is louder than the fan, so with a GDROM emulator the system becomes nearly silent; the next limit is the console's own case airflow rather than fan noise.
