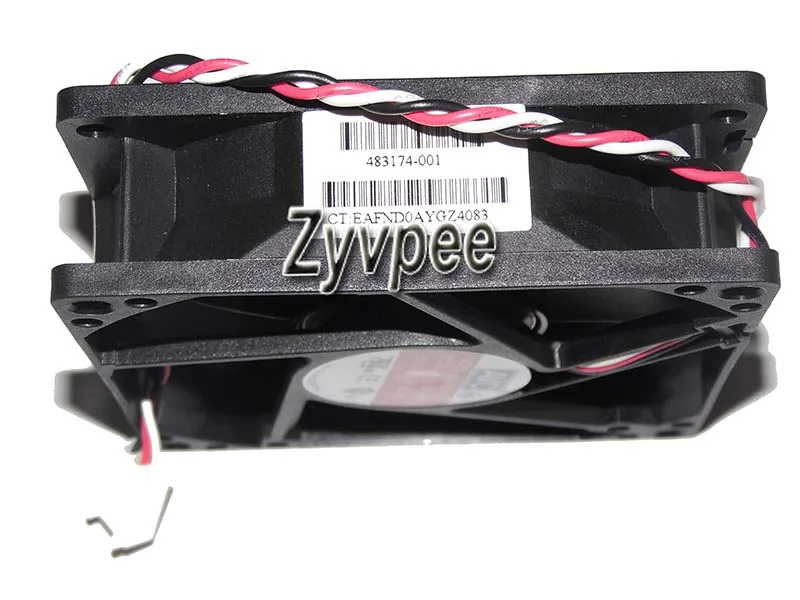

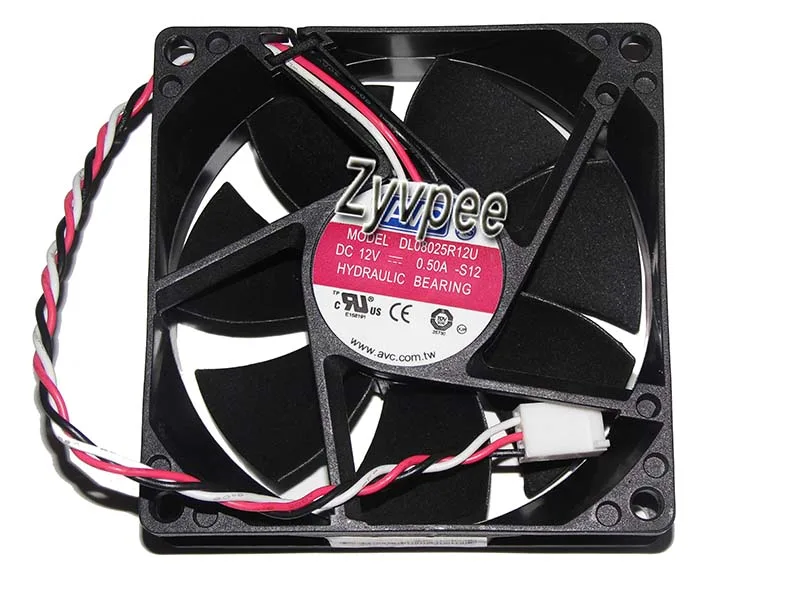

Black 80mm square case fan with 3-pin connector

Zyvpee

Zyvpee DL08025R12U -S12 80mm 12V 0.5A 3-pin case fan

SKU CH-FZC9-6P25P

An 80 mm ball-bearing case fan running at 12 V and 0.5 A with a three-pin connector, designed as a direct replacement for HP spare parts 482951-001, 9Q1061 and 483174-001

  • TypeCase Fan
  • CompatibilityCPU Cooler
  • Bearing TypeBall
  • Power Connector3 Pin
  • ColorBlack
  • LEDNon-LED
  • 80 mm frame fits tight chassis spaces
  • 12 V, 0.5 A draw keeps power use low
  • Ball bearing gives long running life
  • 3-pin connector works with standard headers
  • Matches HP spare numbers 482951-001, 9Q1061, 483174-001

Compact 80 mm case fan

This 80 mm by 25 mm case fan runs on 12 V and draws 0.5 A through a three-pin connector. It uses a ball bearing for reliable rotation and carries no LED lighting. The black frame fits standard 8025 mounting points in compact chassis or CPU cooler brackets.

Suited for tight airflow paths

The fan delivers focused airflow for small-form-factor builds, low-profile CPU coolers or replacement of OEM units such as HP spare parts 482951-001, 9Q1061 and 483174-001. It is not intended for high-static-pressure radiators or large tower coolers that demand greater airflow volume.

Ball-bearing thermals and acoustics

The ball bearing maintains consistent speed with minimal friction over long operating periods. Power draw stays at 0.5 A, keeping heat contribution low inside the chassis. Acoustic output remains moderate for background cooling in office or home systems.

주요 특징

  • 80 mm frame fits tight chassis spaces
  • 12 V, 0.5 A draw keeps power use low
  • Ball bearing gives long running life
  • 3-pin connector works with standard headers
  • Matches HP spare numbers 482951-001, 9Q1061, 483174-001

사양

Brand3ccooler.com
SeriesDL08025R12U -S12
ModelDL08025R12U
TypeCase Fan
CompatibilityCPU Cooler
Bearing TypeBall
Power Connector3 Pin
ColorBlack
LEDNon-LED
FeaturesCase Fan
Dimensions80*25mm

이 상품에 대한 질문

Will the 3-pin connector on this 80mm fan plug into a 4-pin motherboard header I already have?

Yes, the 3-pin connector fits a standard 4-pin header; the fourth pin is simply unused, so the fan will run at full 12 V speed.

How can I confirm the DL08025R12U -S12 is spinning correctly once installed?

Power on the system and check the BIOS hardware monitor or a fan-speed utility; you should see an RPM reading for the 8025 fan.

Does the box include mounting screws or a 3-pin-to-4-pin adapter for the 80*25mm unit?

The package contains only the 12 V 0.5 A ball-bearing fan; screws and any adapter must be sourced separately.
