Zyvpee
Zyvpee W2E200-HH38-07 220mm 230V 64W case fan
A 220 mm case fan delivering 925 m³/h airflow at 2550 RPM from a dual-ball bearing 230 V 64 W motor
- TypeCase Fan
- CompatibilityCase
- Fan Size220mm
- Bearing Type2 Ball
- Power ConnectorSee pics
- Color2-Tone
- 220 mm frame fits standard large-fan mounts
- 230 V AC supply runs direct from mains power
- 64 W motor delivers 544.4 CFM airflow
- Dual ball bearings rated for continuous industrial duty
- 2550 RPM speed moves 925 m³/h through enclosures
Industrial 230V AC Case Fan

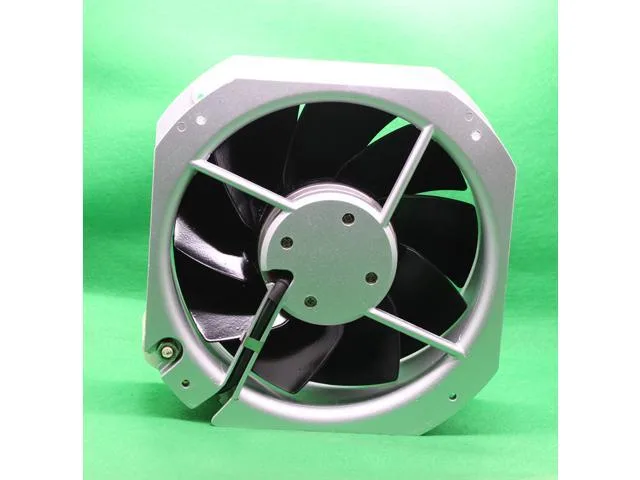

The Zyvpee W2E200-HH38-07 is a 220mm industrial case fan designed for rack cabinets and server enclosures that run from mains voltage. It suits system integrators and technicians who need high airflow without an external power supply.
Dual Ball Bearing and Mains Wiring
A 2-ball bearing supports continuous duty in Rittal-style cabinets. The unit measures 225 by 80 millimetres and connects directly to 230V AC, so mounting relies on standard cabinet screw patterns rather than a motherboard header.
544.4 CFM at 2550 RPM
At full speed the fan moves 925 cubic metres of air per hour while drawing 64 watts and 0.29 amps. The 85-watt rated power and 2550 RPM rating indicate noticeable acoustic output suited to equipment rooms rather than quiet desktops.
주요 특징
- 220 mm frame fits standard large-fan mounts
- 230 V AC supply runs direct from mains power
- 64 W motor delivers 544.4 CFM airflow
- Dual ball bearings rated for continuous industrial duty
- 2550 RPM speed moves 925 m³/h through enclosures
사양
| Series | W2E200-HH38-07 |
|---|---|
| Model | W2E200-HH38-07 |
| Type | Case Fan |
| Compatibility | Case |
| Fan Size | 220mm |
| Bearing Type | 2 Ball |
| Power Connector | See pics |
| Color | 2-Tone |
| LED | Non-LED |
| Features | DC square Cooler |
| Dimensions | 225*80MM |
이 상품에 대한 질문
What does the 230V AC interface mean for power delivery?
This fan runs directly on 230V mains power at 0.29A and 64W, so it connects to a standard IEC lead or terminal block, not to a motherboard header.
Will the 225mm square by 80mm deep frame fit my 220mm case mount?
The housing measures 225mm x 225mm x 80mm, so verify your chassis has a 225mm square cut-out and 80mm clearance before ordering.
How is the two-ball bearing unit wired during installation?
Connect the two supply leads to 230V live and neutral, observing polarity if marked, and secure the fan with four corner screws — do not power it until the mechanical mount is firm.
