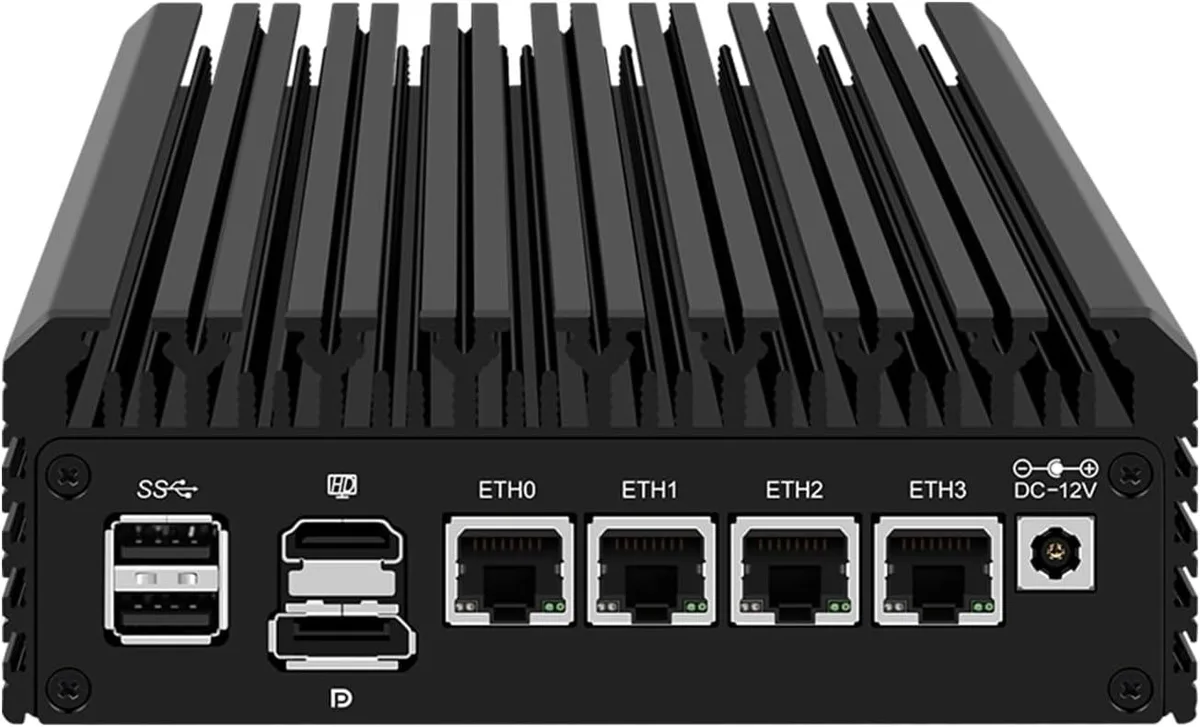

Compact fanless mini PC with four Ethernet ports

BFKK

BFKK 2.5GbE Firewall Appliance Mini PC N100 16GB DDR5 512GB

SKU CH-V0Y3-X8V07

Fanless mini PC with four 2.5GbE Intel I226 ports, N100 CPU, 16 GB DDR5 and 512 GB storage for firewall or router duties

  • CPU TypeIntel Celeron

Options 512GB SSD

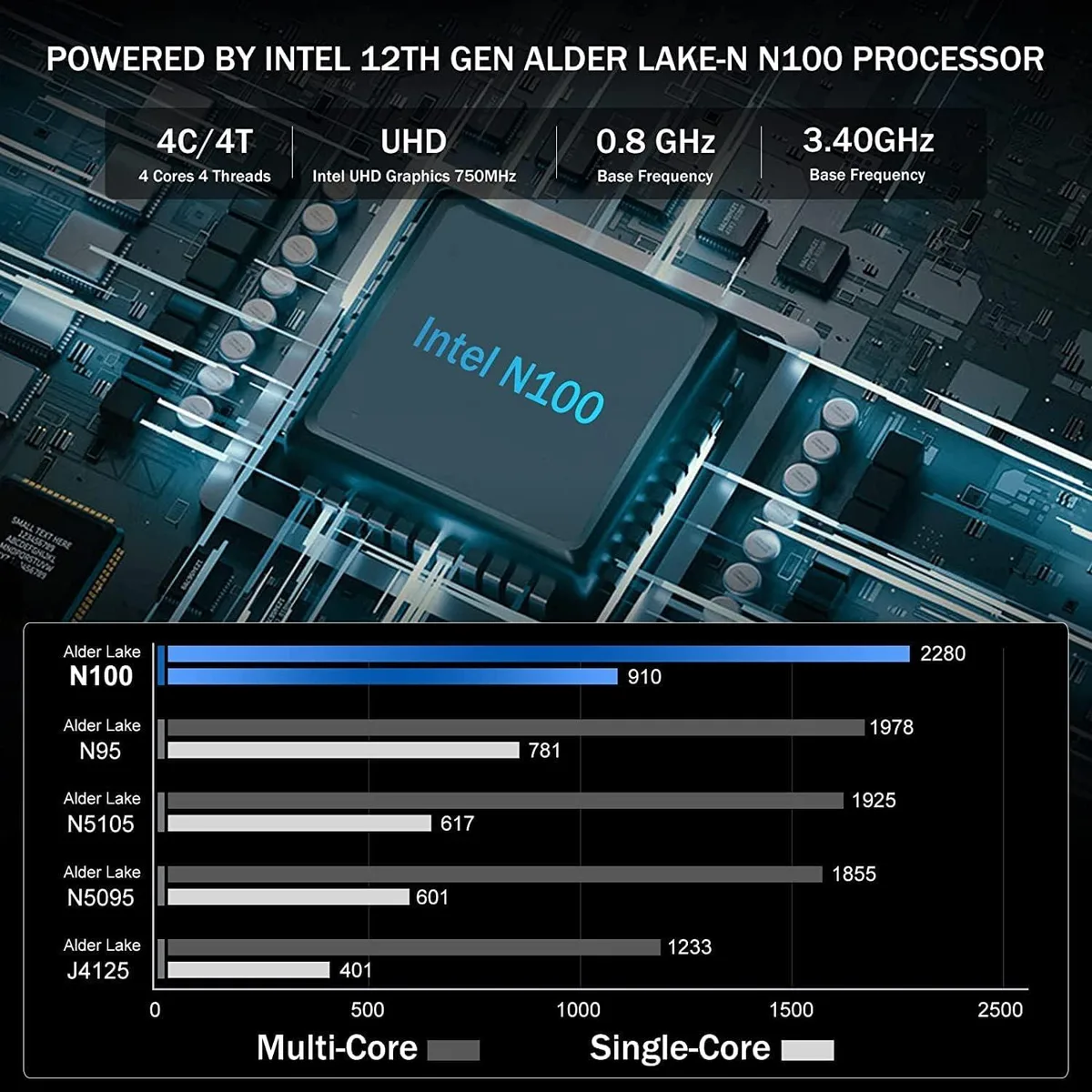

  • Intel N100 quad-core CPU delivers responsive routing performance
  • Four Intel I226 2.5GbE ports provide high-throughput wired connectivity
  • 16GB DDR5 memory handles concurrent firewall sessions smoothly
  • 512GB M.2 PCIe 3.0 SSD stores logs and packages reliably
  • Fanless 6W design runs silently in always-on deployments

Purpose-Built Firewall Platform

This BFKK mini PC arrives with an Intel N100 processor, sixteen gigabytes of DDR5 memory and a 512-gigabyte M.2 PCIe 3.0 drive. Four Intel I226-V 2.5-gigabit Ethernet ports give it the throughput needed for a dedicated router, firewall or virtualisation host. The fanless chassis runs silently in a rack, on a shelf or behind a monitor. Pre-installed pfSense Plus 23.0x lets administrators start configuring rules immediately.

2.5-Gigabit Ethernet Reality

Each I226-V port tops out at two and a half gigabits per second, so aggregate throughput depends on the switch and cabling you provide. Driver maturity varies across BSD and Linux distributions; the supplier notes that pfSense 23.01, OPNsense 22.1 and current Proxmox or ESXi releases have working support. Older installer images may require a kernel update before all four interfaces appear. HDMI 2.1 and DisplayPort 1.4 are present for console access, not for driving workloads.

Upgrade Path From Software-Only Routers

The appliance replaces a repurposed desktop or single-NIC box that cannot isolate WAN, LAN, DMZ and management traffic on separate physical ports. AES-NI acceleration in the N100 makes VPN and IDS/IPS workloads practical at line rate. Buyers who need more than four 2.5-gigabit links, ten-gigabit uplinks or higher single-thread performance for heavy proxy caching should look at larger platforms. The single DDR5 slot accepts up to thirty-two gigabytes if memory pressure grows.

Pluspunten

  • Intel N100 quad-core CPU delivers responsive routing performance
  • Four Intel I226 2.5GbE ports provide high-throughput wired connectivity
  • 16GB DDR5 memory handles concurrent firewall sessions smoothly
  • 512GB M.2 PCIe 3.0 SSD stores logs and packages reliably
  • Fanless 6W design runs silently in always-on deployments

Specificaties

CPU TypeIntel Celeron

Andere versies van dit model

Nog 1 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

Should I pick the 16 GB DDR5 512 GB model or the barebone version with no RAM and no SSD?

The listed unit ships with 16 GB DDR5 4800 MHz and a 512 GB M.2 PCIe 3.0 SSD already installed. The barebone variant has one DDR5 slot supporting up to 32 GB and one M.2 PCIe 3.0 slot you populate yourself.

What does the 2.5 GbE rating on the four Intel I226 ports mean for actual throughput?

Each of the four Intel I226 ports can negotiate up to 2.5 Gbps, so the appliance can route or inspect traffic at multi-gigabit line rate when the firewall OS and drivers support it.

Which M.2 standard does the storage slot use and what speed does it cap at?

The single M.2 slot is PCIe 3.0, limiting the installed 512 GB drive to PCIe 3.0 speeds.
