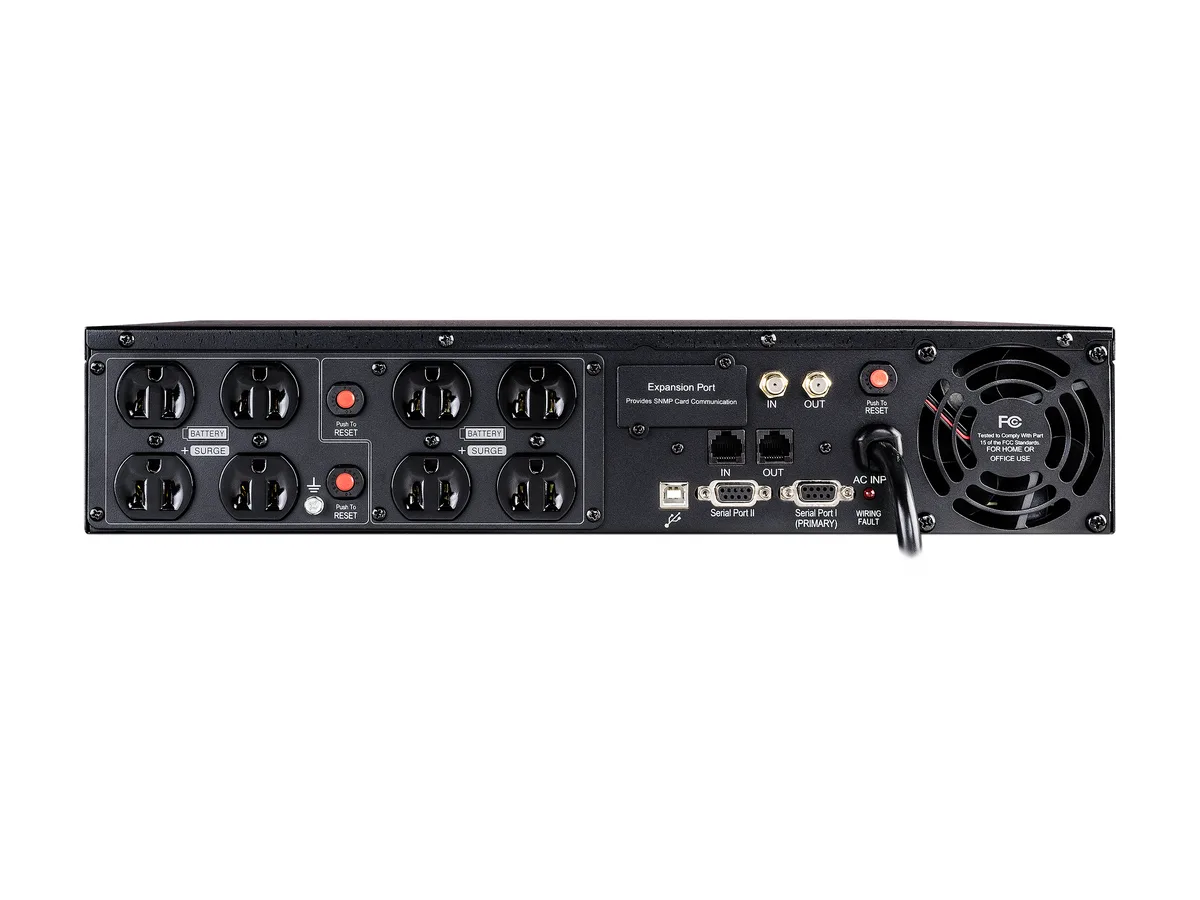

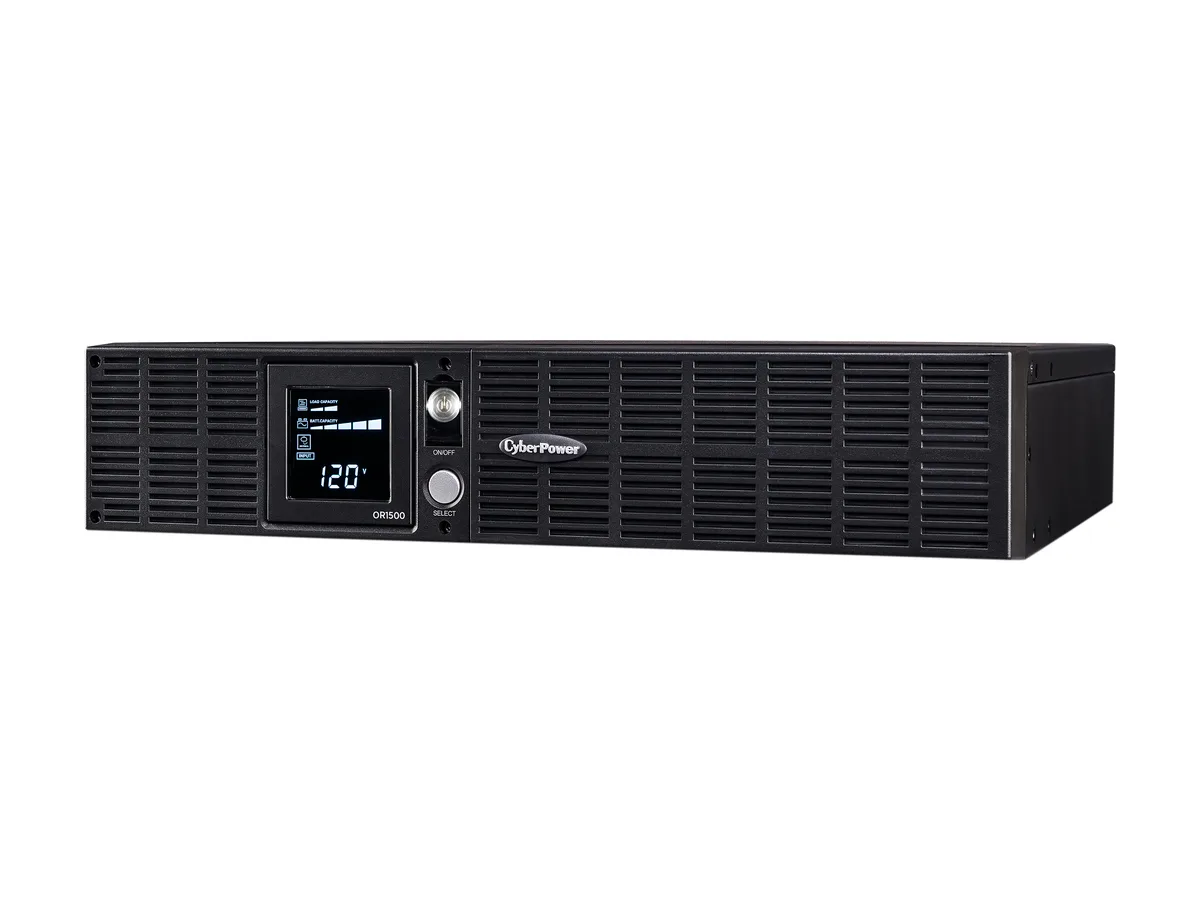

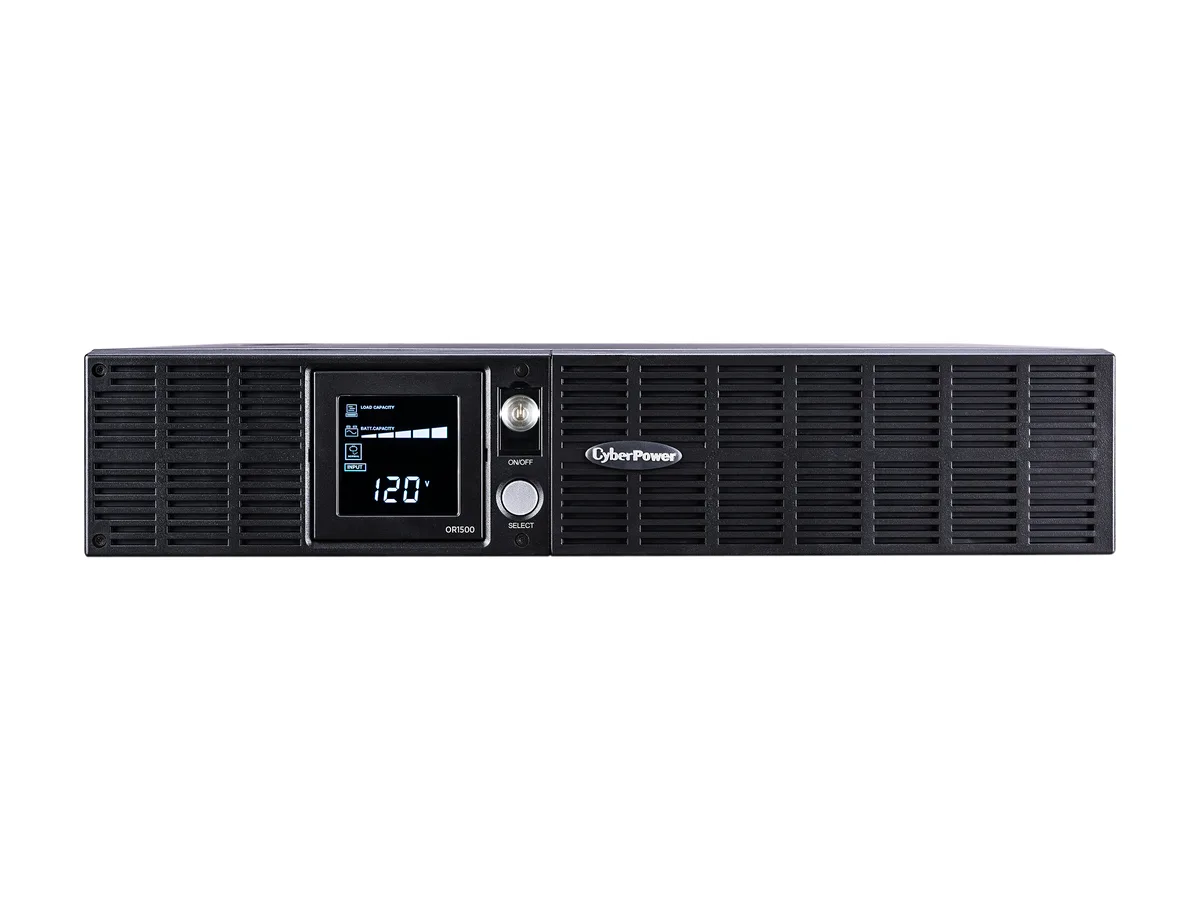

Black rectangular 2U rack tower UPS with front LCD panel and eight rear outlets

CyberPower

CyberPower OR1500LCDRT2U UPS 1500VA 900W 120V 2U 8 Outlets

SKU CH-QZYB-F5QPZ MPN OR1500LCDRT2U

Provides 1500 VA / 900 W line-interactive battery backup with simulated sine wave output, eight NEMA 5-15R outlets, USB and serial management, and a 2U rack or tower form factor

  • Input Voltage Range90 - 140V
  • Input Frequency47 - 63 Hz
  • Input ConnectionNEMA 5-15P
  • VA Rating1500 VA
  • Watts900 W
  • Output Voltage120Vac +/- 10% (On Battery Voltage)

Options OR1500LCDRT2U

  • 1500 VA capacity handles heavy server loads
  • 900 W output keeps critical gear running
  • 8 NEMA 5-15R outlets connect multiple devices
  • 18 minute half-load runtime bridges short outages
  • USB and serial ports enable remote management

Capacity and Form Factor

The CyberPower OR1500LCDRT2U is a line-interactive UPS rated at 1500 VA and 900 W for 120 V environments. It fits a 2U rackmount or tower chassis and provides eight NEMA 5-15R outlets fed by a NEMA 5-15P plug on a 10 ft cord. The unit suits network closets, server racks and workstation groups that need battery-backed power with automatic voltage regulation.

Sustained Load Behaviour

Under battery power the output holds 120 Vac ±10 % at 50/60 Hz ±1 % with a simulated sine-wave form. At half load the internal sealed lead-acid pack delivers approximately 18 minutes of runtime; at full load this drops to roughly 6 minutes. Recharging the user-replaceable RB1270X4F battery set takes about 8 hours, while audible alarms signal on-battery, low-battery, overload, missing-battery and fault conditions.

Upgrade Context

The USB and serial ports plus optional SNMP let PowerPanel Business Edition manage graceful shutdowns and monitoring across multiple systems. This model replaces smaller desktop UPS units when rack density, longer cord reach or centralised software control become requirements. It is not suited for loads exceeding 900 W or for equipment that demands a pure sine-wave output.

Pluspunten

  • 1500 VA capacity handles heavy server loads
  • 900 W output keeps critical gear running
  • 8 NEMA 5-15R outlets connect multiple devices
  • 18 minute half-load runtime bridges short outages
  • USB and serial ports enable remote management

Specificaties

BrandCyberPower
ModelOR1500LCDRT2U
Input Voltage Range90 - 140V
Input Frequency47 - 63 Hz
Input ConnectionNEMA 5-15P
VA Rating1500 VA
Watts900 W
Output Voltage120Vac +/- 10% (On Battery Voltage)
Output Frequency50/60Hz +/- 1% (On Battery Frequency)
Outlets8
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeRuntime at Half Load (min): 18
Runtime at Full Load (min): 6
Battery Recharge Time8 Hour(s)
Battery ReplaceableRB1270X4F
AlarmsOn Battery, Low Battery, Overload, Battery Missing, Fault
Interface PortUSB ,Serial
Management SoftwarePowerPanel Business Edition
ApprovalsUL1778, cUL, CSAC22.2, 107.1, FCC DOC Class B, RoHS Compliant
Rackmountable2U
Data Line ProtectionRJ-45 Ethernet /RJ-11 Phone protection
Surge Energy Rating1840 joules
ProtectionInternal circuitry limiting / circuit breaker
Features1500VA / 900W Simulated Sine Wave UPS
Line-Interactive Topology
AVR & GreenPower UPS
2U Rack Mount/Tower Convertible
Multifunction Rotatable LCD Display
SNMP/HTTP Remote Management Option
8 Outlets / USB and Serial Ports
EMI/RFI Filters
PowerPanel Business Edition
Dimensions17.25" x 15.75" x 3.50"
Weight48.40 lbs.
Verzendgewicht24.49 kg
Pakketafmetingen538 × 526 × 297 mm

Andere versies van dit model

Nog 3 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

How much heat and noise does the 900 W line-interactive UPS produce during continuous operation?

The line-interactive topology runs the inverter only on battery, so under normal mains power the unit produces minimal heat and fan noise; measurable output is limited to the 1500 VA / 900 W rating and 120 VAC ± 10% regulation.

Which cables or network cards must I already have to use the USB, Serial and SNMP management ports?

You need a standard USB cable for the USB port, a DB-9 serial cable for the Serial port, and an Ethernet connection with an SNMP card installed in the expansion slot for SNMP monitoring.

Will the simulated sine-wave output and 90 - 140 V input range safely support legacy servers with active PFC power supplies?

The simulated sine wave may cause compatibility issues with some active PFC equipment; the 90 - 140 V input window and AVR function help stabilise voltage for older hardware within that range.
