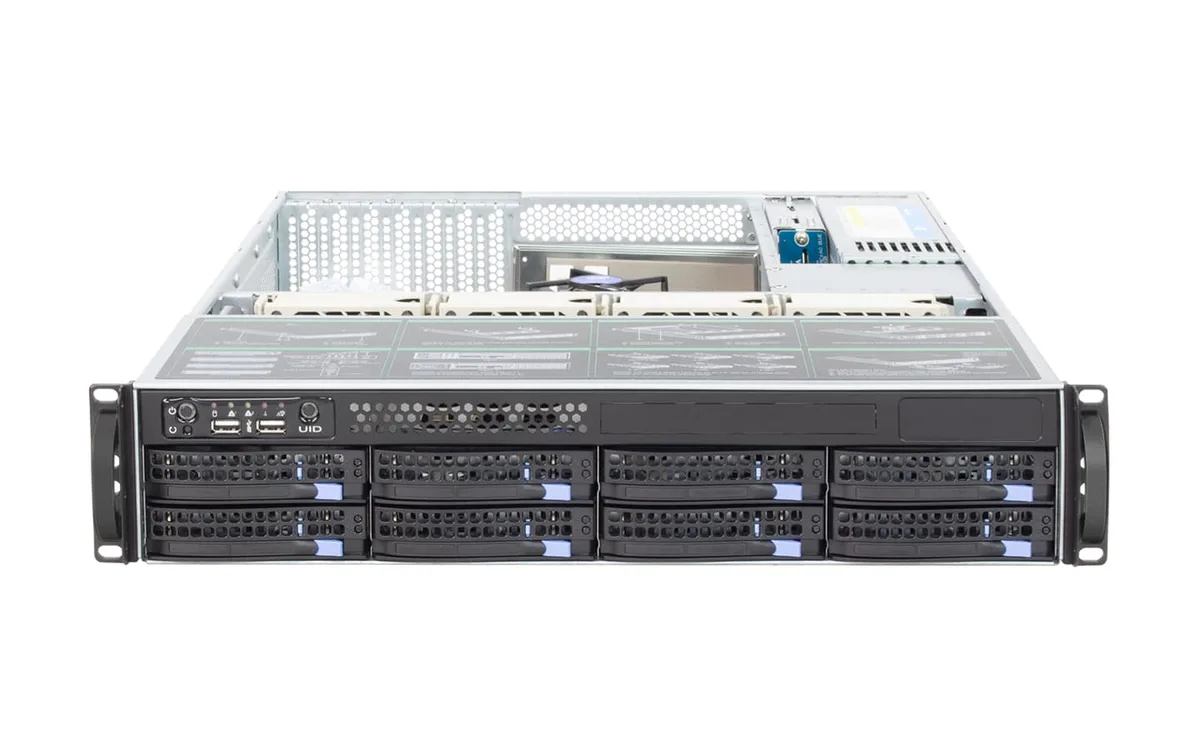

Silver 19-inch 2U rackmount chassis with eight front hot-swap drive bays

HOTCFWQ

HOTCFWQ 2U 8-Bay Server Chassis 12Gb/s SAS Backplane

SKU CH-DH5Y-7EVF2

Rackmount 2U chassis holds eight hot-swap 3.5" drives on a 12Gb/s SAS backplane with temperature monitoring

  • Chassis TypeRackmount
  • Fits standard 19" racks at 88mm height
  • 12Gb/s MINI SAS backplane with temperature monitoring
  • Eight 3.5" hot-swap bays support SATA and SAS drives
  • Three 8025 AVC ball-bearing fans plus room for a fourth
  • Seven full-height PCI/PCIE slots and front USB 2.0 ports

2U 8-bay server chassis with 12 Gb/s SAS backplane

This 2U rackmount chassis fits a standard 19-inch cabinet and holds eight hot-swap 3.5-inch drive bays. It supports SATA II or III and SAS II or III drives at up to 6 Gb/s per bay. The 12 Gb/s Mini SAS backplane includes a temperature control chipset. Construction uses 1.0 mm SGCC zinc-coated steel for durability.

Upgrade from fixed-bay

The hot-swap design lets you replace drives without powering down the system, and the dual backplane options cover both 6 Gb/s and 12 Gb/s Mini SAS connectivity. The jump is worth it when you need eight bays in 2U height with tool-less drive access and support for redundant power supplies. An optional slim CD-ROM bay can also host a 2.5-inch SSD.

Limits of the 12 Gb/s Mini SAS interface

The backplane delivers 12 Gb/s aggregate bandwidth, but each drive bay operates at the SATA or SAS device speed of 6 Gb/s. Seven full-height PCI/PCIe expansion slots are available for host bus adapters or RAID controllers. Front-panel USB 2.0 ports are standard with optional USB 3.0, and system LEDs cover power, drive activity, network, UID and fan or power failure status.

Pluspunten

  • Fits standard 19" racks at 88mm height
  • 12Gb/s MINI SAS backplane with temperature monitoring
  • Eight 3.5" hot-swap bays support SATA and SAS drives
  • Three 8025 AVC ball-bearing fans plus room for a fourth
  • Seven full-height PCI/PCIE slots and front USB 2.0 ports

Specificaties

Chassis TypeRackmount

Vragen over dit artikel

What rack depth does the 437.5 mm x 560 mm x 88 mm chassis require?

The unit is 560 mm deep and fits a standard 19-inch rack; allow extra depth for rear cable routing and the 2U power supply.

How are the 3.5-inch hot-swap drives secured in the 12Gb/s SAS backplane bays?

Slide each drive into a bay until the carrier latch clicks; the backplane connector engages automatically — do not force the drive past the latch.

When should the three included 8025 AVC ball-bearing fans be replaced?

Replace fans when bearing noise increases, airflow drops, or the chassis OH/FAN Fail LED lights; keep spare 80 mm fans on hand.
