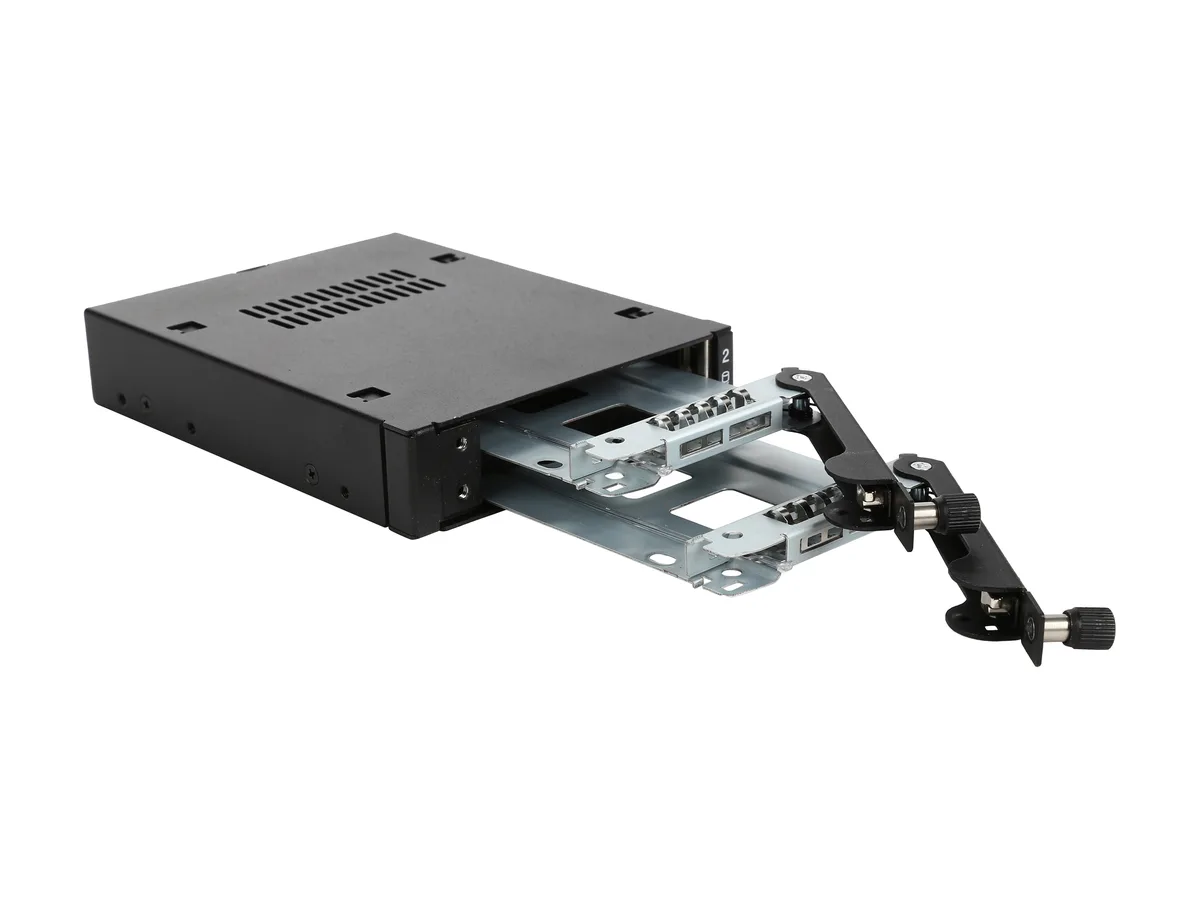

Black metal dual 2.5 inch drive caddy with key lock and thumb screw for 3.5 inch bay

ICY DOCK

ICY DOCK MB492SKL-B 2 x 2.5" SATA/SAS hdd accessory for 3.5" bay

SKU CH-Y6J8-8533V MPN MB492SKL-B

Holds two 2.5″ SATA/SAS drives in a single 3.5″ front bay with a lockable metal tray for secure hot-swap operation

  • ColorBlack
  • Conversion Tray2 x 2.5" Drive to 3.5" Bay
  • Mobile Rack InterfaceSATA I/II/III/SAS
  • Protection CaseMultiple Drives
  • Compatible Products2 x 2.5" SAS/SATA HDD/ SSD
  • SpecificationsDevice Interface: 2 x 22 pin SATA (Support SAS single channe

Model ToughArmors 2BAY+LOCK

Nog 4 configuraties tonen

Doorgestreepte varianten bestaan wel, maar zijn hier niet op voorraad.

Option 2-Bay (2.5in SATA)

Doorgestreepte varianten bestaan wel, maar zijn hier niet op voorraad.

  • Fits two 2.5" SATA/SAS drives in a 3.5" front bay
  • Removable metal tray with key lock and thumb screw secures drives
  • Full metal construction withstands harsh environments
  • Supports 7mm to 9.5mm drive heights
  • 22-pin SATA device interface supports SAS single channel

Dual 2.5" SATA/SAS in a 3.5" bay

The ICY DOCK MB492SKL-B converts a single 3.5" front bay into two removable slots for 2.5" SATA or SAS drives. It targets industrial PCs, surveillance recorders and embedded systems where physical security and hot-swap access matter. The full-metal chassis and keyed lock deter unauthorised removal. A thumb screw adds a second mechanical restraint. ||

Thermals noise and power

The unit has no fan or active cooling; it relies on case airflow passing through the open tray design. Metal construction conducts heat away from the drives without adding acoustic noise. Power draw is limited to the two installed drives themselves; the backplane adds no measurable overhead. ||

Build integration needs

Installation requires a standard 3.5" front device bay and two 7-pin SATA host cables connected to the motherboard or controller. Each drive tray accepts 7 mm to 9.5 mm heights and locks via key or thumb screw. The 22-pin SATA/SAS device connectors support single-channel SAS and SATA I/II/III. No extra brackets or adapters are included.

Pluspunten

  • Fits two 2.5" SATA/SAS drives in a 3.5" front bay
  • Removable metal tray with key lock and thumb screw secures drives
  • Full metal construction withstands harsh environments
  • Supports 7mm to 9.5mm drive heights
  • 22-pin SATA device interface supports SAS single channel

Specificaties

BrandICY DOCK
ModelMB492SKL-B
ColorBlack
Conversion Tray2 x 2.5" Drive to 3.5" Bay
Mobile Rack InterfaceSATA I/II/III/SAS
Protection CaseMultiple Drives
Compatible Products2 x 2.5" SAS/SATA HDD/ SSD
SpecificationsDevice Interface:
2 x 22 pin SATA (Support SAS single channel)
Drive Fit:
2 x 2.5" SAS/SATA HDD/ SSD
Compatible Drive Heights:
7mm to 9.5mm
Host Interface:
2 x 7 pin SATA
Device Fit:
3.5" front device bay (floppy bay)
Transfer Rate:
Up to 6 Gb/sec. (depending on hard drive speed)
Power Input:
Single 15 pin SATA power port
Insert& Extract connection Via:
Direct SAS/SATA hard drive connection
Structure:
Full metal
Drive Cooling:
Metal heat dispersion
Power Indicator:
Solid green LED
HDD Access Indicator:
Flashing amber LED
Drive Security:
2 segment key lock + thumb screw lock
Dimension
Verzendgewicht0.47 kg
Pakketafmetingen150 × 107 × 36 mm

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

How do I install the MB492SKL-B into a 3.5" front bay and what step is often missed?

Slide the unit into the bay, secure it with the thumb screws on the front bezel, then insert each 2.5" drive into its tray and lock it with the metal key lock — the key lock step is frequently skipped, leaving drives unsecured.

What maintenance or replacement will the MB492SKL-B need over time?

The removable EX-Secure Micro Trays and the metal key lock mechanism are the only serviceable parts; trays can be swapped if damaged and lock cylinders can be re-keyed, while the full metal backplane itself requires no routine maintenance.

What limit appears first during sustained heavy I/O on the MB492SKL-B?

The dual 22-pin SATA device connectors and dual 7-pin SATA host links cap each drive at 6 Gbps, so the interface bandwidth is the first bottleneck under continuous high-throughput workloads.
