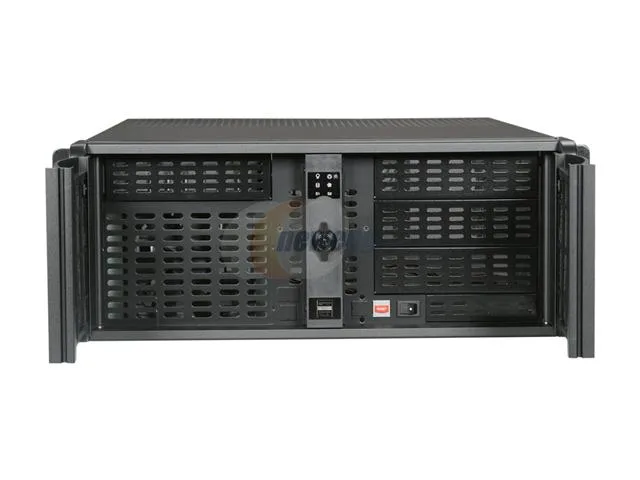

Black 4U rackmount server chassis with aluminum front bezel, four 5.25-inch bays, one 3.5-inch bay, two USB ports, 120mm and 80mm fans

iStarUSA Inc.

iStarUSA Inc. D-400 4U rackmount server chassis

SKU CH-8PHB-CDPG7 MPN D-400

A 4U rackmount server chassis with four external 5.25-inch bays, one external 3.5-inch bay, two internal 3.5-inch bays and seven expansion slots

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility12 x 9.6 (ATX, microATX)
  • External 5.25" Drive Bays4

Model D-400

  • Patented aluminium front panel with key lock secures internal components
  • 4U rackmount form factor fits standard 19-inch server cabinets
  • Seven expansion slots allow multiple add-on cards for specialised workloads
  • Four external 5.25-inch bays plus three 3.5-inch bays support up to five drives
  • Dual 120 mm and 80 mm fans with removable filter maintain airflow and cooling

4U rackmount server chassis

The iStarUSA D-400 is a 4U rackmount chassis built from 1.2mm SECC zinc-coated steel with an aluminum alloy front bezel. It accepts ATX and microATX motherboards up to 12 x 9.6 inches and provides seven expansion slots for add-in cards. A key-locked front bezel secures the drive bays and controls.

Four 5.25-inch and three 3.5-inch drive bays

Four external 5.25-inch bays, one external 3.5-inch bay and two internal 3.5-inch bays support up to five drives for RAID configurations. Front-access dual USB 2.0 ports simplify peripheral connection. One 120mm fan and one 80mm fan work with a removable air filter to manage airflow.

Suits compact rack builds needing front USB

This chassis fits users who want a short-depth 4U enclosure with front-panel USB 2.0 and a locking bezel for physical security. Builders requiring hot-swap backplanes, tool-less drive trays or deeper component clearance should evaluate other platforms.

Pluspunten

  • Patented aluminium front panel with key lock secures internal components
  • 4U rackmount form factor fits standard 19-inch server cabinets
  • Seven expansion slots allow multiple add-on cards for specialised workloads
  • Four external 5.25-inch bays plus three 3.5-inch bays support up to five drives
  • Dual 120 mm and 80 mm fans with removable filter maintain airflow and cooling

Specificaties

BrandiStarUSA
ModelD-400
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility12 x 9.6 (ATX, microATX)
External 5.25" Drive Bays4
External 3.5" Drive Bays1
Internal 3.5" Drive Bays2
Expansion Slots7
Front Ports2 x USB 2.0
80mm Fans1
120mm Fans1
FeaturesColor of Front Bezel: Black
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Security: Front Bezel Key Lock
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Removable Air Filter
Dimensions20.80" x 19.00" x 7.00"
Verzendgewicht14.33 kg
Pakketafmetingen678 × 556 × 282 mm

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

What maintenance does the removable air filter need?

The removable air filter can be taken out and cleaned to keep airflow clear for the 80 mm and 120 mm fans.

Which limit appears first when the chassis runs under sustained load?

Cooling capacity is set by one 80 mm fan and one 120 mm fan, so thermal headroom is the first constraint during continuous operation.

How much noise and heat do the 80 mm and 120 mm fans produce all day?

One 80 mm and one 120 mm fan provide the only active cooling; acoustic output and exhaust temperature will reflect that dual-fan configuration.
