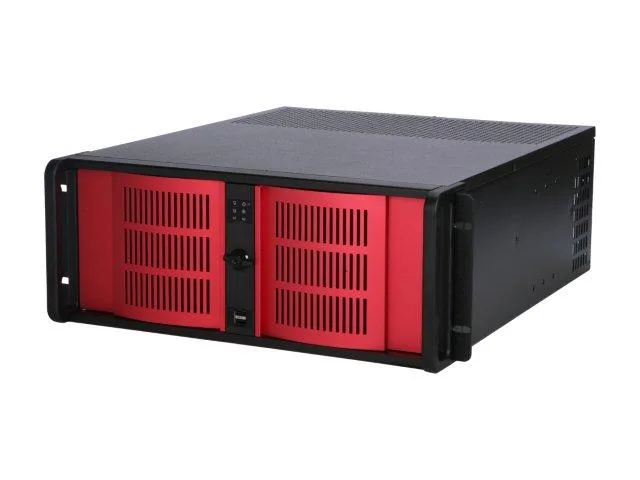

Red aluminium front bezel on 4U rackmount steel chassis with six 5.25 inch bays and two USB ports

iStarUSA Inc.

iStarUSA Inc. D-400-6-RED 4U server chassis

SKU CH-5S5R-8FNT6 MPN D-400-6-RED

A 4U rackmount chassis with six 5.25-inch and four 3.5-inch drive bays, seven expansion slots, and an aluminium front bezel

  • Chassis TypeRackmount
  • Form Factor4U
  • Case MaterialMaterial of Front Bezel:Aluminum alloy Material of Handle: 1
  • Motherboard Compatibility12 x 9.6 (ATX, microATX)
  • External 5.25" Drive Bays6
  • External 3.5" Drive Bays2

Model D-400-6-RED

  • 6 external 5.25" bays for high-density optical or hot-swap storage
  • Patented aluminium front bezel with key lock secures drives and reduces weight
  • Front USB 2.0 x2 gives instant peripheral access without reaching the rear
  • Seven expansion slots support multiple add-in cards for RAID or networking
  • 80 mm cooling fan plus removable air filter maintains airflow in 4U rack space

Red 4U rackmount chassis

The iStarUSA D-400-6-RED is a 4U server chassis built for rackmount deployment. Its front bezel uses aluminum alloy with a red finish and a key lock. The main body and handle are 1.2mm SECC zinc-coated steel. It fits ATX and microATX boards up to 12 x 9.6 inches.

Seven expansion slots and six 5.25-inch bays

Seven low-profile slots support add-on cards such as RAID controllers or network adapters. Six external 5.25-inch bays accept optical drives or hot-swap cages. Two external 3.5-inch and two internal 3.5-inch bays provide additional fixed storage. Front I/O includes two USB 2.0 ports.

Single 80mm fan with optional sensor board

One 80mm fan handles baseline airflow; temperature and fan-speed LEDs only function when the optional TC-ISF08 sensor board is installed. The chassis accepts PS2 or mini-redundant power supplies. Builds needing higher static pressure or redundant cooling must add fans or choose a different enclosure.

Pluspunten

  • 6 external 5.25" bays for high-density optical or hot-swap storage
  • Patented aluminium front bezel with key lock secures drives and reduces weight
  • Front USB 2.0 x2 gives instant peripheral access without reaching the rear
  • Seven expansion slots support multiple add-in cards for RAID or networking
  • 80 mm cooling fan plus removable air filter maintains airflow in 4U rack space

Specificaties

BrandiStarUSA
ModelD-400-6-RED
Chassis TypeRackmount
Form Factor4U
Case MaterialMaterial of Front Bezel:Aluminum alloy
Material of Handle: 1.2mm SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Motherboard Compatibility12 x 9.6 (ATX, microATX)
External 5.25" Drive Bays6
External 3.5" Drive Bays2
Internal 3.5" Drive Bays2
Front PortsUSB 2.0 x 2
80mm Fans1
FeaturesColor of Front Bezel: Red
RoHS Compliance Version: Yes
Standard Drive Bays:
3.5" Drives: 2
3.5" Drive (internal): 2
5.25" Drives: 6
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power ON/OFF, System & Alarm Reset
Security: Front Bezel
Removable Air Filter
Standard I/O Shield.
Dimensions19.00" x 7.00" x 20.80"
Verzendgewicht14.04 kg
Pakketafmetingen622 × 483 × 419 mm

Andere versies van dit model

Nog 5 in dezelfde serie

Dezelfde familie, met ander geheugen, andere koeler of kloksnelheid — vergelijk voordat u beslist.

Vragen over dit artikel

How many 5.25-inch bays does the D-400-6-RED provide for optical drives or hot-swap cages?

Six external 5.25-inch bays are available on the front panel.

What motherboard sizes fit inside this 4U rackmount chassis?

ATX and microATX boards up to 12 × 9.6 inches are supported.

Does the single 80 mm fan limit airflow when seven expansion cards are installed?

The chassis includes one 80 mm fan; additional cooling may be needed for full slot populations.
