Black 2U rackmount UPS with LCD screen and ten IEC outlets

Tripp Lite

Tripp Lite SUINT3000LCD2U UPS 3000VA 2.7kW 208V 10 Outlets 2U

SKU CH-Z3S4-WPZCF MPN SUINT3000LCD2U

Double-conversion UPS delivers 3000 VA / 2700 W at 208 V with 10 IEC outlets, hot-swappable batteries and USB, RS-232 plus SNMP slot in 2U rack form

  • International Version208V
  • Input ConnectionNEMA L6-20P
  • VA Rating3000 VA
  • Watts2700 Watts
  • Output Voltage208V
  • Output Frequency50 / 60 Hz
  • Double-conversion online topology delivers clean 208 V power to critical loads
  • 3000 VA and 2700 W capacity supports dense rack equipment
  • Ten IEC outlets (eight C13, two C19) connect servers and networking gear
  • Hot-swappable VRLA batteries replace without downtime in three hours to 90 %
  • USB, RS-232, contact closure and SNMP card slot enable remote monitoring

Tripp Lite SmartOnline 3000VA 2U UPS

The Tripp Lite SUINT3000LCD2U is a double-conversion online UPS rated at 3000 VA and 2700 watts with a 208V output. It fits a 2U rack space and provides ten outlets, eight C13 and two C19, fed from a NEMA L6-20P input. The unit suits servers, network gear and critical loads that require continuous power conditioning.

Upgrade from line-interactive or standby units

Moving from a line-interactive or standby UPS is worth it when connected equipment cannot tolerate any transfer time or voltage distortion. The online topology regenerates a clean sine wave continuously, eliminating switchover delays and correcting sags, surges and frequency drift before they reach the load. Buyers who only need basic battery backup for non-critical devices will not benefit from the added cost and complexity.

Rack installation with hot-swappable batteries

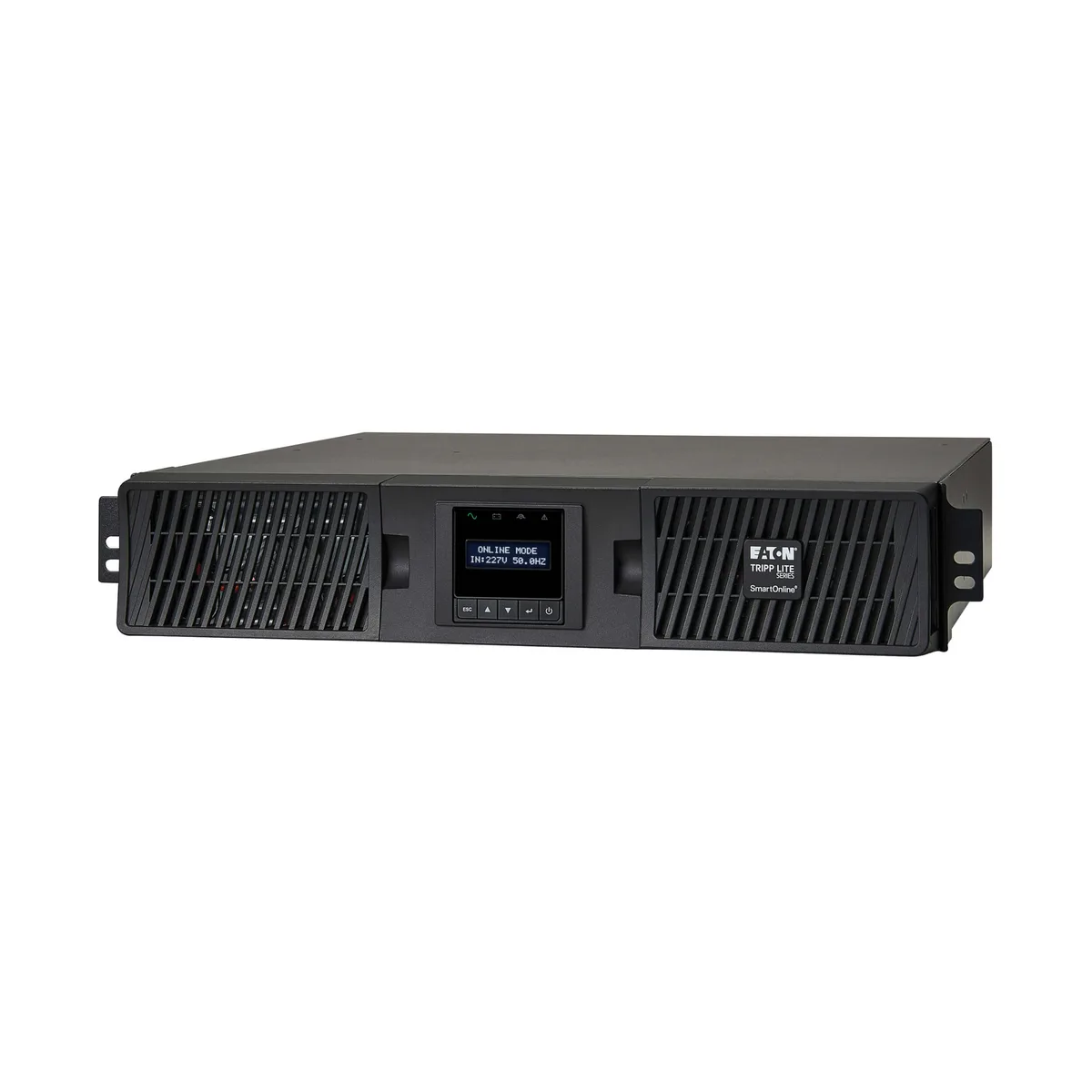

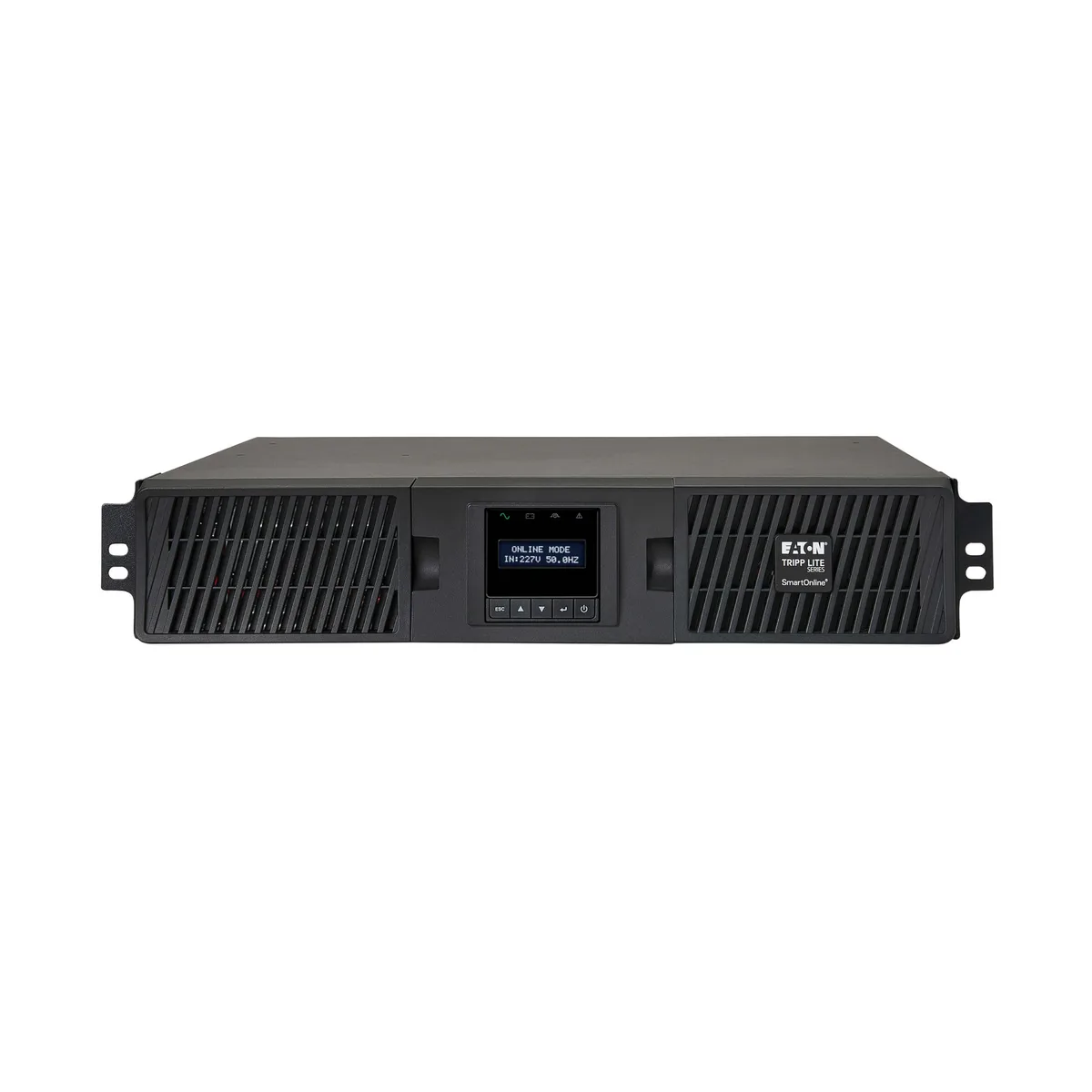

The 2U chassis mounts in standard racks using included hardware; the NEMA L6-20P plug requires a matching 20 A branch circuit. Batteries are user-replaceable and hot-swappable, so runtime can be restored without powering down the load. Common issues include forgetting to seat the internal battery connectors after replacement and exceeding the 16 A input rating when the load approaches full capacity.

Pluspunten

  • Double-conversion online topology delivers clean 208 V power to critical loads
  • 3000 VA and 2700 W capacity supports dense rack equipment
  • Ten IEC outlets (eight C13, two C19) connect servers and networking gear
  • Hot-swappable VRLA batteries replace without downtime in three hours to 90 %
  • USB, RS-232, contact closure and SNMP card slot enable remote monitoring

Specificaties

BrandTRIPP LITE
SeriesSmartOnline
ModelSUINT3000LCD2U
International Version208V
Input ConnectionNEMA L6-20P
VA Rating3000 VA
Watts2700 Watts
Output Voltage208V
Output Frequency50 / 60 Hz
Outlets10
Outlet Type(8) C13; (2) C19
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load : 3.8 min. (2700W)
Half Load: 10.8 min. (1350W)
Battery Recharge Time3 hours recharge to 90%
Battery ReplaceableHot-swappable, user replaceable batteries
AlarmsAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Interface Port(1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB
RackmountableYes
Surge Energy Rating296 Joules
TemperatureOperating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: With battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Humidity0-96% non-condensing
Dimensions3.41" x 17.33" x 23.82"
Weight61.29 lbs.
Package Contents3000VA 2700W 208/230V Double-Conversion UPS
Detachable C19 to L6-20P 16A power cord, 6 ft. (1.8 m)
USB cable
DB9 cable
(2) IEC 10A 6ft. output cables
Rack-mounting hardware
Tower support stands
Safety instructions
Quick start guide
Verzendgewicht30.94 kg
Pakketafmetingen760 × 600 × 240 mm

Vragen over dit artikel

What rack depth and clearance does the 2U chassis need to fit?

The unit occupies 2U of rack height and requires a standard 19-inch rack; allow front clearance for the LCD panel and rear access for the NEMA L6-20P inlet and ten outlets.

Which step is often missed when wiring the NEMA L6-20P input and the eight C13 plus two C19 outlets?

Connect the L6-20P plug to a 208 V 20 A branch circuit, then verify each C13 and C19 load cable is fully seated; the RS-232, USB and SNMP slot cables must also be attached before powering on.

When and how should the hot-swappable VRLA battery modules be replaced?

Replace modules when runtime drops below the 3.8-minute full-load or 10.8-minute half-load figures; slide out the old pack and insert the new one without shutting down the UPS.
