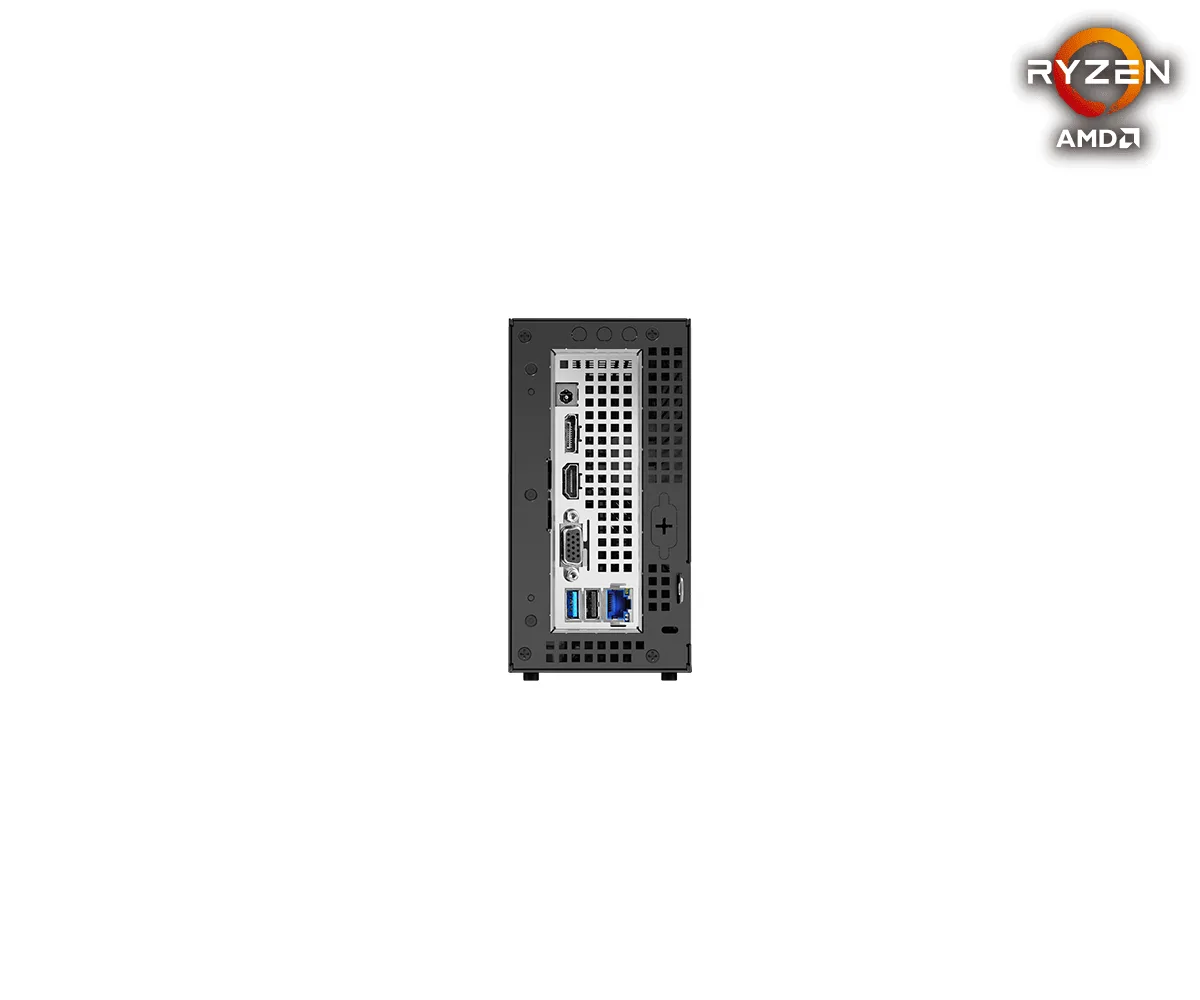

Small black cube mini PC barebone, 155 mm square, 80 mm tall

ASRock

ASRock Deskmini X300W/2.5G barebone mini PC

SKU CH-7TPV-CKDY6 MPN Deskmini X300W/2.5G

Barebone mini PC supporting AMD AM4 Ryzen CPUs up to 65W with dual SO-DIMM DDR4 slots for up to 128GB, dual M.2 storage, 2.5G LAN and a 120W adapter

  • CPU TypeSupports AMD AM4 Socket CPUs (Ryzen 5000/4000/3000/2000 Seri
  • CPU SocketAMD Socket AM4
  • North BridgeAMD X300
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedSupports 2 x SO-DIMM DDR4 Memory, Max. 128GB AMD Ryzen 5000/
  • Supports AMD Ryzen AM4 desktop processors up to 65W for full desktop performance
  • Dual-channel DDR4 SO-DIMM slots accept up to 128GB memory at 3200MHz
  • Integrated 2.5G LAN controller provides wired network speeds beyond standard gigabit
  • Triple 4K display outputs drive three monitors from the compact 1.92L chassis
  • Includes Wi-Fi6 module and 120W power adapter for complete wireless connectivity out of the box

Versatile barebone for compact workstations

The ASRock Deskmini X300W/2.5G is a 1.92L barebone system that accepts AMD Socket AM4 processors up to 65W. It targets builders who need a small desktop for business, home or education use. The chassis measures 155 x 155 x 80 mm and includes a 120W 19V power adapter. Buyers who want a pre-built unit or a larger enclosure should look elsewhere.

Sustained performance with dual-channel memory

Two 260-pin SO-DIMM slots support DDR4 up to 128GB, running at 3200MHz with Ryzen 5000 or 4000 series and 2933MHz with 3000 or 2000 series. The X300 chipset enables overclocking options in BIOS for core-clock tuning. Integrated Radeon graphics benefit from the dual-channel bandwidth during extended workloads. Builders who require discrete GPU expansion cannot add a card inside this chassis.

Dense connectivity in a 1.92L footprint

A 2.5G LAN port uses the Dragon RTL8125BG controller for fast wired networking. One M.2 2280 slot provides PCIe Gen3 x4 storage with Renoir, Picasso or Raven Ridge APUs and x2 with Athlon 2xxGE APUs. Two SATA 6Gbps ports accept 2.5-inch 7mm or 9.5mm drives with RAID 0/1 support. A key-E 2230 slot accommodates the included Wi-Fi6 kit (Realtek RTL8851BE). Realtek ALC269 audio supplies headphone, microphone and header connections. Users needing more than one M.2 drive or legacy ports will find the I/O limited.

Najważniejsze cechy

  • Supports AMD Ryzen AM4 desktop processors up to 65W for full desktop performance
  • Dual-channel DDR4 SO-DIMM slots accept up to 128GB memory at 3200MHz
  • Integrated 2.5G LAN controller provides wired network speeds beyond standard gigabit
  • Triple 4K display outputs drive three monitors from the compact 1.92L chassis
  • Includes Wi-Fi6 module and 120W power adapter for complete wireless connectivity out of the box

Specyfikacja

BrandASRock
ModelDeskmini X300W/2.5G
Part NumberDeskmini X300W/2.5G
CPU TypeSupports AMD AM4 Socket CPUs (Ryzen 5000/4000/3000/2000 Series , up to 65W )
CPU SocketAMD Socket AM4
North BridgeAMD X300
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedSupports 2 x SO-DIMM DDR4 Memory, Max. 128GB
AMD Ryzen 5000/4000 series 3200MHz
AMD Ryzen 3000/2000 series 2933MHz
Max Memory Supported128GB
Serial ATA2 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive (RAID 0/1)
M.2 Slot- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
- 1 x Ultra M.2 (2280) Slot
- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
- PCIe Gen3 x2 (Athlon 2xxGE series APU)
Onboard AudioRealtek ALC269 Audio Codec
- 1 x Headphone/Headset Jack
- 1 x MIC-In
- 1 x Audio Header
LAN2.5G LAN (Dragon RTL8125BG)
Bluetooth1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Power Supply1 x 120W/19V adapter
Dimensions155 x 155 x 80 mm (1.92L)
Packaging2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
- 1 x Wi-Fi6 Kit (Realtek RTL8851BE (AW-XB611NF))
Waga przesyłki1.93 kg
Wymiary opakowania216 × 211 × 178 mm

Pytania dotyczące tego produktu

How much heat and power does the 120W adapter and 65W CPU limit produce when the Deskmini X300W runs all day?

The 120W external adapter feeds the system, and the board accepts AM4 processors up to 65W, so sustained load stays within that envelope.

Which memory, CPU and storage parts must I supply to complete this barebone Deskmini X300W?

You need an AM4 Ryzen 5000, 4000, 3000 or 2000 series CPU up to 65W, two DDR4 SO-DIMM modules up to 128GB total, plus a 2.5-inch SATA drive or M.2 2280 PCIe Gen3 x4 SSD.

Will my existing DDR4 3200 SO-DIMMs and SATA SSDs work at full speed in the X300W alongside a Ryzen 5000 APU?

Ryzen 5000 and 4000 APUs run DDR4 up to 3200MHz natively, the two SATA ports operate at 6Gb/s, and the Ultra M.2 slot provides PCIe Gen3 x4 with those APUs.
