Green PCB card with four M.2 slots, large heatsink and blower fan

ASUS

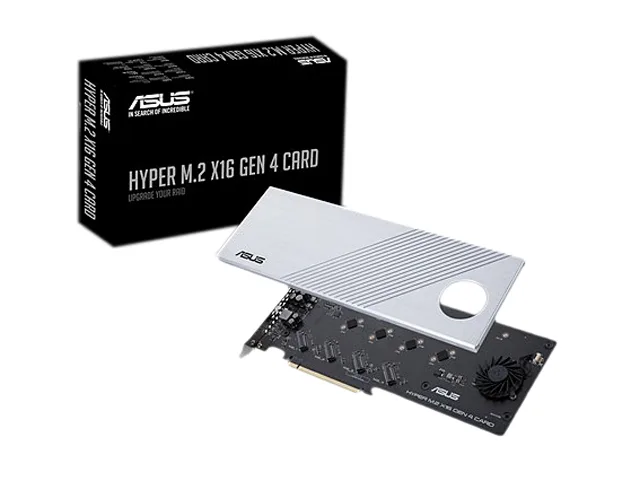

ASUS HYPER M.2 X16 GEN 4 expansion card

SKU CH-AFGE-XDZR9 MPN HYPER M.2 X16 GEN 4

Adds four M.2 Key-M slots via a PCIe 4.0 x16 interface with a heatsink and blower fan to prevent throttling

  • TypePCI Express to M.2 Card
  • External Ports4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports P
  • Internal PortsPCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16
  • Specifications1 x M.2 FAN Power Switch 4 x M.2 access LEDs
  • FeaturesAMD TRX40/X570 Series Motherboard models with PCIe 4.0 suppo
  • Dimensions10.63" x 4.80" x 0.59"
  • Supports four NVMe drives up to 256 Gbps via PCIe 4.0 x16
  • Server-grade low-loss PCB keeps signal integrity at full bandwidth
  • Integrated blower fan with power switch prevents thermal throttling
  • Fits x8 and x16 slots for flexible platform compatibility
  • Accepts 2242, 2260, 2280 and 22110 form factors

Four NVMe drives on one card

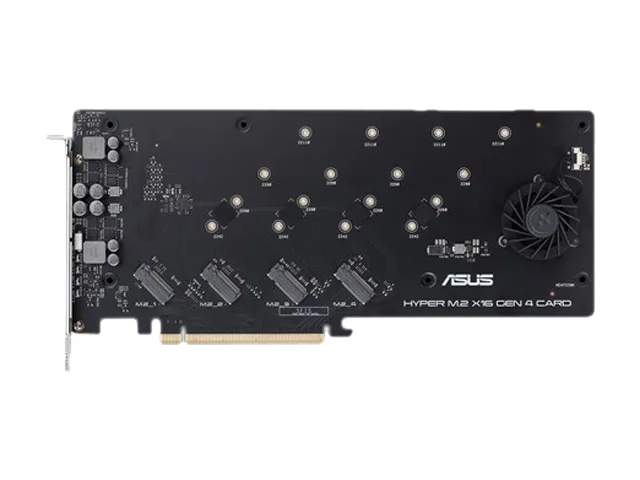

The ASUS HYPER M.2 X16 GEN 4 is a PCIe add-on card that holds four M.2 Key M SSDs in 2242, 2260, 2280 and 22110 lengths. It targets builders and workstation users who need high-density NVMe storage on a platform with a PCIe 4.0 x16 or x8 slot. The card uses a server-grade low-loss PCB to maintain signal integrity across all four drives. It does not suit systems lacking a full-length PCIe slot or motherboards without bifurcation support for multiple M.2 devices.

Active cooling with fan switch

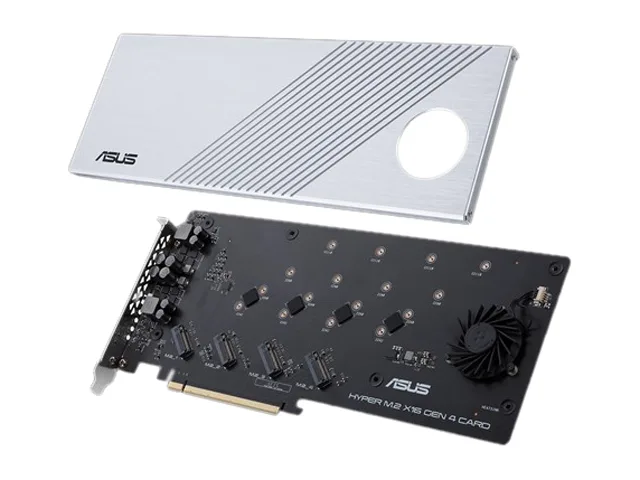

A full-length aluminium heatsink and an integrated blower-style fan cool all four SSDs simultaneously to prevent thermal throttling under sustained workloads. A dedicated M.2 fan power switch lets the user disable the fan for silent operation when drives run within safe temperatures. Each slot has its own access LED for quick status monitoring. The card supports SSDs drawing up to 14 W each, accommodating high-performance next-generation drives without additional power cables.

Fits x16 or x8 PCIe 4.0 slots

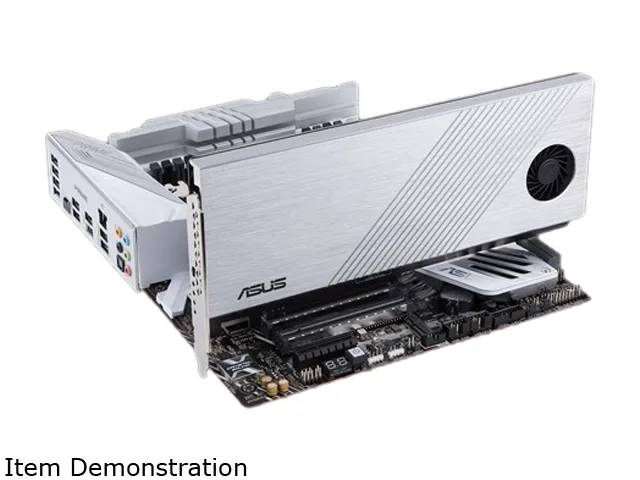

The card installs into any PCIe 4.0 x16 or x8 slot and is electrically compatible with PCIe 3.0 platforms, though bandwidth reduces to 3.0 speeds on non-4.0 motherboards. Full 256 Gbps aggregate throughput requires an AMD TRX40 or X570 series motherboard with PCIe 4.0 support and CPU-lane bifurcation. On other chipsets the card operates in RAID-on-CPU mode at PCIe 3.0 bandwidth. The 10.63 by 4.80 by .59 inch form factor occupies a single expansion slot and clears standard motherboard components.

Najważniejsze cechy

  • Supports four NVMe drives up to 256 Gbps via PCIe 4.0 x16
  • Server-grade low-loss PCB keeps signal integrity at full bandwidth
  • Integrated blower fan with power switch prevents thermal throttling
  • Fits x8 and x16 slots for flexible platform compatibility
  • Accepts 2242, 2260, 2280 and 22110 form factors

Specyfikacja

BrandAsus
ModelHYPER M.2 X16 GEN 4 CARD
TypePCI Express to M.2 Card
External Ports4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0/3.0)*
* Supports PCIe M.2 storage devices only.
Internal PortsPCIe 4.0/3.0 x16 interface, compatible with PCIe x8 and x16 slots, support data transfer rates up to 256 Gbps.
Specifications1 x M.2 FAN Power Switch
4 x M.2 access LEDs
FeaturesAMD TRX40/X570 Series Motherboard models with PCIe 4.0 support
Supports PCIe 3.0 bandwidth for other RAID on CPU models.
Dimensions10.63" x 4.80" x 0.59"
Waga przesyłki0.91 kg
Wymiary opakowania330 × 267 × 51 mm

Pytania dotyczące tego produktu

How do I install the ASUS HYPER M.2 X16 GEN 4 into a PCIe x16 slot and which step is often missed?

Insert the card into a PCIe x16 or x8 slot, secure the bracket screw, mount up to four M.2 drives (2242, 2260, 2280, or 22110) onto the standoffs, then set the onboard fan power switch to ON so the blower actively cools the SSDs.

What maintenance will the card need after extended use?

The integrated blower fan may accumulate dust; clean its intake and exhaust vents periodically with compressed air to maintain airflow over the heatsink and prevent thermal throttling of the installed drives.

What is the first limit reached when all four slots run sustained heavy I/O?

The PCIe 4.0 x16 host link caps aggregate throughput at 256 Gbps, so combined sequential transfers from four drives cannot exceed that ceiling even if each SSD is faster individually.
