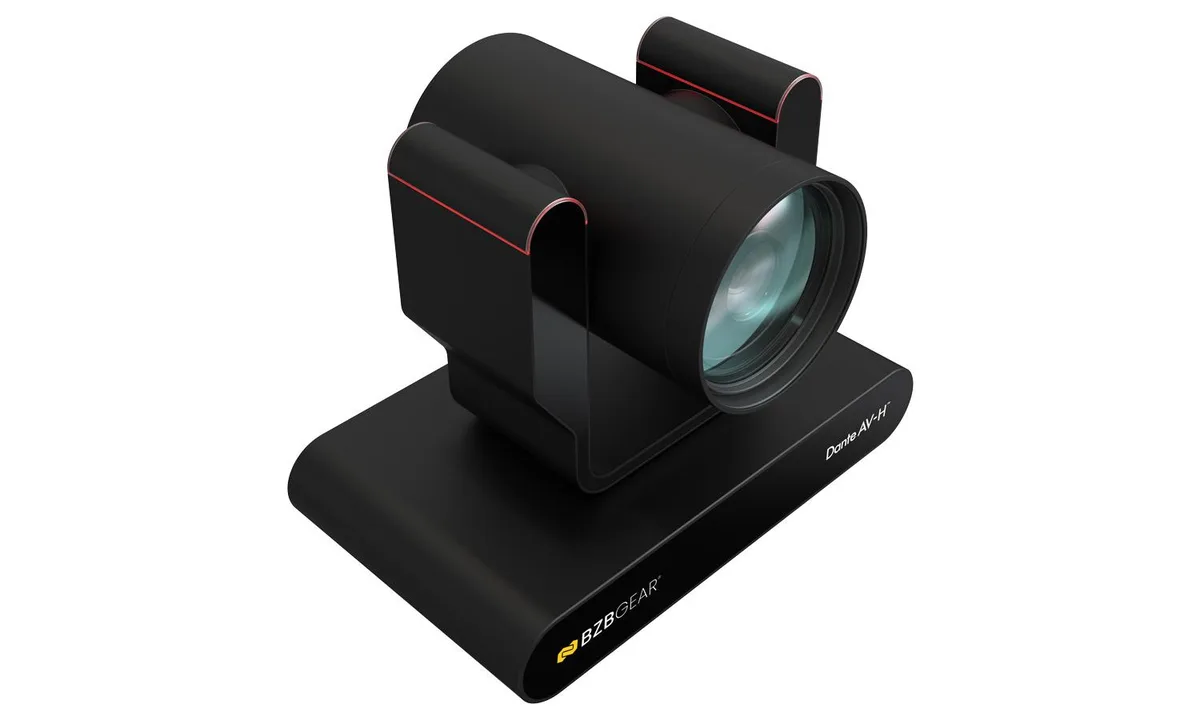

Black rectangular PTZ camera with front lens and tally lights

BZBGEAR

BZBGEAR BG-ADAMO-4KDA12X-B 12x 4K PTZ network camera Black

SKU CH-SKQM-5G6NQ

12x optical zoom PTZ camera streams 4K at 60 Hz over HDMI, 12G-SDI, USB and IP with PoE, Dante AV-H and tally lights

  • Bundled Camera Number1 Camera
  • Camera Type8MP
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, 12G-SDI, LAN (support POE), USB2.0, A-IN, USB3.0, Micr
  • ColorBlack

Option 12X

  • 12x optical zoom captures distant detail clearly
  • 4K 60 Hz output over 12G-SDI and HDMI
  • PoE delivers power, data and control on one cable
  • Auto-tracking keeps subjects framed without operator input
  • MicroSD slot records up to 1 TB of 4K video

12x 4K PTZ camera for live production

This BZBGEAR PTZ camera delivers 8 MP 4K UHD resolution at up to 60 Hz for professional streaming and broadcast workflows. It combines 12x optical zoom with auto-tracking and advanced auto-focus for precise subject capture. Dante AV-H networking allows audio and video distribution over standard Ethernet infrastructure. The unit is built for fixed installs and mobile production teams alike.

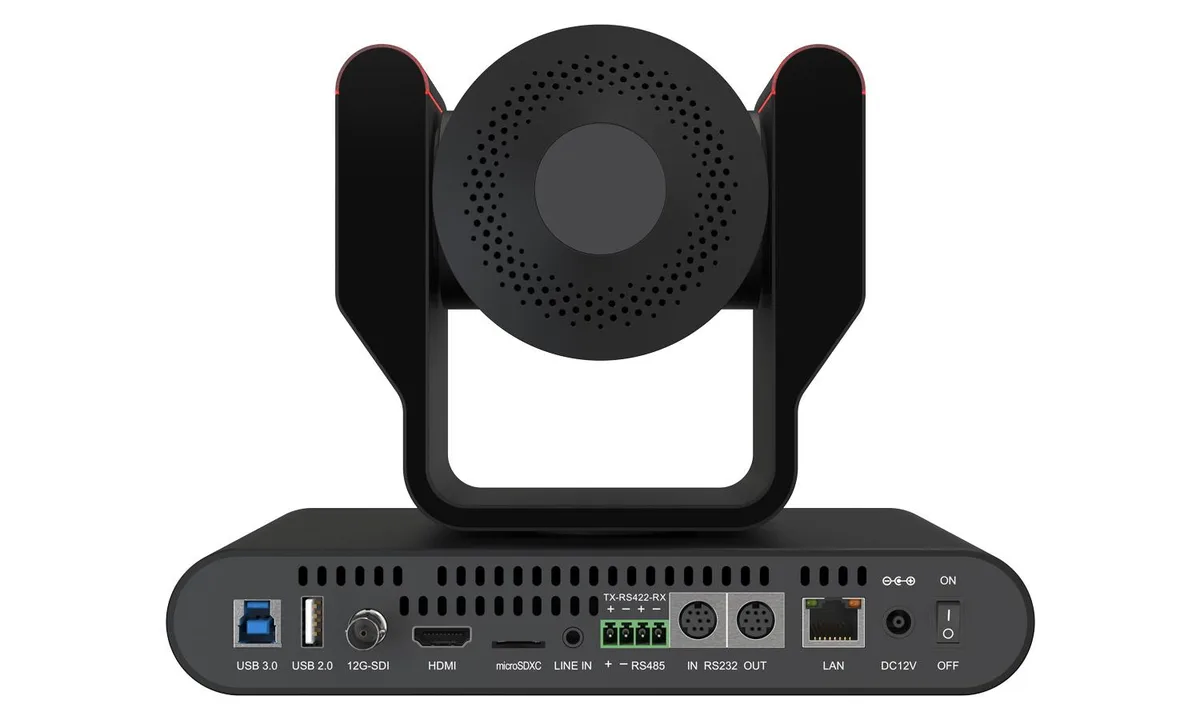

Black chassis with tally lights and full I/O

The camera body integrates red and green tally lights for clear on-air status indication. Video outputs include 12G-SDI, HDMI 2.0, USB 3.0 and USB 2.0 alongside IP streaming. Control interfaces cover RS-232 in and out, RS-422 compatible with RS-485, and VISCA over IP. Power over Ethernet simplifies cabling by carrying data, power and control on a single category cable.

Replaces fixed-lens IP cameras and SDI-only heads

The 12x zoom and programmable presets eliminate the need for multiple static cameras covering wide and tight shots. MicroSD recording up to 1 TB provides local redundancy when network paths fail. PoE support removes the requirement for separate power runs at each camera position. Buyers who need 25x optical reach or built-in Wi-Fi connectivity will need a different model.

Najważniejsze cechy

  • 12x optical zoom captures distant detail clearly
  • 4K 60 Hz output over 12G-SDI and HDMI
  • PoE delivers power, data and control on one cable
  • Auto-tracking keeps subjects framed without operator input
  • MicroSD slot records up to 1 TB of 4K video

Specyfikacja

BrandBZBGEAR
Part NumberBG-ADAMO-4KDA12X-B
Bundled Camera Number1 Camera
Camera Type8MP
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, 12G-SDI, LAN (support POE), USB2.0, A-IN, USB3.0, Micro SD, RS232-IN,
RS232-OUT, RS422 (Compatible with RS485), Dial switch, DC12V, Power Switch
ColorBlack
Networking ProtocolRTSP, RTMP, ONVIF, SRT, GB/T28181; VISCA Control Protocols
ONVIFYes
Pan/TiltPan: 78.8°/s, Tilt: 31.7°/s
Sensor & Detector1/2.5 inch SONY CMOS sensor
Pixels8 MP
HD Resolution4K
Video Capture ResolutionHDMI:
3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50,30/59.94Hz; 720p@60/50/59.94Hz;
12G-SDI:
3840*2160p@60/50/30/25/59.94/29.97Hz; 1080p@60/50/30/25/59.94/29.97Hz; 1080i@60/50/59.94Hz; 720p@60/50/59.94Hz;
USB2.0:
MJPG: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz;
H264: 3840*2160 /1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240p@30Hz;
YUY2: 800*448 /720*480p@25; 640*360 /432*240p@30Hz
NV12: 800*448p@25
Optical Zoom12x Optical Zoom
AudioDouble track 3.5mm linear Input
Power over EthernetYes
PowerIn: AC110V-AC220V; Out: DC12V/2.5A
DimensionL" x W" x D" - 9" x 6" x 6"
Weight6 lbs

Inne wersje tego modelu

Jeszcze 4 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

What network protocols does the BG-ADAMO-4KDA12X-B support and how do they limit streaming quality?

It uses RTSP, RTMP, ONVIF, SRT and GB/T28181 for IP streaming. The sensor captures 8 MP at 4K 60 Hz, so the stream can reach that resolution and frame rate if bandwidth allows.

What physical space and mounting provisions does the 9 x 6 x 6 inch camera need?

The unit measures 9 by 6 by 6 inches and includes a DC12V power input, RS232/RS422 control ports and tally-light LEDs, so allow clearance for cables and a mounting surface that can carry its weight.

How is the camera set up on the network and which step is most often missed?

Connect the LAN port for PoE power and data, then assign an IP address and enable ONVIF or VISCA control. The step most often missed is configuring the router or switch to pass multicast traffic for SRT and Dante AV-H streams.
