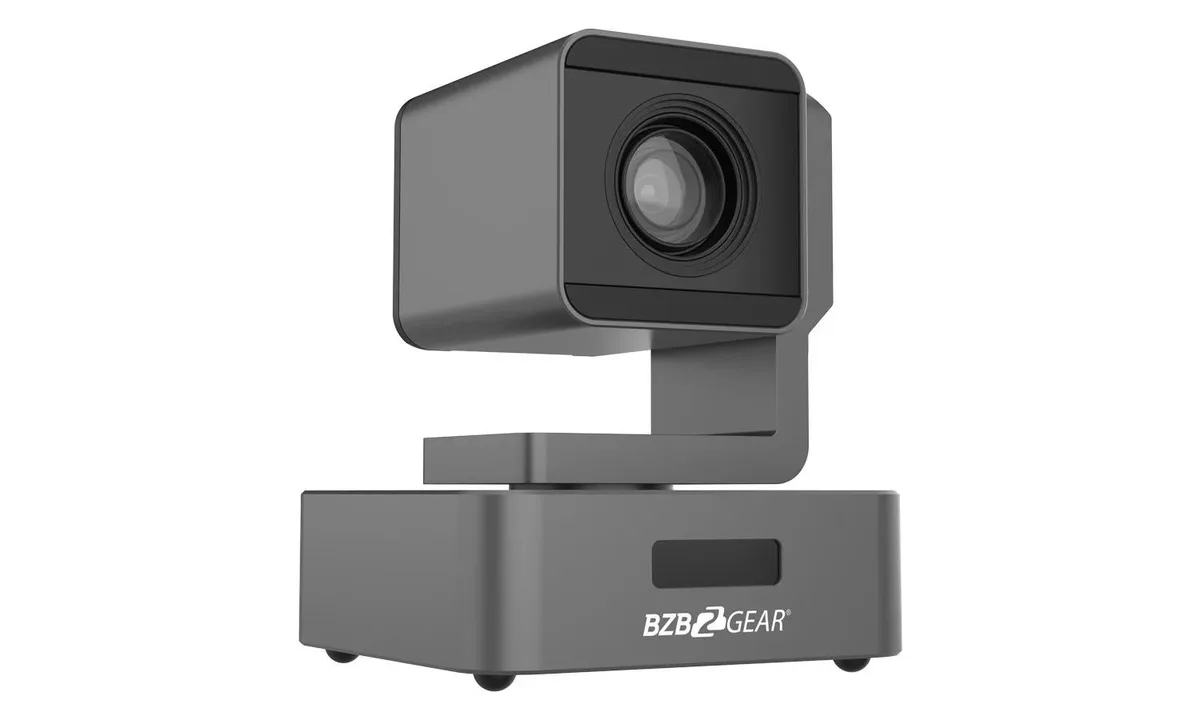

Compact grey PTZ camera box with front lens and rear ports

BZBGEAR

BZBGEAR BG-VPTZ-20HSU3 20X PTZ network camera

SKU CH-XYVV-035AC

20× optical-zoom PTZ camera streams 1080p60 over HDMI, 3G-SDI, USB 3.0 and IP with PoE power and audio embedding

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Full HD 1080P HDMI/SDI/USB 3.0 Live Streaming Camera
  • ColorGray
  • Networking ProtocolVISCA, PELCO P/D, ONVIF Protocol

Option 20X

  • Broadcast-quality 1080p60 video from a 1/2.8" Exmor sensor
  • 20× optical zoom captures detail across large rooms
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs
  • PoE support delivers power and data over one cable
  • 255 preset positions with VISCA, PELCO and ONVIF control

Compact 20X PTZ for live production

The BG-VPTZ-20HSU3 is a 1080p network camera with a 20X optical zoom lens and a 1/2.8" Exmor CMOS sensor. It suits broadcasters, educators and houses of worship that need a single unit for simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs. The camera supports H.264 and H.265 compression plus RTMP(S) for direct streaming to platforms such as YouTube and Facebook.

Gray metal chassis with four mounting options

A 120mm square footprint allows ceiling, wall, tripod or desk placement without dominating the room. Pan covers ±178° at up to 180°/s while tilt moves -30° to +90° at up to 120°/s, giving operators wide, quiet coverage of large venues. One RJ45 port provides 10/100M PoE power and network control alongside HDMI, 3G-SDI and USB 3.0 video outputs.

255 presets and audio embedding included

An IR remote recalls nine of the 255 stored preset positions for quick shot changes during live events. The 3.5mm line input embeds external mixer or microphone audio directly into every video stream. Control protocols include IP VISCA, ONVIF and PELCO P/D over RS-232, RS-485 or LAN, so the camera integrates with existing production switchers and automation systems.

Najważniejsze cechy

  • Broadcast-quality 1080p60 video from a 1/2.8" Exmor sensor
  • 20× optical zoom captures detail across large rooms
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP outputs
  • PoE support delivers power and data over one cable
  • 255 preset positions with VISCA, PELCO and ONVIF control

Specyfikacja

BrandBZBGEAR
ModelBG-VPTZ-20HSU3
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Full HD 1080P HDMI/SDI/USB 3.0 Live Streaming Camera
ColorGray
Networking ProtocolVISCA, PELCO P/D, ONVIF Protocol
ONVIFYes
PortsHDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)
Pan/Tilt±178°, Tilt Rotation Angle -30°~ +90° Pan 0.1~180°/s; Tilt: 0.1~120°/s
Sensor & Detector1/2.8" Exmor CMOS
Pixels2 MP
HD Resolution1080P60/ 59.94 / 50 /30 / 29.97 /25 1080I60/59.94 / 50 / 30 / 29.97 / 25 720P60/50/ 30 / 25, 480I60, 576I50
Frame Rateup to 60fps
Optical Zoom20X Optical
Audio1-ch 3.5mm audio interface, Line In
Power over EthernetYes
Power12W DC12V@1A
Dimension120mmx120mmx145mm
Weight1.6kg

Inne wersje tego modelu

Jeszcze 2 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

What video output standards does the 3G-SDI port on this BG-VPTZ-20HSU3 support?

The 3G-SDI output handles 1080p up to 60 fps and 1080i formats, matching the camera's full 1080P60 capability over a single coaxial connection.

What mounting hardware and footprint does this camera need for ceiling or wall installation?

The unit measures 120mm x 120mm x 145mm and includes standard 1/4-20 tripod threads plus a ceiling bracket for flush or suspended mounting.

How do I assign a static IP address so the camera stays reachable on my LAN?

Log into the web interface via DHCP, open the Network settings, disable DHCP, enter your chosen IP, subnet mask and gateway, then save and reboot the camera.
