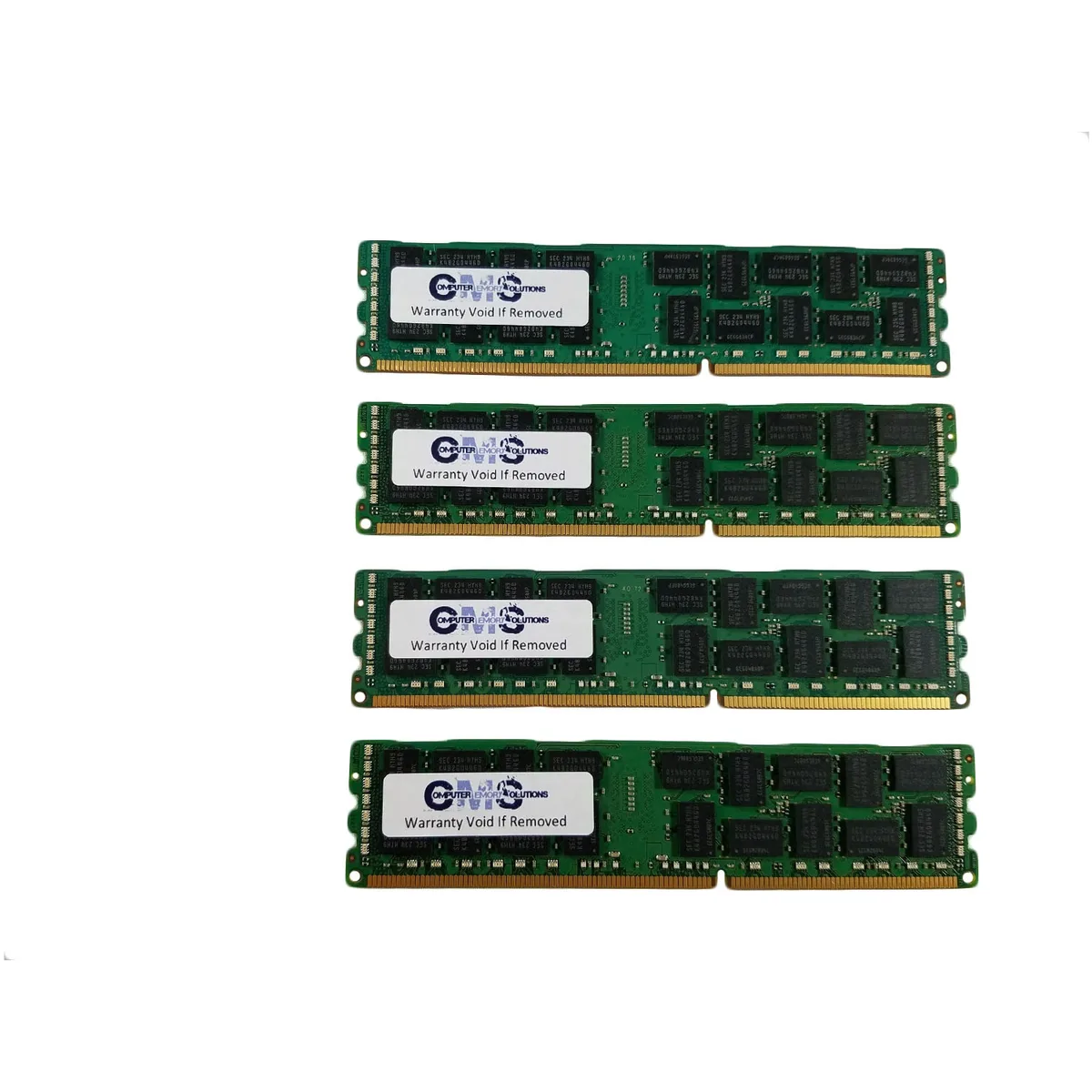

Four green DDR3 DIMMs with black chips, no heat spreaders

Computer Memory Solutions

Computer Memory Solutions CM1024728500ECCRD4R8H 32GB (4x8GB) DDR3 1066MHz ECC Registered Quad Rank DIMM

SKU CH-EN70-FJTQW

32 GB DDR3-1066 ECC registered quad-rank kit for Dell PowerEdge T310 servers

  • Capacity32GB (4 x 8GB)
  • Type240-Pin DDR3 SDRAM
  • SpeedDDR3 1066 (PC3 8500)
  • CAS LatencyCL7
  • Timing7-7-7
  • Voltage1.5V
  • 32 GB total capacity from four 8 GB modules
  • Registered ECC DDR3 at 1066 MHz for server reliability
  • Quad-rank 4Rx8 organisation with CL7 timing
  • 5 V operation matches Dell PowerEdge T310 requirements
  • 240-pin DIMM form factor installs directly in supported slots

Server memory kit

This 32GB kit contains four 8GB DDR3 1066MHz ECC Registered DIMMs built for the Dell PowerEdge T310. Each module runs at 1.5V with CL7 timing and a 4Rx8 quad-rank organisation. The 240-pin design matches the server's registered memory slots exactly.

For single-socket Xeon 3400 upgrades

Suited for administrators expanding a PowerEdge T310 that uses a Xeon 3400 series processor and requires registered ECC memory. Not for systems that only accept unbuffered ECC modules, nor for platforms limited to single or dual-rank DIMMs. Mixing registered and unbuffered ECC is not supported by this server.

32GB maximum with quad-rank modules

The kit fills all four quad-rank slots supported by the T310, delivering the full 32GB registered ECC capacity. Population rules limit the first dual-channel bank to 1066MHz; adding modules to the second bank drops speed to 800MHz, and a third bank is disabled. DDR3-1333 modules automatically clock down to match these constraints.

Najważniejsze cechy

  • 32 GB total capacity from four 8 GB modules
  • Registered ECC DDR3 at 1066 MHz for server reliability
  • Quad-rank 4Rx8 organisation with CL7 timing
  • 5 V operation matches Dell PowerEdge T310 requirements
  • 240-pin DIMM form factor installs directly in supported slots

Specyfikacja

BrandComputer Memory Solutions
ModelCM1024728500ECCRD4R8H
Capacity32GB (4 x 8GB)
Type240-Pin DDR3 SDRAM
SpeedDDR3 1066 (PC3 8500)
CAS LatencyCL7
Timing7-7-7
Voltage1.5V
ECCYes
Buffered/RegisteredRegistered
Rank4Rx8
ChipsetMajor Brand Chipset
Heat SpreaderNo
Compatible SystemDell Poweredge T310
Package Content4 Memory RAM Sticks

Pytania dotyczące tego produktu

Does my Dell PowerEdge T310 need a Xeon 3400-series processor for this registered ECC memory to work?

Yes, the T310 requires an Intel Xeon 3400-series processor to support registered ECC RDIMMs; Celeron, Pentium and Core i CPUs only accept unbuffered ECC memory.

Will all four 8 GB quad-rank modules run at 1066 MHz in my T310?

The first two modules in the primary dual-channel bank run at 1066 MHz; adding the second pair in the next bank drops that bank to 800 MHz, and a third bank would be disabled.

How can I verify the kit is operating at the correct speeds after installation?

Check the BIOS memory configuration or a system utility such as CPU-Z; the first bank should report 1066 MHz and the second bank 800 MHz for quad-rank modules.
