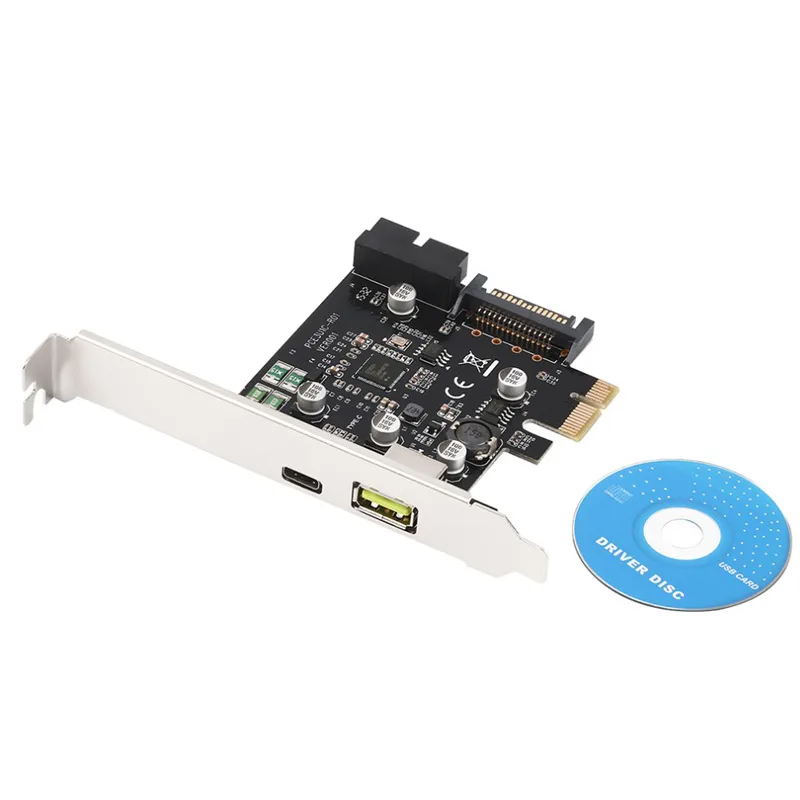

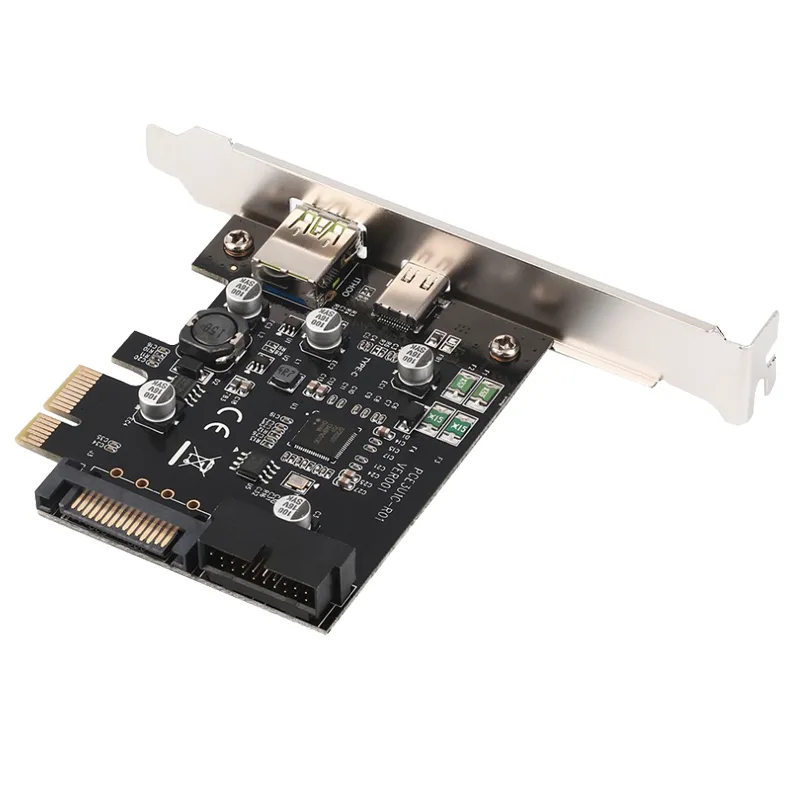

PCIe card with USB-C port and 3.5-inch front panel with two USB-A ports

EN-Labs

EN-Labs PCIe to USB 3.1 Card 2×USB 3.0 Front Panel

SKU CH-6QDE-YX1RC

Adds one external USB 3.1 Type-C port, one BC 2.4A charging port and two internal USB 3.0 front-panel headers via a PCIe x1 slot with SATA power

  • TypePCI Express to USB Card
  • External USB Ports1x USB Port
  • Internal USB Ports2x USB Ports
  • External Ports2 port USB 3.0
  • Internal Ports1 x SATA
  • StandardUSB 3.1
  • Adds a USB-C 3.1 port and BC 2.4A fast-charge port via a single PCIe 1x slot
  • Includes a 3.5-inch front-panel bay with two USB 3.0 Type-A ports for easy case access
  • Supplies power through an onboard SATA connector so charging works without extra cables
  • Uses the NEC uPD720201 controller for 5.0 Gbps transfer speeds compatible with USB 2.0 and 1.1
  • Driver CD provided for Windows XP, 2003, Vista, 7, 8 and Linux operating systems

PCIe USB 3.1 Card with Front Panel

This expansion card adds one external USB-C port and one BC 2.4A fast-charging port to a desktop PC via a PCIe x1 slot. A 3.5-inch front-panel module supplies two internal USB 3.0 ports through a 20-pin header splitter cable. The kit includes a driver CD and a SATA power connector for the charging port.

Builders needing front USB-C

Suits system builders who want a front-panel USB-C port and two additional internal USB 3.0 headers for case front ports. The BC 2.4A port is charge-only and does not transfer data, so buyers who need every port to handle data should look elsewhere. No low-profile bracket is mentioned in the supplied data.

NEC UPD720201 controller with 5.0 Gbps throughput

The card uses a NEC UPD720201 chipset compliant with XHCI 1.0 and the USB 3.1 5.0 Gbps standard, backward compatible with USB 2.0 and 1.1. It fits PCIe x1, x4, x8 and x16 slots and supports Windows XP, Vista, 7, 8, 2003 and Linux.

Najważniejsze cechy

  • Adds a USB-C 3.1 port and BC 2.4A fast-charge port via a single PCIe 1x slot
  • Includes a 3.5-inch front-panel bay with two USB 3.0 Type-A ports for easy case access
  • Supplies power through an onboard SATA connector so charging works without extra cables
  • Uses the NEC uPD720201 controller for 5.0 Gbps transfer speeds compatible with USB 2.0 and 1.1
  • Driver CD provided for Windows XP, 2003, Vista, 7, 8 and Linux operating systems

Specyfikacja

BrandEN-Labs
ModelPCIEUC20QC24KIT
TypePCI Express to USB Card
External USB Ports1x USB Port
Internal USB Ports2x USB Ports
External Ports2 port USB 3.0
Internal Ports1 x SATA
StandardUSB 3.1
Data Transfer RateUp to 5.0 Gbps
FeaturesPCI-E 1x Express to Type C USB 3.1 + USB fast charge Dual Port Add on Expansion Card Adapter for PC Computer Come with 2 Ports USB 3.0 Floppy Front Panel for PC case building Data transfer rate support up to 5Gbps, backwards to USB 2.0 and USB 1.1 PCIe card Compatible with PCI-Express 2.0 standard PCIe card Compatible with XHCI specification 1.0 Chip set : NEC UPD720201 Built-In SATA power connector Supports PCIe 1x, 4x, 8x, 16x Slot Support Windows XP / 2003 / Win7 / Win8 / Vista / Linux Compatible with Super Speed USB 3.0 5Gbps standard,
Package Contents1 x PCIE USB 3.0 Type C / Charging adapter card 1 x Driver CD 2 Ports USB 3.0 Floppy Front Panel

Pytania dotyczące tego produktu

Will the NEC UPD720201 chipset throttle during sustained 5.0 Gbps transfers?

The card uses a NEC UPD720201 chipset rated for 5.0 Gbps SuperSpeed USB 3.0 and draws auxiliary power from a SATA connector to maintain performance under load.

How much heat or noise does the card produce when running all day?

The board has no fan and relies on passive cooling; the only power draw beyond the PCIe slot is the SATA connector for the BC 2.4A charging port.

What internal header must my motherboard provide for the front-panel USB 3.0 ports?

You need a spare USB 20-pin header on the motherboard to connect the included 20-pin splitter cable and 3.5-inch front panel.
