Green PCB expansion card with two USB-C and two USB-A ports on a metal bracket

ESTONE

ESTONE PCIE22A2C 4-Port USB 3.0 PCIe Expansion Card (2× USB-C, 2× USB-A)

SKU CH-X26G-4E9PA

Adds four USB 3.0 ports — two Type-C and two Type-A — to a desktop via a PCIe x1 slot, delivering up to 5 Gbps total bandwidth with no external power cable required

  • TypePCI to USB Card
  • External USB Ports4x USB Ports
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add four USB 3.0 ports (two Type-C, two Type-A) via a single PCIe x1 slot
  • Up to 5.0 Gbps total bandwidth for fast file, video and photo transfers
  • Backward compatible with USB 2.0 and 1.1 devices so existing peripherals still work
  • No external power cable required; each port delivers up to 2 A for high-draw devices
  • Driver-free on Windows 10 and 11; CD driver included for Windows 7, Vista, XP and Server 2008

Add four USB 3.0 ports

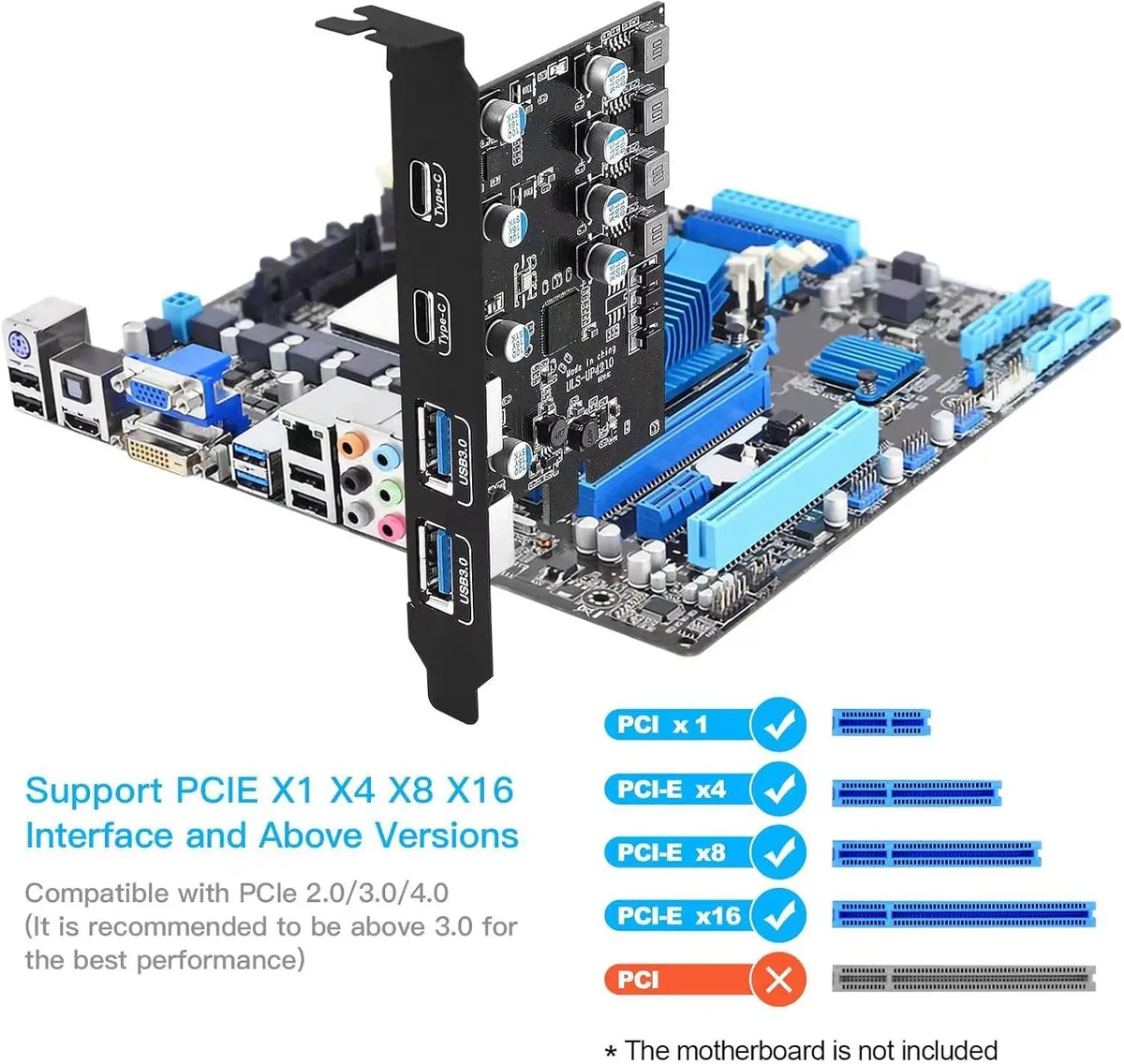

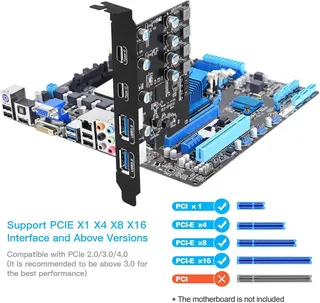

This PCIe x1 expansion card adds two USB-C and two USB-A ports to a desktop computer. It uses a NEC chipset and draws power directly from the slot without an external cable. The board fits x1, x4, x8 or x16 slots and supports Windows 7 through 11 plus Mac OS 10.8.2 and above.

5 Gbps shared bandwidth

All four ports share a maximum data rate of 5.0 Gbps under the USB 3.0 standard. Actual throughput depends on the connected device and system configuration. The card is backward compatible with USB 2.0 and 1.1 peripherals.

Driver CD and mounting screws included

A mini-CD supplies drivers for Windows 7, Vista, XP and Server 2008; Windows 10, 11 and Mac OS 10.8.2 work without extra software. The package also contains installation screws and a user manual for physical fitting.

Najważniejsze cechy

  • Add four USB 3.0 ports (two Type-C, two Type-A) via a single PCIe x1 slot
  • Up to 5.0 Gbps total bandwidth for fast file, video and photo transfers
  • Backward compatible with USB 2.0 and 1.1 devices so existing peripherals still work
  • No external power cable required; each port delivers up to 2 A for high-draw devices
  • Driver-free on Windows 10 and 11; CD driver included for Windows 7, Vista, XP and Server 2008

Specyfikacja

BrandESTONE
SeriesPCIE22A2C
ModelPCIE22A2C
TypePCI to USB Card
External USB Ports4x USB Ports
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
SpecificationsSuperSpeed USB 3.0 data transfer rate up to 5Gbps; Backward compatible with USB 2.0 & USB 1.x
Compliant with PCI Express Specification 2.0
Built-In Self-Powered, no power cable needed - maximum 5V/3000mA power output to USB device
4 downstream ports support data rate: Low/Full/High/SuperSpeed - Support Full/Slim Size Desktop PCs - Low Profile Bracket
Supported OS: Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit); Linux
?
FeaturesAdding 4 USB 3.0 ports (2X Type-C - 2X USB-A) on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.
Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device saf
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

What does the 5.0 Gbps figure mean for everyday file transfers?

The 5.0 Gbps rating is the total bandwidth shared across all four ports, so copying large files to multiple drives at once will divide that speed between them.

Which PCI Express standard does the card use and what does that limit?

It complies with the PCI Express 2.0 specification and fits x1, x4, x8 or x16 slots, so the host slot caps the card at PCIe 2.0 x1 throughput.

What slot and bracket space does the card need to install?

It requires one free PCI Express x1 or larger slot and a standard full-height rear bracket, measuring 4.92 by 4.06 by 1.06 inches overall.
