Green circuit board with silver PCIe bracket and five ports: three blue USB-A, two USB-C

ESTONE

ESTONE PCIE23A2C 5-Port USB 3.0 Expansion Card (3× USB-A, 2× USB-C)

SKU CH-6SNZ-ZTFG6

Adds five USB 3.0 ports — three Type-A and two Type-C — via a PCIe x1 slot with up to 5 Gbps throughput

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add five USB ports (three USB-A, two USB-C) in one PCIe x1 slot
  • Each port delivers up to 5 Gbps for fast file transfers
  • Works with Windows 7 through 11 and Mac OS 10.8.2 and above
  • Powered from the PCIe slot — no external adapter required
  • Over-current and static protection on every port for reliable operation

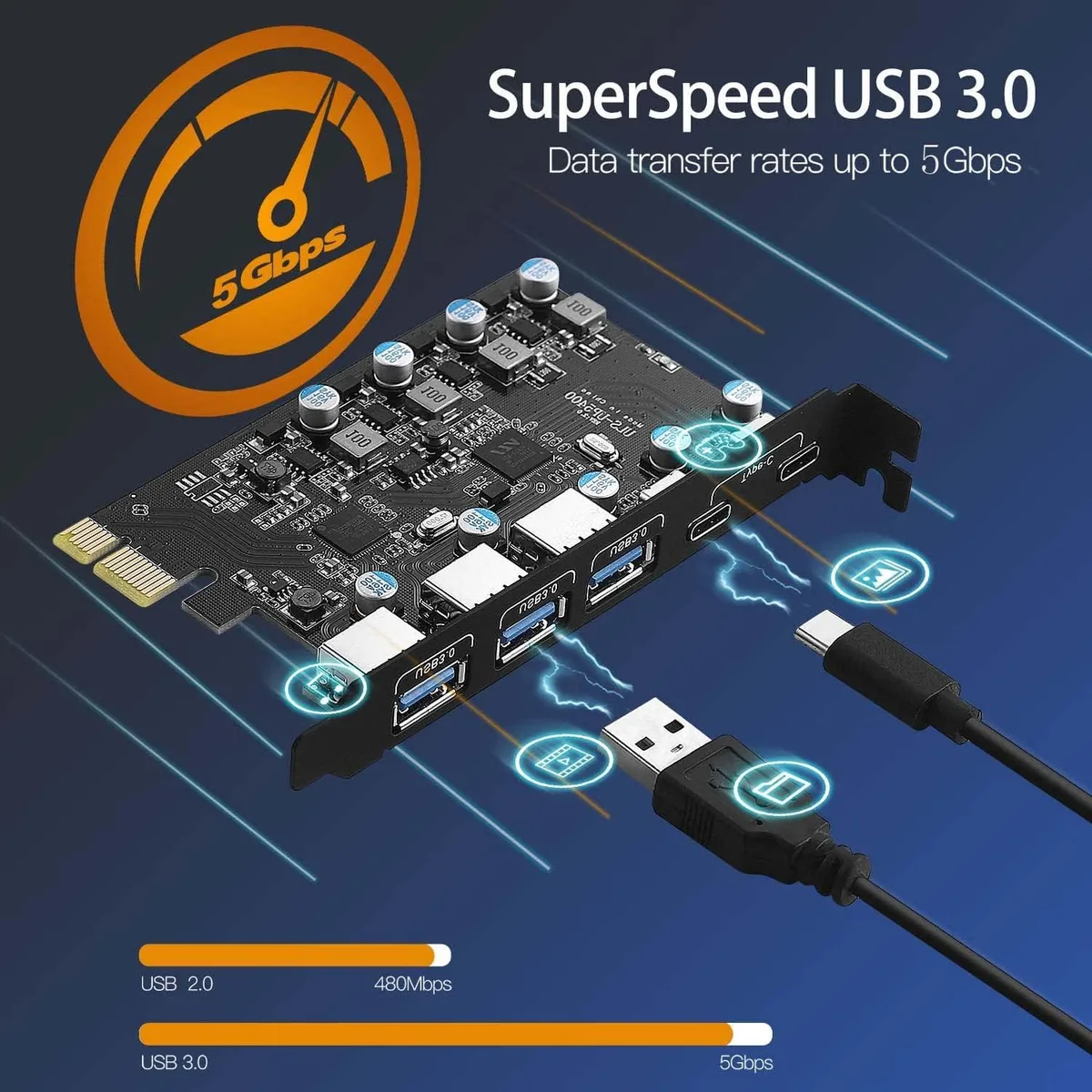

5-Port PCIe USB 3.0 Expansion Card

This PCI Express x1 card adds three USB-A and two USB-C ports to a desktop computer, delivering up to 5 Gbps of shared bandwidth. It is suited for users who need more connections for keyboards, mice, printers, smartphones or game controllers without replacing the motherboard.

Check PCIe slot and driver requirements

The card fits PCIe x1, x4, x8 or x16 slots compliant with PCIe 2.0 or 3.0 and draws power directly from the slot, so no extra power cable is required. You must install the supplied Renesas or VLI USB 3.0 driver on Windows 7, 8, 10, 11 or macOS 10.8.2 and later before the ports become active.

Sustained transfer behaviour and limits

Each port can reach 5 Gbps when used alone, but the total throughput is shared across all five ports and limited by the single PCIe 2.0 x1 uplink. The card provides up to 12 A of combined 5 V current for bus-powered devices such as drive enclosures, though it does not support Power Delivery fast charging, video output or Thunderbolt protocol.

Najważniejsze cechy

  • Add five USB ports (three USB-A, two USB-C) in one PCIe x1 slot
  • Each port delivers up to 5 Gbps for fast file transfers
  • Works with Windows 7 through 11 and Mac OS 10.8.2 and above
  • Powered from the PCIe slot — no external adapter required
  • Over-current and static protection on every port for reliable operation

Specyfikacja

BrandESTONE
SeriesPCIE23A2C
ModelPCIE23A2C
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.0 HUB PCI Express Expansion Card Adapter 5Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 5Gbps.
PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (2X USB-C - 5X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesPCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB-A)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 5Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

What comes in the box and do I need to buy any cables or power adapters separately?

The package includes the PCIe card, a driver CD, mounting screws and a user manual. The card draws power from the PCI Express slot so no external power adapter is required.

Which version of the ESTONE PCIE23A2C should I choose for a desktop with a free PCIe x1 slot?

This single model provides three USB-A and two USB-C ports running at up to 5 Gbps each and fits any PCIe x1, x4, x8 or x16 slot on PCIe 2.0 or 3.0 motherboards.

What does the 5 Gbps figure mean when I plug in a USB 3.0 SSD enclosure?

Each port can deliver up to 5 Gbps when used alone; real-world throughput depends on the connected device and the PCIe 2.0 x1 lane’s total bandwidth.
