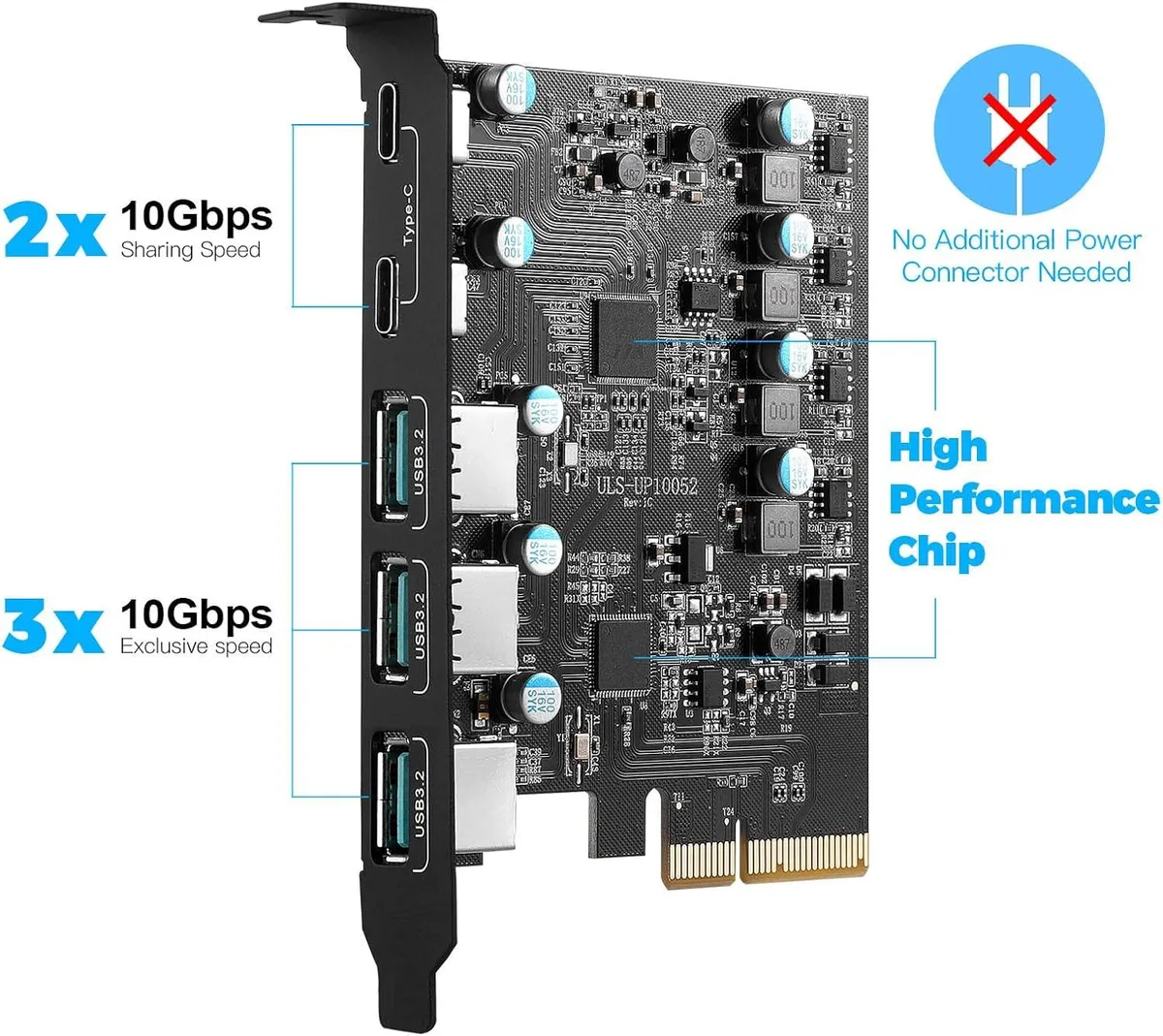

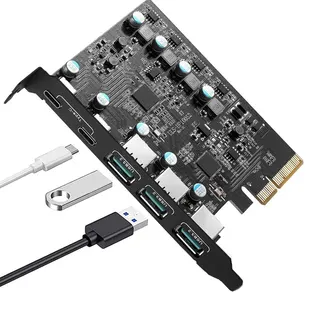

Green circuit board with metal bracket, two USB-C and three USB-A ports

ESTONE

ESTONE PCIE23A2C3.2 PCIe USB 3.2 5-Port Expansion Card

SKU CH-7PQX-R15FB

Adds five USB 3.2 ports — two Type-C and three Type-A — over a single PCIe x1 slot with up to 10 Gbps bandwidth

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds five USB ports to a desktop via a single PCIe x1 slot
  • Two USB-C and three USB-A ports support up to 10 Gbps each
  • Backward compatible with USB 3.1, 3.0, 2.0 and 1.1 devices
  • Works with Windows 7 through 11 and Mac OS 10.8.2 or later
  • Fits PCIe 2.0, 3.0 and 4.0 motherboards in x1, x4, x8 or x16 slots

Five-Port USB 3.2 Add-In Card

The ESTONE PCIE23A2C3.2 adds two USB Type-C and three USB Type-A ports through a single PCI Express x1 slot. It targets desktop owners who need more high-speed connections for external drives, peripherals or VR headsets. The card works with Windows 7 through 11 and Mac OS 10.8.2 or newer. Driver installation is required on older Windows versions.

Thermals and Power

Each port provides an independent 2 A power supply, so attached devices draw current directly from the card rather than the motherboard header. The board occupies a low-profile bracket and fits x1, x4, x8 or x16 slots compliant with PCIe 2.0, 3.0 or 4.0. No auxiliary power connector is needed, keeping cabling simple inside the case.

Bundled Extras

The package includes a driver CD, mounting screws and a printed user manual. The CD supplies the RENESAS/VLI USB 3.0 driver needed for Windows XP, Vista, 7 and Server 2008, while Windows 10, 11, Mac OS and Linux recognise the card automatically. The manual walks through the recommended power-down and two-minute wait before installation.

Najważniejsze cechy

  • Adds five USB ports to a desktop via a single PCIe x1 slot
  • Two USB-C and three USB-A ports support up to 10 Gbps each
  • Backward compatible with USB 3.1, 3.0, 2.0 and 1.1 devices
  • Works with Windows 7 through 11 and Mac OS 10.8.2 or later
  • Fits PCIe 2.0, 3.0 and 4.0 motherboards in x1, x4, x8 or x16 slots

Specyfikacja

BrandESTONE
SeriesPCIE23A2C3.2
ModelPCIE23A2C3.2
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesPCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB3.2)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:T
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

How do I install the ESTONE PCIE23A2C3.2 card and what step is often missed?

Shut down the PC, unplug the power cord and wait two minutes before inserting the card into a PCI Express x1, x4, x8 or x16 slot; the wait is the step most people skip.

What driver or firmware updates will this card need over time?

Windows 7, Vista, XP and Server 2008 require the RENESAS/VLI USB 3.0 driver from the included CD; Windows 10, 11, Mac OS 10.8.2+ and Linux need no driver.

What bandwidth limit appears first when all five ports run sustained transfers?

The three top ports (two USB-C and one USB-A) share a single 10 Gbps lane, so combined throughput caps at 10 Gbps while the bottom USB-C port keeps its own 10 Gbps path.
