Green rectangular PCIe card with two USB-C and three USB-A ports along the metal bracket

ESTONE

ESTONE PCIE23A2C3.2 PCIe USB 3.2 5-Port Expansion Card (2×USB-C, 3×USB-A) 10 Gbps

SKU CH-MM5D-SKM0K

Adds five USB 3.2 ports (two Type-C, three Type-A) via a PCIe x1 slot with 10 Gbps bandwidth

  • TypePCI to USB Card
  • External USB Ports5x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds five USB ports via one PCIe x1 slot — 2 USB-C and 3 USB-A
  • Delivers up to 10 Gbps throughput for fast file transfers
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • Draws power from the PCIe slot — no external supply needed
  • Each port has independent over-current and short-circuit protection

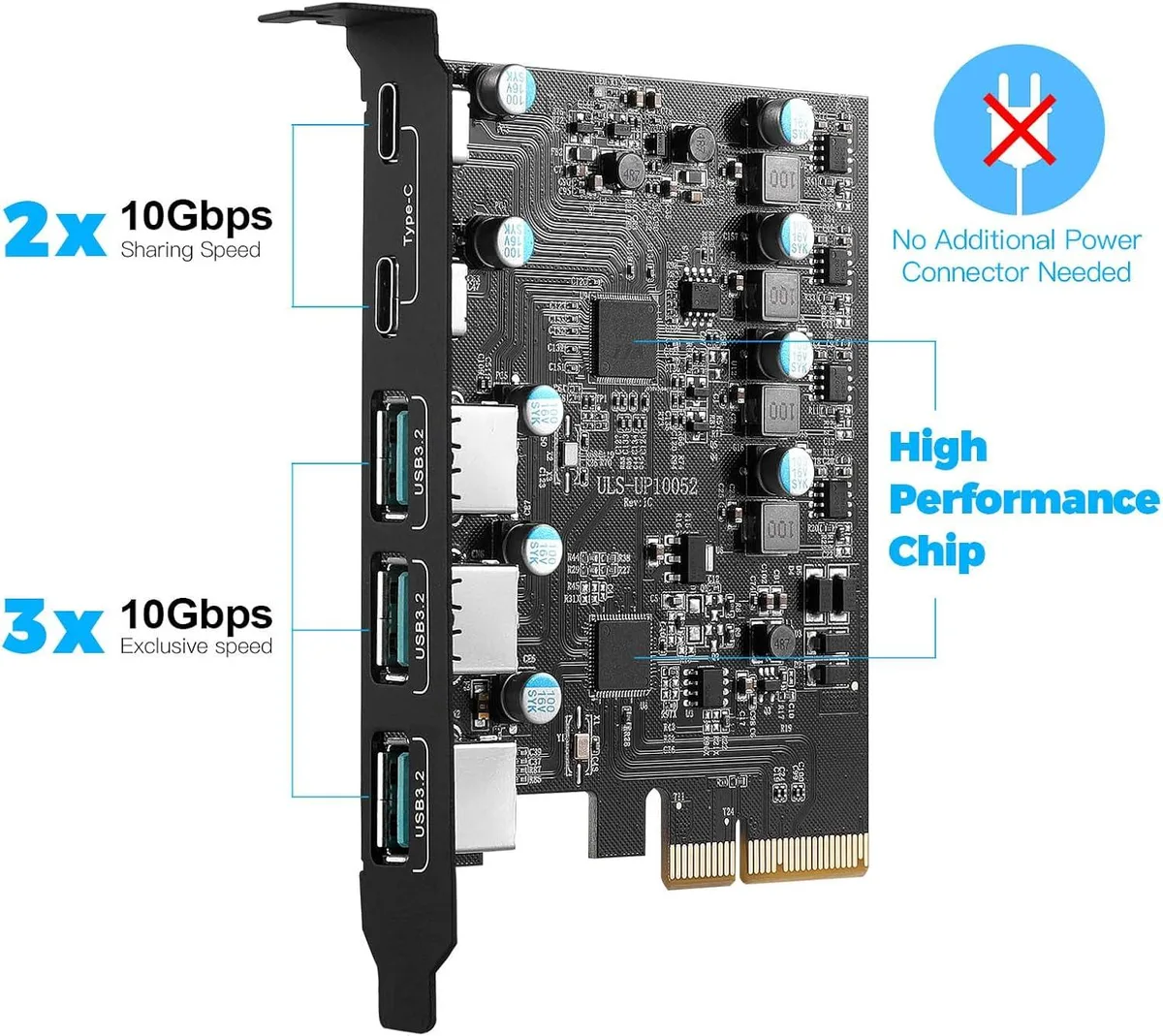

Five USB 3.2 ports via one PCIe slot

The card adds two USB-C and three USB-A ports through a single PCI Express x1 slot. It fits x1, x4, x8 or x16 slots and works with PCIe 2.0, 3.0 and 4.0 motherboards. No external power connector is required because the board draws power from the slot itself.

Independent port protection and driver CD

Each port has its own over-current and short-circuit protection, so a fault on one device does not affect the others. A driver CD is included for Windows 7, 8, XP, Vista and Server 2008; Windows 10, 11, Mac OS 10.8.2+ and Linux work without extra drivers.

Screws and manual for immediate installation

The package supplies the expansion card, a driver CD, mounting screws and a user manual. With these items you can secure the bracket and install any required software in one session. Buyers who need more than five ports or an external power option will not find them here.

Najważniejsze cechy

  • Adds five USB ports via one PCIe x1 slot — 2 USB-C and 3 USB-A
  • Delivers up to 10 Gbps throughput for fast file transfers
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • Draws power from the PCIe slot — no external supply needed
  • Each port has independent over-current and short-circuit protection

Specyfikacja

BrandESTONE
SeriesPCIE23A2C3.2
ModelPCIE23A2C3.2
TypePCI to USB Card
External USB Ports5x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications5 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?
FeaturesPCI Express x1 slot card for usb expansion 5 Ports USB interface Card (2X USB-C - 3X USB3.2)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:T
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

What PCIe lane standard does the ESTONE PCIE23A2C3.2 use and what throughput does it cap at?

The card uses a PCI Express 2.0 x1 lane which caps practical throughput at 10 Gbps shared across all five ports.

What slot width and bracket height does the card need to fit?

It fits any PCIe x1, x4, x8 or x16 slot and uses a standard full-height bracket measuring 4.92 x 4.06 x 1.06 inches.

Which driver must be installed first on Windows 7 and where do you get it?

Install the RENESAS/VLI USB 3.0 driver from the included CD before inserting the card; Windows 10, 11, Mac OS and Linux need no driver.
