Black PCIe card with four blue USB 3.0 Type-A ports on the bracket

ESTONE

ESTONE PCIE24ABK 4-Port PCIe USB 3.0 Expansion Card

SKU CH-XWFS-7XR73

Adds four USB 3.0 Type-A ports through a PCI Express slot with up to 5 Gbps transfer speed per channel and no external power cable required

  • TypePCI to USB Card
  • External USB Ports4-port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add four USB 3.0 ports through a single PCIe x1 slot
  • SuperSpeed transfer up to 5.0 Gbps per port
  • Backward compatible with USB 2.0 and 1.x devices
  • No external power cable required, delivers up to 5 V / 3 A total
  • Works with Windows XP through 11 and Mac OS 10.8.2+

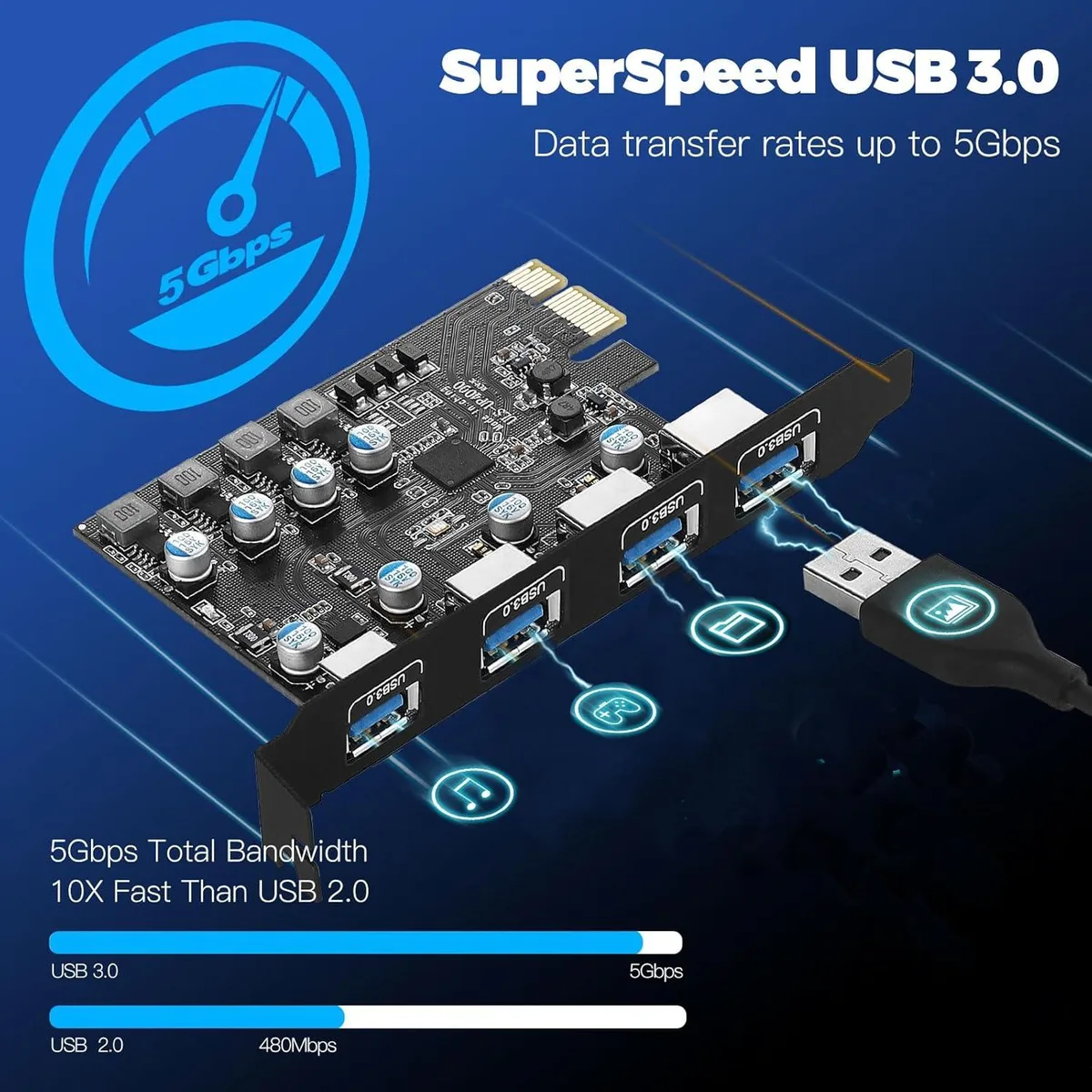

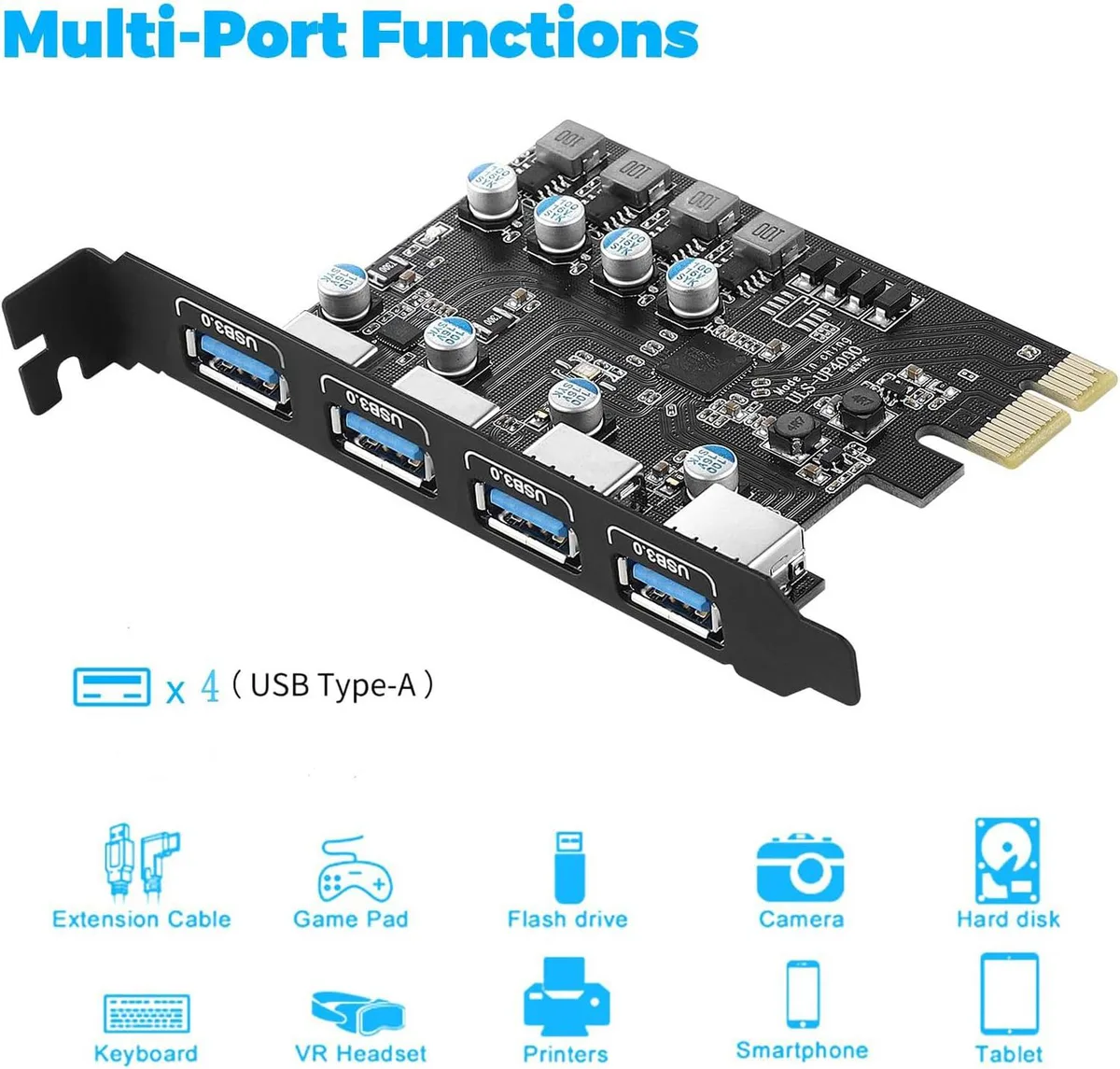

Four-port USB 3.0 PCIe card

The ESTONE PCIE24ABK adds four USB 3.0 Type-A ports to a desktop through a single PCI Express x1 slot. It uses a NEC chipset to deliver up to 5 Gbps total bandwidth and is backward compatible with USB 2.0 and 1.x devices. The card draws power from the slot itself and includes a driver CD for older operating systems. Installation requires an available PCIe slot and a standard full-height bracket.

Suits builds needing extra Type-A ports

This card suits users who want to connect multiple external drives, VR headsets, cameras or input devices without opening the case again. It works with Windows 7 through 11 and Mac OS 10.8.2 or later, with native support on recent versions. Builders using low-profile cases, PCIe x1 slots occupied by other cards, or systems lacking a free x1 lane should look elsewhere. The bracket height and slot requirement are fixed constraints.

Single PCIe x1 lane limits aggregate throughput

The card connects through one PCI Express 2.0 x1 lane, so the 5 Gbps USB 3.0 bandwidth is shared across all four ports. Simultaneous transfers on multiple devices will divide that ceiling. If your workflow demands sustained 5 Gbps on several ports at once, this topology cannot deliver it. Check that your motherboard has a free x1, x4, x8 or x16 slot and that the operating system matches the supported list before buying.

Najważniejsze cechy

  • Add four USB 3.0 ports through a single PCIe x1 slot
  • SuperSpeed transfer up to 5.0 Gbps per port
  • Backward compatible with USB 2.0 and 1.x devices
  • No external power cable required, delivers up to 5 V / 3 A total
  • Works with Windows XP through 11 and Mac OS 10.8.2+

Specyfikacja

BrandESTONE
SeriesPCIE24ABK
ModelPCIE24ABK
TypePCI to USB Card
External USB Ports4-port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
SpecificationsSuperSpeed USB 3.0 data transfer rate up to 5Gbps; Backward compatible with USB 2.0 & USB 1.x
Compliant with PCI Express Specification 2.0
Built-In Self-Powered, no power cable needed - maximum 5V/3000mA power output to USB device
4 downstream ports support data rate: Low/Full/High/SuperSpeed - Support Full/Slim Size Desktop PCs - Low Profile Bracket
Supported OS: Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit); Linux
?
FeaturesAdding 4 USB 3.0 ports on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.
Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device safety than ever.
NOT supp
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

My motherboard only has PCIe 2.0 slots — will this card work in one of those?

Yes, the card complies with PCI Express 2.0 and fits x1, x4, x8 or x16 sockets, so it works in a PCIe 2.0 slot.

I still use USB 2.0 external drives; will they run at their normal speed when plugged into this card?

The card is backward compatible with USB 2.0 and 1.x devices, so older drives operate at their rated speeds.

After installing the card and driver, how can I confirm each port is delivering USB 3.0 performance?

In Device Manager the controller should appear as a USB 3.0 eXtensible Host Controller, and a USB 3.0 flash drive should show SuperSpeed (5 Gbps) in its properties.
