Black rectangular PCIe card with four blue USB 3.0 ports on a metal bracket

ESTONE

ESTONE PCIE24ABK 4-Port USB 3.0 PCIe Expansion Card

SKU CH-VRTE-HGCZS

Adds four USB 3.0 Type-A ports via a PCI Express x1 slot, delivering up to 5 Gbps total bandwidth with no external power cable required

  • TypePCI to USB Card
  • External USB Ports4-port USB 3.0
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Add four USB 3.0 ports via a single PCIe x1 slot
  • Up to 5.0 Gbps transfer speed for large files
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • No external power cable required, draws from the slot
  • Backward compatible with USB 2.0 and 1.x devices

Four USB 3.0 ports on a PCIe x1 card

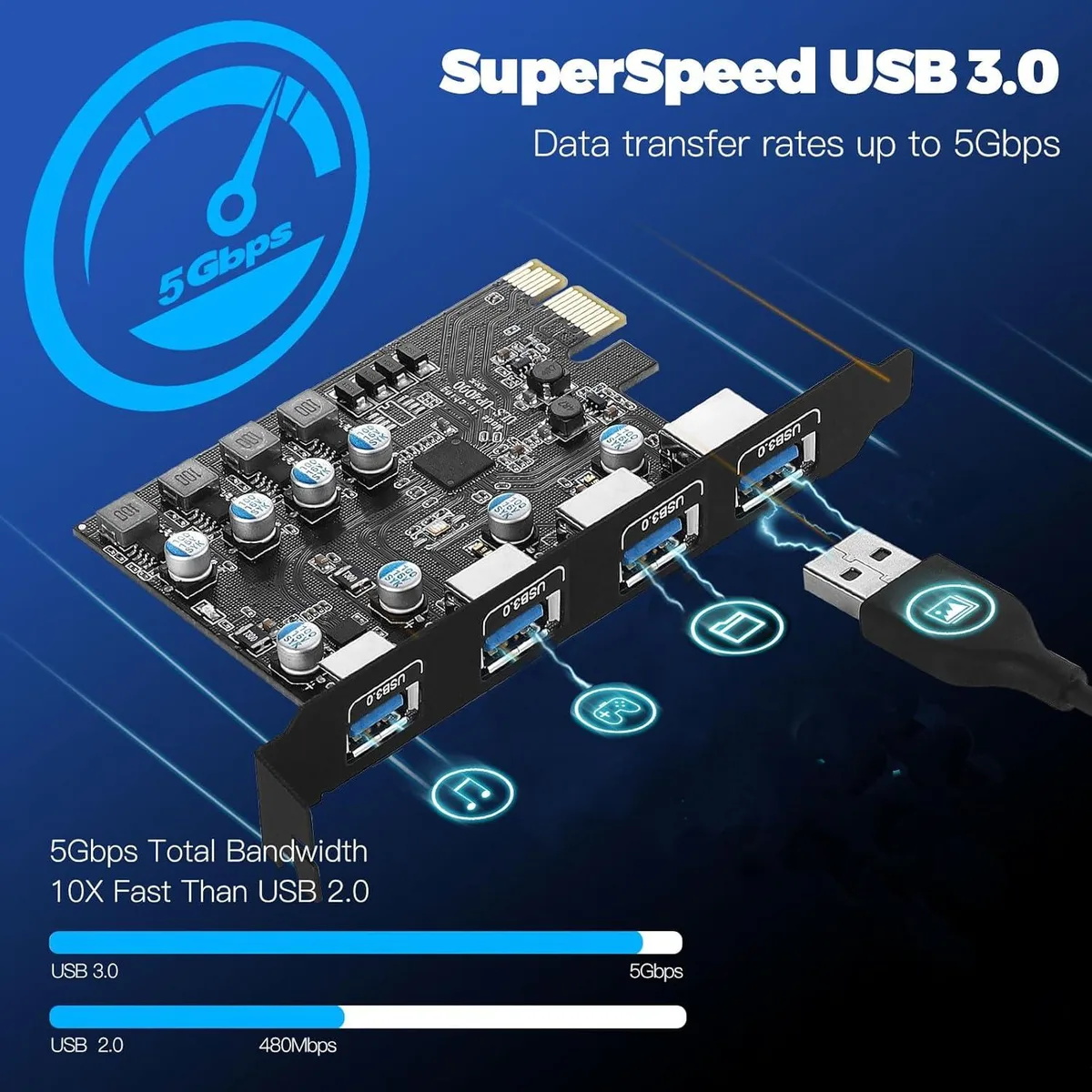

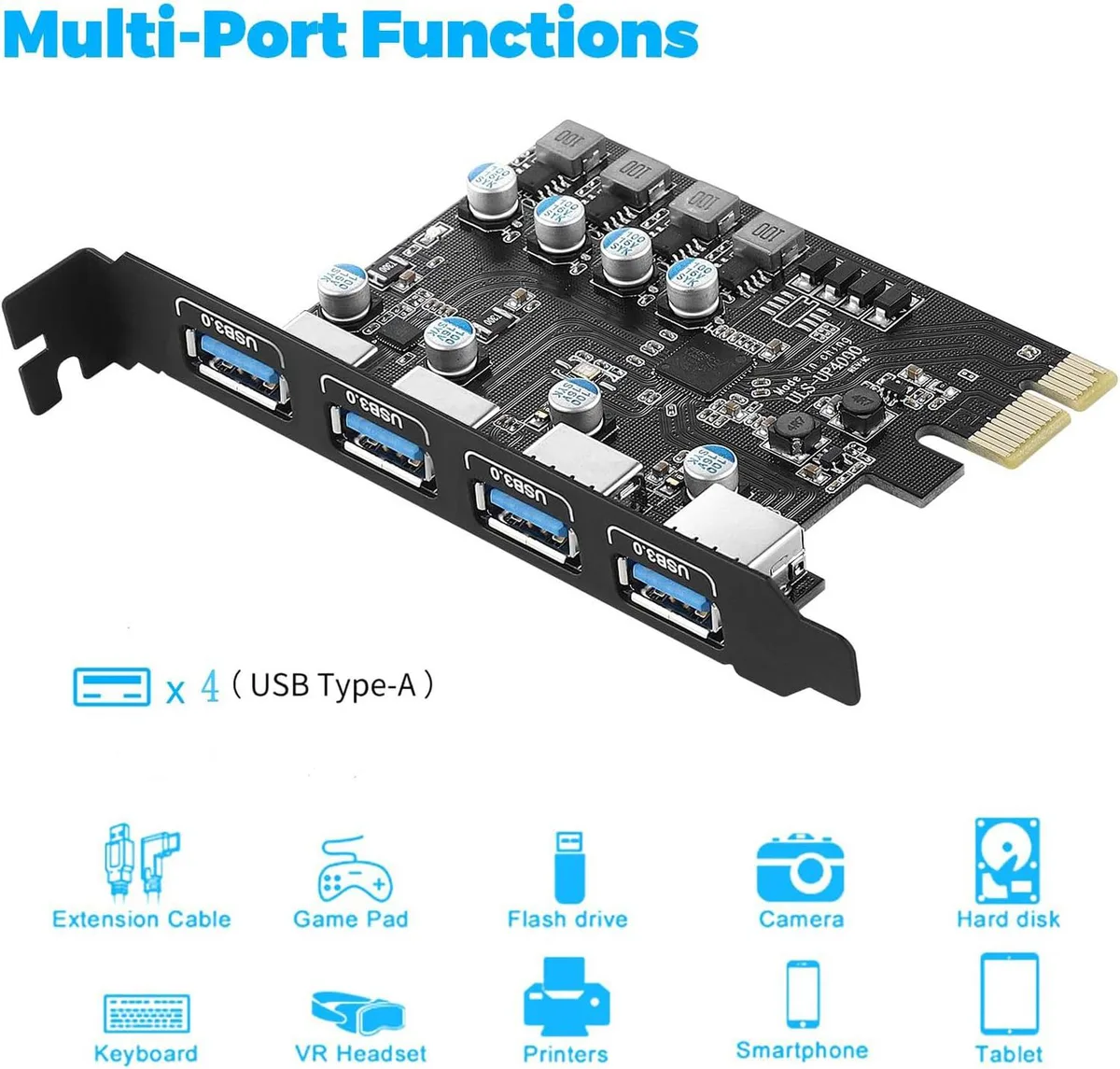

The ESTONE PCIE24ABK adds four USB 3.0 Type-A ports to a desktop PC through a single PCI Express x1 slot. It uses a NEC chipset and is aimed at users who need more high-speed ports for external drives, cameras or peripherals. The card fits x1, x4, x8 or x16 slots and draws power from the slot itself.

Limited to 5 Gbps aggregate throughput

The USB 3.0 interface tops out at 5 Gbps total bandwidth shared across all four ports. Real-world speed depends on the connected device and system load, so simultaneous heavy transfers will divide the available throughput. The card is backward compatible with USB 2.0 and 1.x devices at their native rates.

No external power connector required

The card is powered entirely from the PCIe slot and supplies up to 5 V / 3 A total to attached devices. Each port can deliver up to 2 A, but the combined limit means high-draw peripherals may need their own power adapters. This makes the card unsuitable for setups that require more than 3 A of shared USB power.

Najważniejsze cechy

  • Add four USB 3.0 ports via a single PCIe x1 slot
  • Up to 5.0 Gbps transfer speed for large files
  • Works with Windows 7 through 11 and Mac OS 10.8.2+
  • No external power cable required, draws from the slot
  • Backward compatible with USB 2.0 and 1.x devices

Specyfikacja

BrandESTONE
SeriesPCIE24ABK
ModelPCIE24ABK
TypePCI to USB Card
External USB Ports4-port USB 3.0
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
SpecificationsSuperSpeed USB 3.0 data transfer rate up to 5Gbps; Backward compatible with USB 2.0 & USB 1.x
Compliant with PCI Express Specification 2.0
Built-In Self-Powered, no power cable needed - maximum 5V/3000mA power output to USB device
4 downstream ports support data rate: Low/Full/High/SuperSpeed - Support Full/Slim Size Desktop PCs - Low Profile Bracket
Supported OS: Windows 2000 / XP / Vista / 7 / 8 / 8.1 / 10 / 11 (32/64-bit); Linux
?
FeaturesAdding 4 USB 3.0 ports on your desktop computer by PCI Express(1X) slot.The super fast USB 3.0 ports adopting advanced NEC chipset will provide 5Gbps max data(total) transfer speed for video,audio,photos or files.
Doesn't require additional power,each port owns individual 2A power supply (8A in total) to meet high power-consuming data device's demand, easy to install 2 port PCIE port.
4X added power module provide 4 ampere current ensure adequate power supply for USB device.2X electric circuit protector and voltage stable capacitance protect data and device safety than ever.
NOT supp
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.0 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

How many USB 3.0 ports does the PCIE24ABK add to a desktop?

The card adds four USB 3.0 Type-A ports through a single PCI Express x1 slot, giving you extra connections for drives, cameras, and other peripherals.

What real-world throughput can I expect from the 5 Gbps rating?

The 5 Gbps figure is the shared maximum across all four ports; actual speed depends on the connected device and system load, so sustained transfers will typically be lower.

Which PCI Express slot versions does the card work with?

It complies with PCI Express 2.0 and fits x1, x4, x8 or x16 slots, so it works in any modern desktop motherboard without needing a specific generation.
