Green PCIe expansion card with two USB-C and five USB-A ports on a metal bracket

ESTONE

ESTONE PCIE25A2C3.2 PCIe to USB 3.2 7-Port Card

SKU CH-QH9D-VSZKF

Adds seven USB 3.2 ports (two Type-C, five Type-A) to a desktop via a PCI Express x1 slot, delivering up to 10 Gbps per port with 20 Gbps total bandwidth

  • TypePCI to USB Card
  • External USB Ports7x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds seven USB 3.2 ports through one PCIe x1 slot
  • Two USB-C ports deliver up to 30 W charging each
  • Five USB-A ports supply up to 7.5 W per port
  • Shared 20 Gbps bandwidth with 10 Gbps per port maximum
  • Works with Windows 7 through 11, Linux and Mac OS 10.8.2+

7-Port PCIe USB 3.2 Expansion Card

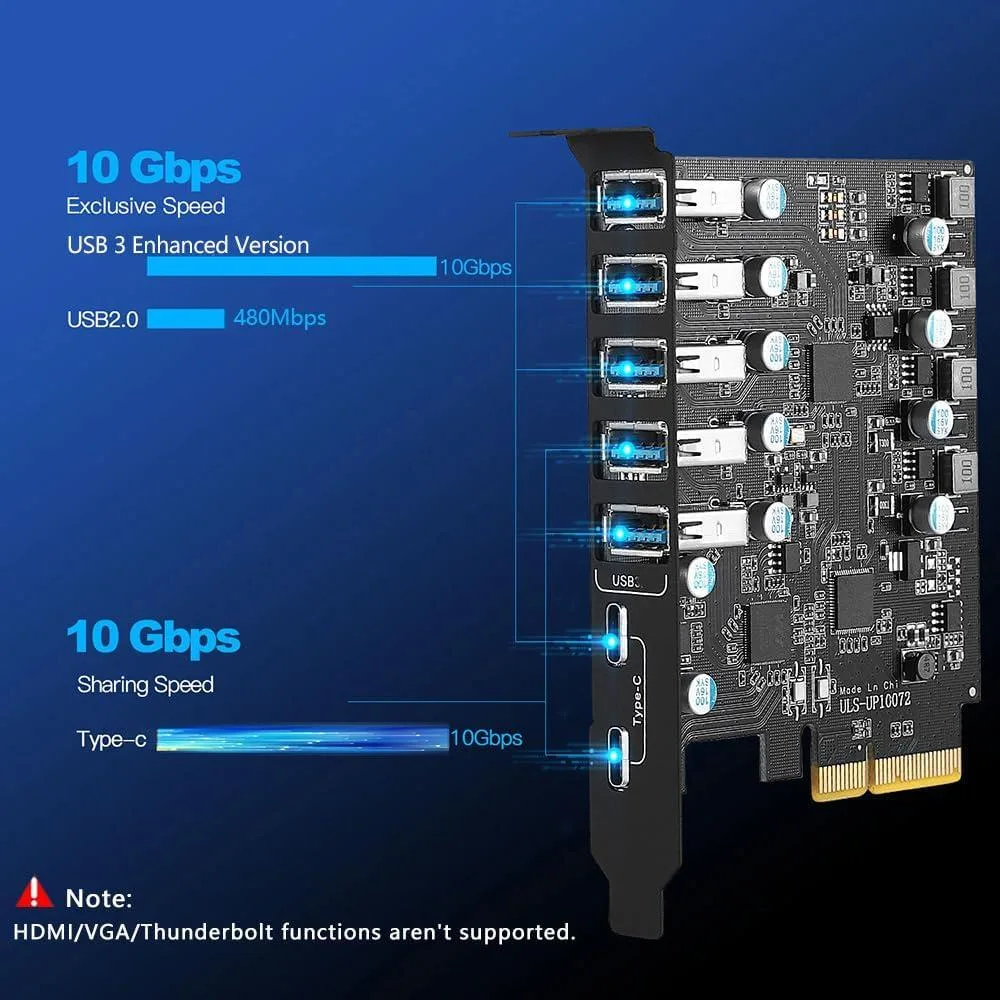

The ESTONE PCIE25A2C3.2 adds seven USB 3.2 ports to a desktop through a single PCI Express x1 slot. Two ports use the USB-C connector and five use USB-A. It is intended for builders who need more high-speed ports for external drives, cameras or other peripherals.

Bandwidth and Charging Limits

All seven ports share a total 20 Gbps of bandwidth, so simultaneous transfers divide that pool. Each USB-C port can deliver up to 30 W of power, while each USB-A port supplies up to 7.5 W under the BC 1.2 protocol. Actual throughput depends on the connected device and the host controller.

Driver-First Installation

A RENESAS or VLI USB 3.0 driver must be installed before the card is recognised by Windows 7 through 11, Linux or Mac OS 10.8.2 and later. The card draws power from the PCIe slot alone, so no external power cable is needed. Over-current protection is built into every port. Buyers who need more than seven ports or a different slot form factor will need another solution.

Najważniejsze cechy

  • Adds seven USB 3.2 ports through one PCIe x1 slot
  • Two USB-C ports deliver up to 30 W charging each
  • Five USB-A ports supply up to 7.5 W per port
  • Shared 20 Gbps bandwidth with 10 Gbps per port maximum
  • Works with Windows 7 through 11, Linux and Mac OS 10.8.2+

Specyfikacja

BrandESTONE
SeriesPCIE25A2C3.2
ModelPCIE25A2C3.2
TypePCI to USB Card
External USB Ports7x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications7 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.

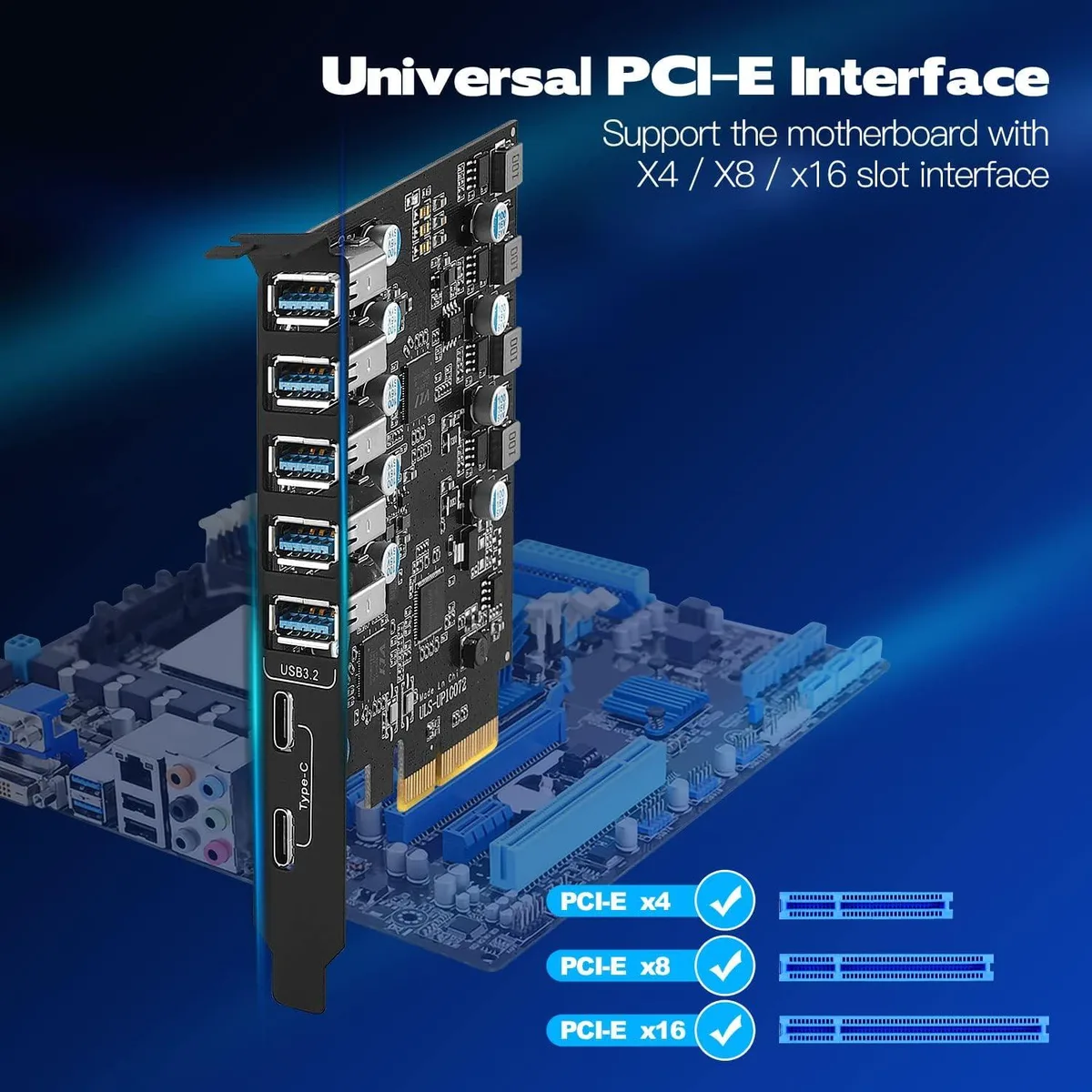

Supports PCI Express 2.0 X1 lane, can transferring up to 10Gbps.

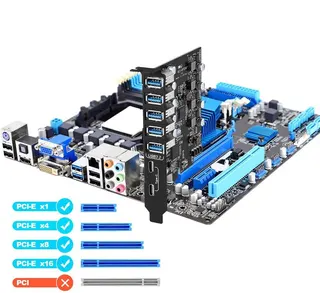

PCI Express x1 slot card for usb expansion 7 Ports USB interface Card (2X USB-C - 5X USB-A)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
?"
?
FeaturesUSB PCIe Card upgrades your desktop computer to 7 USB 3.2 ports (2x USB C,5x USB 3.2) via a PCI Express x1 slot.Solve the problem of fewer USB ports inside the computer host, allowing more USB data devices to be connected to your computer system
SuperSpeed USB 3.2: Supporting data transfer rates of up to 10Gbps, The overall transfer speed is 20 times faster than the old version USB 2.0,providing greater efficiency for your file transfers.(Note: Actual transfer speeds may be limited by the connected device.)
Easy to Use: Each port supports a maximum power of 5W (5V/1A), the pcie usb c
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

Pytania dotyczące tego produktu

Should I choose the 7-port model with two USB-C and five USB-A ports for my desktop?

This card adds seven USB 3.2 ports (two USB-C, five USB-A) through a single PCI Express x1 slot, giving you the full port count in one expansion card.

What does the 10 Gbps per-port rate mean when I connect multiple drives at once?

Each port can reach 10 Gbps when used alone, but the seven ports share a total 20 Gbps bandwidth, so simultaneous transfers divide that pool.

Does the PCI Express 2.0 x1 interface limit the 20 Gbps total bandwidth?

The card runs on a PCIe 2.0 x1 link, which caps theoretical throughput at roughly 5 Gbps, so the 20 Gbps USB aggregate cannot be fully saturated over the bus.
