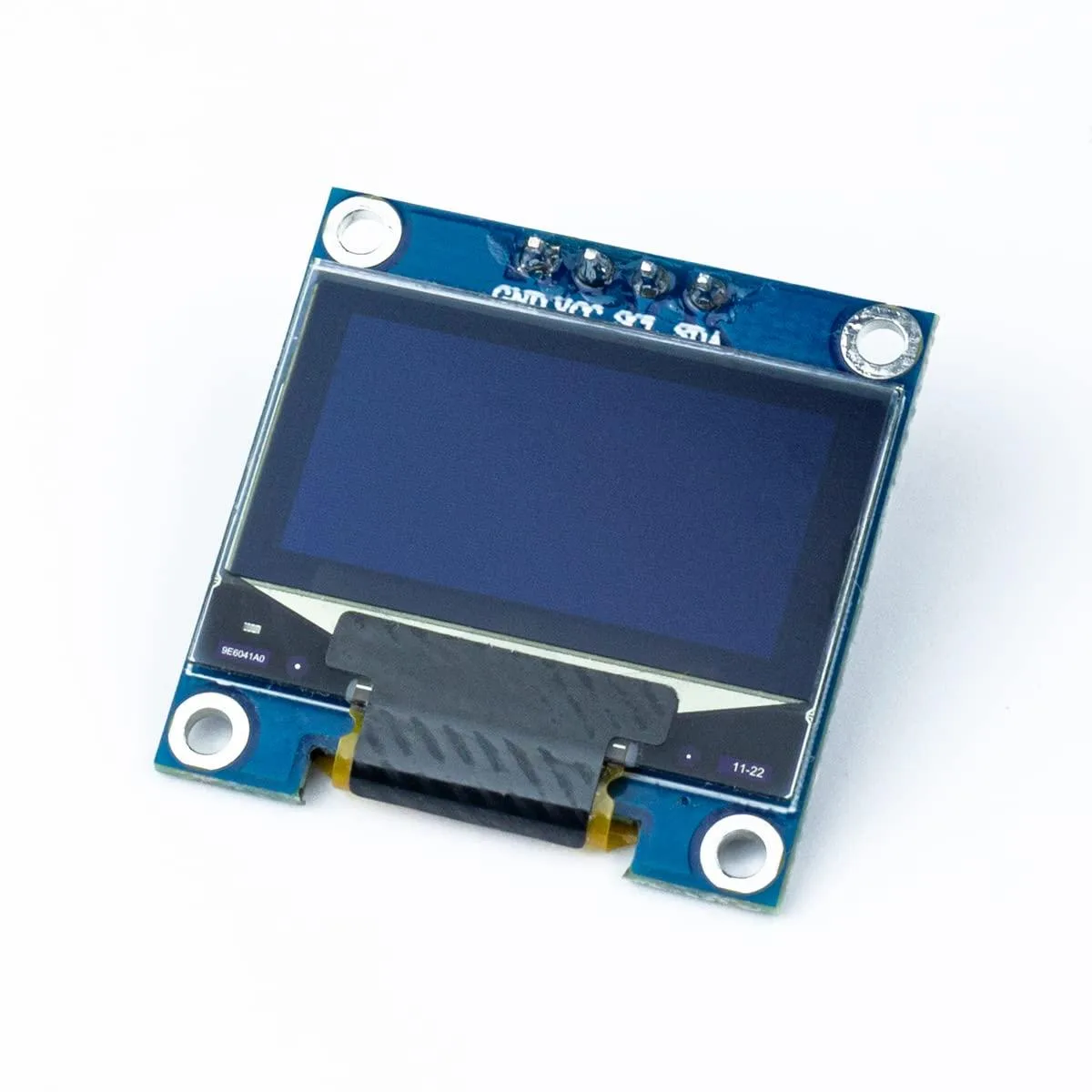

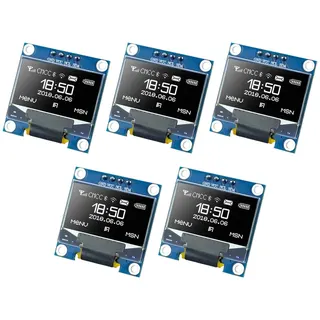

Five small rectangular white OLED boards 0.96 inch 128x64 pixels in protective box

Hosyond 0.96 Inch OLED I2C Display Module 128x64 SSD1306 White 5 Pcs

SKU CH-WNGG-QZ6M7

A five-pack of 0.96 inch 128x64 OLED modules with SSD1306 driver, I2C interface and 3.3V-5V operation for Arduino and Raspberry Pi projects

  • Self-luminous OLED needs no backlight for clear text
  • 128 × 64 resolution gives sharp graphics on 0.96 inch screen
  • >160° viewing angle stays readable from wide angles
  • Ultra-low 0.04 W typical draw extends battery life
  • 3 V–5 V supply works with 3.3 V and 5 V logic directly

Five-Pack OLED Modules

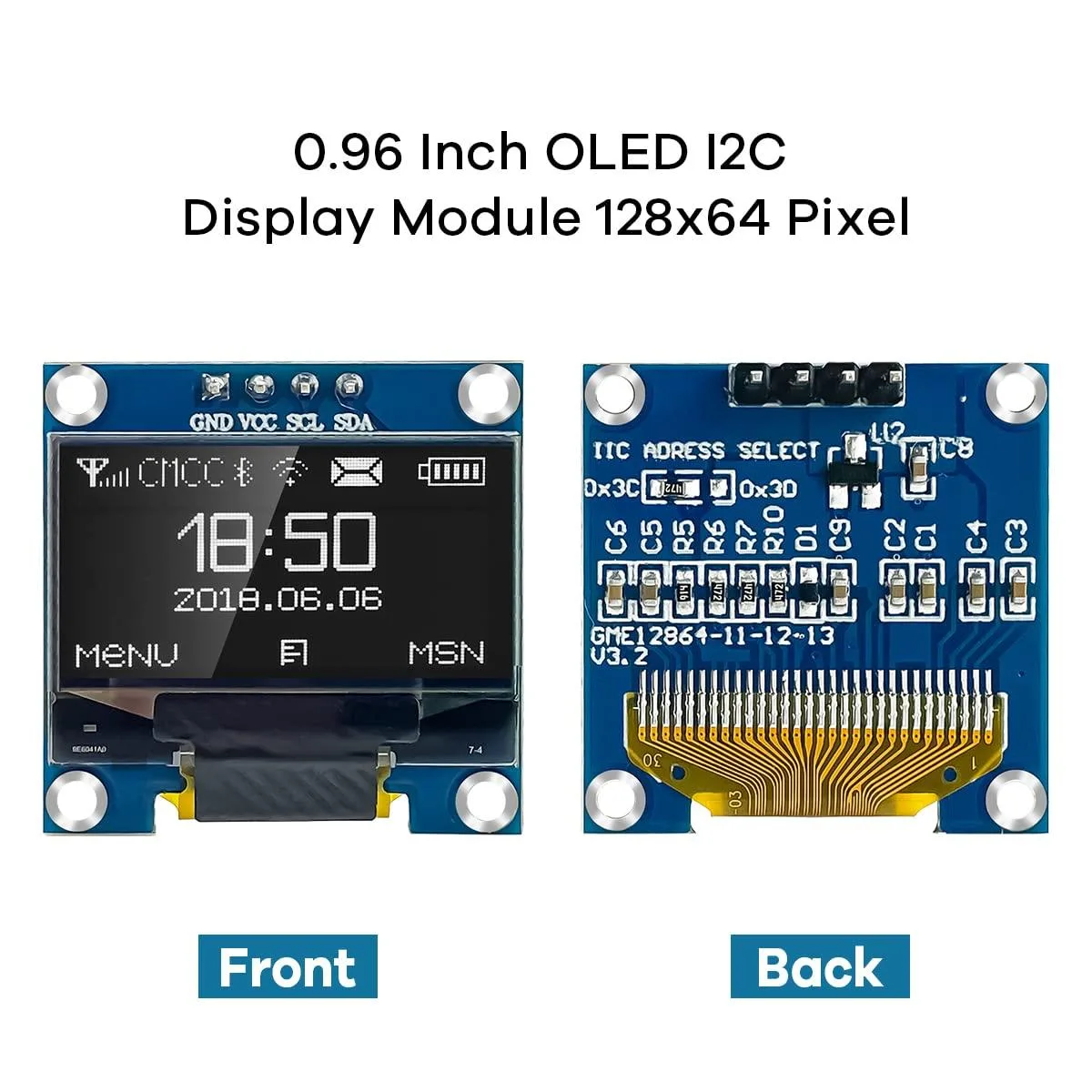

This pack contains five 0.96 inch OLED display modules built around the SSD1306 driver. Each screen shows 128 by 64 pixels with a viewing angle above 160 degrees. The I2C interface needs only two I/O lines, making the boards suitable for Arduino Nano, Uno R3, Mega, Raspberry Pi, 51 MCU and STM32 projects. No fonts are stored on the controller, so developers generate their own glyphs in software.

Low Power Self-Luminous Panels

The organic panels emit their own light, so no backlight is required and contrast stays high even with small text. Normal operation draws 0.04 W, rising to 0.08 W when the full 12864 array is lit. The modules accept 3.3 V to 5 V DC and work with 3.3 V or 5 V logic levels without extra level-shifting parts.

Compact Two-Wire Integration

Each board connects through a standard I2C bus, freeing the remaining GPIO pins for sensors or actuators. The 3.3 V to 5 V supply range lets the display share a rail with the host microcontroller. Five units in protective boxes support multi-node prototypes or spare replacements without needing separate voltage regulators or additional wiring harnesses.

Najważniejsze cechy

  • Self-luminous OLED needs no backlight for clear text
  • 128 × 64 resolution gives sharp graphics on 0.96 inch screen
  • >160° viewing angle stays readable from wide angles
  • Ultra-low 0.04 W typical draw extends battery life
  • 3 V–5 V supply works with 3.3 V and 5 V logic directly

Specyfikacja

BrandHosyond

Pytania dotyczące tego produktu

How do I wire the 0.96 inch OLED to an Arduino using the I2C interface?

Connect VCC to 3.3V or 5V, GND to ground, SCL to A5 and SDA to A4 on an Uno; the module uses only those two I/O ports and works with 3.3V-5V logic without level conversion.

What maintenance will the SSD1306 display need over time?

No scheduled maintenance is required; the self-luminous OLED has no backlight to replace. Avoid static images for long periods to reduce the risk of burn-in on the organic pixels.

What is the first limit I hit when the screen runs continuously at full brightness?

The panel draws 0.08W with every pixel lit; sustained full-screen use raises the module temperature and accelerates gradual luminance decay of the OLED material.
