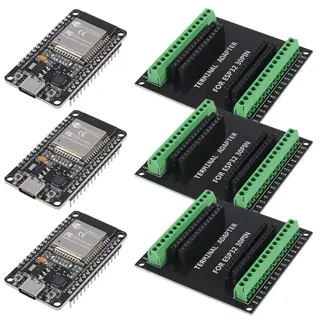

Three ESP32 Type-C boards and three breakout shields on green FR-4 PCBs

KEHIPI

KEHIPI 3 Sets 30PIN ESP32 Type-C CP2102 Development Board + Breakout Shield

SKU CH-TX1K-97N4Q

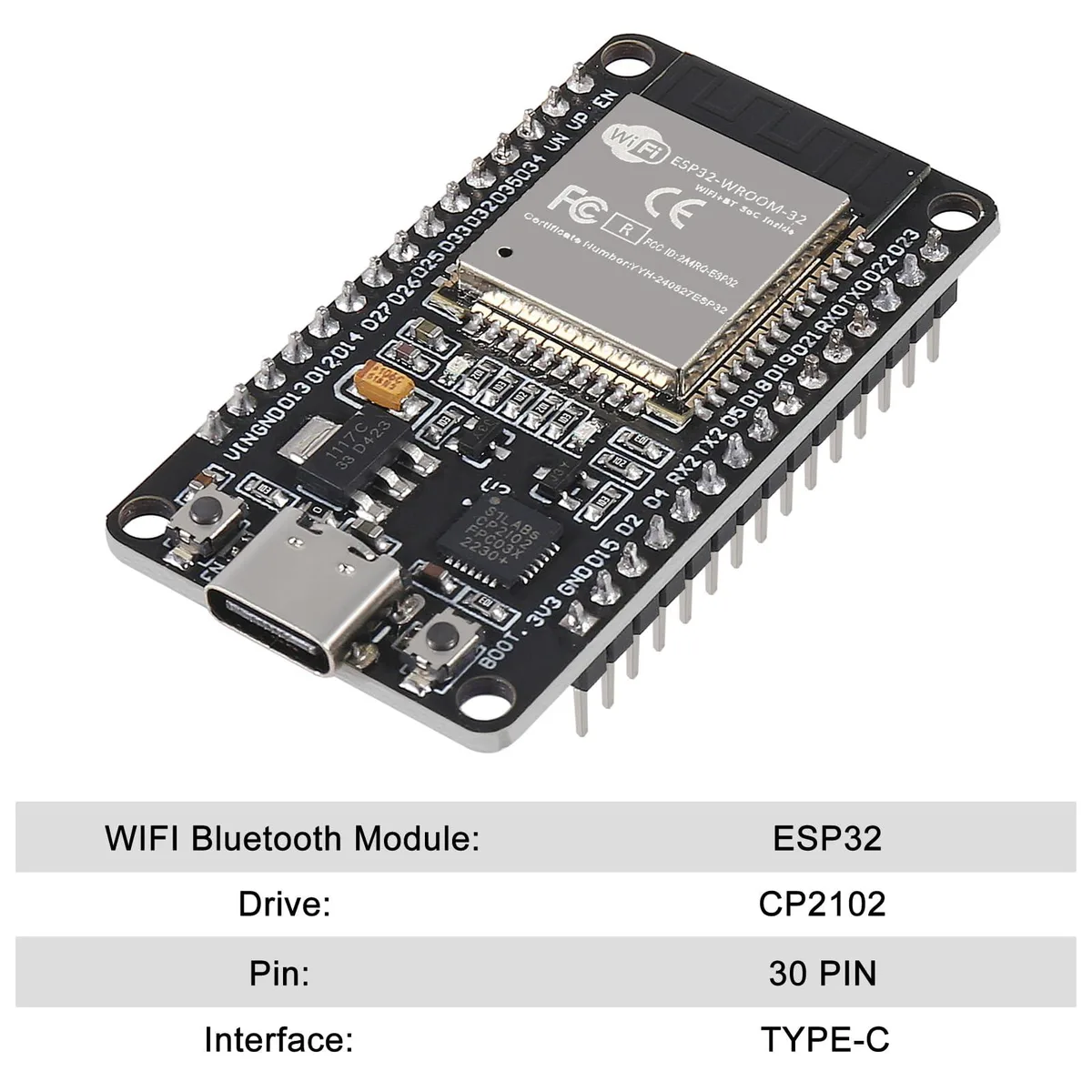

Three ESP32 development boards with Type-C CP2102 interfaces and matching breakout shields for GPIO expansion

  • ESP-WROOM-32 dual-core MCU handles Wi-Fi and Bluetooth tasks
  • CP2102 USB-C interface enables direct programming from a PC
  • GPIO 1-into-2 breakout shield doubles usable pins for projects
  • Three operating modes AP STA AP+STA suit varied network roles
  • FR-4 1.6 mm two-layer PCB ensures reliable signal integrity

Triple ESP32 kit for IoT prototyping

This bundle provides three 30-pin ESP32 development boards with Type-C USB and CP2102 chips, each paired with a GPIO breakout shield. The boards integrate 2.4 GHz dual-mode Wi-Fi and Bluetooth on a dual-core ESP-WROOM-32 module. They are suited for makers, students and engineers building connected devices, smart-home sensors or Arduino IDE projects.

Check USB-C cable and 30-pin pinout compatibility

Ensure you have a reliable Type-C cable for power and serial uploads. The breakout shields only fit the included 30-pin ESP32 boards, so verify that any existing modules share the same pin spacing before mixing parts. The CP2102 driver must be installed on the host computer for the serial port to appear.

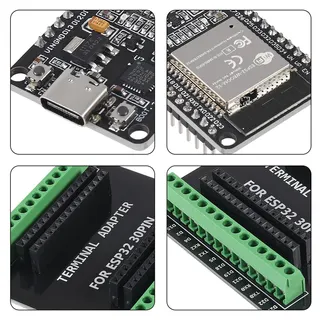

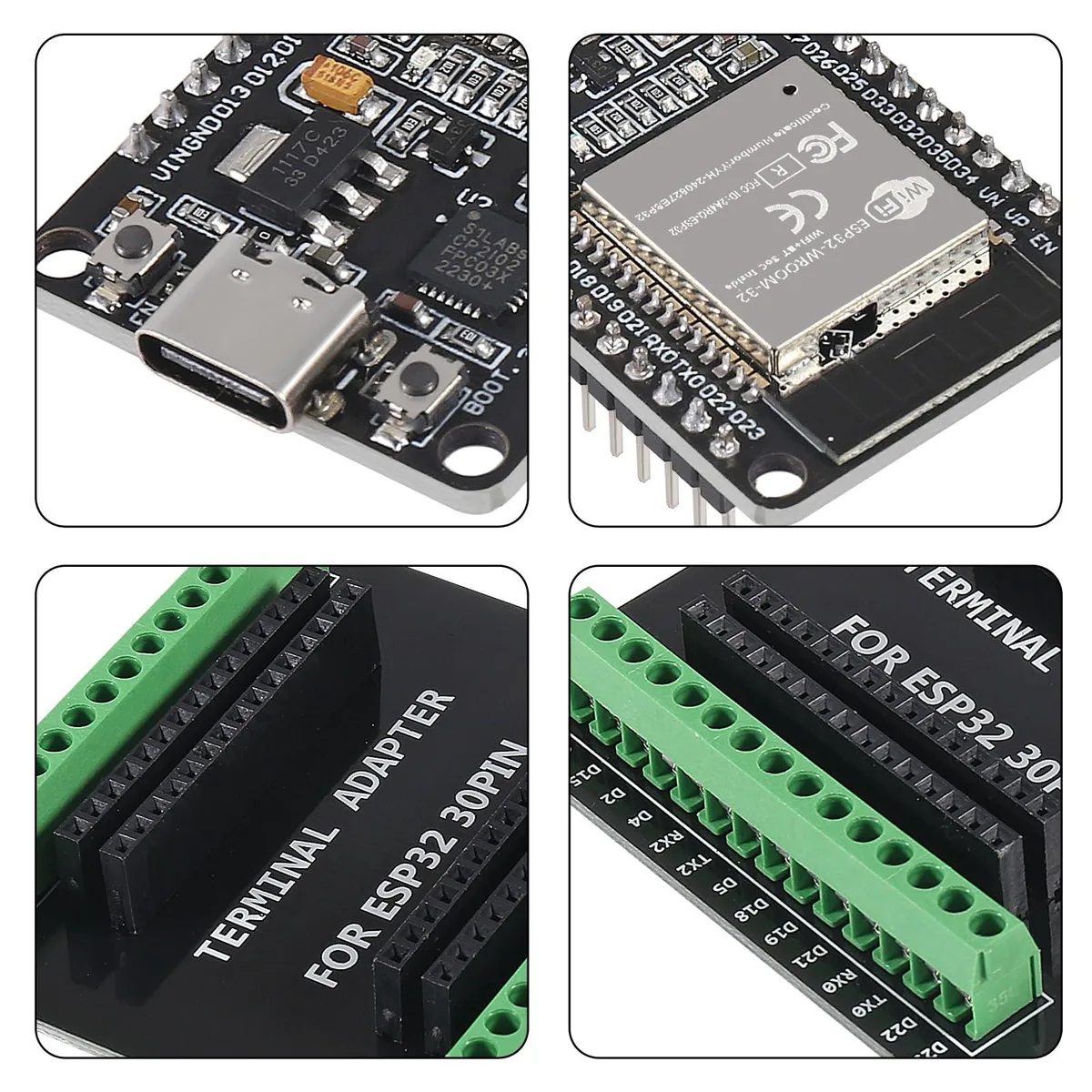

Expands one GPIO into two for dense wiring

Each breakout board converts a single GPIO pin into two, freeing header space for additional sensors or actuators. The 1.6 mm FR-4 boards measure 6.3 by 6.6 cm and stack directly on the development boards without extra cabling. The package includes three matched sets, enabling parallel development or small-batch deployment.

Najważniejsze cechy

  • ESP-WROOM-32 dual-core MCU handles Wi-Fi and Bluetooth tasks
  • CP2102 USB-C interface enables direct programming from a PC
  • GPIO 1-into-2 breakout shield doubles usable pins for projects
  • Three operating modes AP STA AP+STA suit varied network roles
  • FR-4 1.6 mm two-layer PCB ensures reliable signal integrity

Specyfikacja

BrandAITRIP

Pytania dotyczące tego produktu

What boards and shields are included in the three-set package?

The package contains three ESP32 development boards with Type-C USB and CP2102 chip plus three matching GPIO breakout shields that expand each pin to two.

Which pin-count version do these boards use and why does it matter for the shield?

Both the development board and the breakout shield are 30-pin versions; the shield is only compatible with 30-pin ESP32 boards.

What wireless performance can I expect from the 2.4 GHz dual-mode radio in a real project?

The board provides 2.4 GHz Wi-Fi and Bluetooth in a dual-core ESP-WROOM-32 module with ultra-low power consumption suitable for battery-powered IoT nodes.
