Green circuit board with four M.2 slots and full-length PCIe x16 edge connector

LetLinkSo

LetLinkSo PCIe 4.0 x16 to 4 M.2 NVMe Expansion Card

SKU CH-W6C2-DJGZE

Connects four NVMe M.2 SSDs via PCIe 4.0 x16 with up to 512 Gbps combined bandwidth

  • TypePCIe M.2 Expansion Card
  • StandardPCIe 4.0
  • Data Transfer Rate32GT/s (per lane)
  • CompatibilityPCIe 4.0
  • SpecificationsUNLEASHED PERFORMANCE
  • FeaturesENHANCED STORAGE CAPACITY

PCIe Version PCIe 5.0

  • PCIe 5.0
  • PCIe 4.0

Przekreślone wersje istnieją, ale nie są dostępne w tym miejscu.

Cooling Type No Cooling

  • No Cooling
  • Heatsink

Przekreślone wersje istnieją, ale nie są dostępne w tym miejscu.

  • Up to 128 Gbps per M.2 SSD for fast NVME performance
  • Combined 512 Gbps bandwidth across four drives for high throughput

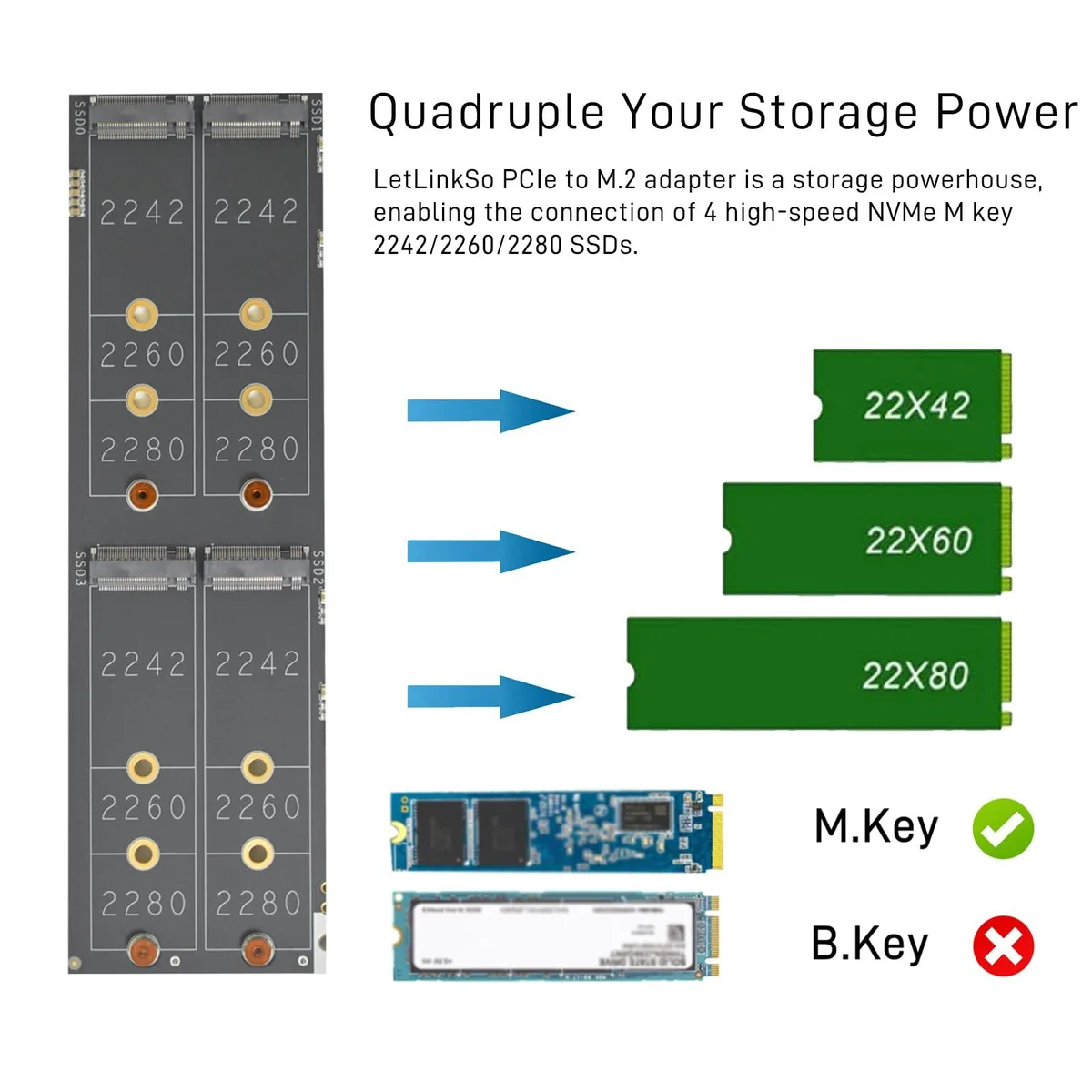

  • Connects four NVME M.2 SSDs in 2242, 2260 or 2280 sizes
  • Works with PCIe 1.0 through 5.0 standards for broad compatibility
  • Boot from NVME with BIOS support for primary drive speed

Four-drive NVMe adapter

This PCIe 4.0 x16 add-in card provides four M-key slots that accept 2242, 2260 or 2280 NVMe drives. It targets workstation and enthusiast builders who need to add high-speed solid-state storage without occupying existing M.2 sockets on the motherboard.

Check bifurcation support

Your motherboard must support PCIe signal splitting, often called bifurcation, to expose all four drives to the operating system. Without that capability only a single drive will be visible. The card fits a standard x16 slot and is backward compatible with PCIe 1.0 through 5.0 platforms.

No drives or cooling included

The package contains only the expansion card itself; NVMe drives and any required heatsinks or fans must be sourced separately. The supplier notes that a heatsink is highly recommended when installing PCIe 5.0 drives to maintain optimal temperatures.

Najważniejsze cechy

  • Up to 128 Gbps per M.2 SSD for fast NVME performance
  • Combined 512 Gbps bandwidth across four drives for high throughput
  • Connects four NVME M.2 SSDs in 2242, 2260 or 2280 sizes
  • Works with PCIe 1.0 through 5.0 standards for broad compatibility
  • Boot from NVME with BIOS support for primary drive speed

Specyfikacja

BrandLetLinkSo
SeriesPCIe M.2 Expansion Adapter
ModelLLS-CD-1PC4MT-01
TypePCIe M.2 Expansion Card
StandardPCIe 4.0
Data Transfer Rate32GT/s (per lane)
CompatibilityPCIe 4.0
SpecificationsUNLEASHED PERFORMANCE
FeaturesENHANCED STORAGE CAPACITY
Weight1 lbs
Package Contents1 x PCIe M.2 Expansion Card

Pytania dotyczące tego produktu

What comes in the box and do I need to buy heatsinks or fans separately?

The package contains one PCIe M.2 expansion card. No heatsinks or fans are included. The manufacturer recommends adding a heatsink for PCIe 5.0 SSDs or purchasing the fan-equipped version for better cooling.

Which version should I choose between the PCIe 4.0 x16 and PCIe 5.0 x16 models?

Choose the PCIe 4.0 x16 model if your motherboard provides a PCIe 4.0 x16 slot and supports bifurcation. Select the PCIe 5.0 x16 model if your platform has a PCIe 5.0 x16 slot and you want full 5.0 bandwidth for each of the four M.2 slots.

What does the 128 Gbps per M.2 SSD figure mean once the card is installed?

Each M.2 slot can deliver up to 128 Gbps when a compatible NVME drive is installed in a system that supports PCIe 5.0 x4 signalling. The combined bandwidth across all four slots reaches 512 Gbps.
