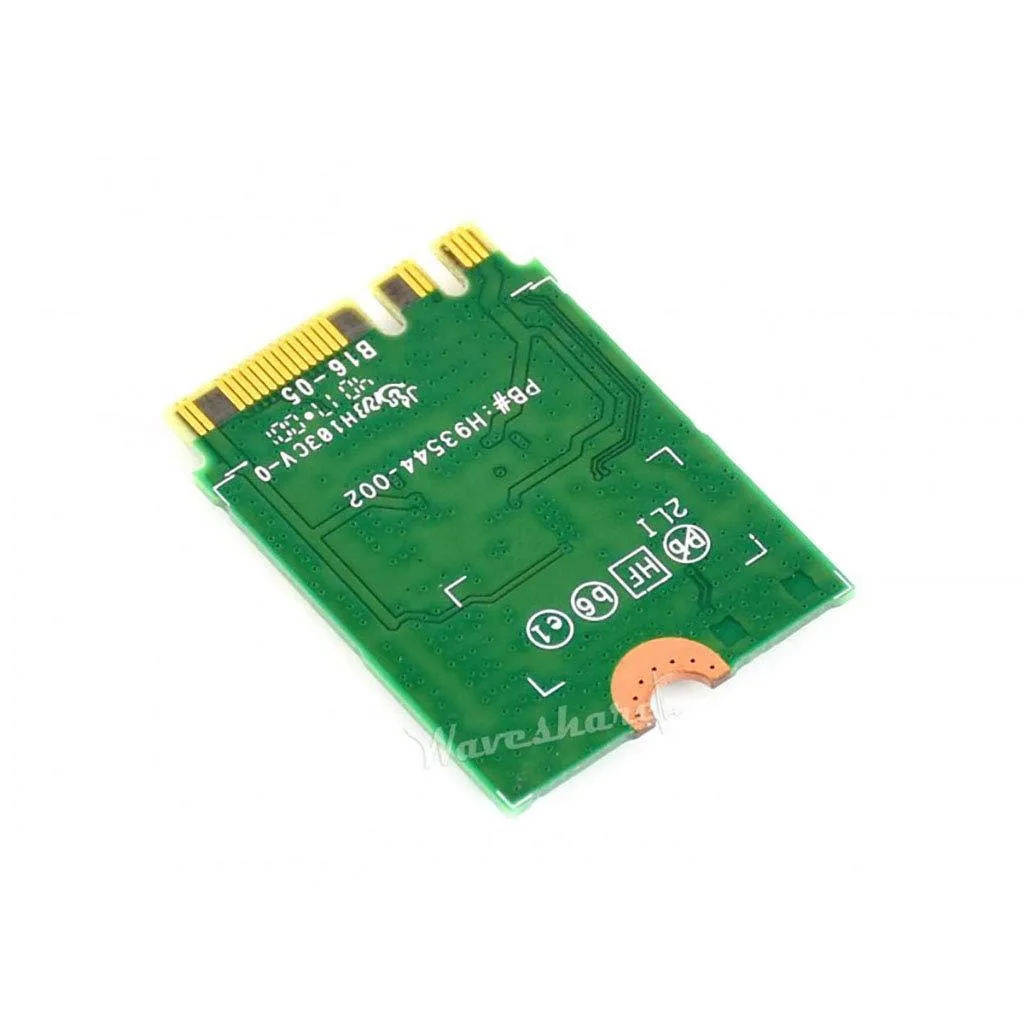

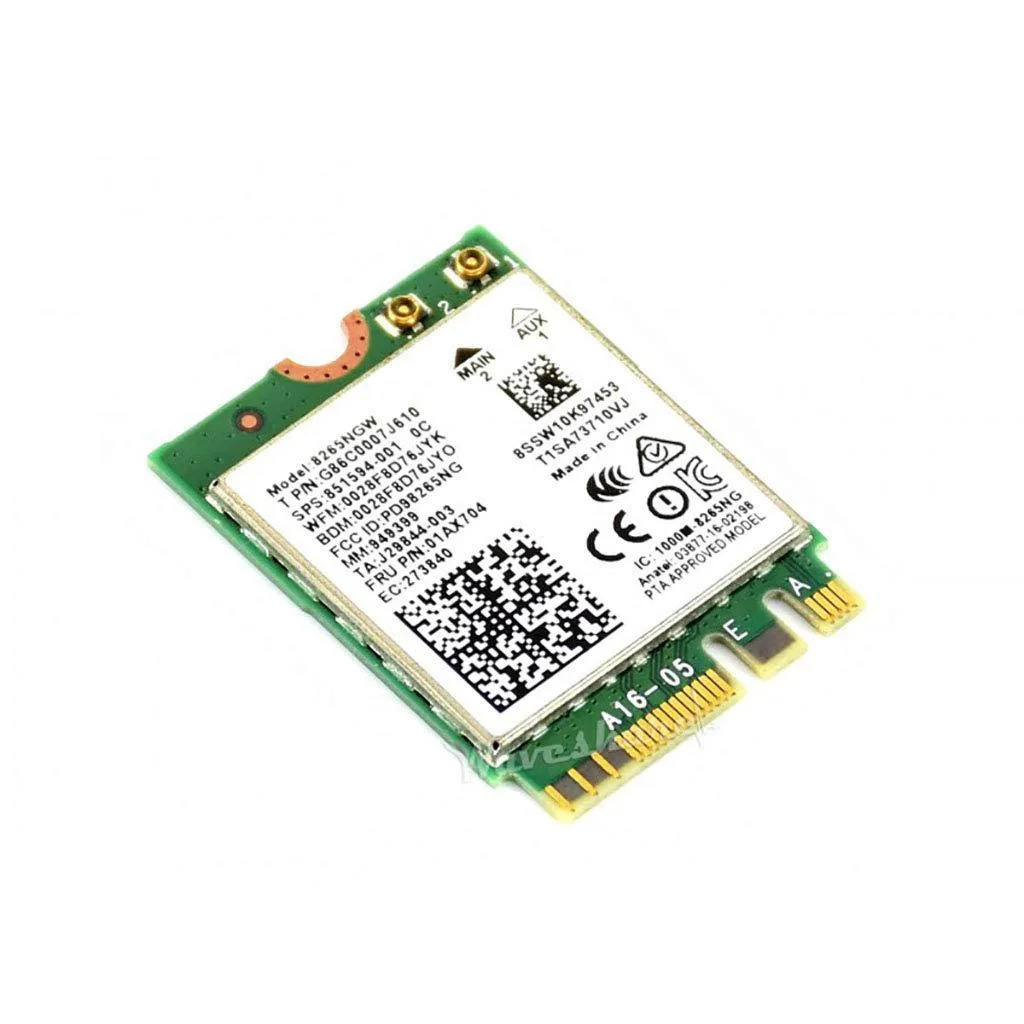

Small green circuit board with black chips and gold edge connector

LORDWORLD

LORDWORLD AC8265 Wireless Module for Jetson Nano B01 development board

SKU CH-HBJ7-SF8A4

Adds dual-band Wi-Fi and Bluetooth 4.2 to a Jetson Nano B01 via an M.2 module with IPEX antenna connectors

  • Intel 8265AC chip delivers dual-band 2.4GHz/5GHz Wi-Fi up to 867Mbps
  • Bluetooth 4.2 connectivity for wireless peripherals on Jetson Nano B01
  • NGFF M.2 interface with IPEX antenna connector for flexible placement
  • Compact 22mm × 30mm × 2.4mm module fits tight enclosures
  • Compatible with Linux and Windows 10/8.1/8/7 operating systems

Target Platform

This LORDWORLD AC8265 wireless module adds Wi-Fi and Bluetooth to the Jetson Nano B01 development board. It uses an Intel 8265AC chip on an NGFF M.2 interface with an IPEX antenna connector. The module is not compatible with the Jetson Nano 2GB Developer Kit. Supported operating systems include Linux and Windows 10, 8.1, 8 and 7.

Dual-Band Performance

The Intel 8265AC chip delivers 2.4 GHz and 5 GHz operation with 802.11ac Wi-Fi and Bluetooth 4.2. Maximum link rates reach 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band. Actual throughput will vary with antenna quality, channel congestion and the host board's PCIe lane allocation.

Upgrade Path

This module replaces a missing or faulty wireless card on a Jetson Nano B01, adding both Wi-Fi and Bluetooth in a single 22 mm × 30 mm × 2.4 mm M.2 card. The upgrade is worthwhile when the project requires wireless connectivity and the B01 carrier board provides a free M.2 slot with IPEX antenna headers. Builders using the 2GB Developer Kit must choose a different solution.

Najważniejsze cechy

  • Intel 8265AC chip delivers dual-band 2.4GHz/5GHz Wi-Fi up to 867Mbps
  • Bluetooth 4.2 connectivity for wireless peripherals on Jetson Nano B01
  • NGFF M.2 interface with IPEX antenna connector for flexible placement
  • Compact 22mm × 30mm × 2.4mm module fits tight enclosures
  • Compatible with Linux and Windows 10/8.1/8/7 operating systems

Specyfikacja

BrandLORDWORLD

Pytania dotyczące tego produktu

Will the AC8265 module fit the Jetson Nano B01 I already own?

Yes, the module uses an NGFF M.2 interface that matches the B01 carrier board slot; the 2GB Developer Kit is not supported.

How can I confirm the Intel 8265AC chip is running at 867 Mbps on 5 GHz after installation?

Check the link speed in your OS network settings or run a throughput test; a reported 867 Mbps connection rate shows the 802.11ac link is active.

Does the package include the IPEX antennas or do I need to buy them separately?

The module has an IPEX connector for external antennas; antennas are not included and must be purchased separately.
