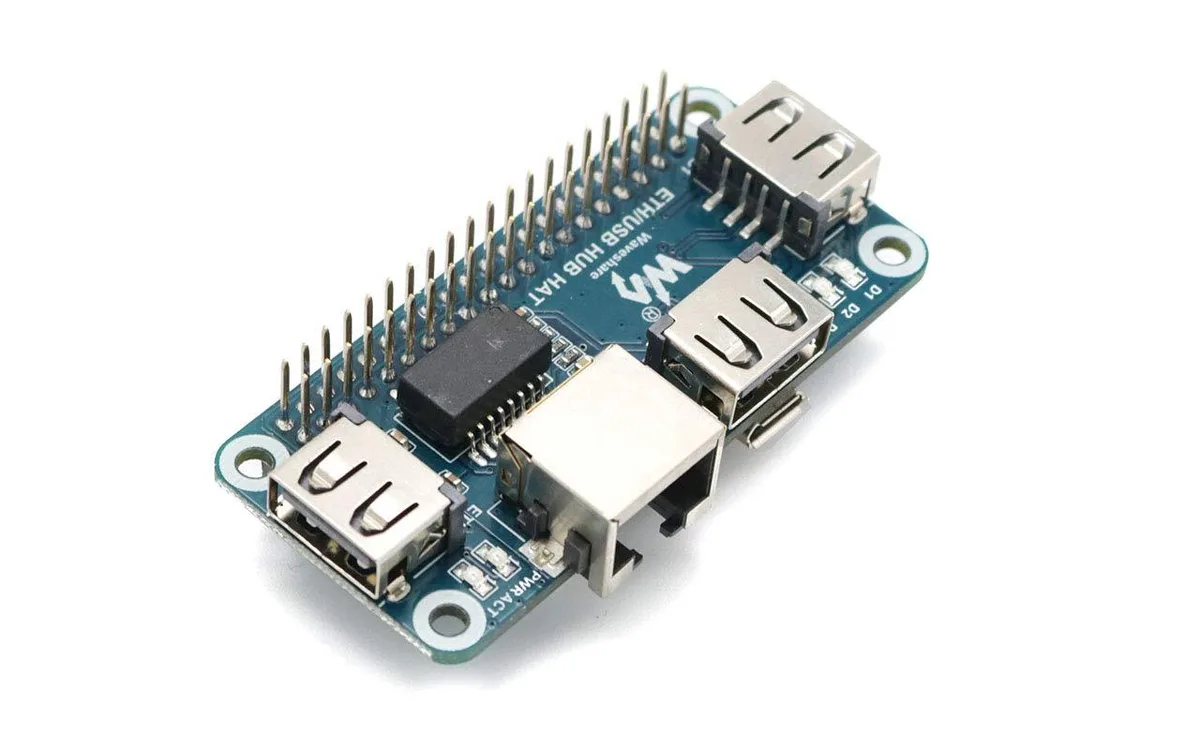

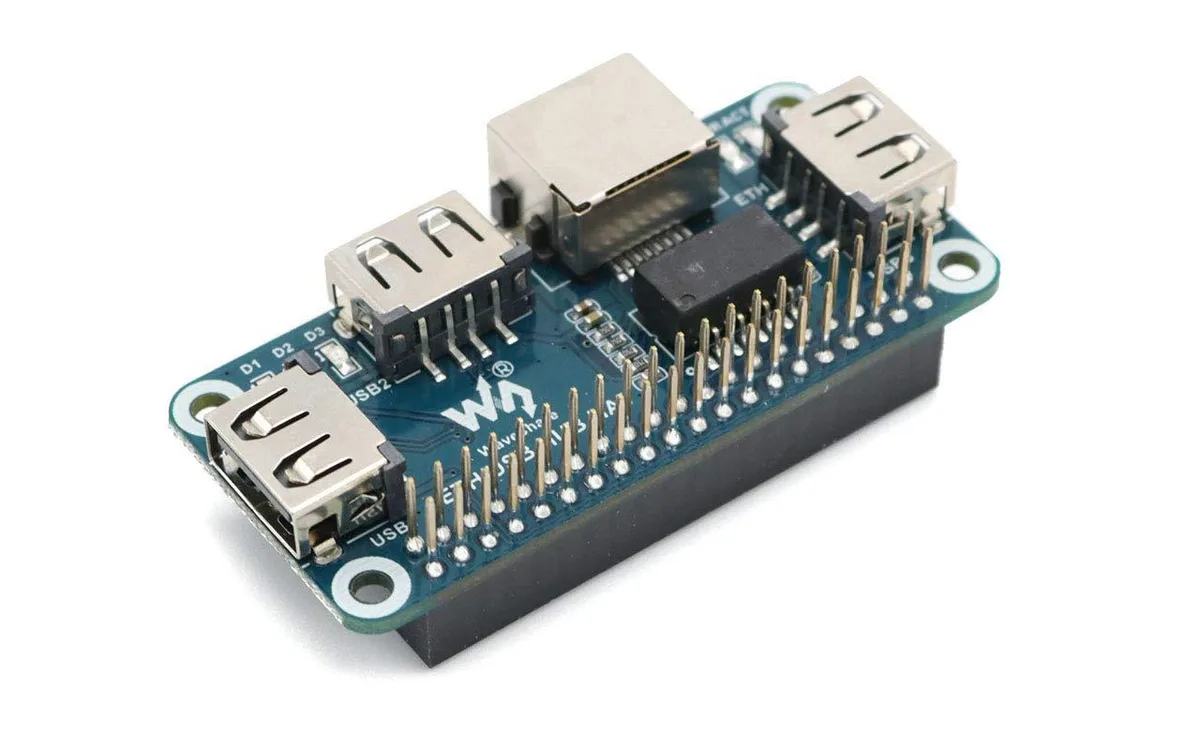

Small green circuit board with three USB ports and one RJ45 jack

LORDWORLD

LORDWORLD Ethernet USB Hub HAT for Raspberry Pi Zero 3x USB 2.0 1x RJ45 10/100M RTL8152B development board

SKU CH-T9VT-5Y4FE

Adds three USB 2.0 ports and a 10/100M Ethernet link via RTL8152B to Raspberry Pi Zero boards

  • Adds three USB 2.0 ports for extra peripherals
  • Wired 10/100M Ethernet via RTL8152B chip for stable link
  • Fits Zero, Zero W and Zero WH boards exactly
  • Onboard LEDs show power, Ethernet and each USB status
  • Backward compatible with USB 1.1 devices

Ethernet HAT for Raspberry Pi Zero

This HAT adds three USB 2.0 ports and a single 10/100M RJ45 Ethernet connection to Raspberry Pi Zero, Zero W and Zero WH boards. The onboard RTL8152B chip handles the wired network link while the board draws power through the standard GPIO header. Multi-purpose LEDs show power, Ethernet link and activity on each USB port.

Makers needing wired Ethernet and extra USB

Builders who want a stable wired network connection without using a USB-to-Ethernet dongle will find this HAT convenient. It suits headless server projects, network appliances and IoT gateways running on a Zero form factor. Users who need Gigabit Ethernet speeds or more than three downstream USB ports should look at a different solution.

RTL8152B 10/100M Ethernet controller

The RJ45 port is driven by an RTL8152B chip that negotiates at 10 or 100 Mbit/s. This single specification determines whether the board meets your network throughput requirements. The three USB ports operate at USB 2.0 and 1.1 rates and share the Pi's single USB root hub.

Najważniejsze cechy

  • Adds three USB 2.0 ports for extra peripherals
  • Wired 10/100M Ethernet via RTL8152B chip for stable link
  • Fits Zero, Zero W and Zero WH boards exactly
  • Onboard LEDs show power, Ethernet and each USB status
  • Backward compatible with USB 1.1 devices

Specyfikacja

BrandLORDWORLD

Pytania dotyczące tego produktu

How can I confirm the HAT is working after connecting it to my Raspberry Pi Zero?

The onboard indicators show power, Ethernet link, and activity for each of the three USB ports so you can verify operation at a glance.

What comes in the box and what must I supply separately?

The package contains the HAT with one RJ45 10/100M port and three USB 2.0 ports; you need to provide a Raspberry Pi Zero, Zero W, or Zero WH and any USB peripherals or Ethernet cable.

Which Raspberry Pi Zero models does this HAT fit?

The board size matches the Zero, Zero W, and Zero WH, giving each model three USB 2.0 ports and a wired Ethernet connection via the RTL8152B chip.
