15 inch industrial all-in-one PC with flat IP65 front panel and resistive multi-touch screen

partaker

partaker A20 all-in-one PC 15" i3-10110U 16GB 512GB

SKU CH-4YCW-4RFKW

15-inch fanless industrial all-in-one with IP65 front panel, resistive multi-touch, Core i3-10110U, 16GB DDR4, 512GB SSD, Windows 11 Pro, 9-36V wide-range power, dual LAN, dual COM and HDMI

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i3 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i3 10th Gen

Memory Capacity 16GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently 24/7
  • 9–36 V wide-range input suits industrial power
  • Dual Intel LAN plus two COM ports for legacy gear
  • 16 GB DDR4 and 512 GB SSD ready to deploy

Industrial panel PC for embedded use

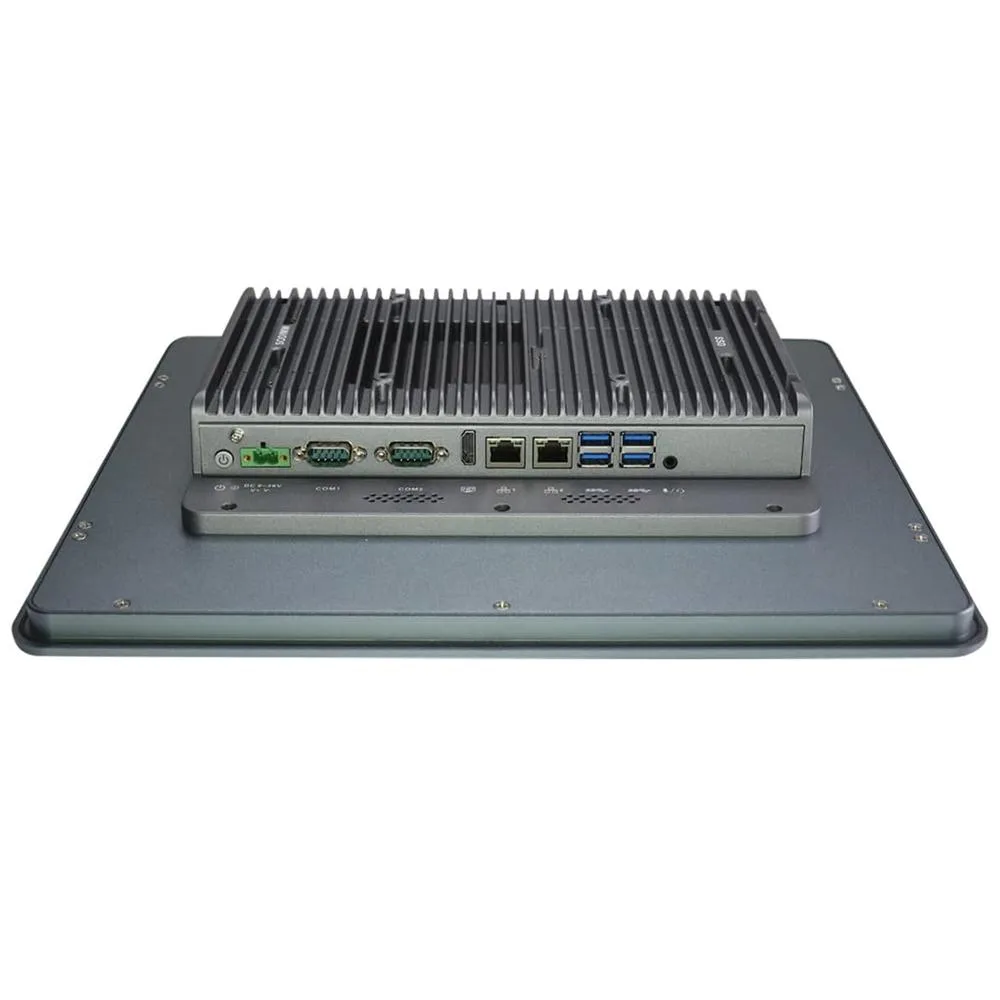

The Partaker A20 is a 15 inch all-in-one computer built around an Intel Core i3 10110U processor with 16GB DDR4 memory and a 512GB SATA SSD. Its IP65 rated front panel and resistive multi-touch screen suit factory automation, kiosk or machine interface roles where dust and water jets are present. The fanless aluminium chassis runs silently in noise sensitive environments.

Sustained load behaviour

The dual core CPU reaches 4.10 GHz burst frequency while the fanless design relies on the aluminium body to spread heat during continuous 7x24 hour operation. Two Intel gigabit LAN ports and four USB 3.0 connections maintain steady data throughput for industrial protocols. The 9-36V DC Phoenix connector accepts wide voltage input without interruption.

Thermals noise and power

Passive cooling eliminates moving parts so acoustic output is effectively zero in normal use. The system draws power from a 12V 5A adapter or direct 9-36V supply across a 0 to 50°C commercial temperature range. TPM 2.0 hardware security and an embedded mounting cutout of 355 x 279mm complete the industrial integration.

Najważniejsze cechy

  • IP65 front panel resists dust and water jets
  • Fanless aluminium chassis runs silently 24/7
  • 9–36 V wide-range input suits industrial power
  • Dual Intel LAN plus two COM ports for legacy gear
  • 16 GB DDR4 and 512 GB SSD ready to deploy

Specyfikacja

ModelA20-New-I3-10110U-16G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i3 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size15"
TouchscreenYes

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

How much heat and noise does the fanless aluminium chassis produce during continuous 24/7 operation?

The all-in-one uses a fanless aluminium alloy cooling system, so it runs silently and generates only passive heat within the rated 0–50 °C commercial or –20–60 °C industrial temperature range.

Which power source and mounting hardware must I already have to install this unit?

You need a 9–36 V DC supply connected via the 2-pin Phoenix connector or the included 12 V 5 A adapter, plus one of the embedded, wall, desktop or cantilever mounting kits.

Will the dual Intel 1000M LAN ports and legacy COM interfaces work with my existing factory network and serial devices?

Yes, the two Intel gigabit LAN ports handle standard Ethernet, while the two COM ports support RS232, RS422 or RS485 for older industrial equipment.
