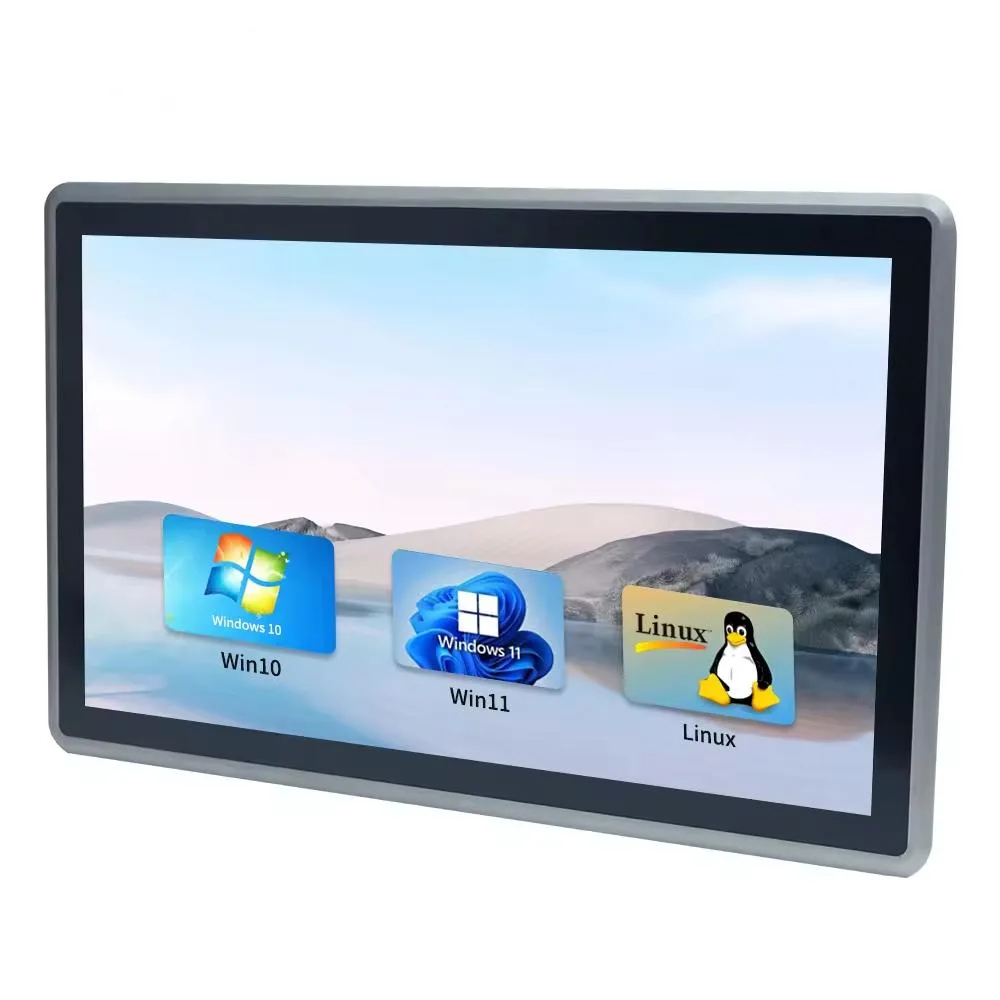

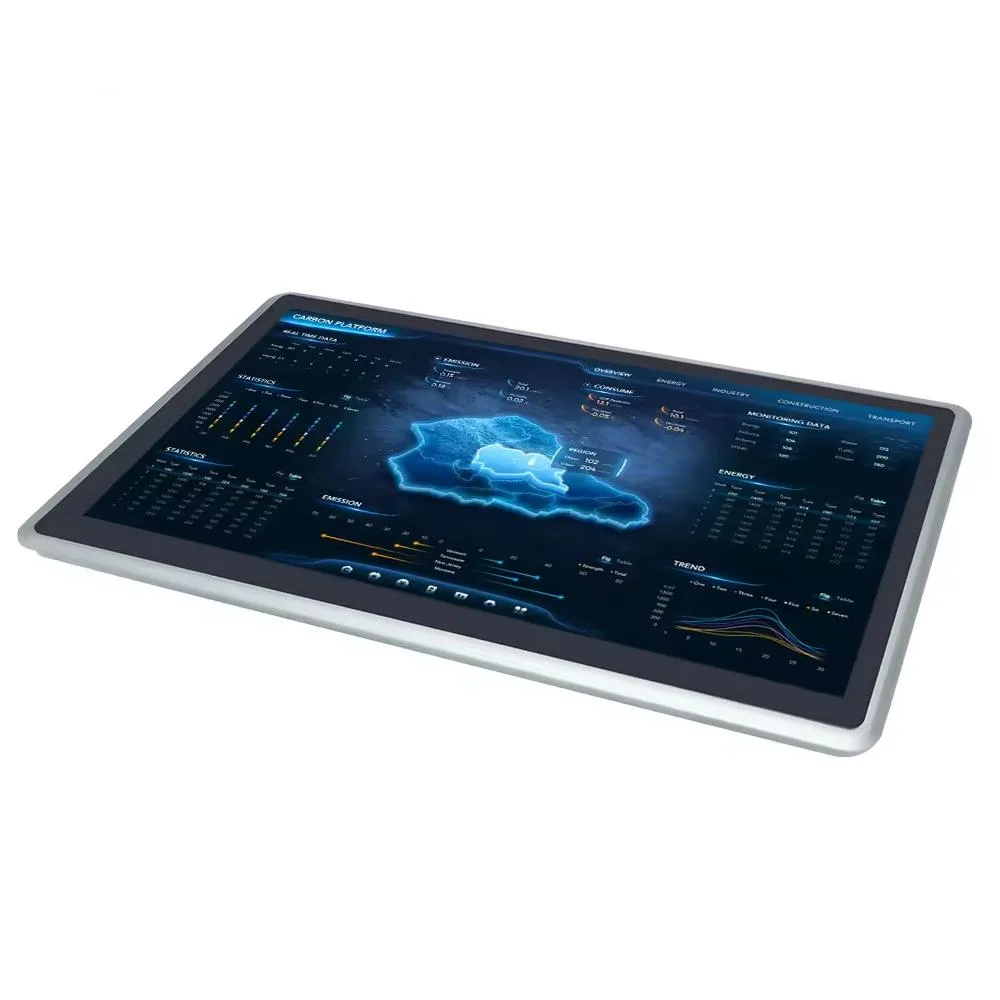

21.5 inch flat-front all-in-one with resistive touch screen and fanless aluminium chassis

partaker

partaker A22-New-I7-10810U-8G256G 21.5" IP65 resistive touch all-in-one PC

SKU CH-781W-DK5T4

21.5" IP65 resistive touch all-in-one with Core i7-10510U, 8 GB DDR4, 256 GB SSD, Windows 11 Pro, dual LAN and wide 9–36 V DC input

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity8GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i7 10th Gen

Memory Capacity 8GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water jets
  • Resistive touchscreen works with gloves or stylus
  • Fanless aluminium chassis runs silently 24/7
  • Wide 9–36 V DC input suits industrial power
  • Dual Intel LAN plus four USB 3.0 for connectivity

Industrial 21.5 inch IP65 Panel PC

This 21.5 inch all-in-one computer combines an Intel Core i7 10510U processor with 8GB DDR4 memory and a 256GB SATA SSD. The IP65-rated front panel and resistive touchscreen are built for continuous operation in factories, kiosks or outdoor enclosures. Windows 11 Pro is pre-installed for immediate deployment. Fanless aluminium cooling keeps the system silent and dust-tight.

Suits fixed-mount industrial stations.

The unit is designed for embedded, wall, desktop or cantilever mounting with a 9-36 V DC Phoenix connector and wide-temperature tolerance. Buyers who need a battery-powered mobile device or a consumer-grade glossy screen should look elsewhere. The resistive touch layer works with gloves but does not support multi-touch gestures.

Single SODIMM slot limits memory to 32GB DDR4

One DDR4-2666 SO-DIMM socket is populated with 8GB and accepts up to 32GB total. Storage expansion uses a second 2.5 inch SATA bay and an M.2 2280 SATA slot. The i7-10510U CPU and Intel UHD Graphics are soldered and cannot be upgraded.

Najważniejsze cechy

  • IP65 front panel resists dust and water jets
  • Resistive touchscreen works with gloves or stylus
  • Fanless aluminium chassis runs silently 24/7
  • Wide 9–36 V DC input suits industrial power
  • Dual Intel LAN plus four USB 3.0 for connectivity

Specyfikacja

ModelA22-New-I7-10810U-8G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size21.5"
TouchscreenYes

Inne wersje tego modelu

Jeszcze 5 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

What does the 9-36V DC Phoenix connector power, and what voltage range does it accept?

The 2-pin Phoenix connector accepts 9-36V DC wide-voltage input and powers the entire unit, supporting both positive and negative pole connections for industrial power sources.

What are the exact cut-out dimensions for embedded mounting of this 21.5" panel PC?

The embedded installation cut-out measures 528 x 320mm, matching the 540 x 332 x 60mm overall chassis with IP65 front-panel sealing.

How do you install an additional 2.5" SATA drive in the internal bay?

Open the rear chassis, mount the 2.5" SATA SSD or HDD into the dedicated bay, connect the SATA data and power cables, then reseal the enclosure to maintain IP65 integrity.
