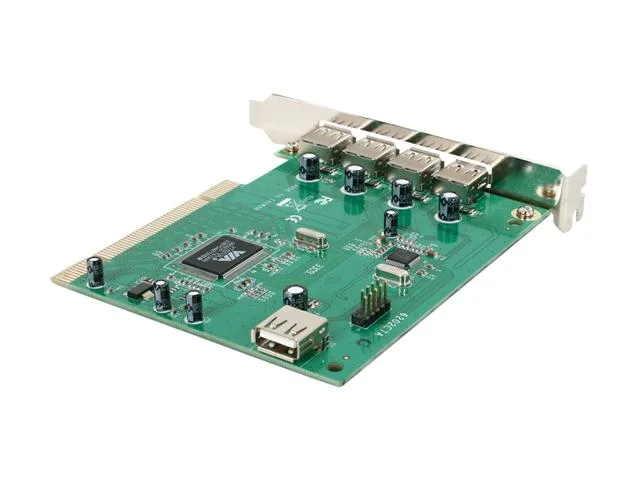

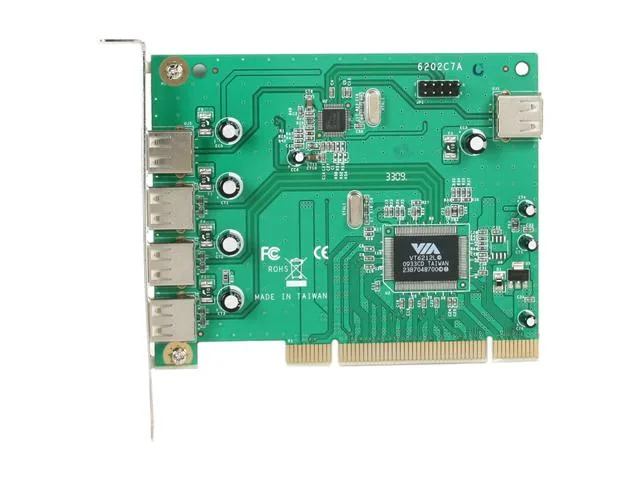

Green circuit board with four external and three internal USB ports on a silver PCI bracket

STARTECH

STARTECH PCIUSB7 7 Port PCI USB 2.0 Expansion Card

SKU CH-V3V7-T4ZM3 MPN PCIUSB7

Adds seven USB 2.0 ports (four external, three internal) to a PCI slot, supporting up to 480 Mbps

  • TypePCI to USB Card
  • External USB Ports4x USB Ports
  • Internal USB Ports1x USB Port
  • Internal Ports2 - 9 pin IDC (Motherboard Header) Male
  • StandardUSB 2.0
  • Data Transfer Rate480/12/1.5 Mbps

Model PCI 4x External + 1x Internal

  • PCI 4x External + 1x Internal
  • PCI Express (PCIe) 3x External + 1x Internal

Przekreślone wersje istnieją, ale nie są dostępne w tym miejscu.

  • Adds seven USB 2.0 ports to a desktop PC without replacing the motherboard
  • Four external USB A ports give immediate access for peripherals
  • One internal USB A port and two 9-pin headers expand front-panel or device connectivity
  • Supports 480/12/1.5 Mbps transfer rates for USB 2.0 and 1.1 devices
  • Works with Windows 98SE through Server 2008 R2 and Linux

Seven USB 2.0 ports on one PCI slot

The StarTech PCIUSB7 adds seven USB 2.0 ports to any desktop with a free PCI slot. Four external Type-A ports sit on the bracket, while one internal Type-A port and two 9-pin IDC headers connect front-panel or embedded devices. It supports Windows from 98 SE through Server 2008 R2 and Linux, delivering up to 480 Mbps per port.

Replaces a motherboard upgrade for legacy builds

This card solves the port shortage on older systems that lack enough native USB 2.0 headers or rear ports. It is worth installing when the board has no spare headers, when front-panel cables cannot reach, or when a repair must keep the original motherboard. The jump is not worth it on modern platforms that already provide ample USB 3.x or 2.0 connectivity.

Simple drop-in with low-profile bracket

Installation requires only an open PCI slot and a screwdriver; no auxiliary power cable is needed. Drivers load automatically on supported Windows versions and most Linux kernels. The only common issue is IRQ sharing on very old chipsets, which can be resolved by moving the card to a different slot or adjusting BIOS resource settings.

Najważniejsze cechy

  • Adds seven USB 2.0 ports to a desktop PC without replacing the motherboard
  • Four external USB A ports give immediate access for peripherals
  • One internal USB A port and two 9-pin headers expand front-panel or device connectivity
  • Supports 480/12/1.5 Mbps transfer rates for USB 2.0 and 1.1 devices
  • Works with Windows 98SE through Server 2008 R2 and Linux

Specyfikacja

BrandStarTech.com
ModelPCIUSB7
TypePCI to USB Card
External USB Ports4x USB Ports
Internal USB Ports1x USB Port
Internal Ports2 - 9 pin IDC (Motherboard Header) Male
StandardUSB 2.0
Data Transfer Rate480/12/1.5 Mbps
Operating Systems SupportedWindows 98SE/ ME/ 2000/ XP(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, and Linux
Weight0.3
Waga przesyłki0.14 kg
Wymiary opakowania173 × 140 × 33 mm

Pytania dotyczące tego produktu

Does the STARTECH PCIUSB7 fit a standard PCI slot?

Yes, it installs in a 32-bit or 64-bit PCI slot on the motherboard.

Which driver step is often missed during installation?

Install the Windows 98SE, ME, 2000, XP, Vista, 7 or Server 2008 R2 driver before plugging in devices; Linux kernels include support.

Will the internal 9-pin IDC headers need replacement later?

The two 9-pin IDC headers are soldered on the card and do not require replacement; only attached cables may wear.
