Green PCIe card with one external USB port and internal header, SATA power connector

STARTECH

STARTECH PEXUSB3S11 2 port PCI Express USB 3.0 expansion card

SKU CH-CKE3-ET3TP MPN PEXUSB3S11

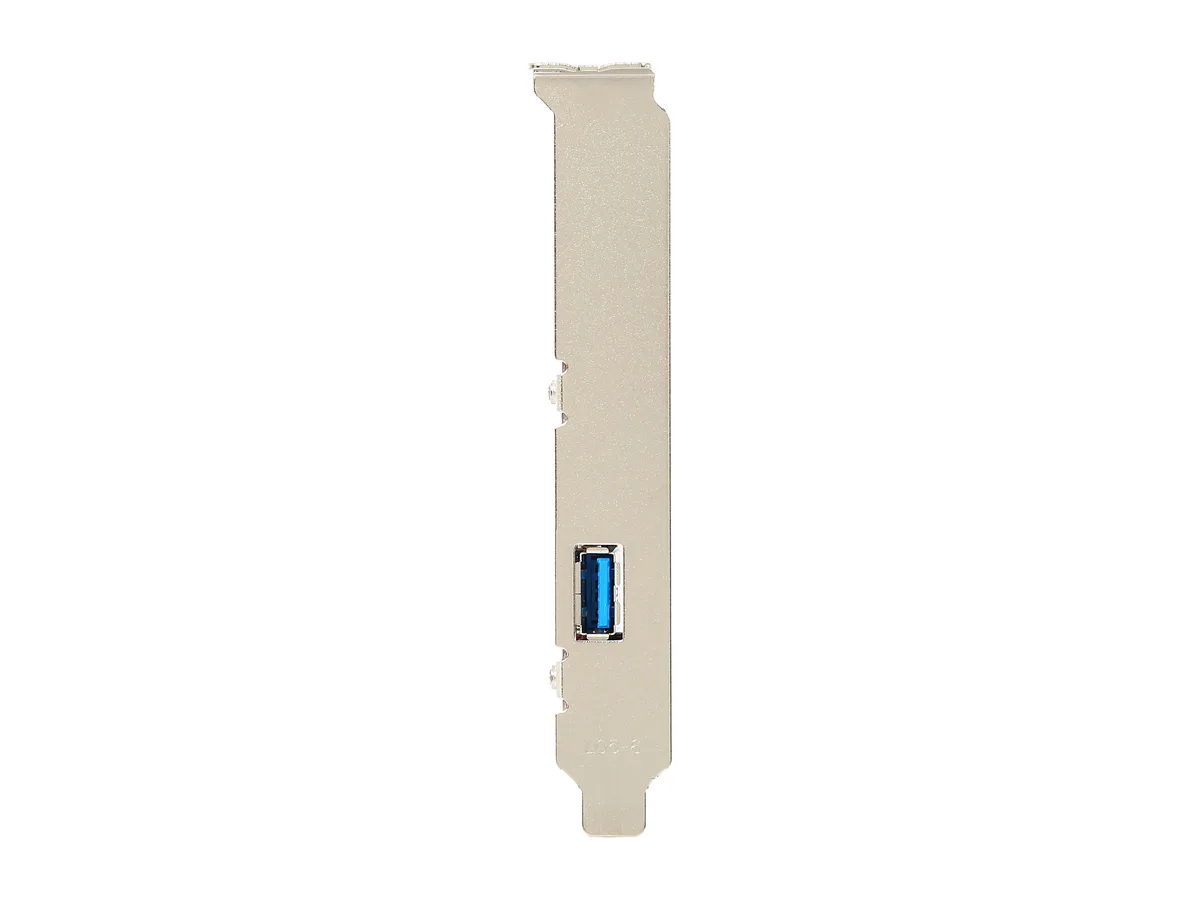

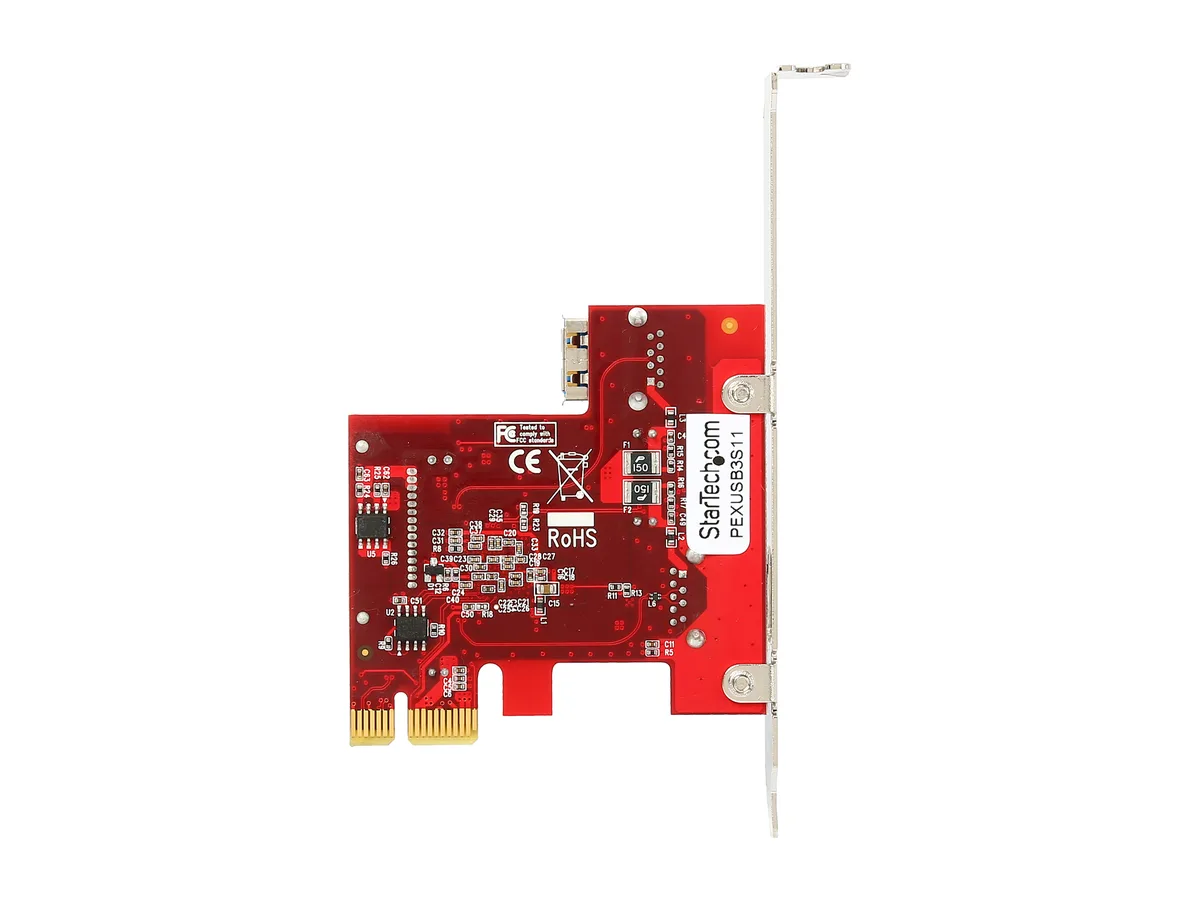

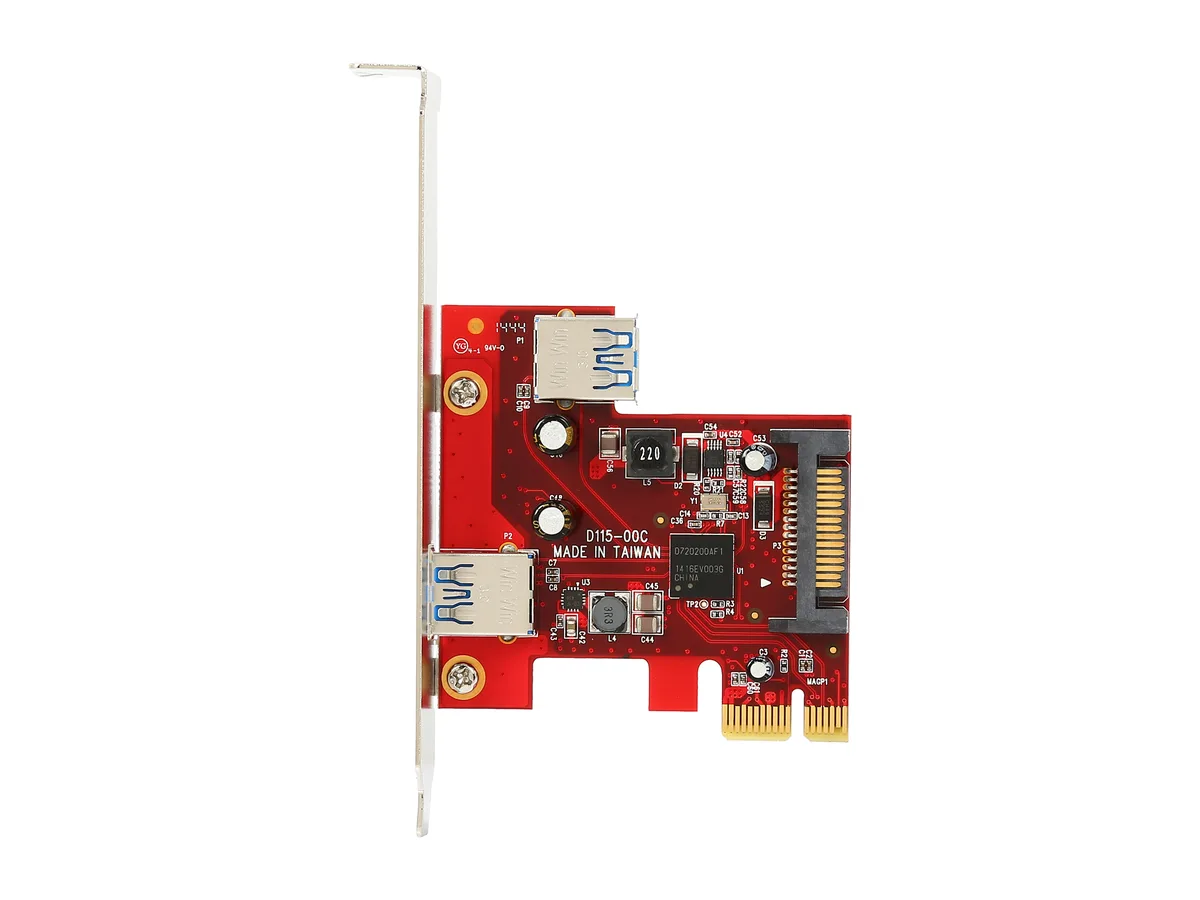

Adds one internal and one external USB 3.0 port at up to 5.0 Gbps via PCI Express with optional SATA power

  • TypePCI Express to USB Card
  • External USB Ports1x USB Port
  • Internal USB Ports1x USB Port
  • StandardUSB 3.0
  • Data Transfer RateUp to 5.0 Gbps
  • Operating Systems SupportedWindows XP(32/64bit)/Server 2003(32/64bit)/ Vista(32/64bit)/

Model SATA - NEC 1 Ext / 1 Int

Przekreślone wersje istnieją, ale nie są dostępne w tym miejscu.

  • Add one internal and one external SuperSpeed USB 3.0 port to your PC
  • Data transfer rates up to 5.0 Gbps with UASP support
  • Versatile connection for internal or external peripherals
  • Optional SATA power connector for high-powered USB devices
  • Compatible with Windows XP, Vista, 7 and Server 2003, 2008 R2 (32/64-bit)

Add internal and external USB 3.0

This STARTECH PEXUSB3S11 expansion card adds one internal and one external SuperSpeed USB 3.0 port to a desktop computer through a PCI Express slot. It supports data transfer rates up to 5.0 Gbps and includes a SATA power connector for high-powered devices. UASP support is provided for improved storage performance. The card is designed for versatile peripheral connection.

Suits builds needing mixed USB locations

Builders who need both an internal header for front-panel access and an external rear bracket port will find this dual-port layout convenient. Systems limited to PCI Express Gen 1.0 slots will see throughput capped at 2.5 Gbps instead of the full 5.0 Gbps. Users requiring more than two USB 3.0 ports should consider alternative solutions.

Throughput depends on PCIe generation

The single specification that decides suitability is the host slot generation: PCI Express Gen 2.0 delivers the advertised 5.0 Gbps, while Gen 1.0 limits the card to 2.5 Gbps maximum throughput.

Najważniejsze cechy

  • Add one internal and one external SuperSpeed USB 3.0 port to your PC
  • Data transfer rates up to 5.0 Gbps with UASP support
  • Versatile connection for internal or external peripherals
  • Optional SATA power connector for high-powered USB devices
  • Compatible with Windows XP, Vista, 7 and Server 2003, 2008 R2 (32/64-bit)

Specyfikacja

BrandStarTech.com
ModelPEXUSB3S11
TypePCI Express to USB Card
External USB Ports1x USB Port
Internal USB Ports1x USB Port
StandardUSB 3.0
Data Transfer RateUp to 5.0 Gbps
Operating Systems SupportedWindows XP(32/64bit)/Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2
SpecificationsNote: The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
Bus Type: PCI Express
Card Type: Standard Profile (LP bracket incl.)
Chipset ID: Renesas/NEC - µPD720200
Connector Type(s): PCI Express x1 Male
External Ports: USB 3.0 A (9 pin ; SuperSpeed) Female
Humidity: 0~85% RH

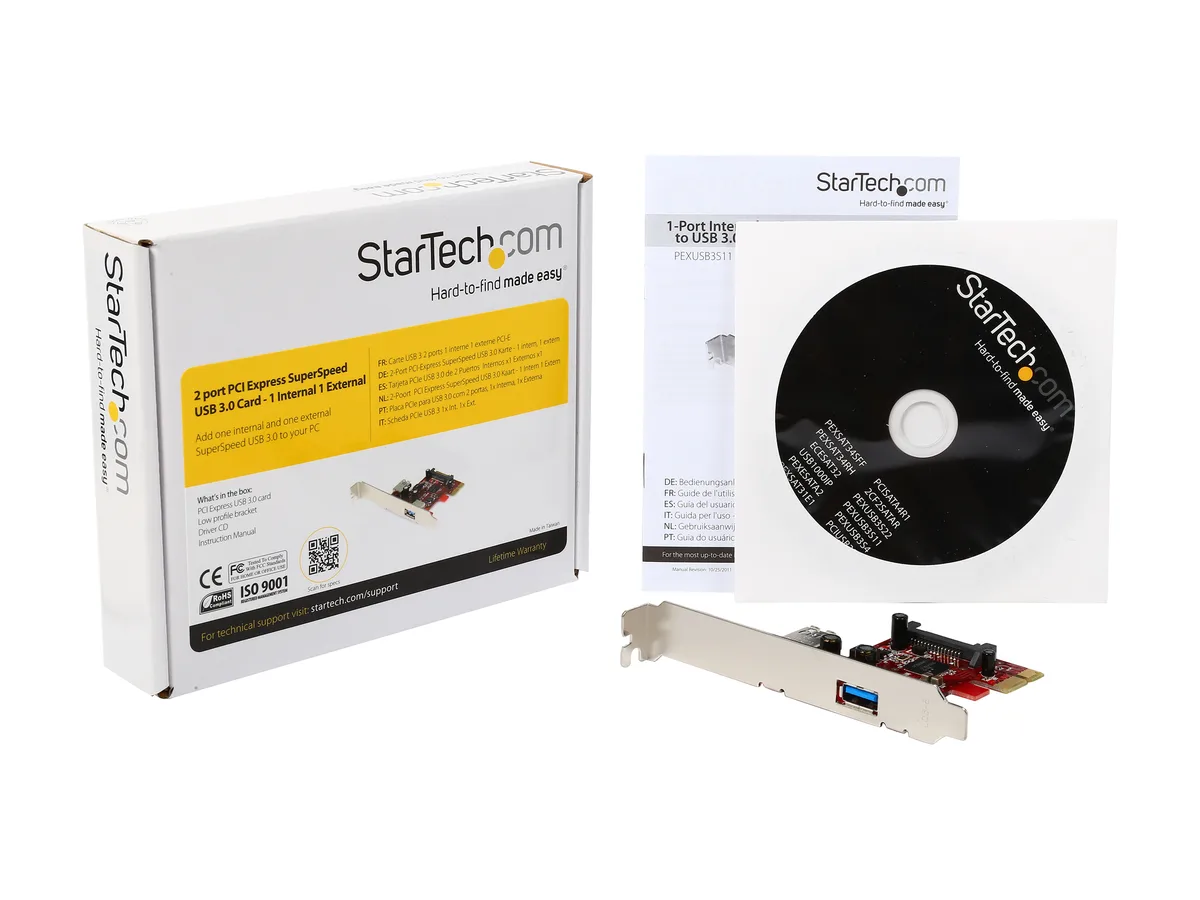

Included in Package: Driver CD
Instruction Manual
Low profile bracket
PCI Express USB 3.0 card
Interface: USB 3.0
Internal Ports: SA
FeaturesProvides both internal and external USB 3.0 connections
Features a SATA power connector to better match with newer systems equipped with more SATA than LP4 power connectors
Fully compliant with USB 3.0 revision 1.0 specifications and Intel xHCI rev0.96 specifications
PCI Express 2.0 Compliant
Provides up to 900mA per USB port
Supports USB transfer speeds of 5Gbps (Super Speed), 480Mbps (High Speed), 12Mbps (Full Speed), and 1.5Mbps (Low Speed)
Backward compatible with previous USB standards
Supports up to 127 USB devices connected to a single interface. (Requires additional USB hubs
Weight0.25
Waga przesyłki0.14 kg
Wymiary opakowania173 × 140 × 33 mm

Inne wersje tego modelu

Jeszcze 2 w tej samej serii

Ta sama rodzina, inna pamięć, inne chłodzenie lub taktowanie — proszę porównać przed decyzją.

Pytania dotyczące tego produktu

Does the card need a SATA power connector to run high-powered USB devices?

Yes, the board includes a SATA power connector that can supply extra current to the internal or external USB 3.0 ports when required.

What is the first driver step after inserting the card into a PCI Express slot?

Install the driver for Windows XP, Vista, 7 or Server 2003/2008 R2 before connecting any USB 3.0 devices, otherwise the ports will not enumerate at 5.0 Gbps.

Will the internal USB 3.0 header still work if I never attach the optional SATA power lead?

The internal port functions for low-power devices without the SATA lead, but high-power peripherals need the extra supply to operate correctly.
