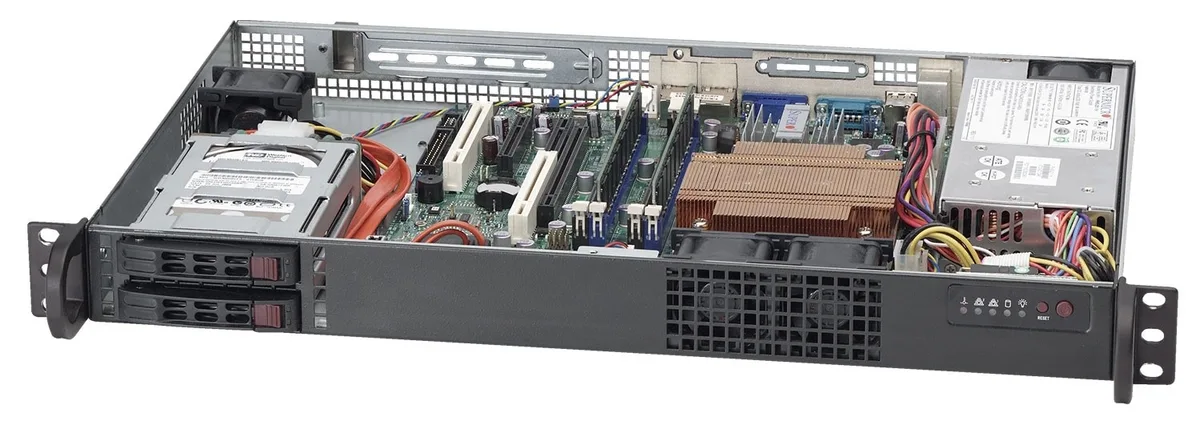

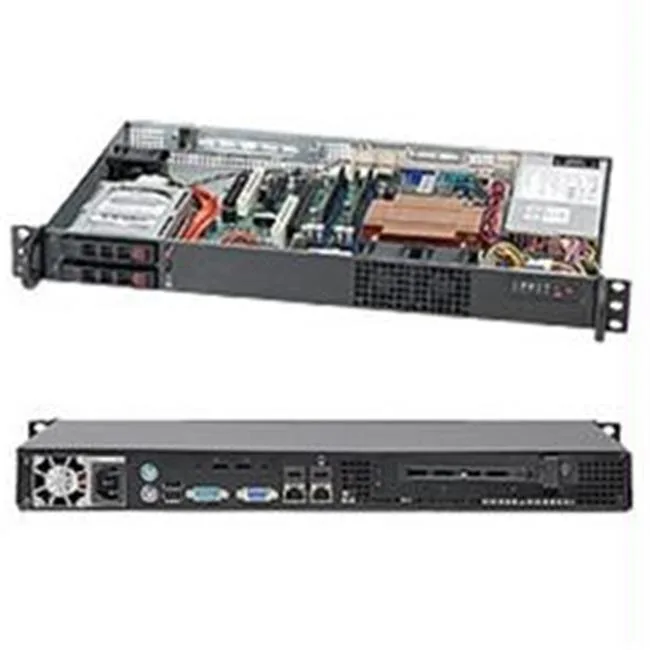

Black 1U rackmount server chassis with two front 2.5" hot-swap drive bays

Supermicro

Supermicro CSE-510T-203B 1U server chassis 200W 2×2.5" hot-swap SAS/SATA

SKU CH-WCM2-8VYZK MPN CSE-510T-203B

A compact 1U rack-mount chassis with two hot-swap 2.5" SAS/SATA drive bays, a 200 W Gold-certified PSU and quiet 30 dB operation

  • Chassis TypeRackmount
  • Form FactorRack-mountable
  • ColorBlack
  • 1U rack depth of 11.3" fits tight cabinets
  • 200 W Gold-certified PSU cuts power draw
  • 30 dB noise level suits office placement
  • Two 2.5" hot-swap SAS/SATA bays allow live drive changes
  • Single low-profile PCI slot adds targeted I/O

Compact 1U server chassis

This 1U rackmount chassis measures 11.3 inches deep and supports Micro ATX motherboards up to 9.6 by 9.6 inches. It includes a 200 W Gold-certified power supply and two hot-swap bays for SAS or SATA drives. Three 8500 RPM fans keep internal temperatures low while running at a quiet 30 dB.

Suited for single-socket Micro ATX builds needing

The single low-profile expansion slot limits add-in cards to half-height models only. The backplane accepts SAS or enterprise SATA hard drives, so consumer SATA SSDs may not be fully supported. Buyers needing more than two drive bays or full-height cards should consider a larger chassis.

200 W Gold power supply limits total system power

The included 200 watt high-efficiency unit sets the practical ceiling for CPU, memory, drives and any add-in card. Verify that your chosen components stay within this budget before purchase. No higher-wattage option is listed for this model.

Najważniejsze cechy

  • 1U rack depth of 11.3" fits tight cabinets
  • 200 W Gold-certified PSU cuts power draw
  • 30 dB noise level suits office placement
  • Two 2.5" hot-swap SAS/SATA bays allow live drive changes
  • Single low-profile PCI slot adds targeted I/O

Specyfikacja

BrandSuperMicro
SeriesSuperChassis
ModelCSE-510T-203B
Chassis TypeRackmount
Form FactorRack-mountable
ColorBlack
Waga przesyłki8.17 kg
Wymiary opakowania508 × 508 × 508 mm

Pytania dotyczące tego produktu

Does the CSE-510T-203B include rails or a riser card, and what must I source separately?

The chassis ships with the 200 W Gold-level power supply, two 2.5" hot-swap SAS/SATA bays, three 8500 RPM fans and a low-profile PCI bracket. Rails and a riser card are not included; you must buy them separately.

The spec shows only one low-profile slot — will a full-height card fit with the required riser?

Yes. The single low-profile expansion slot accepts a riser card; you then mount the full-height add-on card using its full-height I/O bracket on that riser.

In a 1 U rack the spec lists 30 dB noise — how loud is that at my desk?

At 30 dB the fans are roughly as quiet as a whisper in a library, so the unit is suitable for office or home-lab use without intrusive fan noise.
