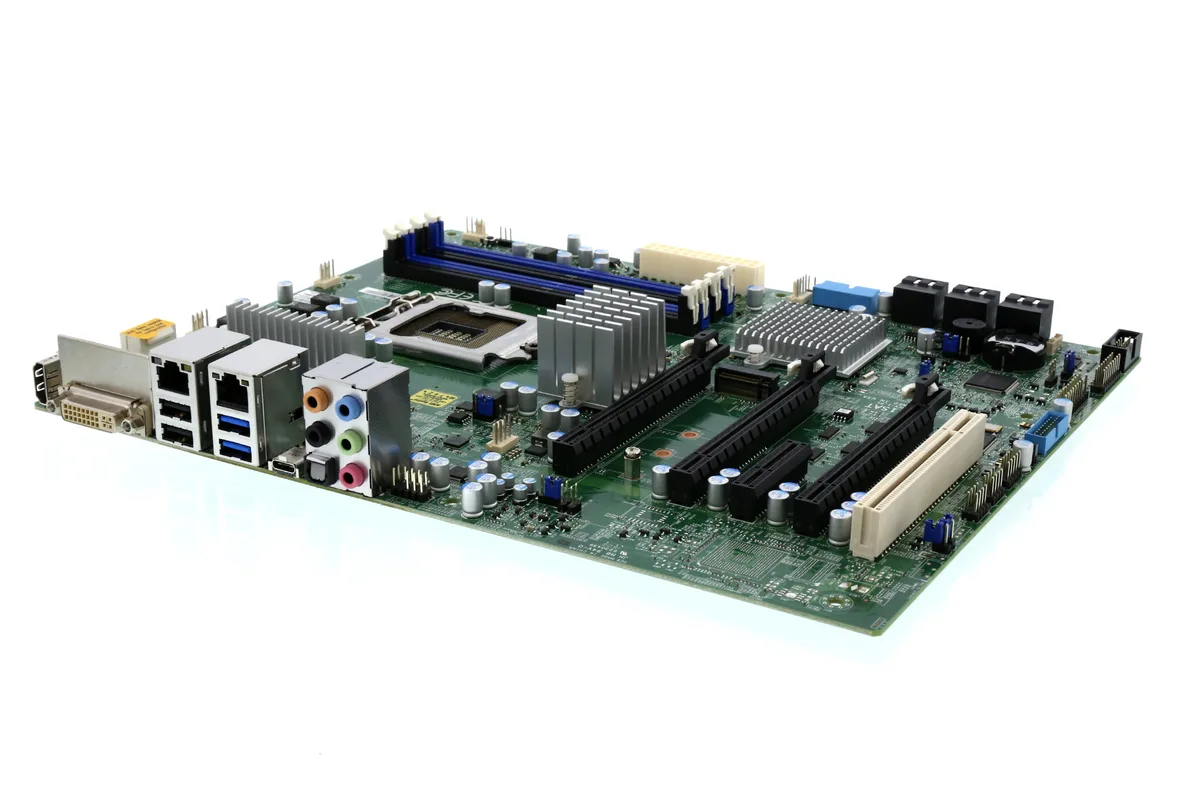

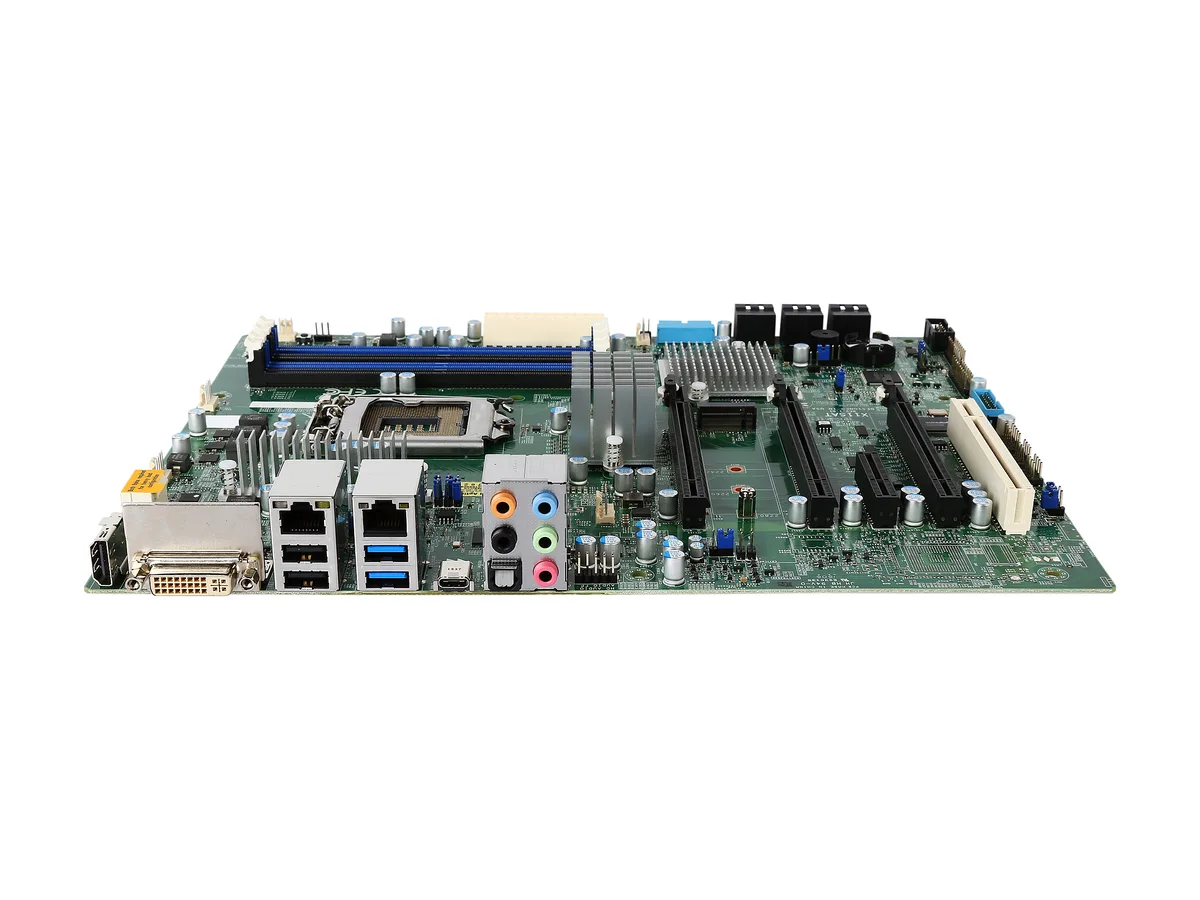

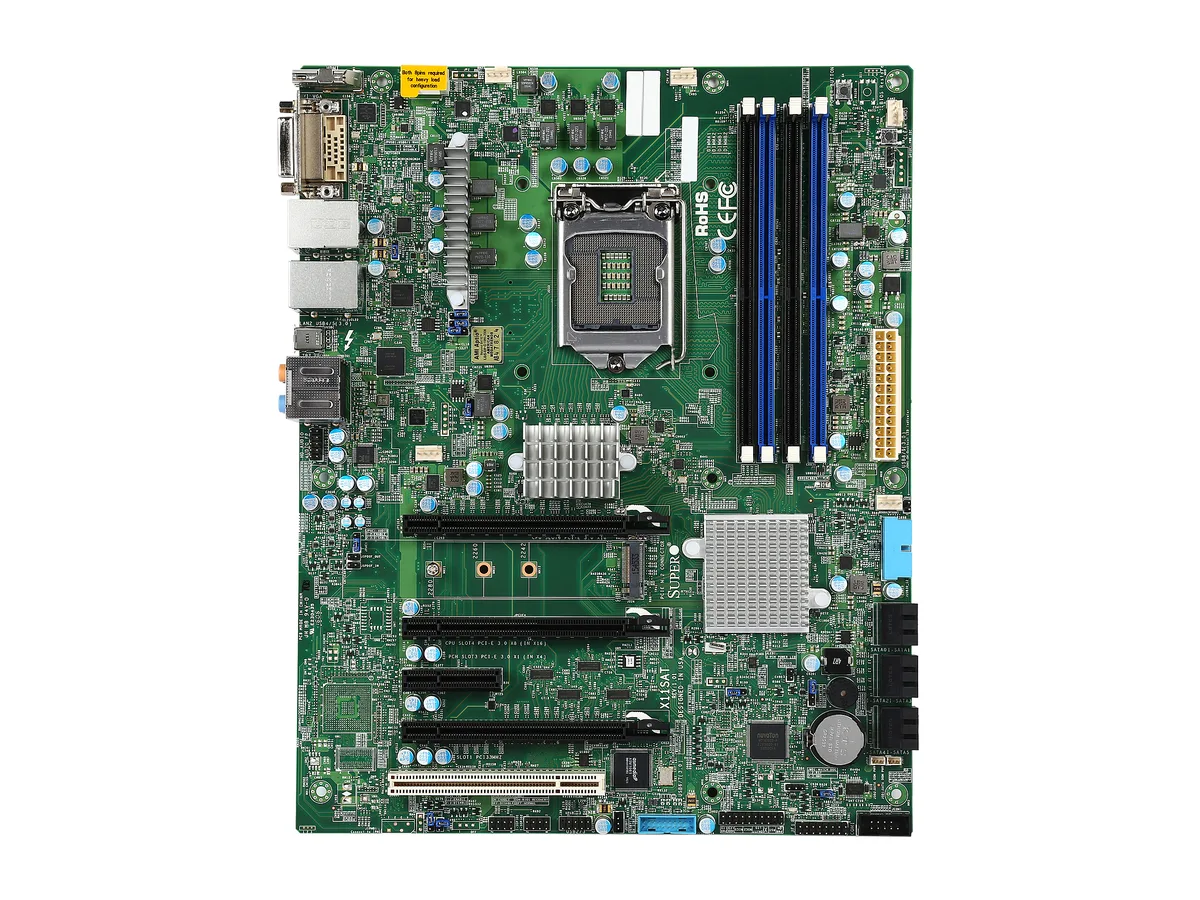

Green ATX server motherboard with silver LGA 1151 socket, four black DDR4 slots, three long PCIe x16 slots, two RJ45 ports

Supermicro

Supermicro MBD-X11SAT-O LGA 1151 ATX server motherboard

SKU CH-9K63-0165X MPN MBD-X11SAT-O

ATX server motherboard with LGA 1151 socket, Intel C236 chipset, four DDR4 slots up to 64 GB ECC, three PCIe 3.0 x16 slots, six SATA 6 Gb/s ports and dual Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeIntel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5
  • North BridgeIntel C236
  • Number of DDR4 Slots4 x 288-pin
  • DDR4 Standard2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM
  • Maximum Memory Supported64GB
  • Supports Xeon E3-1200 v5 and 6th Gen Core CPUs via LGA 1151 socket
  • Intel C236 chipset delivers 6 SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Four DDR4 slots accept up to 64GB ECC UDIMM at 2133MHz
  • Dual Intel Gigabit LAN controllers provide two RJ45 ports for network redundancy
  • Three PCI-E 3.0 x16 slots plus PCI-E x1 and legacy PCI expand I/O capacity

Server ATX Motherboard LGA 1151

The Supermicro MBD-X11SAT-O is an ATX server motherboard built around the Intel C236 chipset and an LGA 1151 socket. It accepts Intel Xeon E3-1200 v5 or 6th Gen Core i7, i5 and i3 processors with a TDP up to 95W. Four 288-pin DDR4 slots support up to 64GB of ECC or non-ECC UDIMM at 2133, 1866 or 1600 MHz.

Suits ECC builds with dual LAN.

This board fits builders who need ECC memory, dual Intel Gigabit LAN and six SATA 6.0Gb/s ports with RAID 0, 1, 5, 10 in an ATX form factor. It is not for systems that require more than 64GB of RAM, more than two network ports or processors above 95W TDP. The single socket design also rules out multi-socket configurations.

Deciding spec: 64GB DDR4 ECC ceiling

The 64GB maximum across four DDR4 slots is the key limit. If the workload demands more memory capacity or registered DIMMs, this motherboard cannot meet the requirement. For applications that stay within 64GB of unbuffered ECC or non-ECC DDR4, the board provides the necessary slots, chipset and connectivity.

Najważniejsze cechy

  • Supports Xeon E3-1200 v5 and 6th Gen Core CPUs via LGA 1151 socket
  • Intel C236 chipset delivers 6 SATA 6.0Gb/s ports with RAID 0/1/5/10
  • Four DDR4 slots accept up to 64GB ECC UDIMM at 2133MHz
  • Dual Intel Gigabit LAN controllers provide two RJ45 ports for network redundancy
  • Three PCI-E 3.0 x16 slots plus PCI-E x1 and legacy PCI expand I/O capacity

Specyfikacja

BrandSUPERMICRO
ModelMBD-X11SAT-O
CPU Socket TypeLGA 1151
CPU TypeIntel Xeon processor E3-1200 v5, Intel 6th Gen Core i7 / i5 / i3 series processors
CPU TDP up to 95W
North BridgeIntel C236
Number of DDR4 Slots4 x 288-pin
DDR4 Standard2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
Maximum Memory Supported64GB
ECC SupportedYes
Other Slots3x PCI-E 3.0 x16 slots (run at 16 / NA / 16 or 16 / 8 / 8)
1x PCI-E 3.0 x1 (in x4) slot
1x 5V PCI 32bit slot
SATA6 x SATA 6.0Gb/s
SATA RAID0/1/5/10
LAN ChipsetIntel I210-AT + Intel PHY i219LM Ethernet Controllers
LAN Speed10/100/1000Mbps
RJ452 x RJ45 Gigabit Ethernet LAN ports
USB 1.1/2.02 x USB 2.0
USB 3.02 x USB 3.0
FeaturesSingle socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v5, Intel 6th Gen. Core i7 / i5 / i3 series
Intel C236 chipset
Up to 64GB Unbuffered ECC / non-ECC, UDIMM DDR4 2133MHz; 4x DIMM slots
3x PCI-E 3.0 x16 (run at 16 / NA / 16 or 16 / 8 / 8), 1x PCI-E 3.0 x1 (in x4), and 1x 5V PCI 32-bit slots
Single GbE LAN with Intel i210-AT, Single GbE LAN with Intel i219LM
6 x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
I/O: 1x COM, TPM 1.2 header
2 x SuperDOM with built-in power
6 x USB 3.0 (2 rear + 4 via header), 6 x USB 2.0 (2 rear + 4 via headers), 1 x USB 3.1 (10 Gbps) Type C ports
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Waga przesyłki1.18 kg
Wymiary opakowania338 × 264 × 71 mm

Pytania dotyczące tego produktu

How much DDR4 ECC memory can this board actually run in a working server?

The board has four 288-pin DDR4 slots and supports up to 64 GB of unbuffered ECC or non-ECC UDIMM at 2133/1866/1600 MHz.

What speed and lane layout do the PCIe 3.0 x16 slots deliver when all three are populated?

With three cards installed the slots run at x16, x8, x8; the second physical x16 slot is wired x0 and stays unused.

Will a standard ATX chassis with 12 by 9.6 inch mounting holes accept this motherboard?

Yes, the board is ATX form factor measuring 12.0 by 9.6 inches (30.5 by 24.4 cm) and uses standard ATX mounting points.
