Small green development board with CI1302 chip, Type-C and pin headers, compact rectangular shape

Yahboom AI Voice Interaction Module development board 110 commands 99% accuracy CI1302

SKU CH-5PSQ-Q3SD7

Voice interaction board with 110 editable commands, 99% recognition accuracy via CI1302 chip, and IIC, serial and Type-C links for Jetson, Raspberry Pi, ESP32 and STM32

  • 110 preset voice commands editable online for custom control
  • 99% recognition accuracy via CI1302 neural network chip with noise reduction
  • Compatible with Jetson, Raspberry Pi, ESP32, STM32 and ROS1/ROS2 SDKs
  • Plug-and-play IIC, serial and Type-C interfaces with included connection cables
  • Programmable wake-up words and multi-language support for global projects

AI Voice Interaction Module

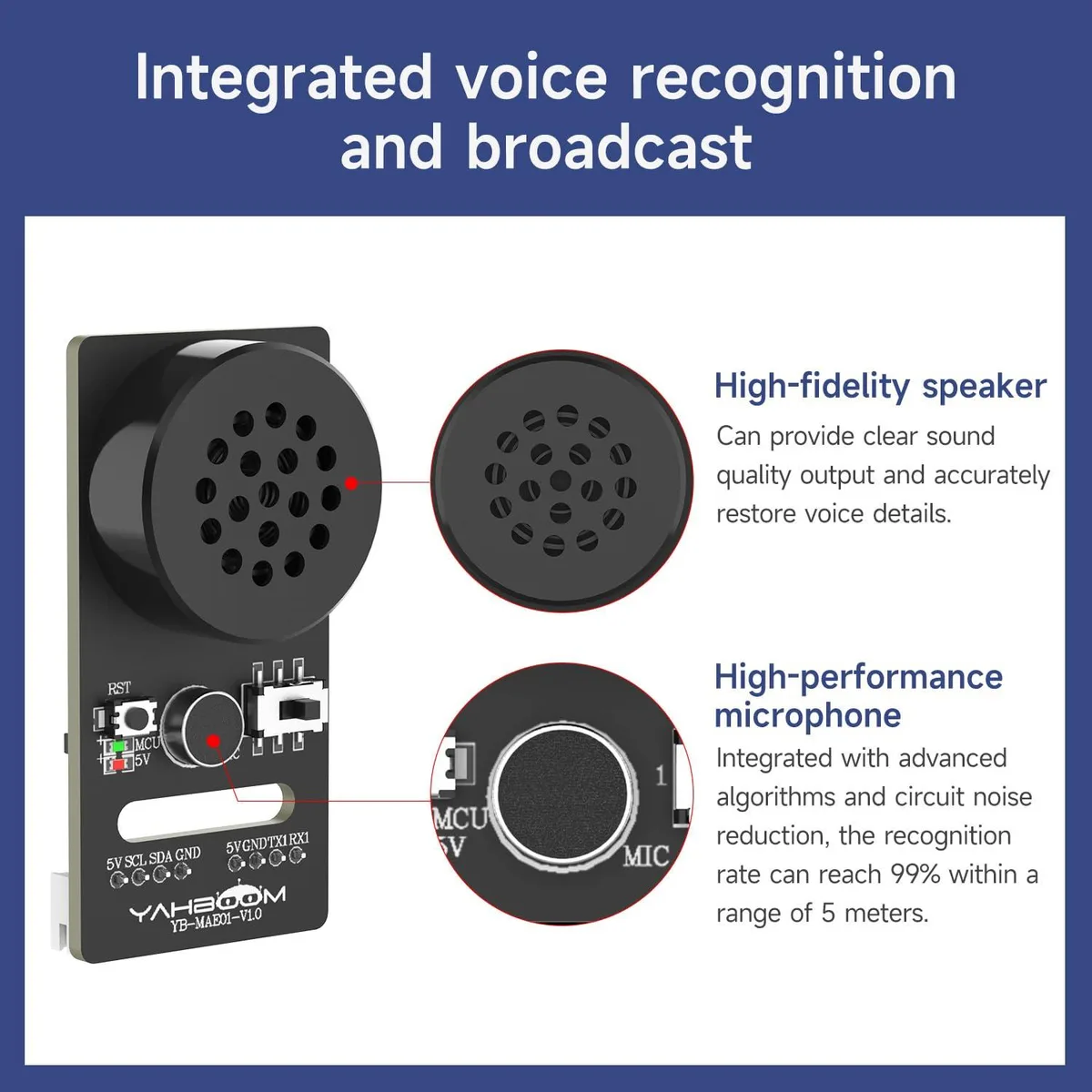

The Yahboom AI Voice Interaction Module is a development board built around the CI1302 chip with an integrated neural network processor. It delivers measured 99% recognition accuracy while suppressing environmental noise and echo. The board supports over 110 preset voice commands that can be customised online and flashed via a Windows tool.

Makers adding voice control to robots

This module suits developers who want plug-and-play voice recognition for STM32, ESP32, Arduino, Raspberry Pi or Jetson platforms with ROS1 and ROS2 SDK support. Buyers who need a completely offline workflow without account registration for wake-word editing should look elsewhere. The firmware generator runs on Windows only.

Integrates with ROS robots and SBCs

Onboard IIC, serial and Type-C interfaces plus supplied PH2.0 and DuPont cables allow quick connection to single-chip controllers or embedded hosts. The slot mounting design gives flexible installation inside robot chassis such as the ROSMASTER series. A registered account is required to access the web configuration portal.

Najważniejsze cechy

  • 110 preset voice commands editable online for custom control
  • 99% recognition accuracy via CI1302 neural network chip with noise reduction
  • Compatible with Jetson, Raspberry Pi, ESP32, STM32 and ROS1/ROS2 SDKs
  • Plug-and-play IIC, serial and Type-C interfaces with included connection cables
  • Programmable wake-up words and multi-language support for global projects

Specyfikacja

BrandYahboom
ModelAI Voice Interaction Module
Part NumberAI Voice Interaction Module

Pytania dotyczące tego produktu

What host board and physical connection do I need to start using the CI1302 voice module?

Connect the module to a Raspberry Pi, Jetson, ESP32 or STM32 board using the supplied Type‑C, PH2.0 or DuPont cables; the board provides the power and the IIC or serial link the module requires.

Will the module work with an older Raspberry Pi 4 running ROS 1 Melodic?

Yes — the supplied ROS 1/ROS 2 SDK supports Melodic on Ubuntu 22.04 or Raspberry Pi OS, so the module can run alongside a Pi 4 without firmware changes.

How can I confirm the module recognises my custom wake‑up word after flashing?

Speak the word; the on‑board LED flashes and the serial output prints the recognised command ID, showing the 99 % accuracy engine has triggered.
