Black 4U rackmount server chassis with aluminium front bezel, seven 5.25 inch drive bays, one 3.5 inch bay, front USB ports

iStarUSA Inc.

iStarUSA Inc. D-400L-7 4U rackmount server chassis

SKU CH-ZZNP-YNHC7 MPN D-400L-7

A 4U rackmount server chassis with seven 5.25-inch external drive bays, one internal 3.5-inch bay, seven expansion slots, dual front USB 2.0 ports, and four cooling fans

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility12 x 13 (EATX, ATX, microATX)
  • External 5.25" Drive Bays7

Model D-400L-7

  • Seven external 5.25" bays for high-density storage
  • Three 120 mm fans plus one 80 mm fan deliver strong airflow
  • Supports EATX, ATX and microATX boards up to 12 x 13 inches
  • Lockable aluminium front bezel secures the chassis
  • Front USB 2.0 ports and status LEDs give quick access

4U rackmount server chassis

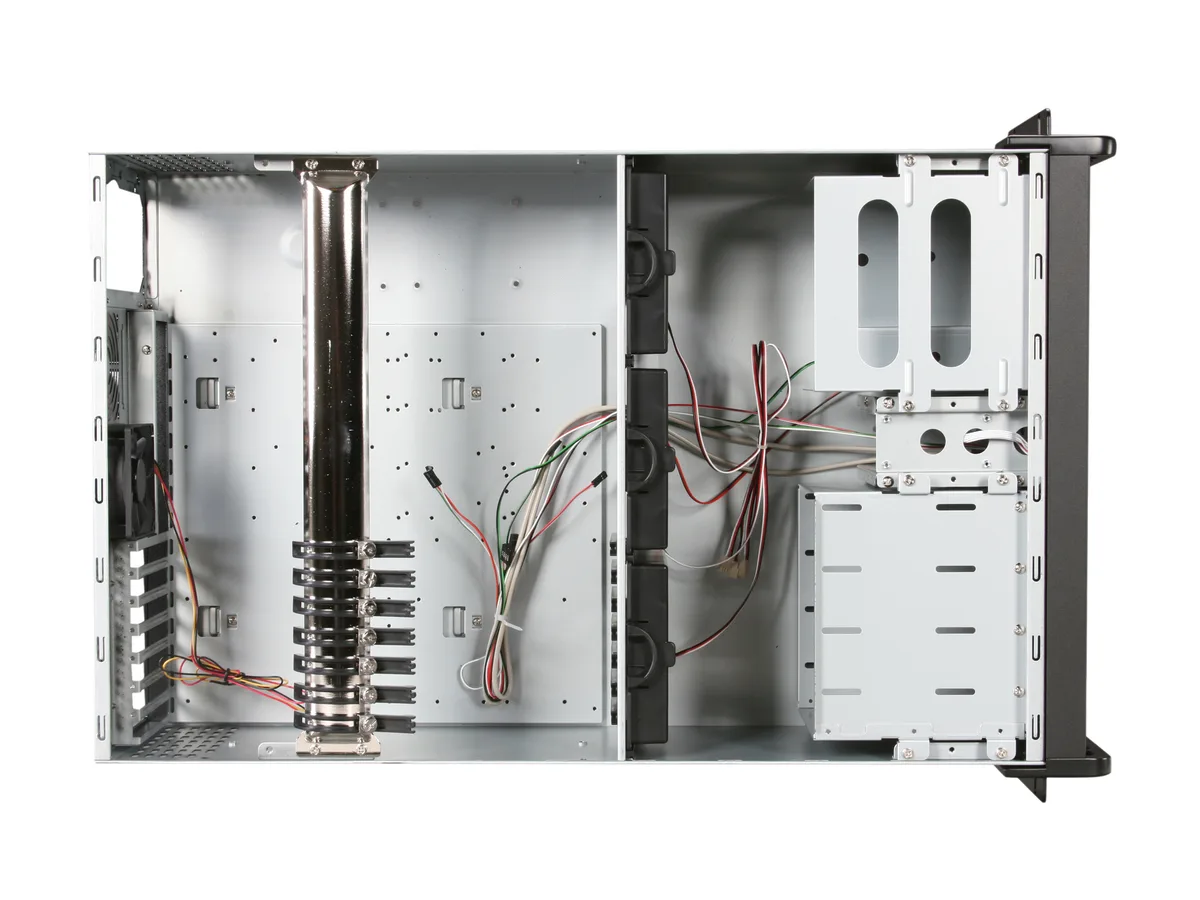

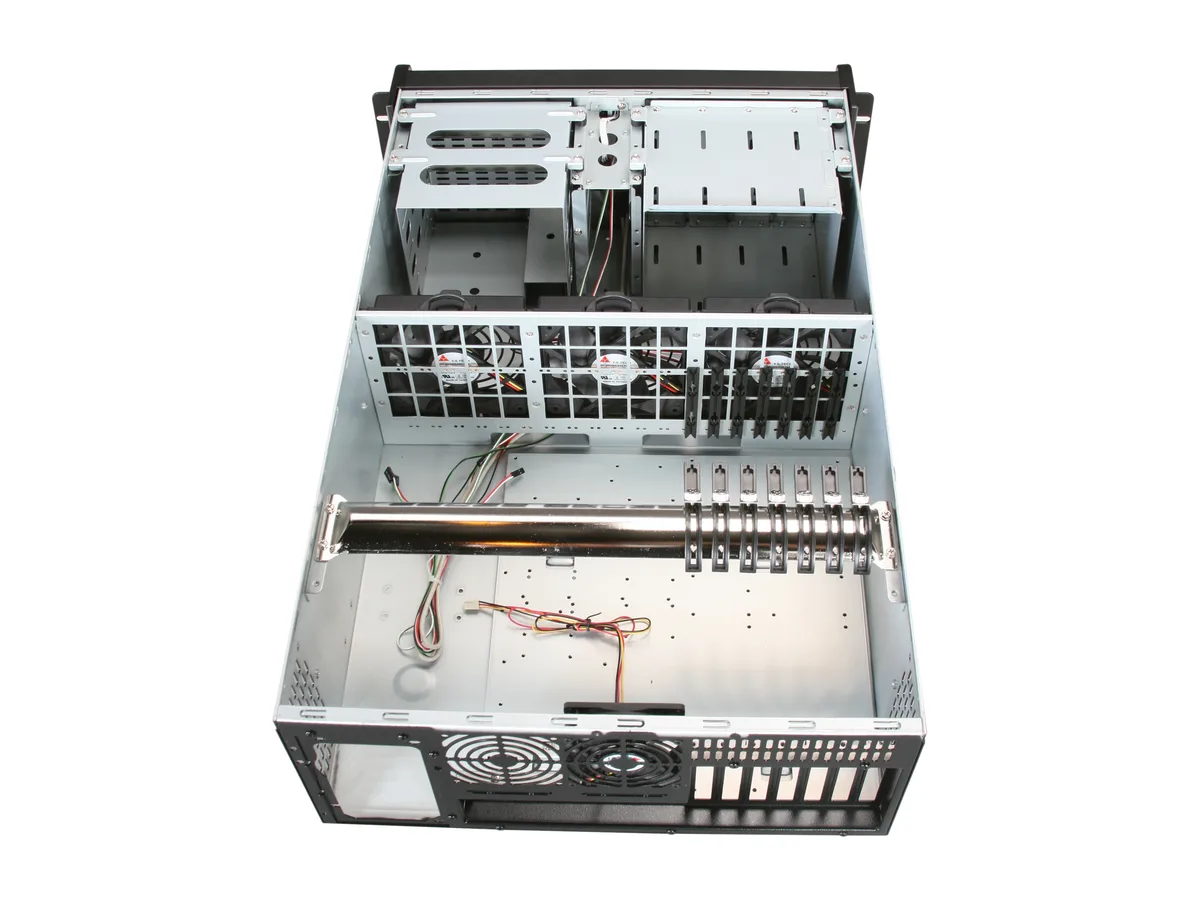

The iStarUSA D-400L-7 is a 4U rackmount server chassis built from aluminum and steel with a black aluminum front bezel. It accepts EATX, ATX and microATX motherboards up to 12 x 13 inches and provides seven full-length expansion slots for add-on cards.

Tool-free drive bays and front access

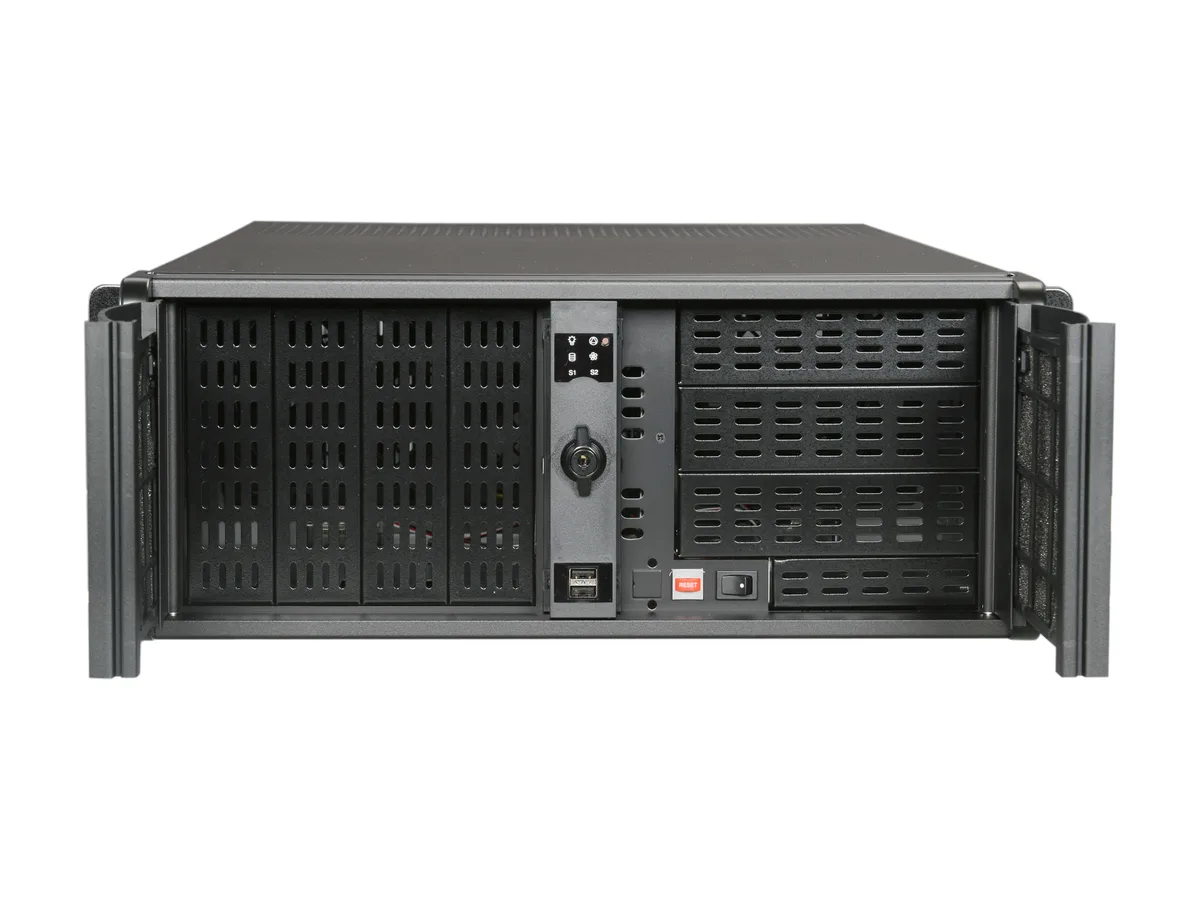

Seven external 5.25-inch bays and one external 3.5-inch bay sit behind a lockable front bezel, while a single internal 3.5-inch bay is also available. Cooling uses three 120mm fans and one 80mm fan with a removable air filter. Front-panel USB 2.0 ports, power and reset switches, and power, HDD, temperature and fan indicators are included; temperature and fan monitoring require the optional TC-ISF08 sensor board.

Suited for high-density storage builds

This chassis fits builders needing up to twelve 3.5-inch or thirty-six 2.5-inch drives when paired with compatible backplanes, plus redundant PS2 or mini-redundant power supplies. It is not for users who need a smaller form factor, integrated hot-swap controllers, or tool-less card retention without extra hardware.

Prednosti

  • Seven external 5.25" bays for high-density storage
  • Three 120 mm fans plus one 80 mm fan deliver strong airflow
  • Supports EATX, ATX and microATX boards up to 12 x 13 inches
  • Lockable aluminium front bezel secures the chassis
  • Front USB 2.0 ports and status LEDs give quick access

Špecifikácie

BrandiStarUSA
ModelD-400L-7
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility12 x 13 (EATX, ATX, microATX)
External 5.25" Drive Bays7
External 3.5" Drive Bays1
Internal 3.5" Drive Bays1
Expansion Slots7
Front Ports2 x USB 2.0
80mm Fans1
120mm Fans3
FeaturesColor of Front Bezel: Black
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08 )
Switches: Power, Reset
Security: Front Bezel Key Lock
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Removable Air Filter
Dimensions19.00" x 7.00" x 27.90"
Prepravná hmotnosť19.69 kg
Rozmery balenia866 × 572 × 318 mm

Ďalšie verzie tohto modelu

Ďalších 2 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

How can I verify the chassis is operating correctly after installation?

Check the front-panel LEDs for power and HDD activity; temperature and fan indicators will also light once the optional TC-ISF08 sensor board is installed.

What ships with the D-400L-7 and what must I purchase separately?

The chassis includes seven 5.25″ bays, one external and one internal 3.5″ bay, three 120 mm fans, one 80 mm fan, a removable air filter, front USB 2.0 ports, and a lockable aluminium bezel; power supply, motherboard, drives, and the TC-ISF08 sensor board are not included.

Which drive-bay configuration suits a high-density storage build?

With seven 5.25″ external bays plus one internal 3.5″ bay, the chassis supports up to twelve 3.5″ or thirty-six 2.5″ drives when paired with compatible hot-swap backplanes.
