Black 4U rackmount server chassis with patented aluminium front panel, locks, two front USB 2.0 ports

iStarUSA Inc.

iStarUSA Inc. D-400LND-7 4U Rackmount Server Chassis

SKU CH-1R26-563PV MPN D-400LND-7

A 4U rackmount server chassis supporting EATX, ATX and microATX boards with seven expansion slots, one external 3.5-inch bay, front USB 2.0 ports, three 120mm fans.

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • Motherboard Compatibility12 x 13 (EATX, ATX, microATX)
  • External 3.5" Drive Bays1

Model D-400LND-7

  • 4U rackmount height fits standard server cabinets
  • Patented aluminium front panel with lock secures internal components
  • Supports EATX, ATX and microATX boards up to 12 x 13 inches
  • Three 120 mm and one 80 mm fans provide active airflow
  • Front USB 2.0 ports allow quick peripheral access

4U rackmount server chassis

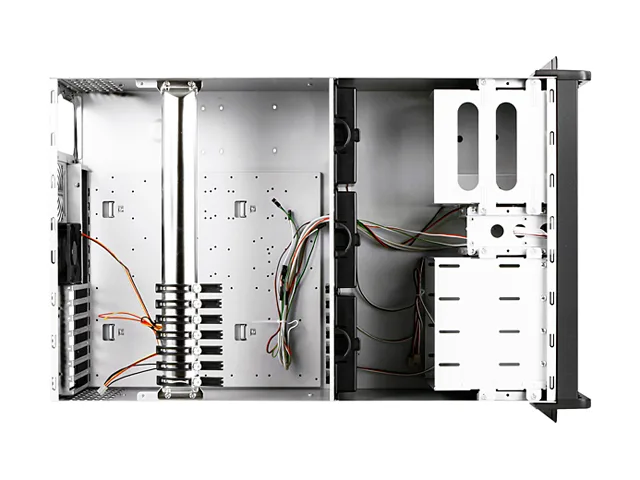

The iStarUSA D-400LND-7 is a 4U rackmount server chassis built for EATX, ATX and microATX boards up to 12 x 13 inches. Its aluminium and steel construction houses seven expansion slots and a single external 3.5 inch drive bay. Two front USB 2.0 ports give quick peripheral access.

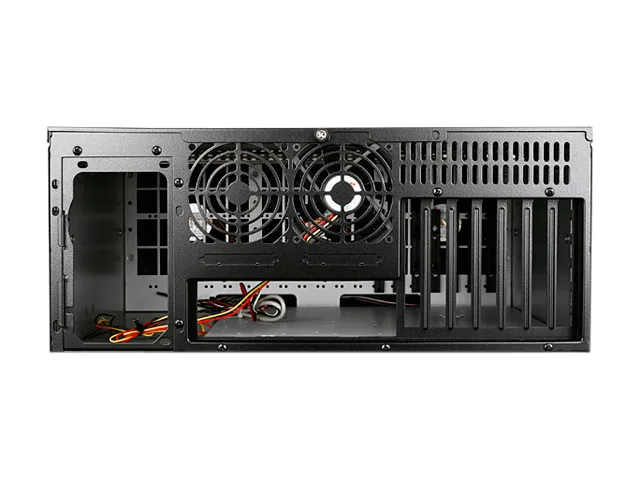

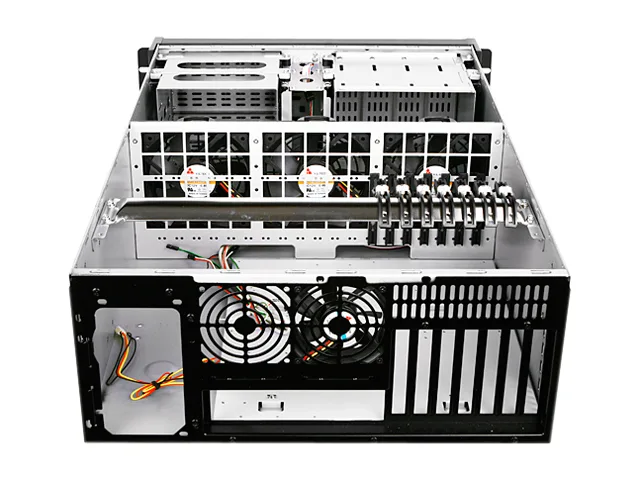

Cooling layout with four fans

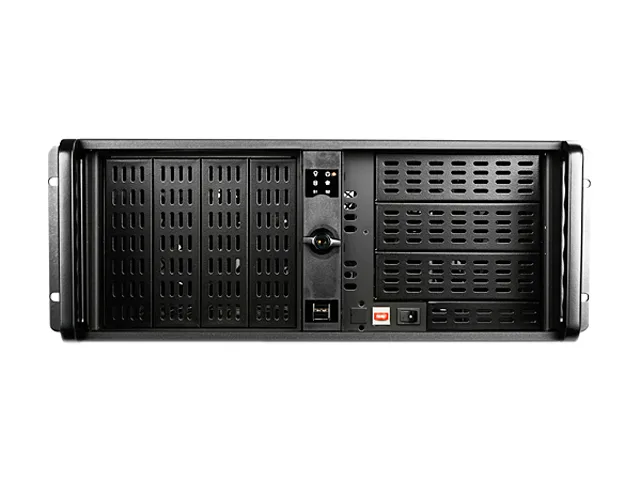

Three 120 mm fans and one 80 mm fan move air through the chassis while a removable filter traps dust. The patented aluminium front panel includes locks for physical security. Power, HDD activity and alarm LEDs sit beside power and alarm reset switches on the front.

Upgrade from shorter rack cases

This chassis replaces 2U or 3U enclosures when longer add-in cards or taller CPU coolers are required. The seven-slot backplane and 12 x 13 inch motherboard clearance accommodate dual-socket boards and multiple GPUs. Buyers needing more than one external 3.5 inch bay or hot-swap bays should look elsewhere.

Prednosti

  • 4U rackmount height fits standard server cabinets
  • Patented aluminium front panel with lock secures internal components
  • Supports EATX, ATX and microATX boards up to 12 x 13 inches
  • Three 120 mm and one 80 mm fans provide active airflow
  • Front USB 2.0 ports allow quick peripheral access

Špecifikácie

BrandiStarUSA
ModelD-400LND-7
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialAluminum / Steel
Motherboard Compatibility12 x 13 (EATX, ATX, microATX)
External 3.5" Drive Bays1
Expansion Slots7
Front Ports2 x USB 2.0
80mm Fans1
120mm Fans3
FeaturesPatented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240, China: 2L01259648.5
Front Access USB 2.0 x 2
120mm x 3, 80mm x 1 Cooling Fan
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
Indicators: Power, HDD
Switches: Power, Reset
Air Filter: Removable & Washable
Optional Fan: 60mm x 2
Air Filter: Removable & Washable
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Dimensions7.00" x 19.00" x 27.90"
Prepravná hmotnosť3.62 kg
Rozmery balenia254 × 76 × 25 mm

Ďalšie verzie tohto modelu

Ďalších 2 v tomto rade

Rovnaký rad, iná pamäť, chladič alebo frekvencia — porovnajte pred rozhodnutím.

Otázky k tomuto produktu

Will my existing 12 x 13 EATX motherboard fit inside the 4U rackmount frame?

Yes, the chassis supports EATX, ATX and microATX boards up to 12 x 13 inches.

How can I verify the cooling system is running correctly once the server is powered on?

Check that the three 120 mm fans and the single 80 mm fan are spinning and that the front Power and HDD LEDs are lit.

Does the package include the 120 mm and 80 mm cooling fans or must they be purchased separately?

The chassis ships with three 120 mm fans and one 80 mm fan already installed.
