Green PCIe x1 network card with single RJ45 port and SATA power connector

STARTECH

STARTECH ST1000PEXPSE 2.5Gbps PoE+ network card

SKU CH-XYDQ-94DAX MPN ST1000PEXPSE

Adds a 2.5Gbps PoE+ port delivering up to 30W over existing copper cabling via a PCIe x1 slot

  • StandardsIEEE802.3at Power over Ethernet (25 W) IEEE802.3af Power ove
  • Speed2.5Gbps
  • Connectors1 x RJ45
  • InterfacePCI-Express
  • Wake On LANWake-on-LAN (WOL)
  • 5Gbps multi-gigabit speed over existing copper cabling
  • Up to 30W PoE+ power delivered through single RJ45 cable
  • IEEE 802.3af and 802.3at compliant for broad device support
  • PCIe 2.1 x1 interface fits full or low-profile slots
  • Wake-on-LAN and RealWoW enable remote system wake-up

Single-port 2.5Gbps PoE+ adapter

The STARTECH ST1000PEXPSE is a PCI Express x1 network card that adds a single RJ45 port with 2.5GBASE-T connectivity and Power over Ethernet Plus sourcing capability. It draws auxiliary power from an internal SATA or SP4 connector to deliver up to 30 W to attached devices. The card supports IEEE 802.3af and 802.3at standards for compatible powered devices.

Installers powering access points or cameras

This card suits administrators who need to supply both data and power to a single PoE device such as a wireless access point, IP camera or RFID reader over existing CAT5e or better cabling. It is not for builders who require multiple PoE ports, fiber uplinks or 10 Gbps throughput from a single expansion slot. Buyers without a spare PCIe x1 lane or internal SATA/SP4 power lead should look at other options.

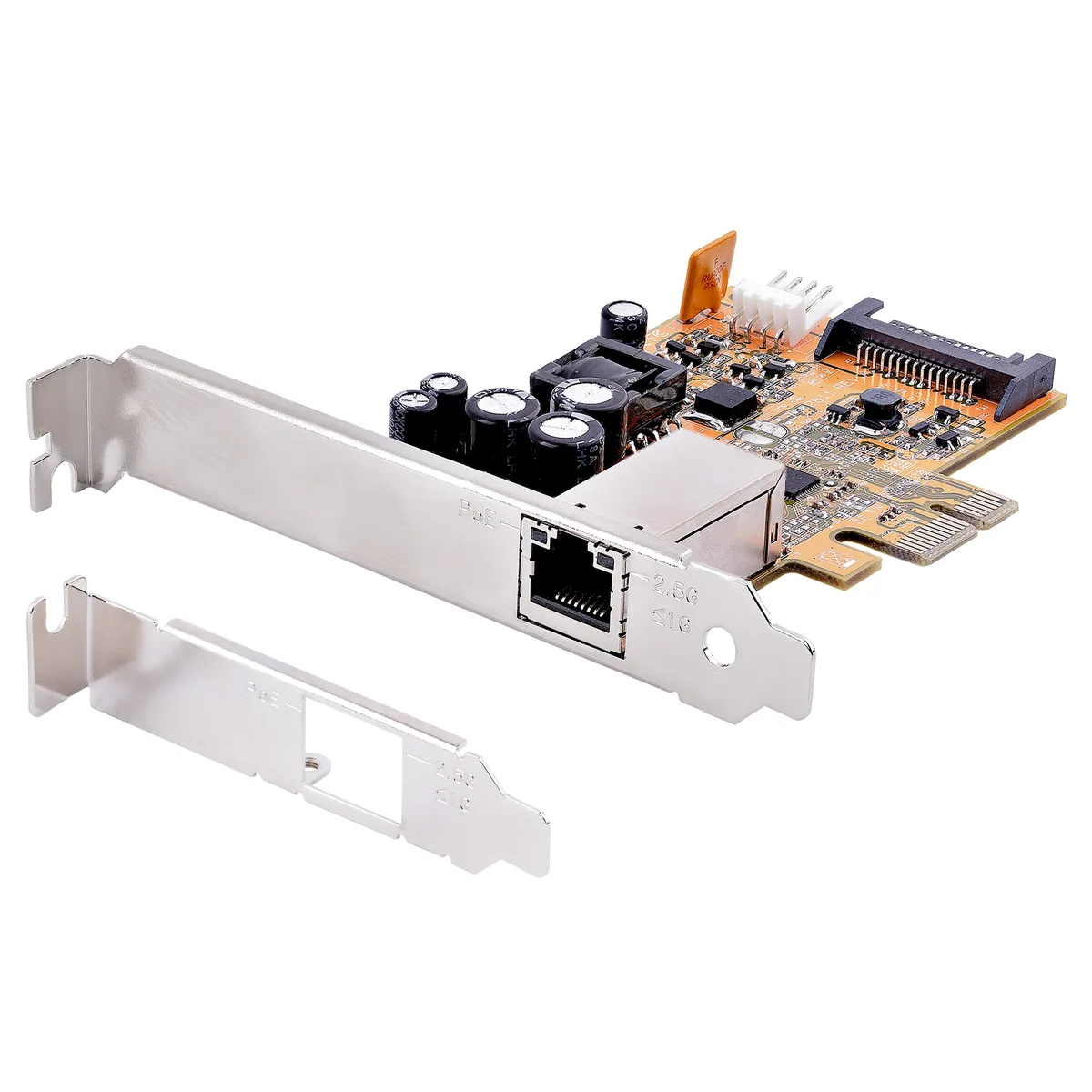

Low-profile bracket and management features

A full-height and a low-profile bracket are included so the card fits standard and slim chassis alike. The on-board Realtek RTL8125B controller provides Wake-on-LAN, RealWoW remote wake, 16K jumbo frames, VLAN tagging and PXE boot support. Link and PoE status LEDs give immediate visual confirmation of connection and power delivery state.

Prednosti

  • 5Gbps multi-gigabit speed over existing copper cabling
  • Up to 30W PoE+ power delivered through single RJ45 cable
  • IEEE 802.3af and 802.3at compliant for broad device support
  • PCIe 2.1 x1 interface fits full or low-profile slots
  • Wake-on-LAN and RealWoW enable remote system wake-up

Špecifikácie

BrandStarTech.com
ModelST1000PEXPSE
Part NumberST1000PEXPSE
StandardsIEEE802.3at Power over Ethernet (25 W)
IEEE802.3af Power over Ethernet (15 W)
IEEE 802.3bz (2.5GBASE-T)
IEEE 802.3ab (1000BASE-T )
IEEE 802.3u (100BASE-TX )
IEEE 802.3i (10BASE-T)
IEEE P802.3az Energy Efficient Ethernet (EEE)
IEEE802.1Q (VLAN tagging)
Wake-on-LAN (WOL)
PCI Express Version 2.1
Speed2.5Gbps
Connectors1 x RJ45
InterfacePCI-Express
Wake On LANWake-on-LAN (WOL)
Prepravná hmotnosť0.23 kg
Rozmery balenia229 × 152 × 51 mm

Otázky k tomuto produktu

Does the card draw its PoE power from the PCIe slot or does it need a SATA power connector?

The card includes a SATA power connector to supply the 30 W PoE budget; the PCIe 2.1 x1 slot alone cannot deliver that power.

Will a 1 Gbps switch or router limit the ST1000PEXPSE to 1 Gbps?

Yes, the port auto-negotiates down to 1000BASE-T, 100BASE-TX or 10BASE-T when the link partner does not support 2.5GBASE-T.

Which LED shows that the card is actually delivering PoE to a camera or access point?

The dedicated PoE LED lights when the card detects a valid 802.3af or 802.3at device and is supplying up to 30 W at 48 V DC.
